Description
Specifications
Description :

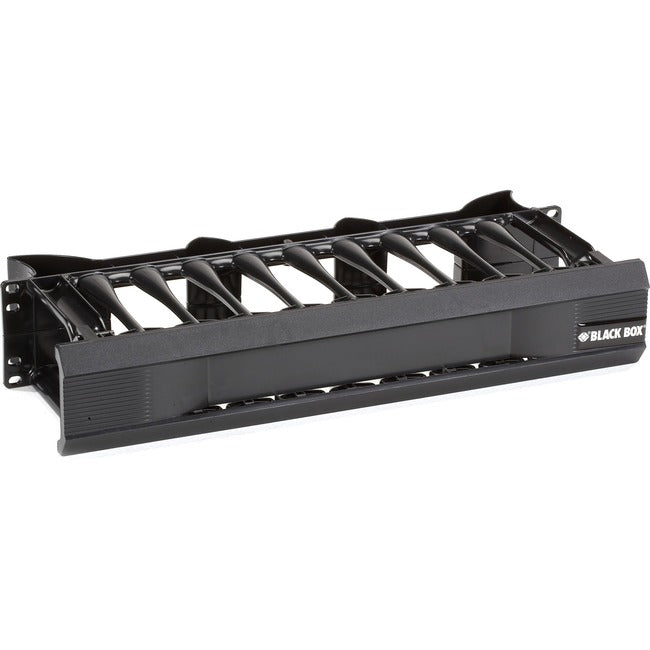

Black Box Horizontal IT Rackmount Cable Manager - 2U, 19" , Single-Sided, Black
- Double-hinged removable covers provide easier access during installation.
- No obstructions. An entire unit can be used for cables routing.
- Available in 1U single-sided and 2U single- and double-sided versions.
- Arrowhead-shaped fingers funnel cables into the base and hold them securely.
- Enable easy cable routing. Insert and remove cables while maintaining retention.
- Rounded end posts maintain proper bend radius and protect cabling as it enters and exits the manager - no tearing and gouging of jackets when quickly routing cable.
- High capacity and extra depth for maximum CAT5e, CAT6, and CAT6a cabling density.
- Cover hinges on the top or bottom and snaps close to protect cabling, or it can be removed.
- The double-sided model has large passthrough holes for running a cable from side to side.
- ""Tool-less"" snap-in design holds manager in place during installation.
- Include 10-32 and 12-24 screws for mounting.
- Add the steel Horizontal Tie-Down Bar to support and maintain a bend radius for cables on the backside of a rack, behind a patch panel, for example. It can also be used to support runs between the horizontal and vertical managers, or above a patch panel to separate and control patch cables.
- Guaranteed for life!
- Horizontal and vertical units can be used alone or together in a 2 or 4 open post frame rack
- Use to manage and route cables efficiently in EIA standard 19" racks.
Product Type: Cable Organizer
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Condition: New
Taa Compliant: Yes
Product Color: Black
Country Of Origin: United States
Panel Width: 19"
Rack Height: 2U
Brand Name: Black Box
Compatibility: Product works with:
- Elite Cable Manager Horizontal Tie-Down Bar
Questions? Contact our FREE Tech Support.
Manufacturer: Black Box Corporation
Product Name: Horizontal IT Rackmount Cable Manager - 2U, 19" , Single-Sided, Black
Manufacturer Part Number: ECMH2US
Manufacturer Website Address: http://www.blackbox.com
Packaged Quantity: 1
Package Contents:
- Horizontal IT Rackmount Cable Manager - 2U, 19" , Single-Sided, Black
- 10-32 and 12-24 Screws
Limited Warranty: Lifetime
Specifications :
General Information
![Horizontal It Rackmount Cable Manager - 2U, 19", Single-Sided, Black, Taa](http://tecisoft.com/cdn/shop/files/Horizontal-It-Rackmount-Cable-Manager-2U-19-Single-Sided-Black-Taa.jpg?v=1682588924&width=1445)
