Description
Specifications
Description :

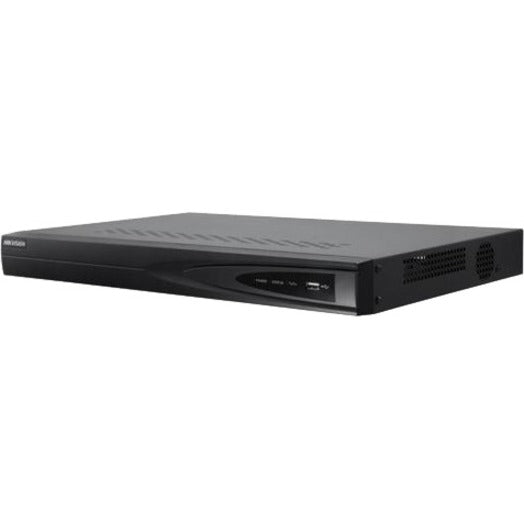

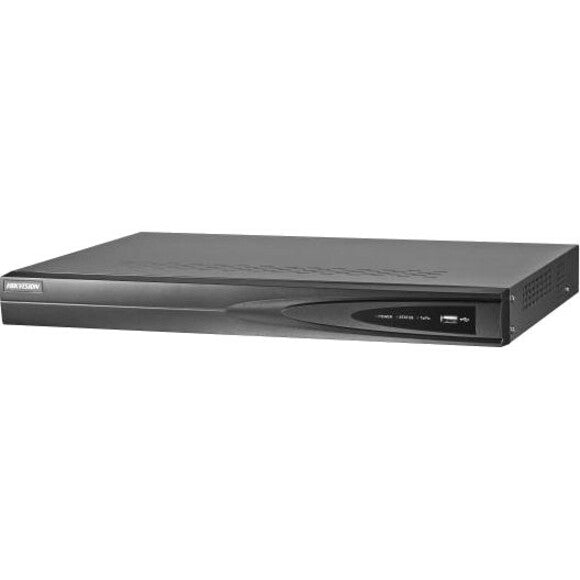

DS-7604NI-E1/4P - 4-ch, SATA, 1xUSB2.0, 1xUSB3.0, 1U, 1kgHikvision Digital Technology DS-7604NI-E1/4P. Video input channels: 4 channels, Maximum resolution: 1920 x 1080 pixels, Resolution at capture speed: 1920x1080@60fps. Maximum storage capacity: 6 TB, HDD interface: Serial ATA. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power consumption (typical): 10 W, Power: 50 W. Width: 315 mm, Depth: 230 mm, Height: 45 mm
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- 4/8/16-ch network cameras can be connected with 25M/50M/100M incoming bandwidth
- Up to 2 SATA interfaces
- Plug & Play with up to 8 independent PoE network interfaces
- Support network detection, including network delay, packet loss, etc
Specifications :
General Information
Manufacturer | Hikvision |
---|---|
Manufacturer Part Number | DS-7604NI-E1/4P |
Manufacturer Website Address | http://www.hikvision.com |
Brand Name | Hikvision |
Product Series | DS-7600 |
Product Model | DS-7604NI-E1/4P |
Product Name | Embedded Plug & Play NVR |
Product Type | Video Surveillance Station |
UPC | 0601279505083 |
HDMI | Yes |
---|
Height | 1.8" |
---|---|
Width | 12.4" |
Depth | 9.1" |
Weight (Approximate) | 2.20 lb |
Limited Warranty | 3 Year |
---|
