Description
Specifications
Description :

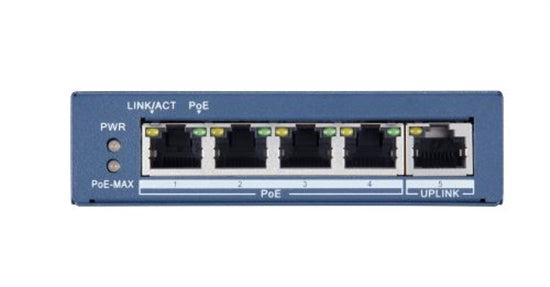

DS-3E0505P-E, 4x 1G RJ-45, PoE, 1x 1G RJ-45, 10 Gbps, 7.44 Mpps, 105x27.6x83.1 mmHikvision Digital Technology DS-3E0505P-E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z. DC input voltage: 48 V. Power over Ethernet (PoE)
DS-3E0505P-E switches are layer 2 Gigabit unmanaged PoE switches, providing 4 Gigabit PoE ports, and one 10/100/1000 Mbps RJ45 port. The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all Gigabit ports guarantee stable transmission of data.
Specifications :
General Information
Manufacturer | Hikvision |
---|---|
Manufacturer Part Number | DS-3E0505P-E |
Manufacturer Website Address | http://www.hikvision.com |
Brand Name | Hikvision |
Product Series | DS-3E05xx-E |
Product Model | DS-3E0505P-E |
Product Name | 4-Port Gigabit Unmanaged PoE Switch |
Product Type | Ethernet Switch |
UPC | 6954273691127 |
Ethernet Technology | Gigabit Ethernet |
---|
Height | 1.1" |
---|---|
Depth | 3.3" |
Weight (Approximate) | 9.17 oz |
