Hewlett Packard Enterprise Procurve 3800-24G-Poe+-2Xg Managed L3 Gigabit Ethernet (10/100/1000) Power Over Ethernet (Poe) 1U Grey

Description :

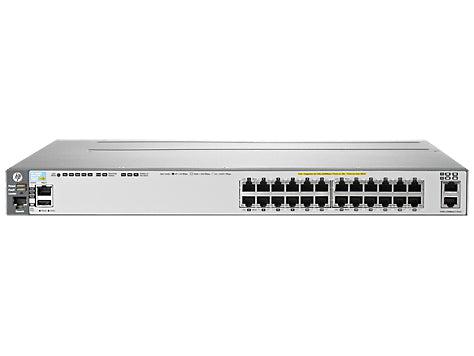

HP 3800-24G-PoE+-2XG Switch

Hewlett Packard Enterprise ProCurve 3800-24G-PoE+-2XG. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 65500 entries, Switching capacity: 88 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The HP 3800 Switch Series is a family of nine fully managed Gigabit Ethernet switches available in 24-port and 48-port models, with or without PoE+, and with either SFP+ or 10GBASE-T uplinks. The 3800 Switch Series utilizes the latest HP ProVision ASIC technology and advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry. Meshed stacking technology is implemented in the HP 3800 Switch Series to deliver chassis-like resiliency in a flexible, stackable form factor.

Software-defined networking

• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths


Quality of Service (QoS)

• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis


Management

• Friendly port names: allow assignment of descriptive names to ports


Connectivity

• Jumbo frames: on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services


Performance

• Selectable queue configurations: allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications


Resiliency and high availability

• Nonstop switching and routing: improves network availability to better support critical applications such as unified communication and mobility; traffic will continue to be forwarded during failover when the backup member of the stack becomes the commander


Layer 2 switching

• GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs
