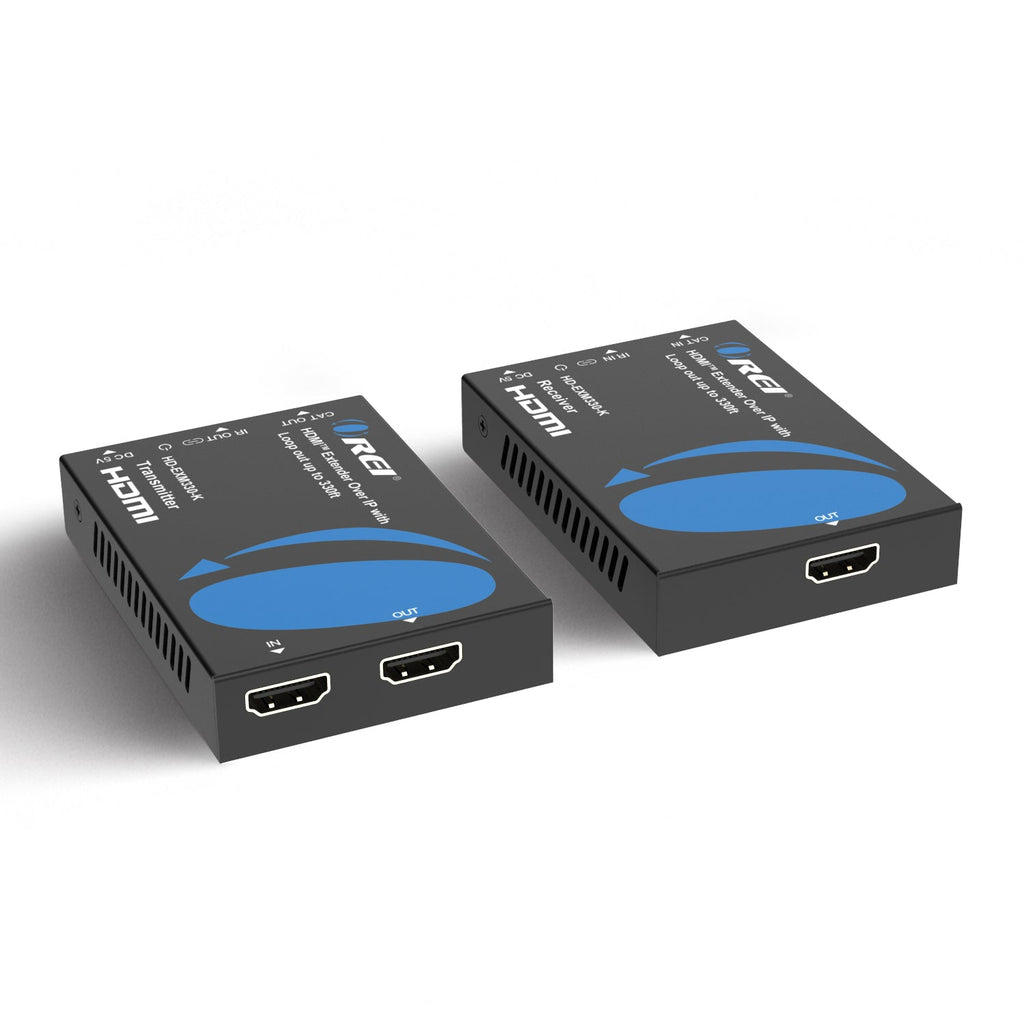

HDMI Over IP Extender Full HD 1080P upto 330 ft CAT5e/6 Cable with IR (HD-EXM330-K)

Name: HDMI Over IP Extender Full HD 1080P upto 330 ft CAT5e/6 Cable with IR (HD-EXM330-K)
Brand: OREI
SKU: HD-EXM330-K
Price: 89.99 USD
Availability: InStock

HDMI Over IP Extender Full HD 1080P upto 330 ft CAT5e/6 Cable with IR (HD-EXM330-K)

SKU:HD-EXM330-K

$89.99

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

Description

Specifications

Reviews, Que. & Ans.

Description :

OREI 1080p Over IP Extender over Ethernet up to 330 feet - With Uni-directional IR (HD-EXM330-K)

HDMI 1.4 and HDCP 1.4 compliant
Video resolutions up to 1080p@60Hz
6.75Gbps video bandwidth
HDMI loop output port on the transmitter unit to connect a display at the source

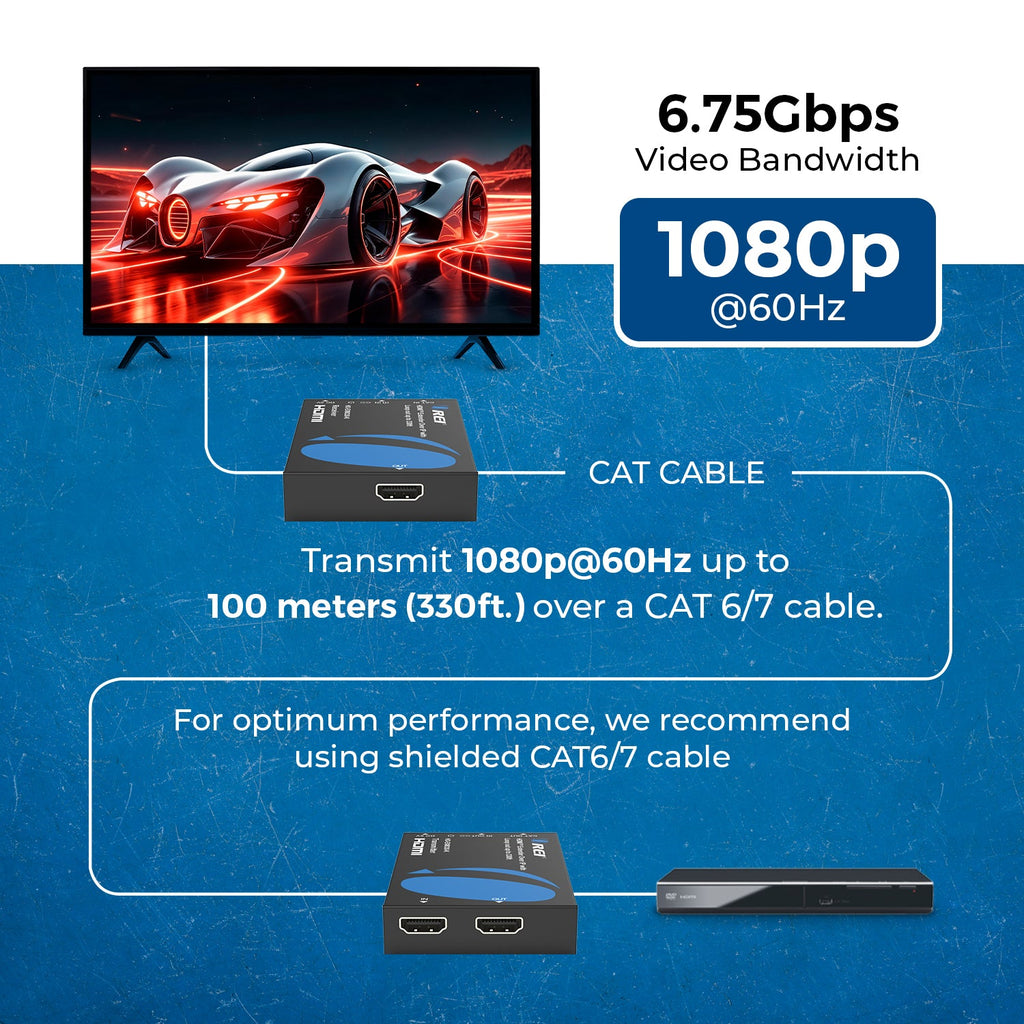

Signal transmission distance up to 100 meters / 330 feet over a CAT6 cable
Standard 1G & 2L Switch connection support
Note: This device does not work over your existing LAN switch, it requires a dedicated network switch
Uni-direction IR control signal transmission (from receiver to transmitter)
Compact design and easy plug-and-play installation

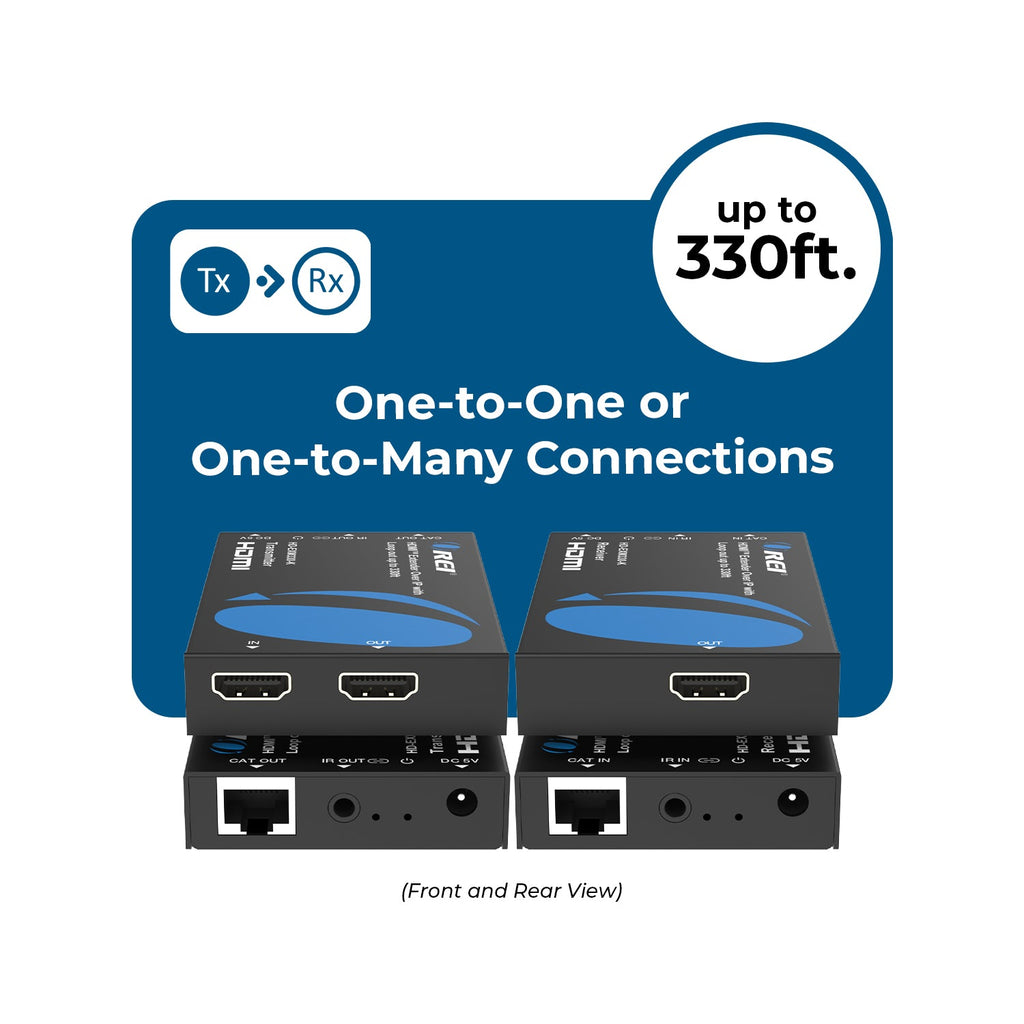

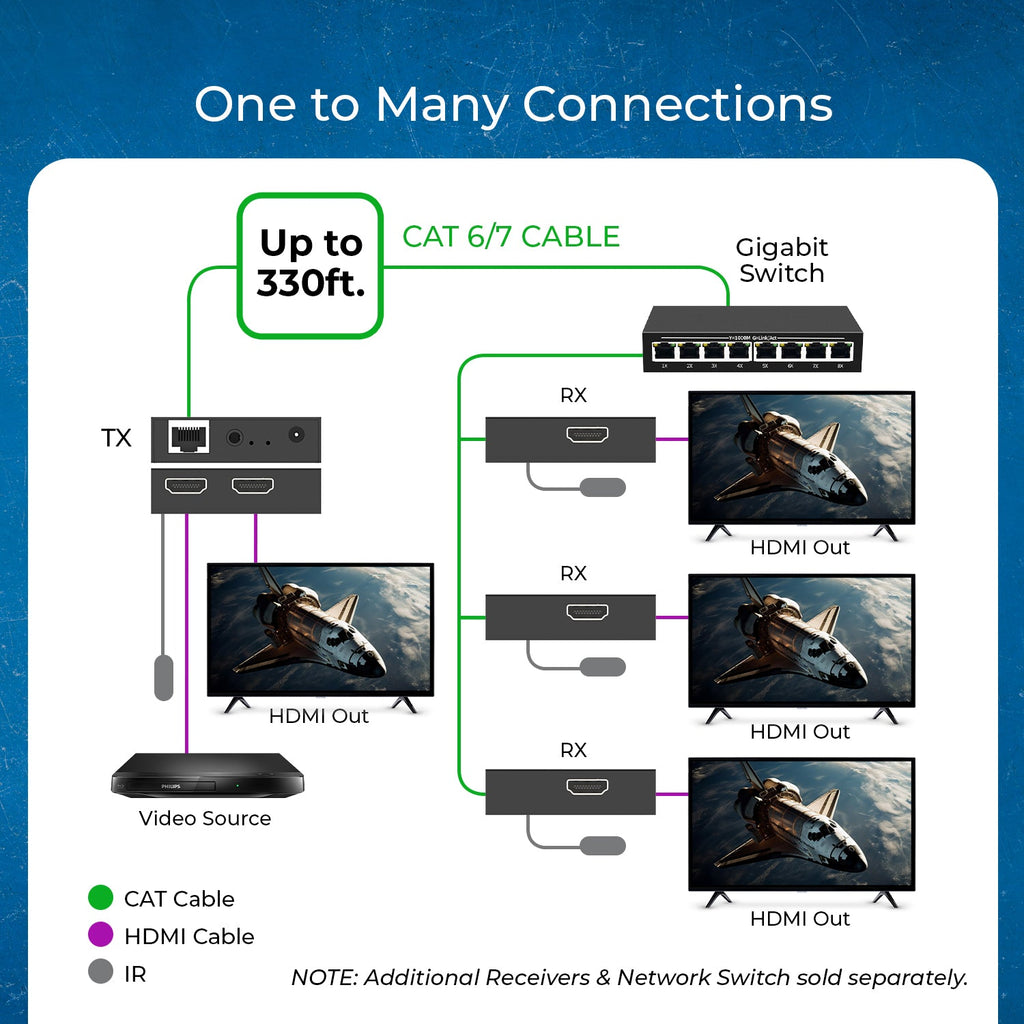

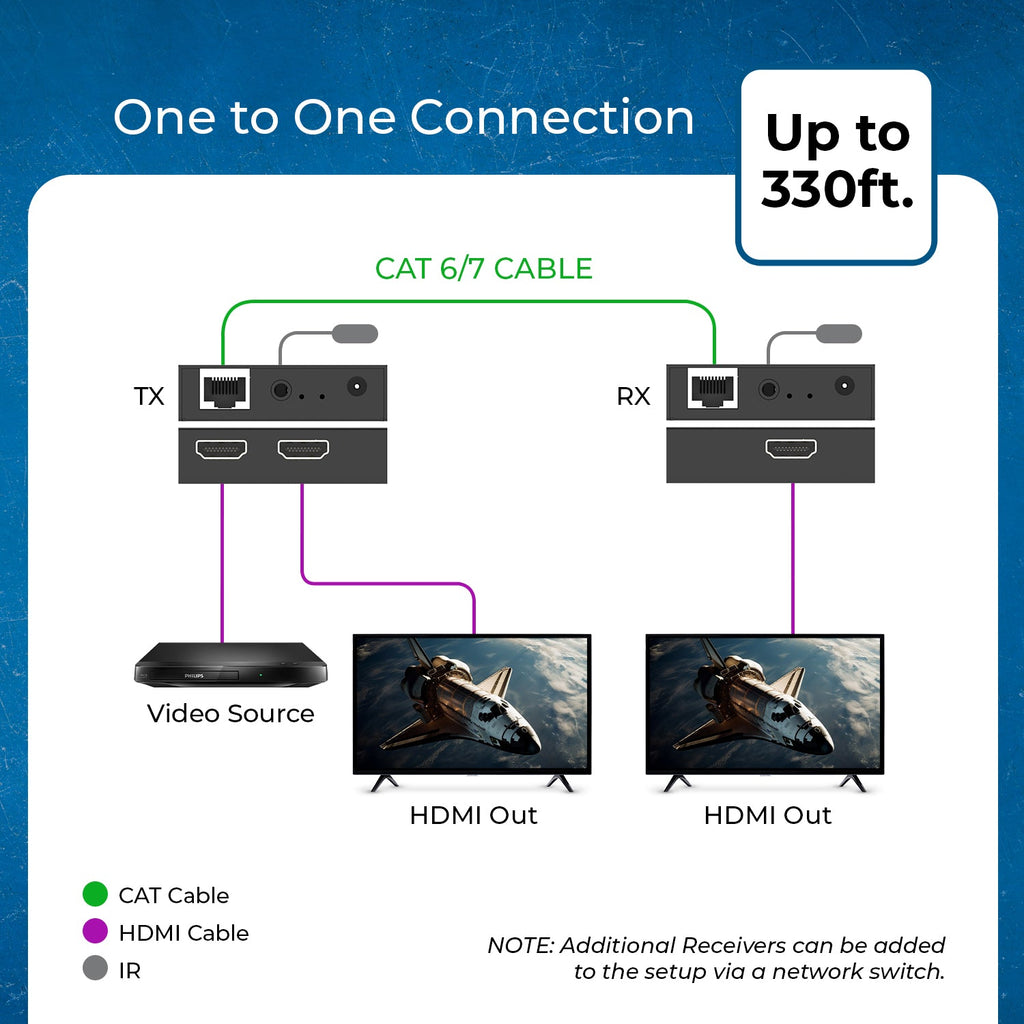

The HD-EXM330-K is an over-IP (one to many) HDMI extender, that can be connected to a standard 1GB switch or any 2L switch, enabling multiple receivers to be connected to the switch. It can extend HDMI signals up to 330 feet at 1080P@60Hz. It is HDMI 1.4 and HDCP 1.4 compliant, supporting video resolutions up to 1080p@60Hz (Full HD) with a video bandwidth of 6.75Gbps. The device features uni-directional IR pass-through from the receiver unit to the transmitter, to control the source device from the receiver’s location. The transmitter unit has an HDMI loop output port to connect a display at the source location. With a compact design and robust build, this device is ideal for commercial and personal uses.

[tab]

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × CAT [RJ45, 8-pin female]
	CONTROL:	1 × IR OUT [3.5mm Stereo Mini-jack]
Receiver:	INPUT:	1 × CAT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
	CONTROL:	1 × IR IN [3.5mm Stereo Mini-jack]

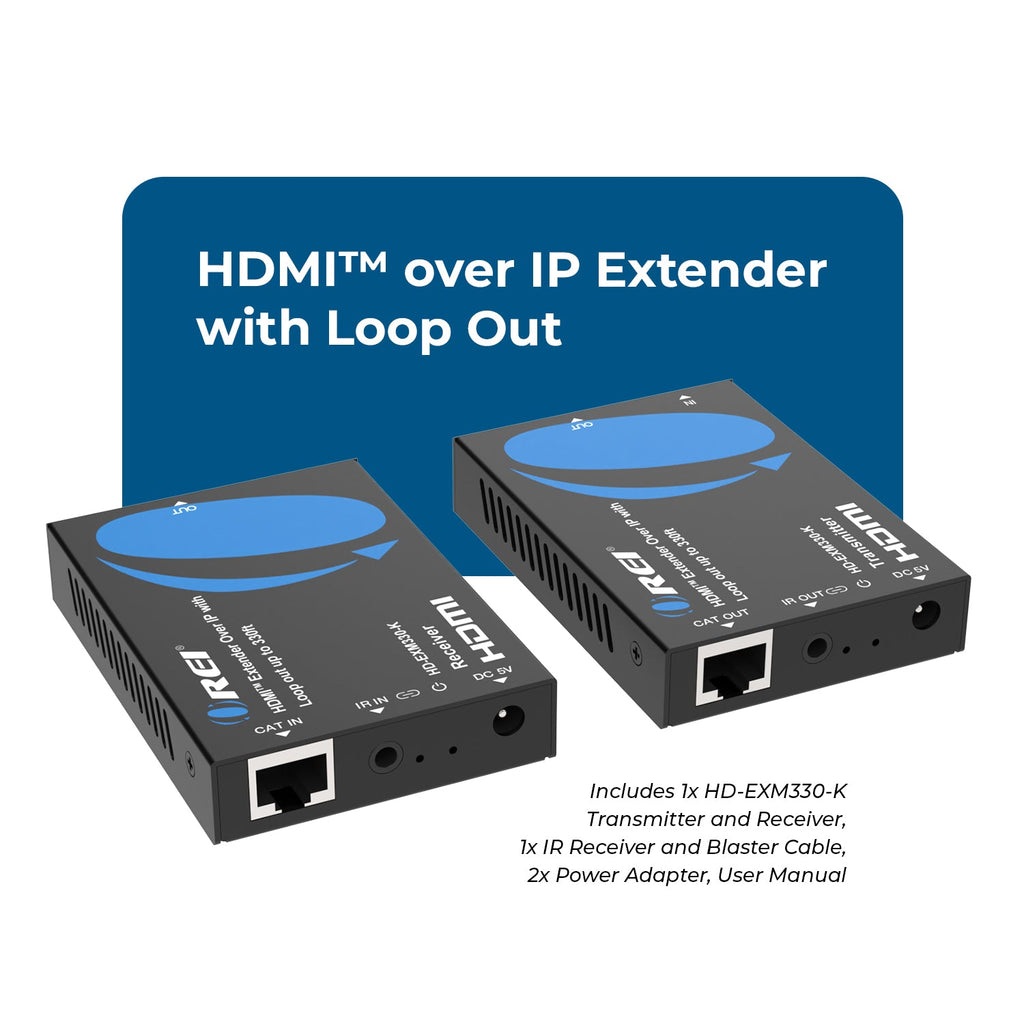

PACKAGE CONTENTS

1x Transmitter

1x Receiver

1x IR Blaster cable

1x IR Receiver cable

2x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

1080P@60Hz:

330 Feet

VIDEO OUTPUT

Video Bandwidth:	6.75Gbps
Video Resolutions:	Up to 1080p@60Hz

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	No
IR Control:	Yes
Downmix:	No
Downscale:	No
Over IP:	Yes
HDBaseT:	No
RS-232:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO SUPPORT

HDMI Audio Formats:

PCM 2.0ch

COMPLIANCES

HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4

POWER

Power Consumption:	TX: 1.5W (Max) & RX: 1.1W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 5V/2A

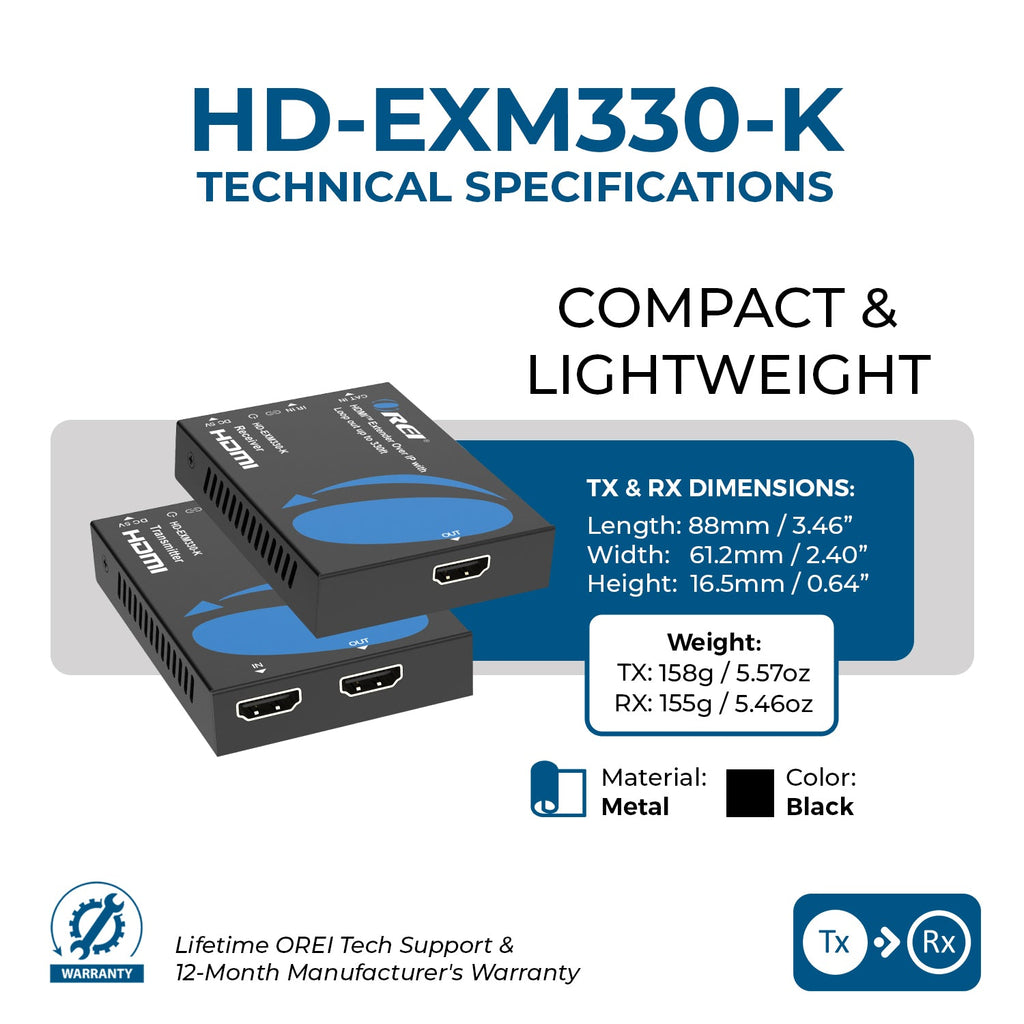

DIMENSIONS & WEIGHT

Transmitter:	Length:	88mm / 3.47in
	Width:	61.2mm / 2.41in
	Height:	16.5mm / 0.65in
	Weight:	158g / 5.57oz
Receiver:	Length:	88mm / 3.47in
	Width:	61.2mm / 2.41in
	Height:	16.5mm / 0.65in
	Weight:	155g / 5.47oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
