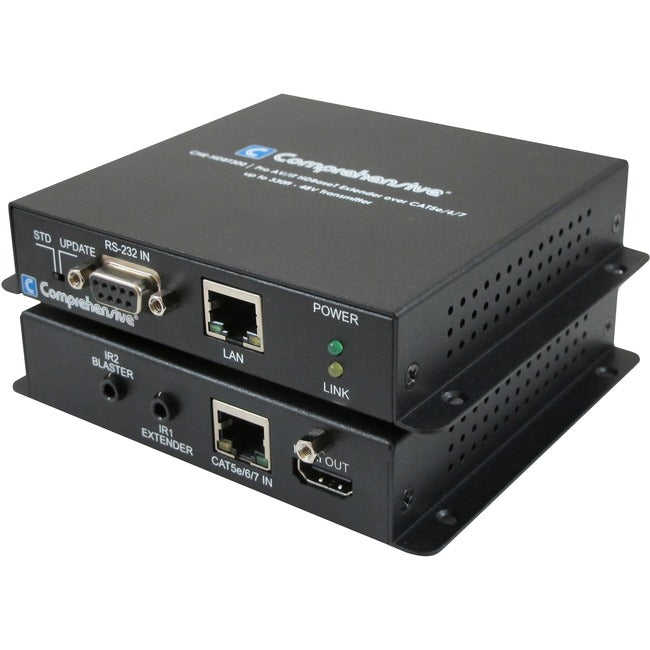

Comprehensive Video Extender Transmitter/Receiver CHE-HDBT300

Description :

Comprehensive Video Extender Transmitter/Receiver

Extend your HDMI signal up to 330ft with Comprehensive's CHE-HDBT300 HDBaseT™ Extender!

Comprehensive's CHE-HDBT300 HDBaseT™ Extender, Transmitter & Receiver can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 330 feet. This HDBaseT™ Extender features full 5Play convergence allowing the transmission of video, Audio, Control (IR/RS-232), Power over Ethernet (PoE) and LAN serving (Ethernet). Supports video signals up to Ultra-high-definition 4k@30Hz, including 1080p@60Hz. The receiver can be powered by the 48V PoE function of the transmitter, allowing for greater flexibility in installations. Supports Consumer Electronics Control bypass. Enclosure made of durable metal.

This Extender kit is perfect for Meeting room presentations, Home entertainment, Classrooms, and anywhere in between. All components are RoHS Compliant. 3 Year Hassle Free Warranty.

• Durable Metal Enclosure


• 3 Year Warranty


• Supports CEC bypass


• Easy Installation


• Power over Ethernet from the transmitter


• Ultra-high-definition 4k@30Hz compatible


• Full HDBaseT™ 5play features include Video, Audio, Control (IR or RS-232), Power, and an Ethernet connection


• Send uncompressed audio/video and IP data over a CAT5e/6/7 cable up to 330 feet

Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Condition: New
Transmitter Height: 0.90"
Transmitter Width: 4"
Transmitter Depth: 4.40"
Receiver Height: 0.90"
Receiver Width: 4"
Receiver Depth: 4.20"
Transmitter Weight (Approximate): 1.20 lb
Receiver Weight (Approximate): 1.20 lb
Brand Name: Comprehensive
Manufacturer: Comprehensive Connectivity Company
Product Name: Video Extender Transmitter/Receiver
Manufacturer Part Number: CHE-HDBT300
Manufacturer Website Address: http://www.comprehensiveco.com
Limited Warranty: 3 Year
