Havis C-Ttp-Inut-200 Mounting Kit

Description :

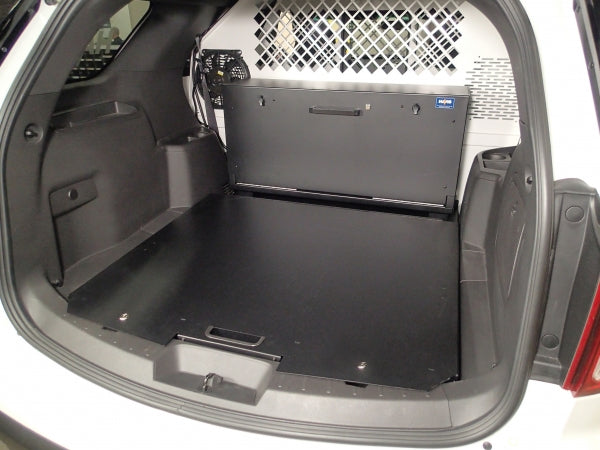

2013-2017 Ford Interceptor Utility Premium Fold Up Cargo Plate

Havis C-TTP-INUT-200. Package weight: 31.8 kg

Product Details:
- Premium fold up cargo plate fits 2013-2017 Ford Interceptor Utility
- Plate assembly with fold up equipment platform for mounting electronic components
- Replaces OEM rear cargo floor / spare tire cover and attaches without drilling holes
- Equipment to be mounted on the underside of plate for protection (6" high space from top of spare tire to bottom of plate)
- Installer must drill and bolt on equipment as desired
- Door is hinged down in the closed position
- Works with Havis, inc. K9 inserts
- Works with some other mfg. rear partitions by removing or modifying forward filler panel. partition brackets may also need to be modified.
- As of 8/1/15 two lower brackets were added to provide additional support for heavy items mounted on top of tray.
- Optional retrofit support bracket kit available for trays purchased prior to 8/1/15 (part number CM007390)
- Includes two (2) gas springs for assistance in opening or closing door
- Does not work with retail Ford Explorer
- Optional floor mat available - 35.5" wide x 38.5" long x .188" thick -heavy duty masticated rubber (part number - KNM01029-K4)
- Ships motor freight

Specifications:
- 14-gauge formed steel with a black medium texture powder coat finish
- 80 lb. maximum weight rating for equipment that is bolted to the underside of platform. (weight evenly distributed)
- Capable of holding platform in the open position with 180 lbs. of evenly distributed equipment weight (combined top and underside of platform)
- 400 lb. weight carrying capacity for cargo stored on top of the platform when closed. (will not hold 400 lbs. in open position)
- Mounting surface for equipment is 37.25" wide x 31" deep (front to back) x 6" high (to top of spare tire)
- Top of main platform measures - 40.5" wide x 38" deep (front to back)
- Forward trim panel measures - 40.5" wide x 12" deep (front to back)
- Forward trim panel goes up to OEM rear seats or K9 kit Model K9-F18 (trim panel not used with K9-F18-PT)
- Works with C-TTP-INUT-2 (sold separately)
- Gross Weight: 70.00 lbs
