Gnss/698-960/1710-2700Mhz 2In1,Screwmount 50 48Mm Excl Nut

Description :

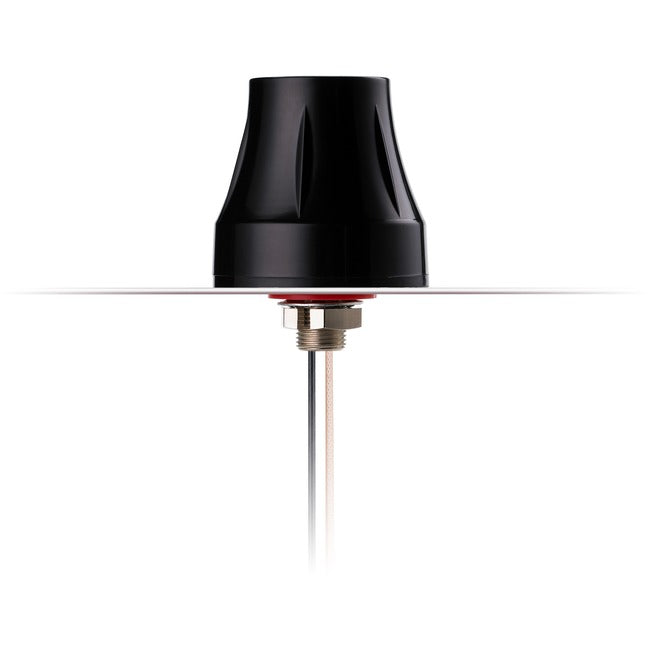

Taoglas Olympian 2in1 LTE 4G/3G/2G and GPS/GLONASS/GALILEO
The Olympian MA140 is a high performance combination LTE and GPS/GLONASS/GALILEO screw mount antenna in a compact housing, for external use on vehicles and outdoor assets worldwide. The LTE antenna functions equally well on 2G and 3G. The GPS/GLONASS/GALILEO antenna has stable gain and radiation patterns on both bands.

The antenna can be mounted on metal and plastic structures. Customized cable length and connectors are available.

Durable UV resistant IP67 ABS housing is resistant to vandalism and direct attack. A rubber O-ring is provided under the antenna to prevent water entering under the antenna. If the lower frequency bands are required the antenna functions best when mounted on a metal ground-plane, but can still work well with short cable lengths below 1 meters on plastic structures and is locked from the inside of the structure by a nut. The thread is extra small, allowing for installation in the tightest of environments.

Customized cable length and connectors are available. Taoglas recommends minimum of 1m cable length for stable antenna performance. When mounted on a ground-plane, the antenna can function well at all frequencies up to 3 meters cable length. Generally, antenna efficiency of less than 20% at the connector would lead to unreliable wireless system performance.

For better efficiency, especially on longer cable lengths up to 5 meters, a short 300mm cable can be used as standard, and then add a low loss 5 meter CFD200 extension cable SMA(F) to SMA(M) [CAB.0149].

If your device requires certification for PTCRB or US/Canadian network operators please contact Taoglas USA to check is this antenna suitable.

• 48mm Height/50mm Diameter


• Heavy duty screw mount


• UV and vandal resistant ABS housing and thread.


• IP-67 Waterproof


• Cables and Connectors Customizable


• RoHS Compliant

Product Type: Antenna
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Diameter: 1.97"
Country Of Origin: Taiwan
Brand Name: Taoglas
Form Factor: Screw Mount
Manufacturer: Taoglas
Product Name: Olympian 2in1 LTE 4G/3G/2G and GPS/GLONASS/GALILEO
Package Type: Bulk
Product Line: Olympian
Application/Usage: Cellular Network
Manufacturer Part Number: MA140.A.LB.001
Manufacturer Website Address: http://www.taoglas.com
Packaged Quantity: 1
Weight (Approximate): 3.31 oz
