GIGABYTE

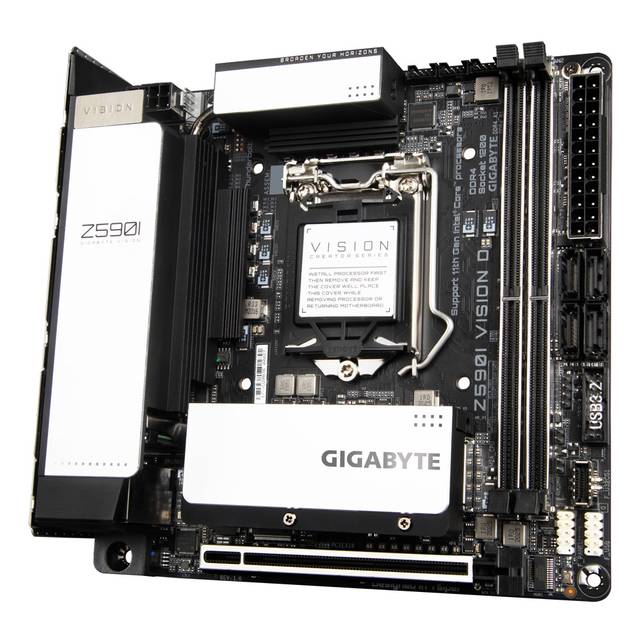

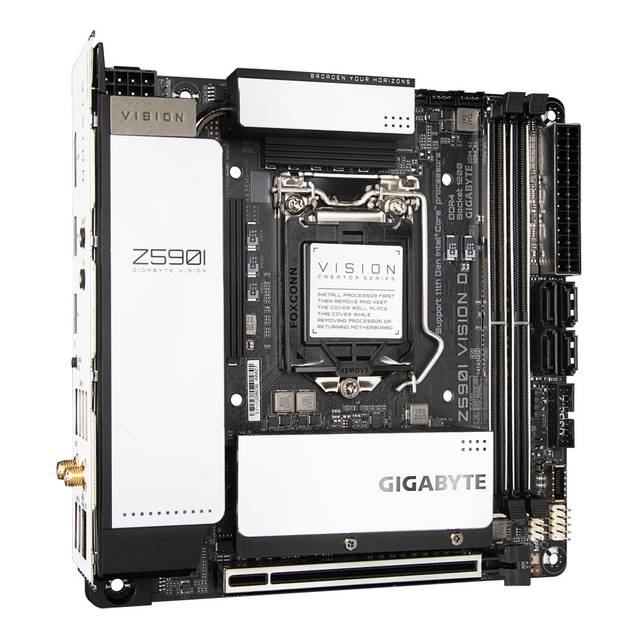

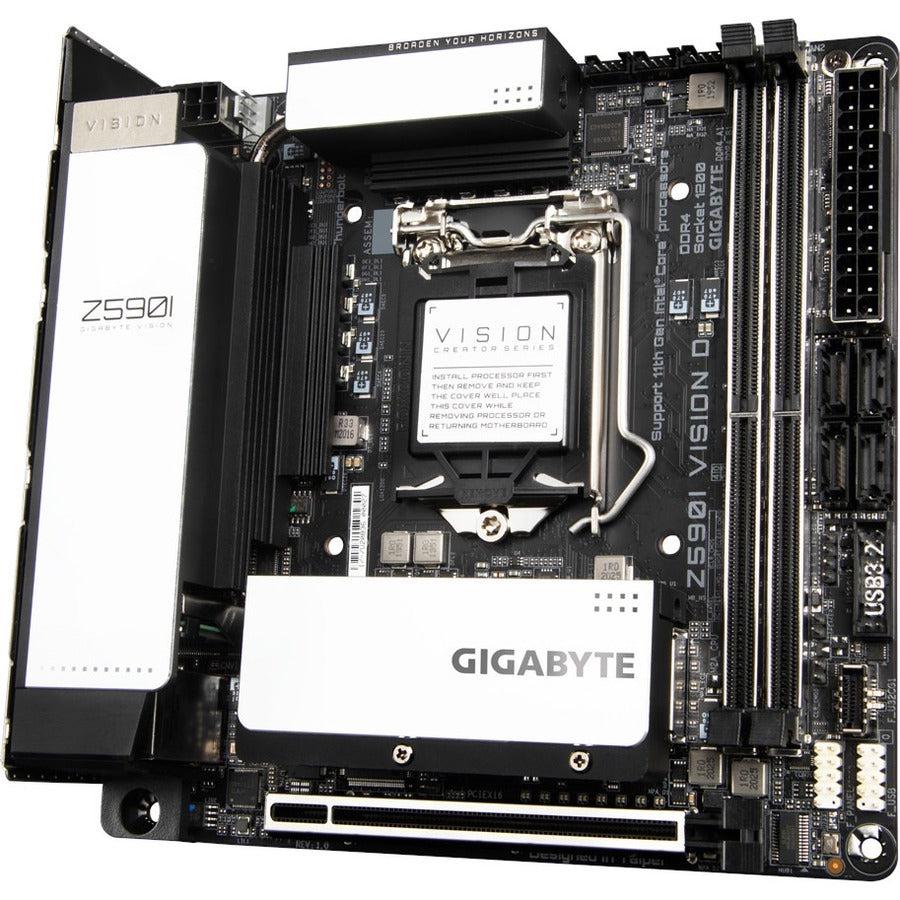

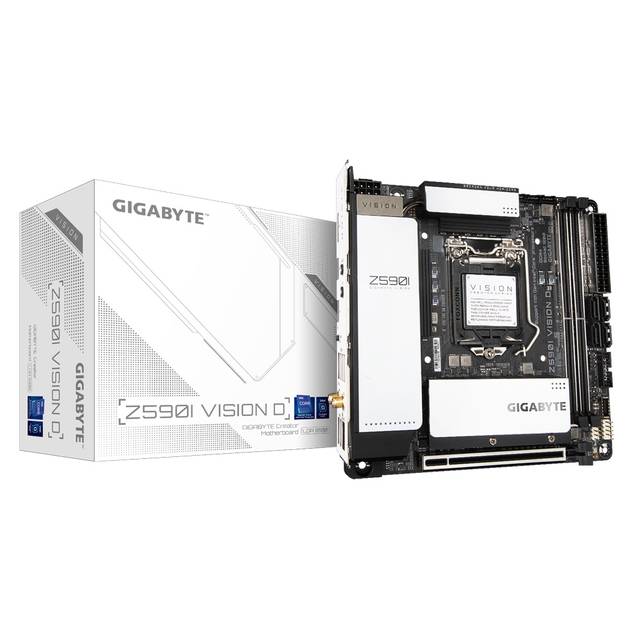

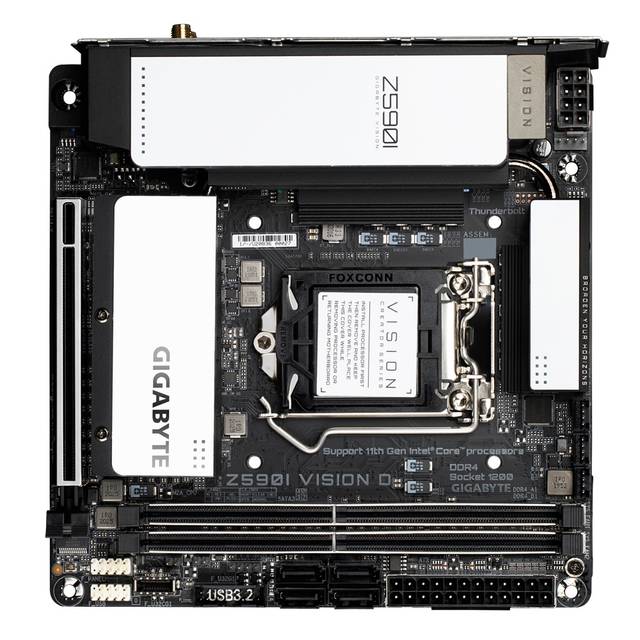

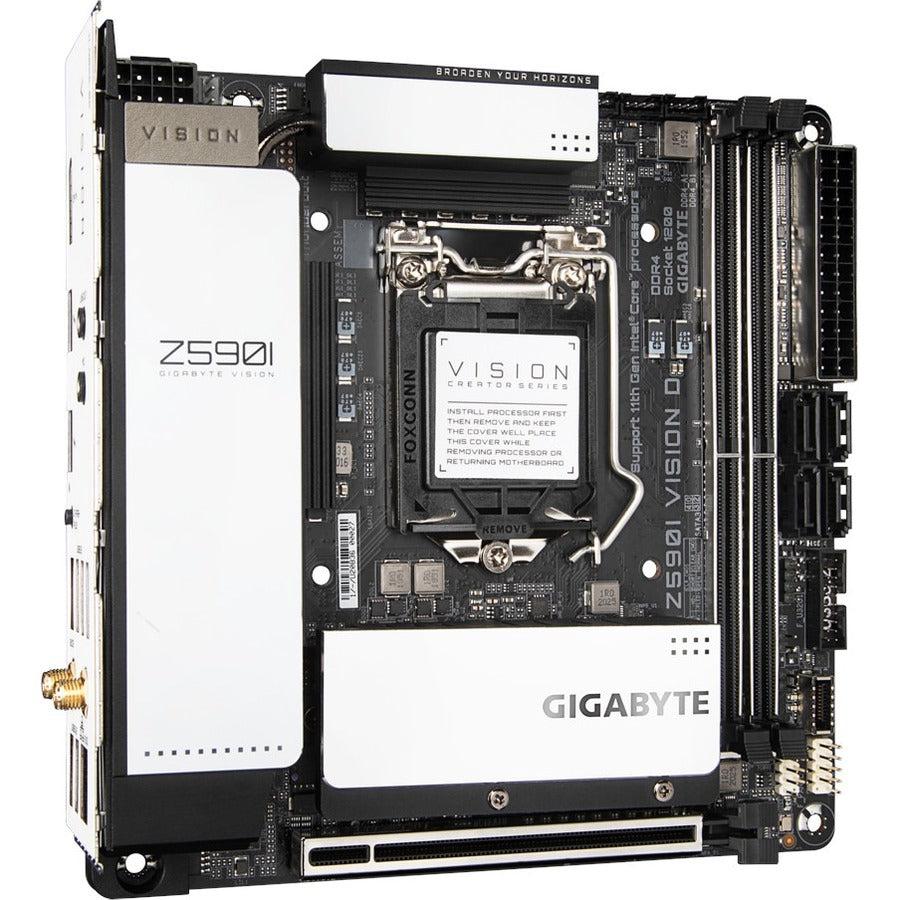

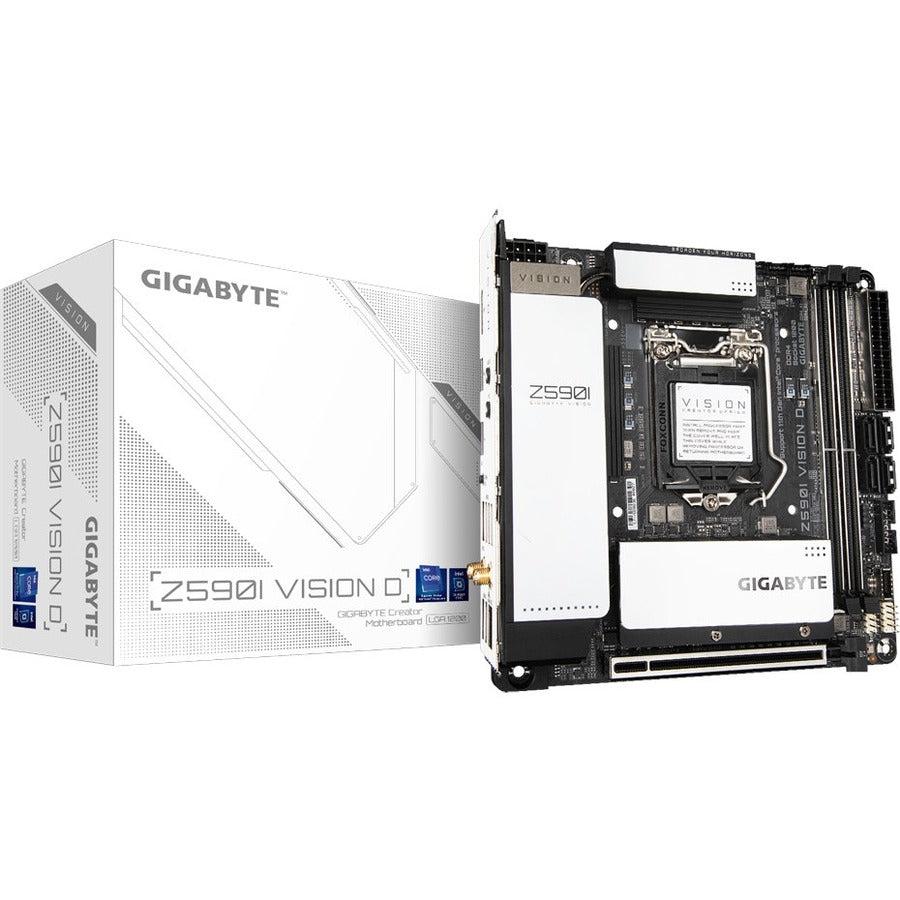

Gigabyte Z590I Vision D Socket Lga1200/ Intel Z590/ Ddr4/ Sata3&Usb3.2/ M.2/ Wifi&Bluetooth/ Mini-Itx Motherboard

Gigabyte Z590I Vision D Socket Lga1200/ Intel Z590/ Ddr4/ Sata3&Usb3.2/ M.2/ Wifi&Bluetooth/ Mini-Itx Motherboard

SKU:Z590I VISION D

Regular price $770.00
Regular price Sale price $770.00
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Don't forget your OS, we have Windows 11 OEM10 OEMDownload, and USB versions available.

          • Mfr Part Number: Z590I VISION D
          • CPU:
            • LGA1200 package:
              - 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
              - 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
              - L3 cache varies with CPU
          • Chipset: Intel Z590 Express Chipset
          • Memory:
            • 11th Generation Intel Core i9/i7/i5 processors:
              - Support for 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
            • 10th Generation Intel Core i9/i7 processors:
              - Support for DDR4 2933/2666/2400/2133 MHz memory modules
            • 10th Generation Intel Core i5/i3/Pentium/Celeron processors:
              - Support for DDR4 2666/2400/2133 MHz memory modules
            • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
            • Dual channel memory architecture
            • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
            • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
            • Support for Extreme Memory Profile (XMP) memory modules
          • Onboard Graphics:
            • Integrated Graphics Processor+Intel Thunderbolt 4 Controller:
              - 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)
          • Audio:
            • Realtek ALC4080 codec
            • Support for DTS: X Ultra
            • High Definition Audio
            • 2-channel
          • LAN: Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
          • Wireless Communication module:
            • Intel Wi-Fi 6 AX200
              - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
              - BLUETOOTH 5.1
              - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
          • Expension Slots: 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
          • Storage Interface:
            • CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
            • Chipset:
              - 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
              - 4 x SATA 6Gb/s connectors
            • Support for RAID 0, RAID 1, RAID 5, and RAID 10
            • Intel Optane Memory Ready
          • USB:
            • Chipset:
              - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
              - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
              - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
            • Chipset+Intel Thunderbolt 4 Controller:
              - 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
            • Chipset+USB 2.0 Hub:
              - 2 x USB 2.0/1.1 ports available through the internal USB header
          • Internal I/O Connectors:
            • 1 x 24-pin ATX main power connector
            • 1 x 8-pin ATX 12V power connector
            • 1 x CPU fan header
            • 3 x system fan headers
            • 1 x addressable LED strip header
            • 1 x RGB LED strip header
            • 4 x SATA 6Gb/s connectors
            • 2 x M.2 Socket 3 connectors
            • 1 x front panel header
            • 1 x speaker header
            • 1 x USB Type-C header, with USB 3.2 Gen 1 support
            • 1 x USB 3.2 Gen 1 header
            • 1 x USB 2.0/1.1 header
            • 1 x Clear CMOS jumper
            • 1 x chassis intrusion header

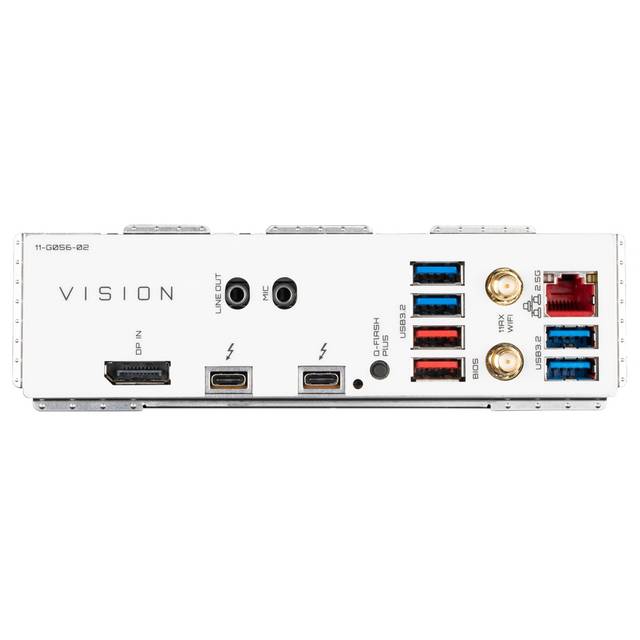

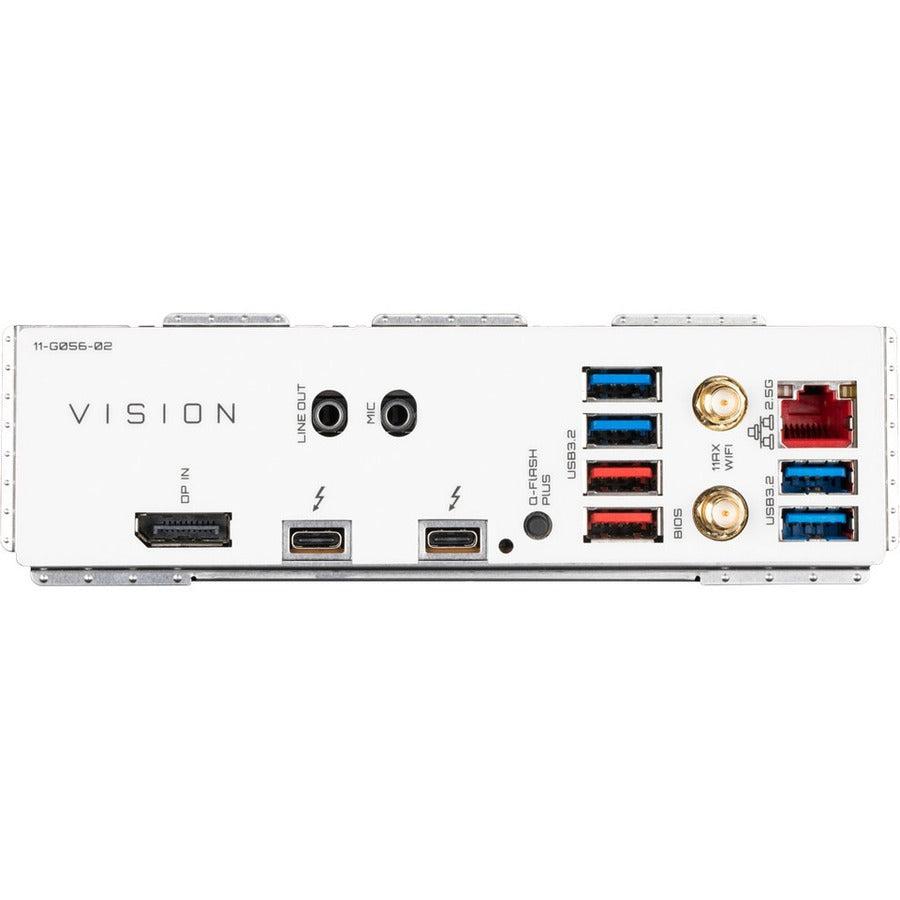

          • Back Panel Connectors:
            • 1 x DisplayPort In Port
            • 2 x Thunderbolt 4 connectors (USB Type-C port, with USB 3.2 Gen 2 support)
            • 2 x USB 3.2 Gen 2 Type-A ports (red)
            • 4 x USB 3.2 Gen 1 ports
            • 1 x Q-Flash Plus button
            • 1 x RJ-45 port
            • 2 x SMA antenna connectors (2T2R)
            • 2 x audio jacks
          • I/O Controller: iTE I/O Controller Chip
          • H/W Monitoring:
            • Voltage detection
            • Temperature detection
            • Fan speed detection
            • Fan fail warning
            • Fan speed control
          • BIOS:
            • 1 x 256 Mbit flash
            • Use of licensed AMI UEFI BIOS
            • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
          • Unique Features:
            • Support for APP Center
              - @BIOS
              - EasyTune
              - Fast Boot
              - Game Boost
              - ON/OFF Charge
              - RGB Fusion
              - Smart Backup
              - System Information Viewer
            • Support for Q-Flash Plus
            • Support for Q-Flash
            • Support for Xpress Install
          • Bundled Software:
            • Norton Internet Security (OEM version)
            • cFosSpeed
          • Operating System: Support for Windows 10 64-bit
          • Form Factor: Mini-ITX Form Factor; 17.0cm x 17.0cm
          • *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

          Specifications :

          General Information

          Manufacturer GIGABYTE Technology, Inc
          Manufacturer Part Number Z590I VISION D
          Manufacturer Website Address http://www.gigabyte.us
          Brand Name Gigabyte
          Product Series VISION
          Product Model Z590I VISION D
          Product Name Z590I VISION D (rev. 1.0) Desktop Motherboard
          Product Type Desktop Motherboard
          UPC 0889523027455

          Chipset

          Chipset ManufacturerIntel

          Network & Communication

          Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
          BluetoothYes
          Total Number of USB Ports6
          Number of USB 3.2 Gen 1 Ports4
          Number of Thunderbolt 4 Ports2
          Width6.7"
          Depth6.7"

          Miscellaneous

          Package Contents
          • Z590I VISION D (rev. 1.0) Desktop Motherboard
          • Norton Internet Security (OEM version)
          • cFosSpeed

          Warranty

          Limited Warranty3 Year
