GIGABYTE

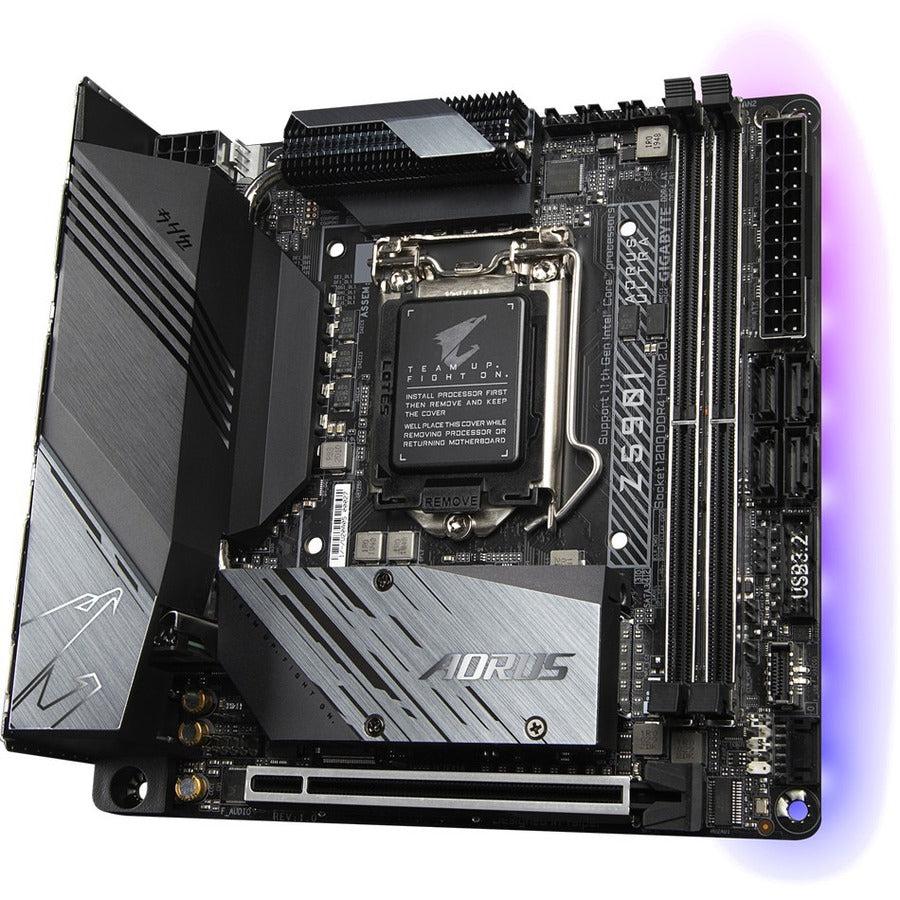

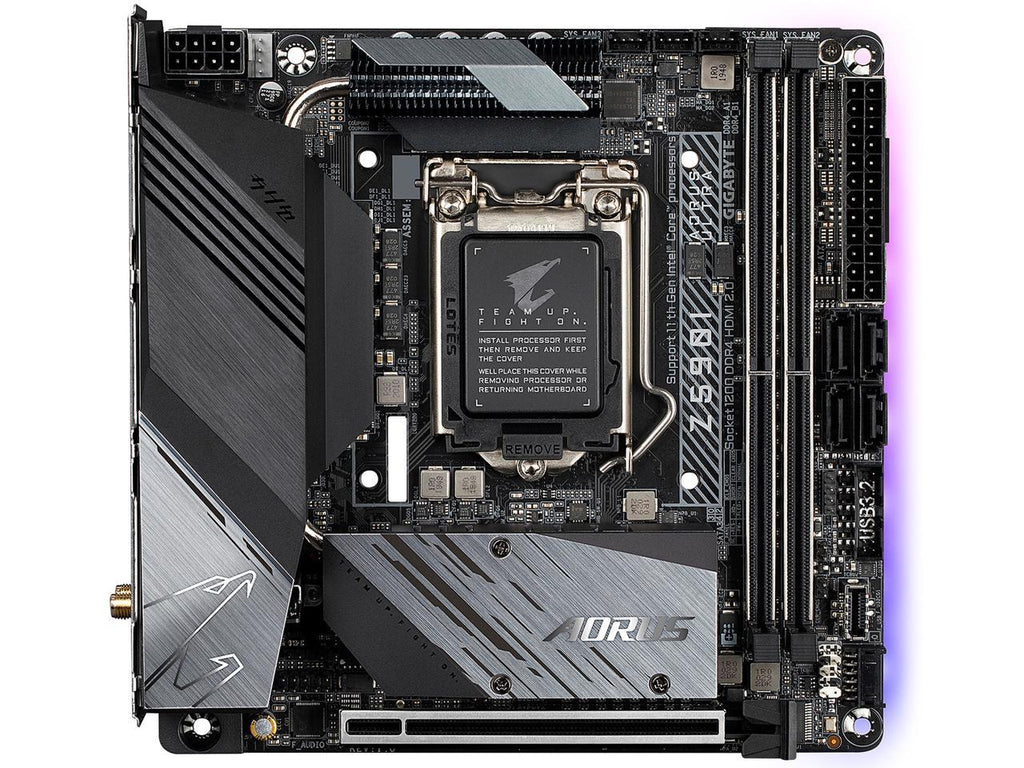

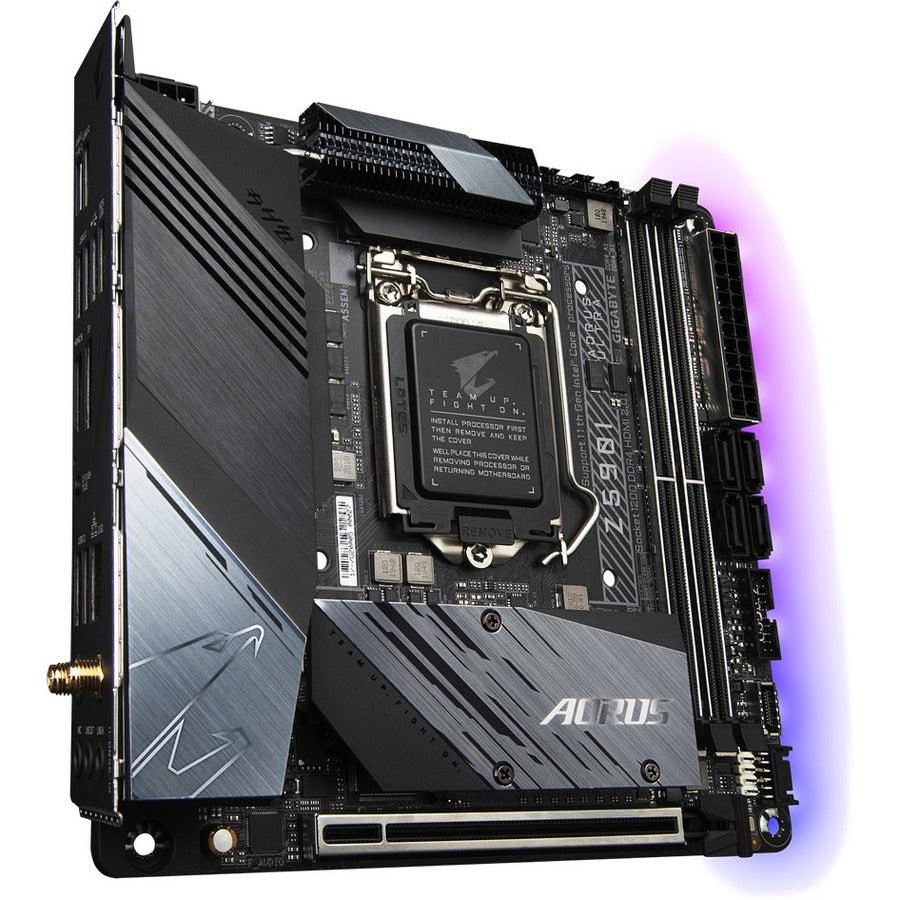

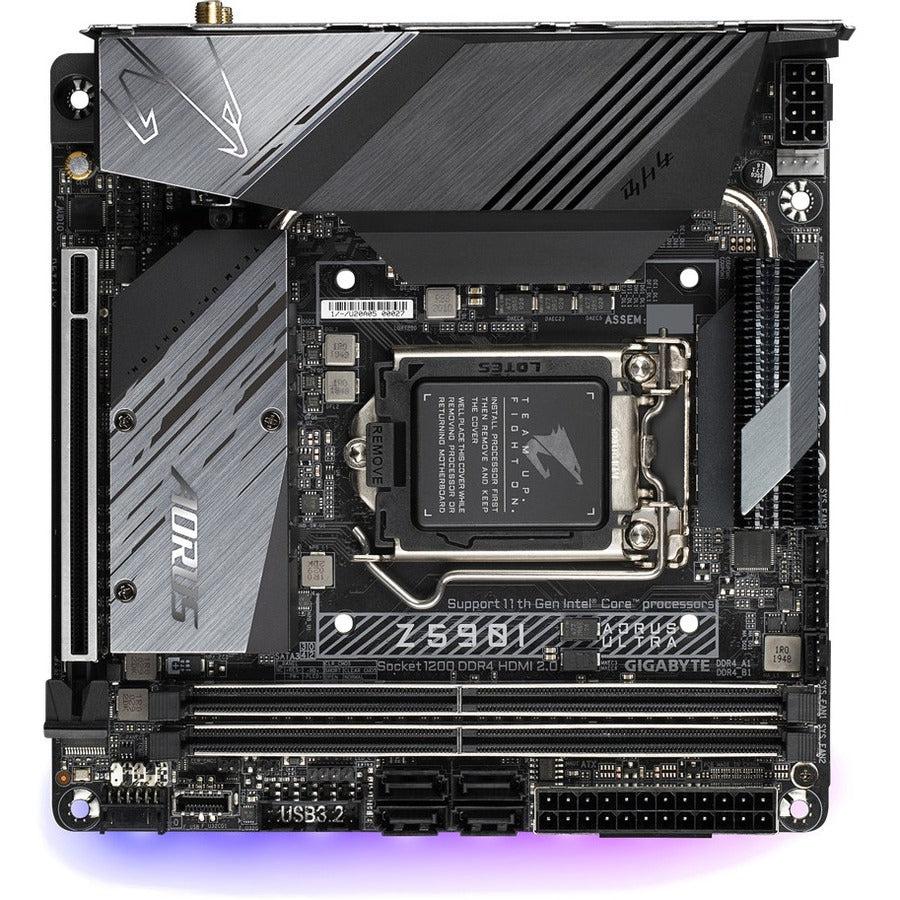

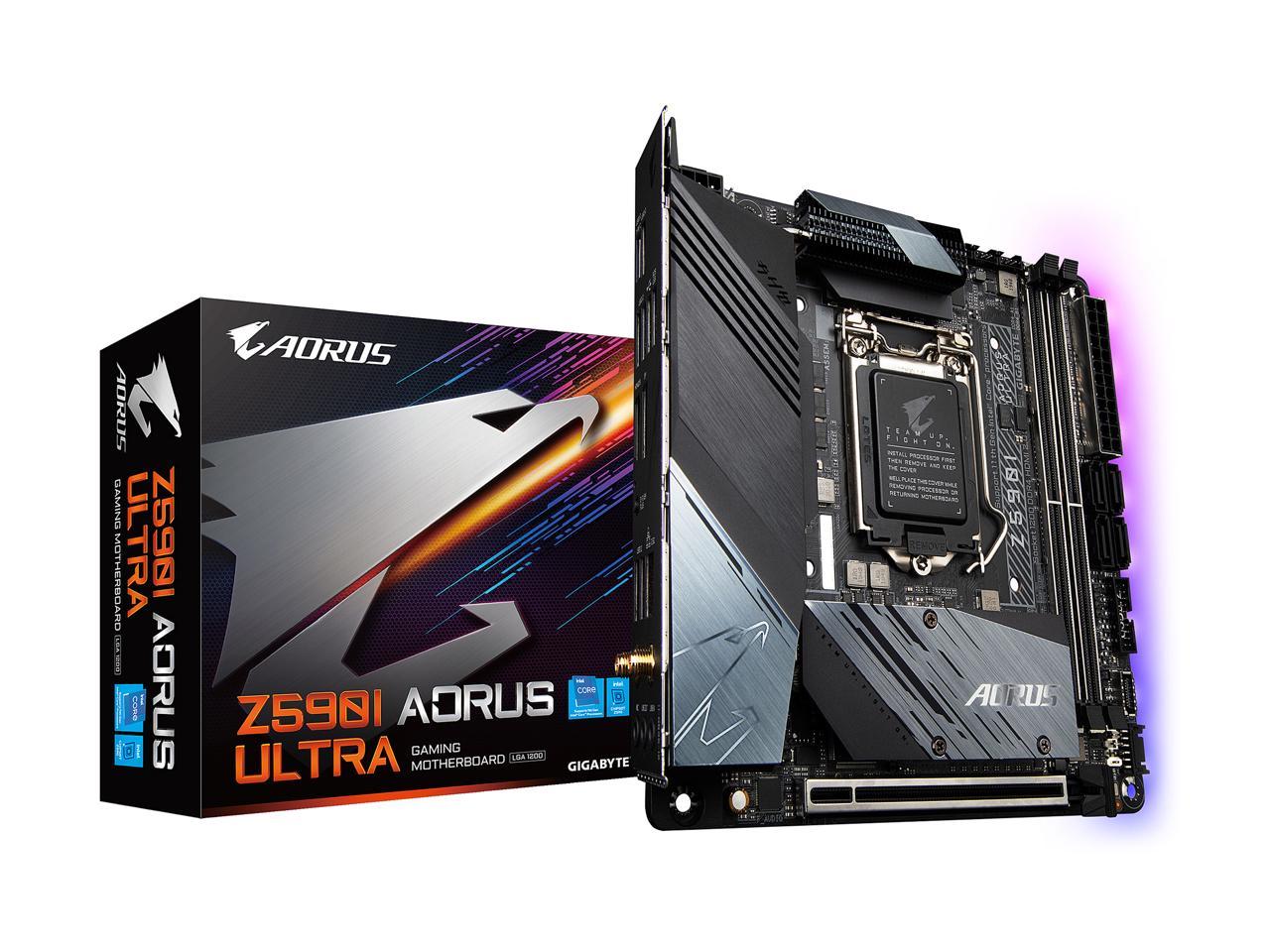

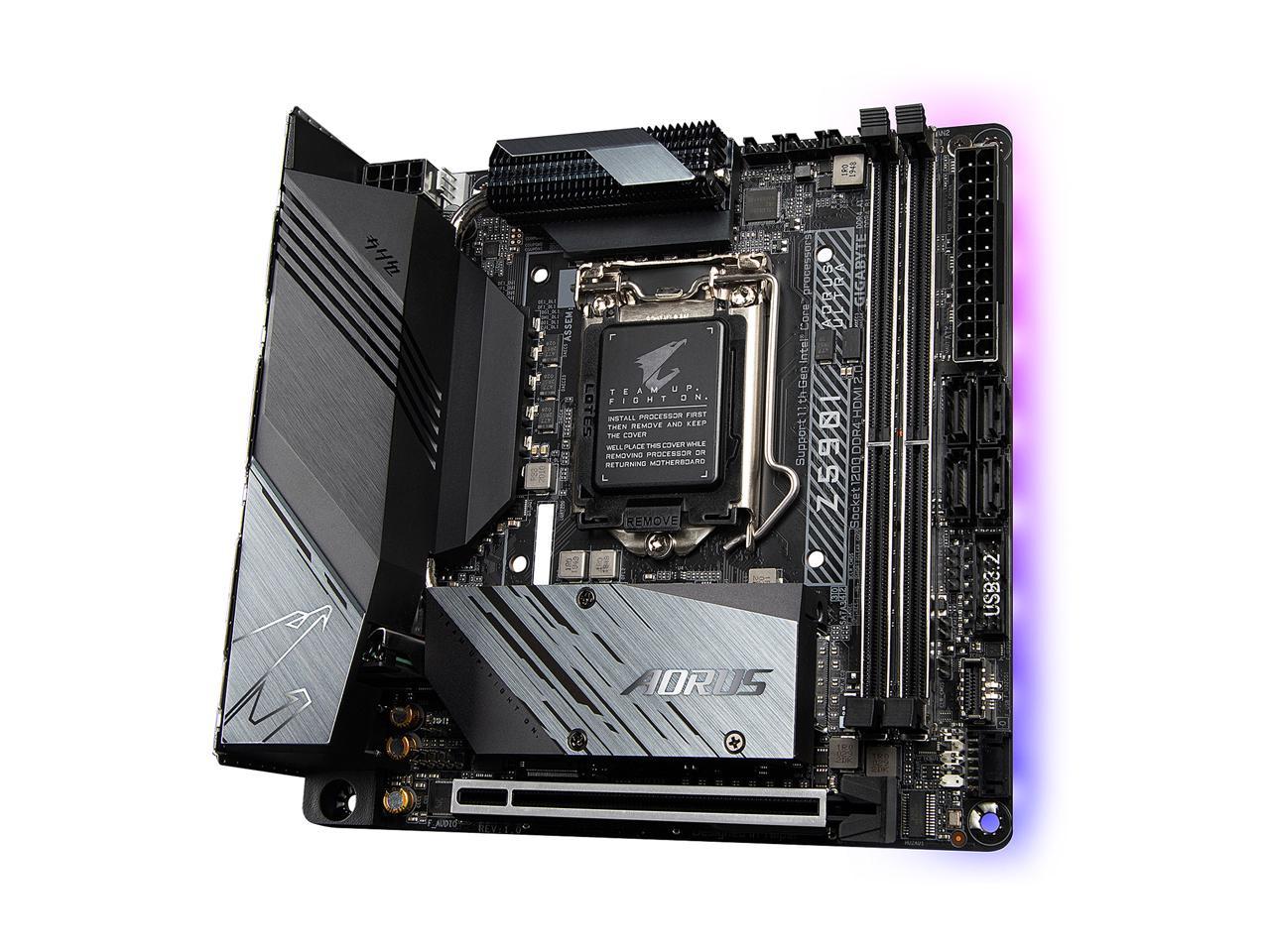

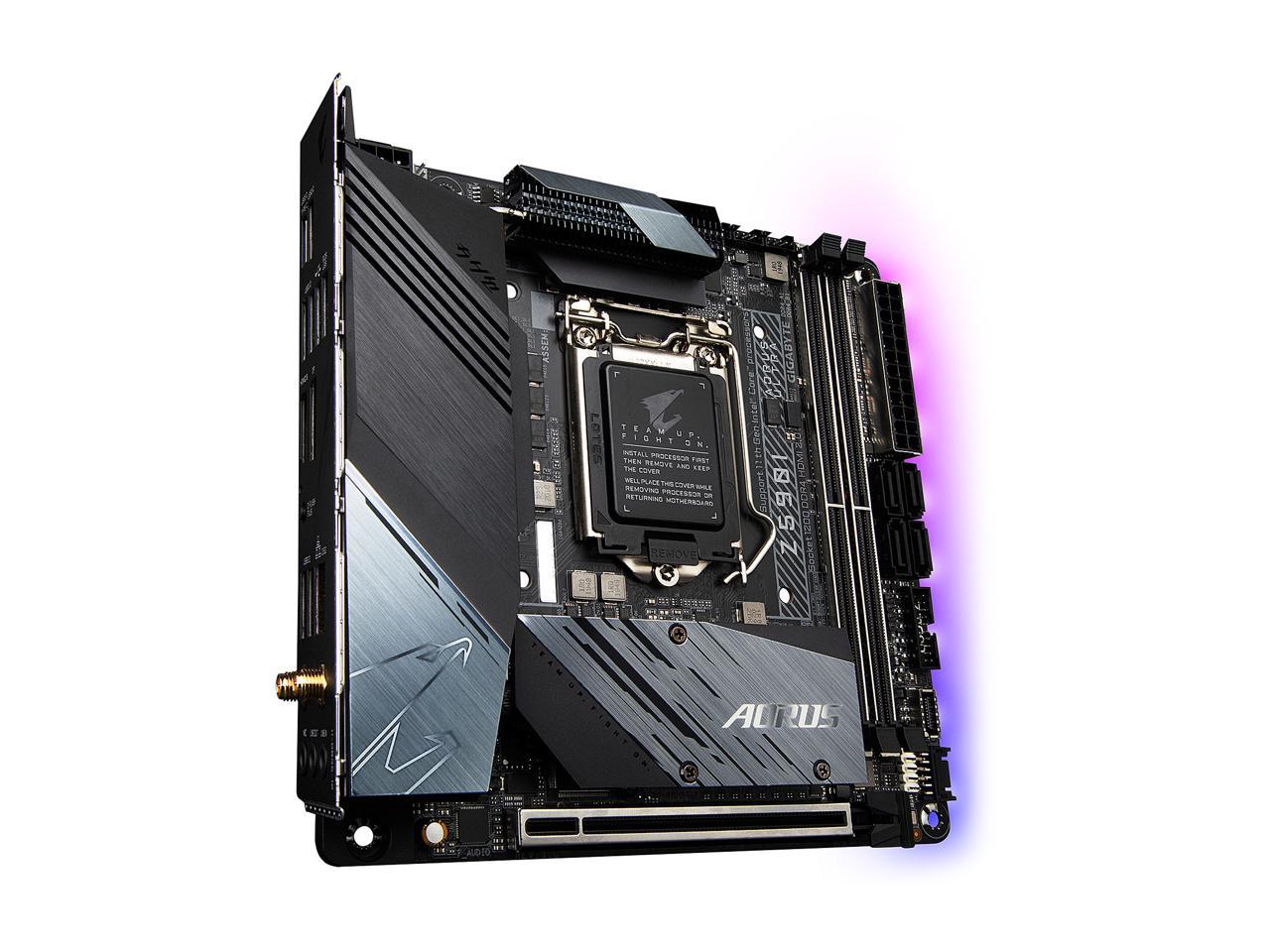

Gigabyte Z590I Aorus Ultra Lga 1200 Intel Z590 Mini-Itx Motherboard With Dual M.2, Pcie 4.0

Gigabyte Z590I Aorus Ultra Lga 1200 Intel Z590 Mini-Itx Motherboard With Dual M.2, Pcie 4.0

SKU:Z590I AORUS ULTRA-teci

Regular price $353.99
Regular price Sale price $353.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

        • Supports 11th and 10th Gen Intel Core Series Processors
        • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
        • Intel Optane Memory Ready

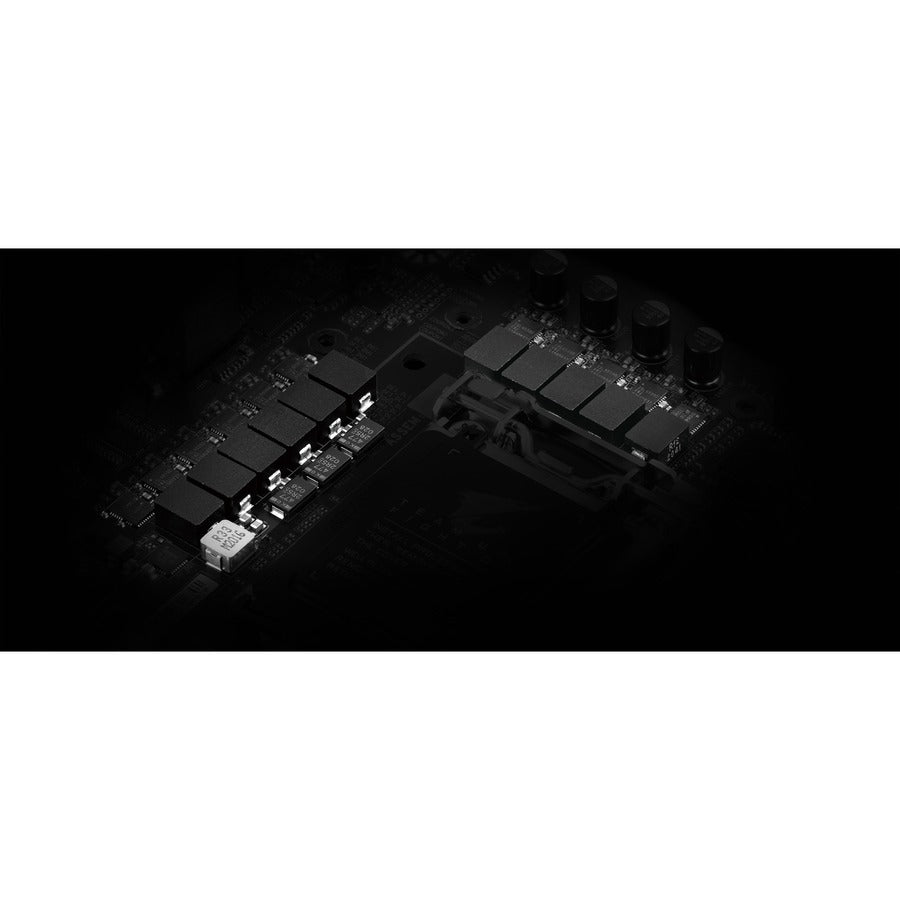

        • Direct 10+1 Phases Digital VRM Solution with 90A Smart Power Stage
        • Fins-Array II and Multi-Layered PCH / M.2 Heatsink with Two Heatpipes
        • Blazing Fast Intel 2.5GbE LAN with cFosSpeed
        • Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
        • AMP-UP Audio with ALC1220 for Rear 120dB SNR
        • HDMI 2.0 supports Premium 4K
        • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
        • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
        • Support Addressable LED & RGB LED Strips
        • Smart Fan 6 Features Multiple Temperature Sensors
        • Hybrid Fan Headers with FAN STOP and Noise Detection
        • Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU
        Model
        Brand GIGABYTE
        Model Z590I AORUS ULTRA
        Supported CPU
        CPU Socket Type  LGA 1200
        CPU Type Supports 11th / 10th Gen Intel Core processors
        Supports Intel Pentium / Celeron processors*

        * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
        Chipsets
        Chipset  Intel Z590
        Onboard Video
        Onboard Video Chipset  Supported only by CPU with integrated graphic
        Memory
        Number of Memory Slots 2x288pin (DDR4)
        Memory Standard DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules (11th Gen Intel Core i9 / i7 / i5 processors)

        DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i9 / i7 processors)

        DDR4 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)
        Maximum Memory Supported 64GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 4.0 x16 1 x PCI Express 4.0 x16

        * Actual support may vary by CPU.
        Storage Devices
        SATA 6Gb/s  4 x SATA 6Gb/s
        M.2 CPU:
        1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*

        Chipset:
        1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)

        * Supported by 11th Generation processors only.
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  Realtek ALC1220-VB

        * The back panel line out jack supports DSD audio.
        Audio Channels  7.1 Channels
        Onboard LAN
        LAN Chipset Intel 2.5GbE LAN chip
        Max LAN Speed 10/100/1000/2500Mbps
        Wireless LAN Intel Wi-Fi 6 AX200
        Bluetooth Bluetooth 5.1

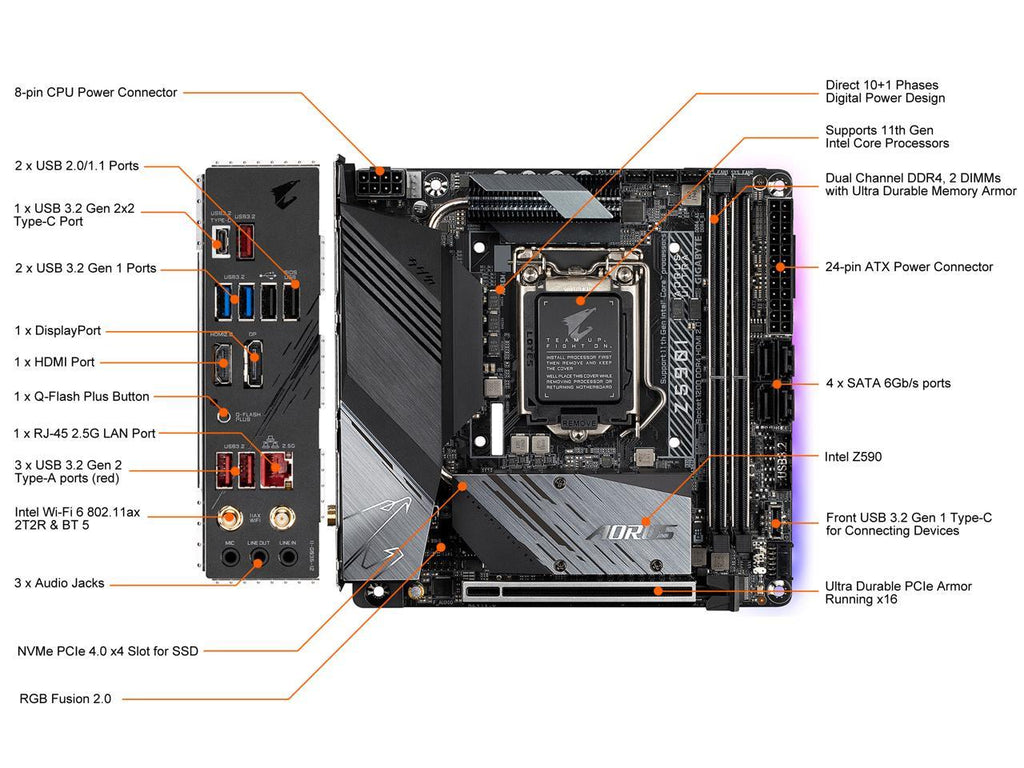

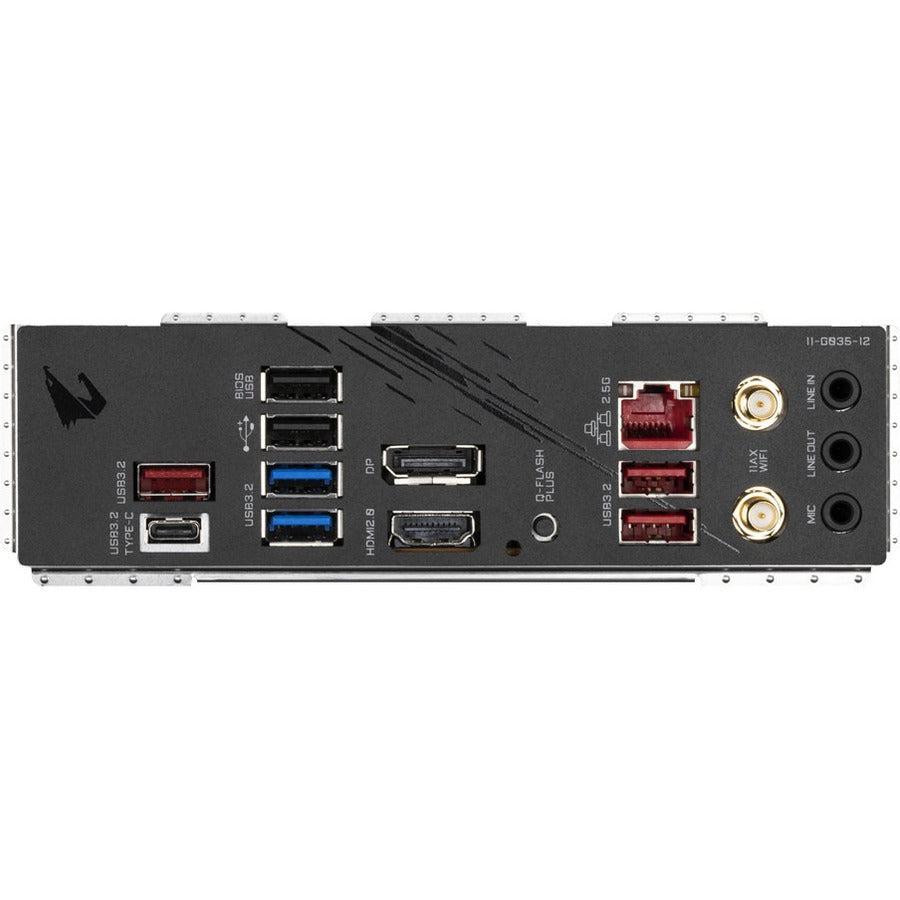

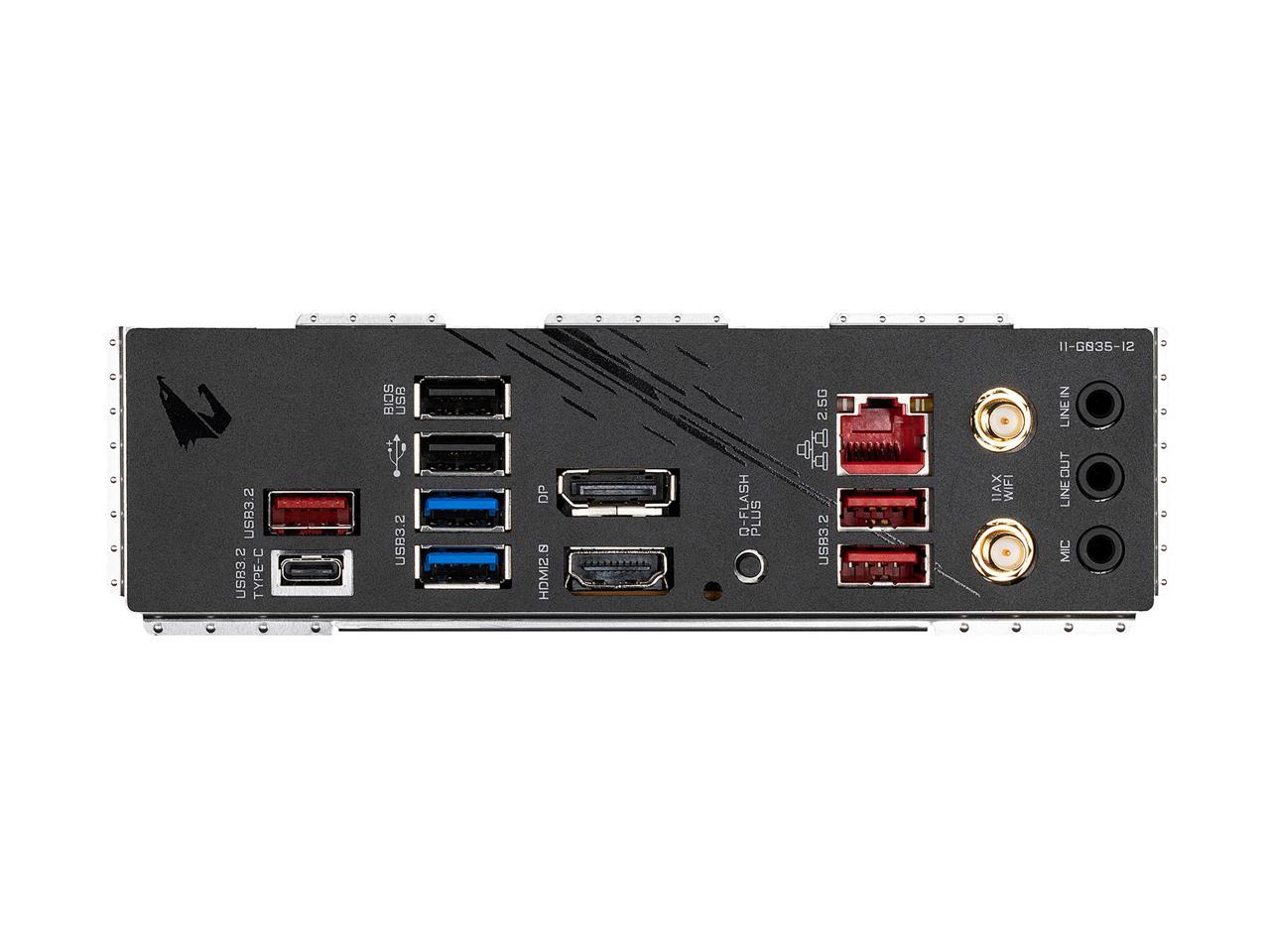

        Rear Panel Ports
        Back I/O Ports 1 x DisplayPort
        1 x HDMI port
        1 x USB Type-C port, with USB 3.2 Gen 2x2 support
        3 x USB 3.2 Gen 2 Type-A ports (red)
        2 x USB 3.2 Gen 1 ports
        2 x USB 2.0/1.1 ports
        1 x Q-Flash Plus button
        1 x RJ-45 port
        2 x SMA antenna connectors (2T2R)
        3 x audio jacks
        Internal I/O Connectors
        Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
        1 x USB 3.2 Gen 1 header
        1 x USB 2.0/1.1 header
        Other Connectors 1 x CPU fan header
        3 x system fan headers
        1 x addressable LED strip header
        1 x RGB LED strip header
        1 x front panel header
        1 x front panel audio header
        1 x speaker header
        1 x Clear CMOS jumper
        1 x chassis intrusion header
        Physical Spec
        Form Factor Mini ITX
        LED Lighting RGB
        Dimensions (W x L) 170.18 mm x 170.18 mm
        Power Pin 1 x 24-pin ATX main power connector
        1 x 8-pin ATX 12V power connector
        Windows Compatibility
        Windows 11 Supported
        Features
        Features I/O Controller:
        iTE I/O Controller Chip

        H/W Monitoring:
        Voltage detection
        Temperature detection
        Fan speed detection
        Fan fail warning
        Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.

        BIOS:
        1 x 256 Mbit flash
        Use of licensed AMI UEFI BIOS
        PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

        Unique Features:
        Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        EasyTune
        Fast Boot
        Game Boost
        ON/OFF Charge
        RGB Fusion
        Smart Backup
        System Information Viewer
        Support for Q-Flash Plus
        Support for Q-Flash
        Support for Xpress Install

        Bundled Software:
        Norton Internet Security (OEM version)
        cFosSpeed

        Operating System:
        Support for Windows 10 64-bit
