GIGABYTE

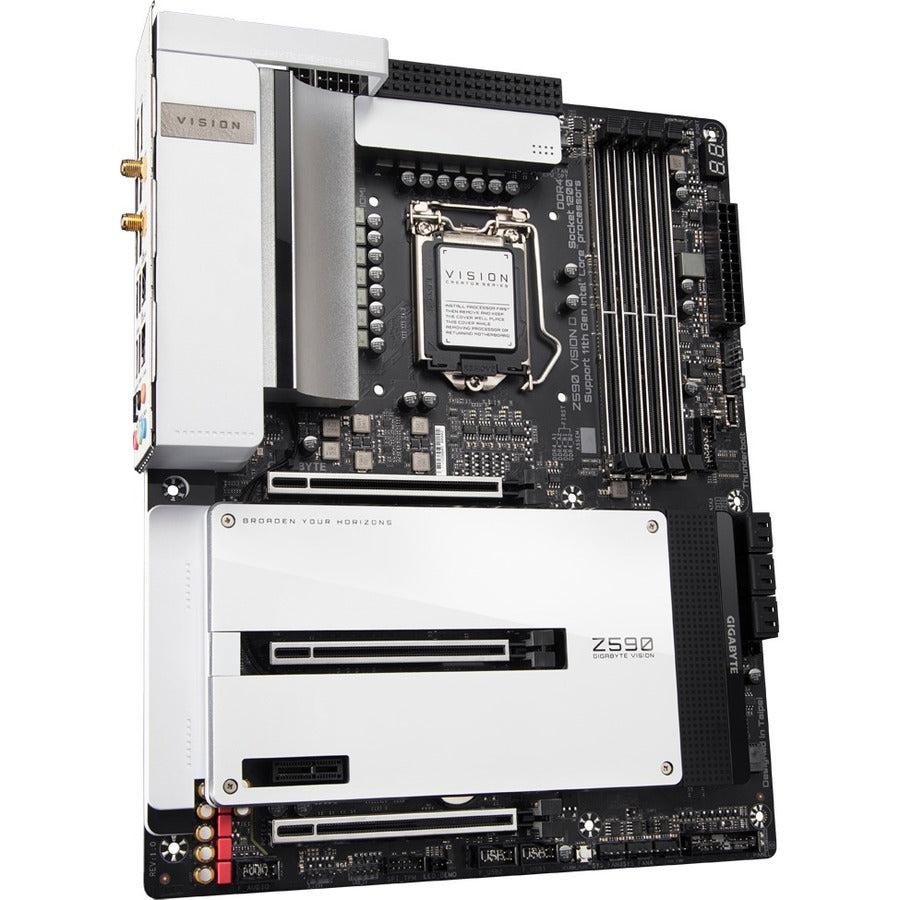

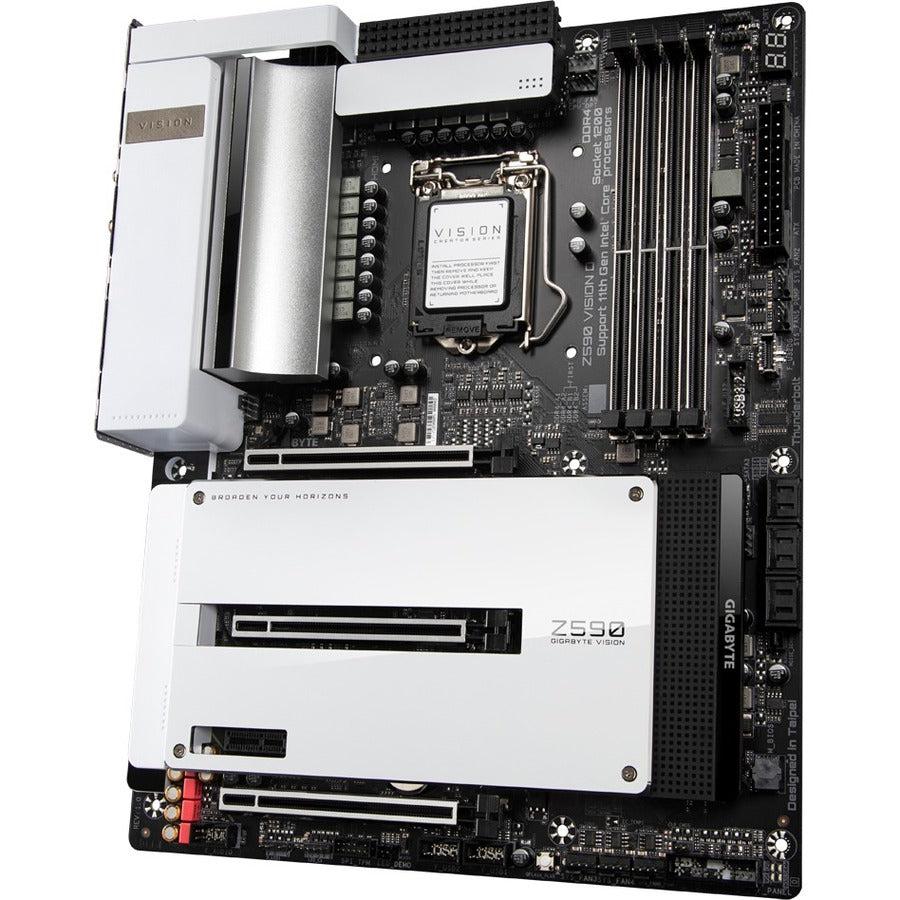

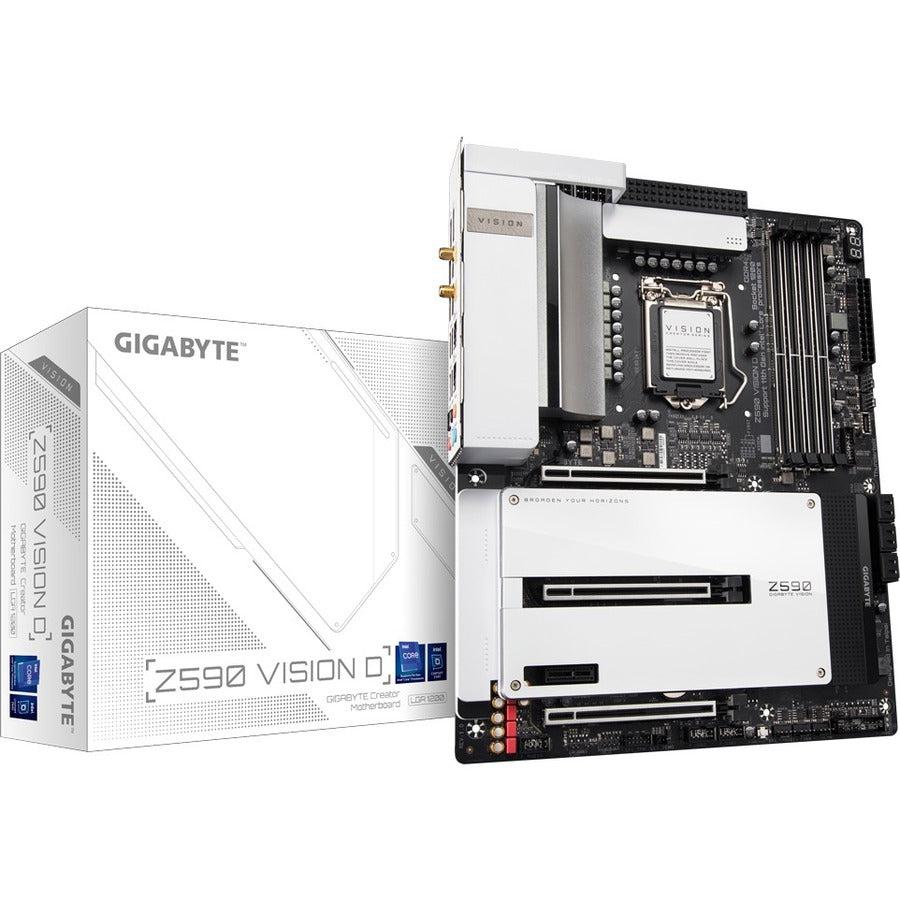

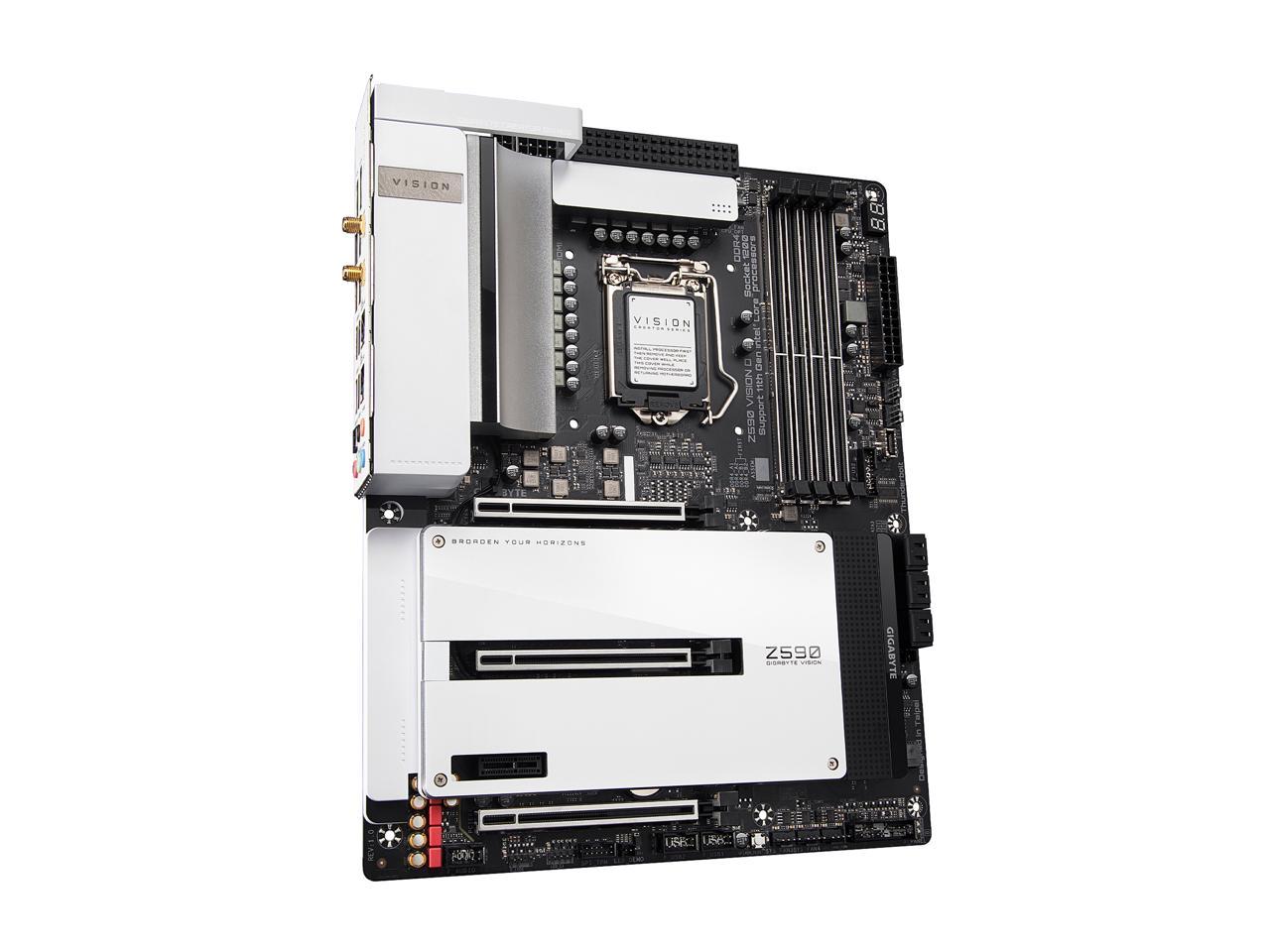

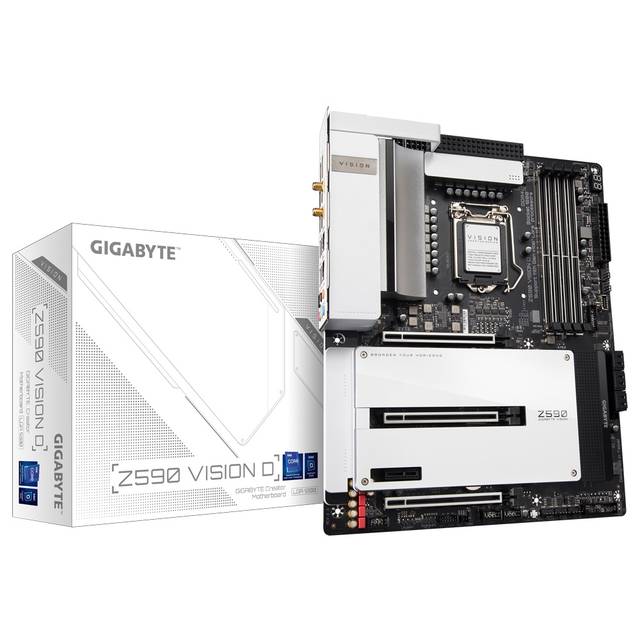

Gigabyte Z590 Vision D Socket Lga1200/ Intel Z590/ Ddr4/ Quad-Gpu & 2-Way Crossfire/ Sata3&Usb3.2/ M.2/ Wifi&Bluetooth/ Atx Motherboard

Name: Gigabyte Z590 Vision D Socket Lga1200/ Intel Z590/ Ddr4/ Quad-Gpu & 2-Way Crossfire/ Sata3&Usb3.2/ M.2/ Wifi&Bluetooth/ Atx Motherboard
Brand: GIGABYTE
SKU: Z590 VISION D
Price: 471.60 USD
Availability: OutOfStock

Gigabyte Z590 Vision D Socket Lga1200/ Intel Z590/ Ddr4/ Quad-Gpu & 2-Way Crossfire/ Sata3&Usb3.2/ M.2/ Wifi&Bluetooth/ Atx Motherboard

SKU:Z590 VISION D

$471.60

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

Description

Specifications

Reviews, Que. & Ans.

Description :

Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

LEARN MORE ABOUT THE GIGABYTE Z590 VISION D

Model
Brand	GIGABYTE
Model	Z590 VISION D

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium / Celeron processors* * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.

Chipsets
Chipset	Intel Z590

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4×288pin
Memory Standard	DDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC)/ 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 (11th Generation Intel Core i9 / i7 / i5 processors) DDR4 2933 / 2666 / 2400 / 2133 (10th Generation Intel Core i9 / i7 processors) DDR4 2666 / 2400 / 2133 (10th Generation Intel Core i5 / i3 / Pentium / Celeron processors)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots

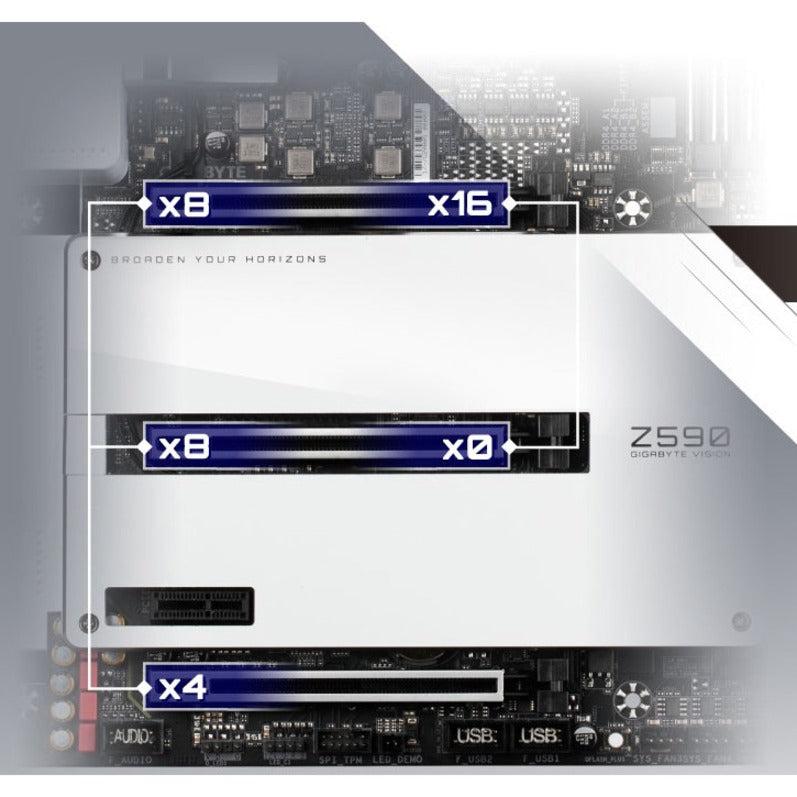

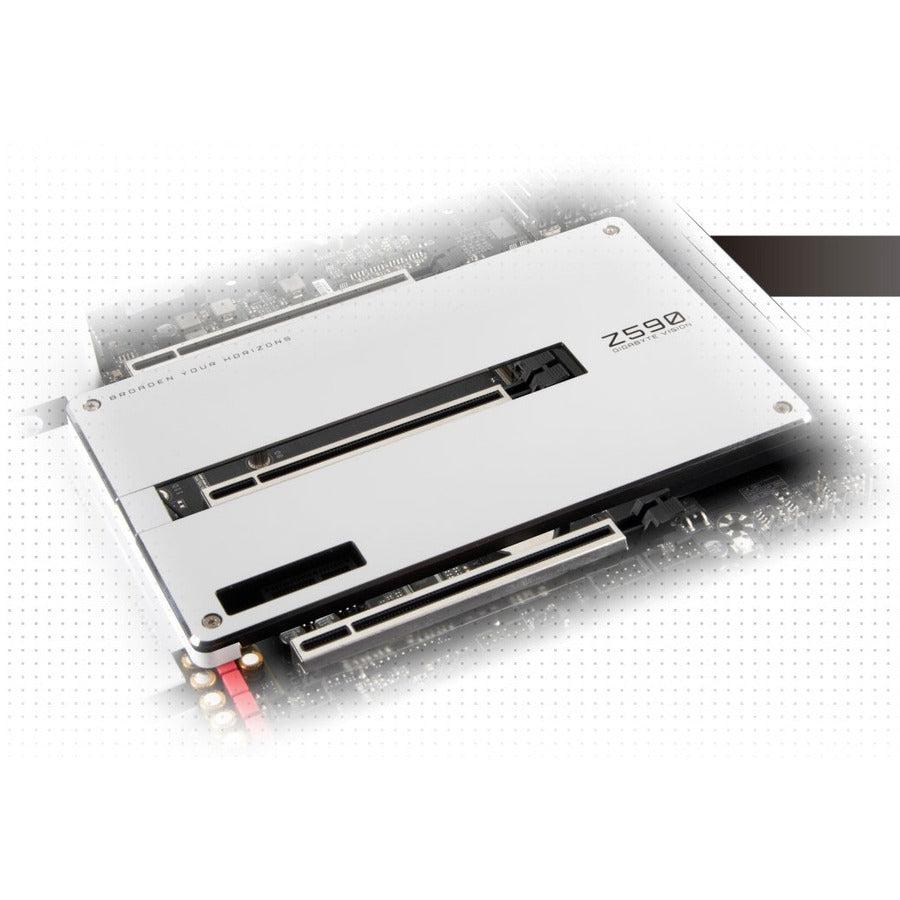

PCI Express 4.0 x16	2 x PCI Express 4.0 x16* * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16* * Running at x4.
PCI Express x1	1 x PCI Express 3.0 x1

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s

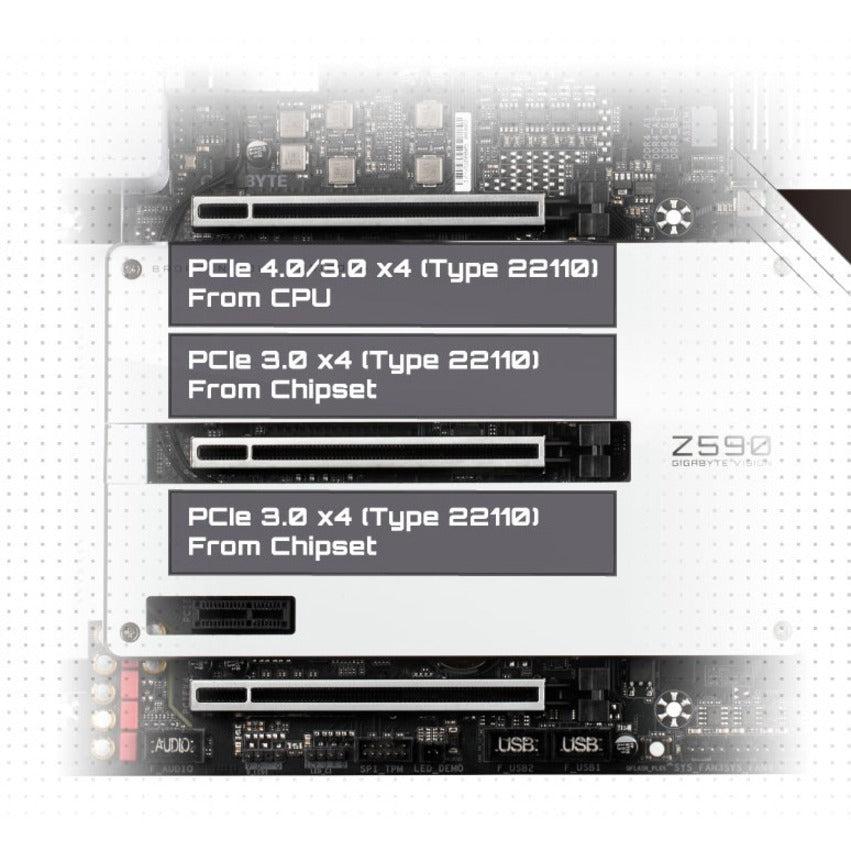

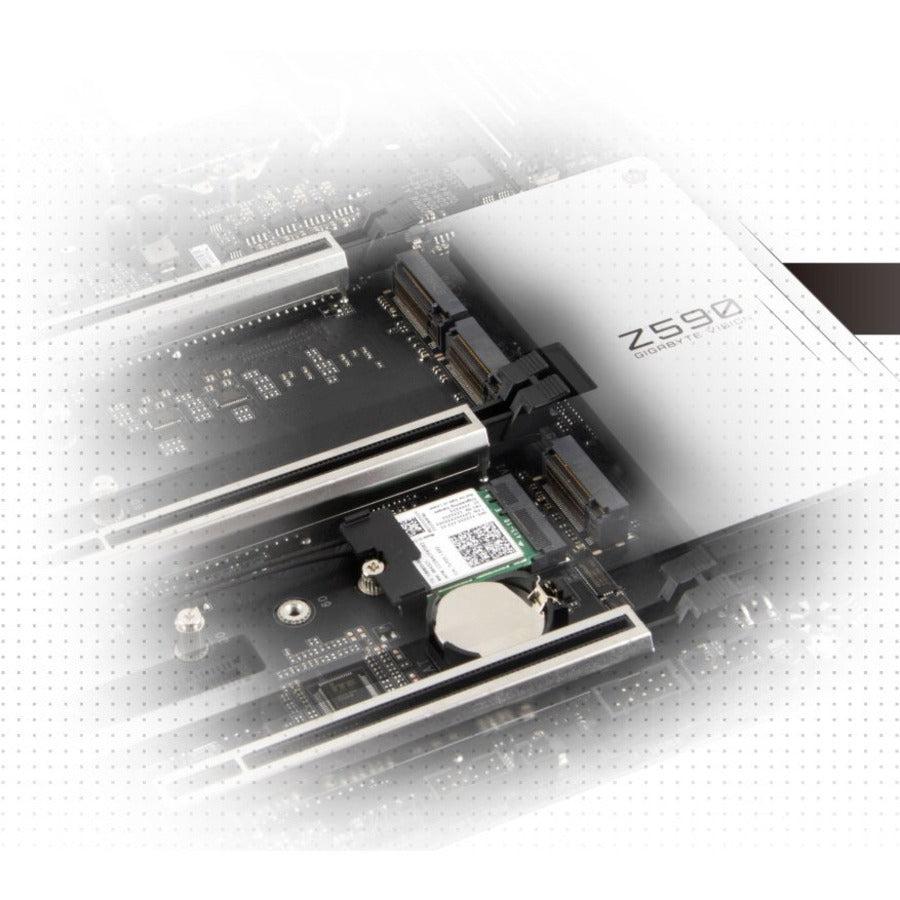

M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2P_SB) * Supported by 11th Generation processors only.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	2 x Intel 2.5GbE LAN chips
Max LAN Speed	Dual 10/100/1000/2500Mbps
Wireless LAN	Intel Wi-Fi 6 AX200 WIFI a,b,g,n,ac,ax
Bluetooth	Bluetooth 5.1

Rear Panel Ports

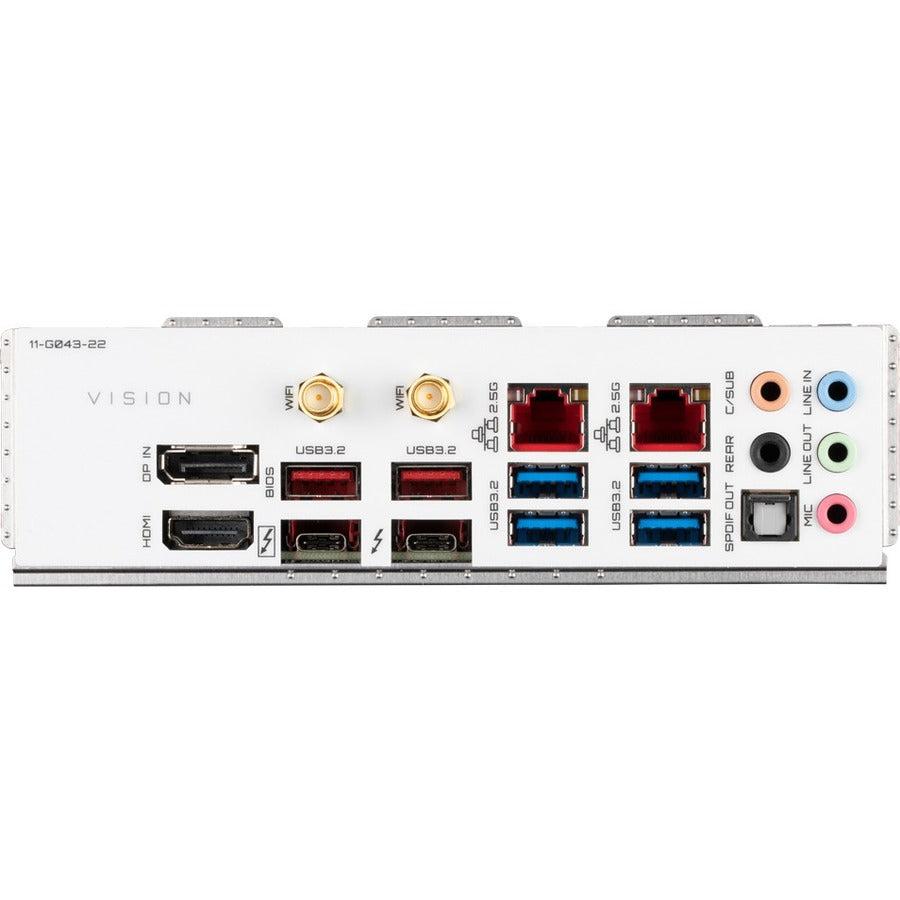

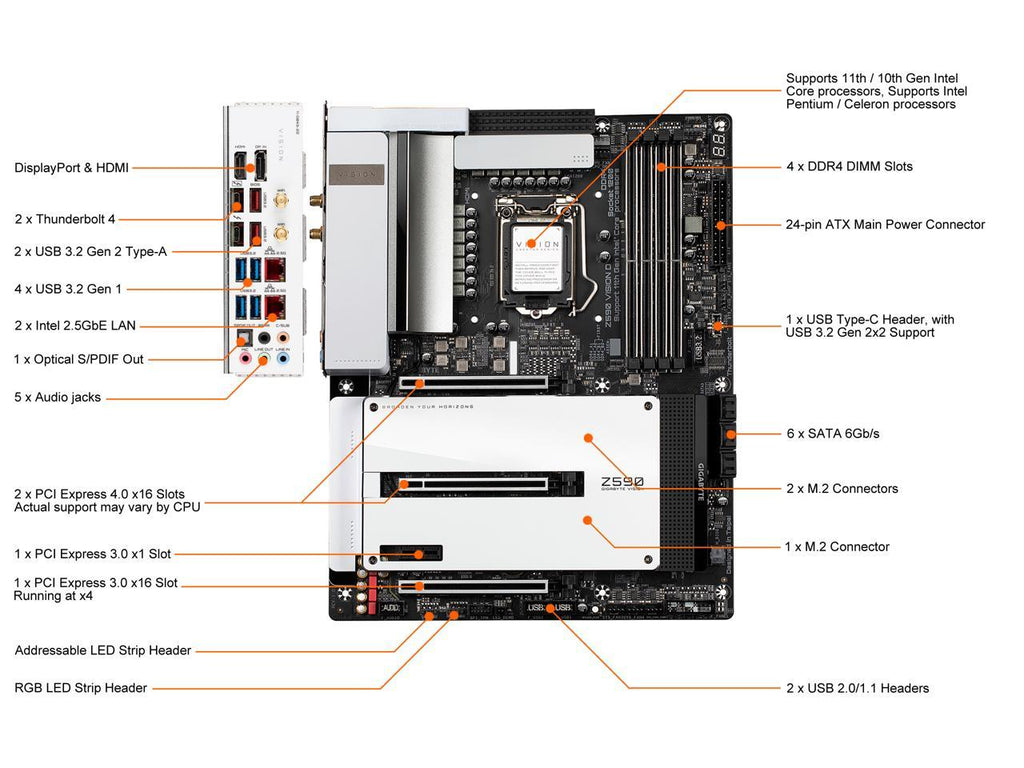

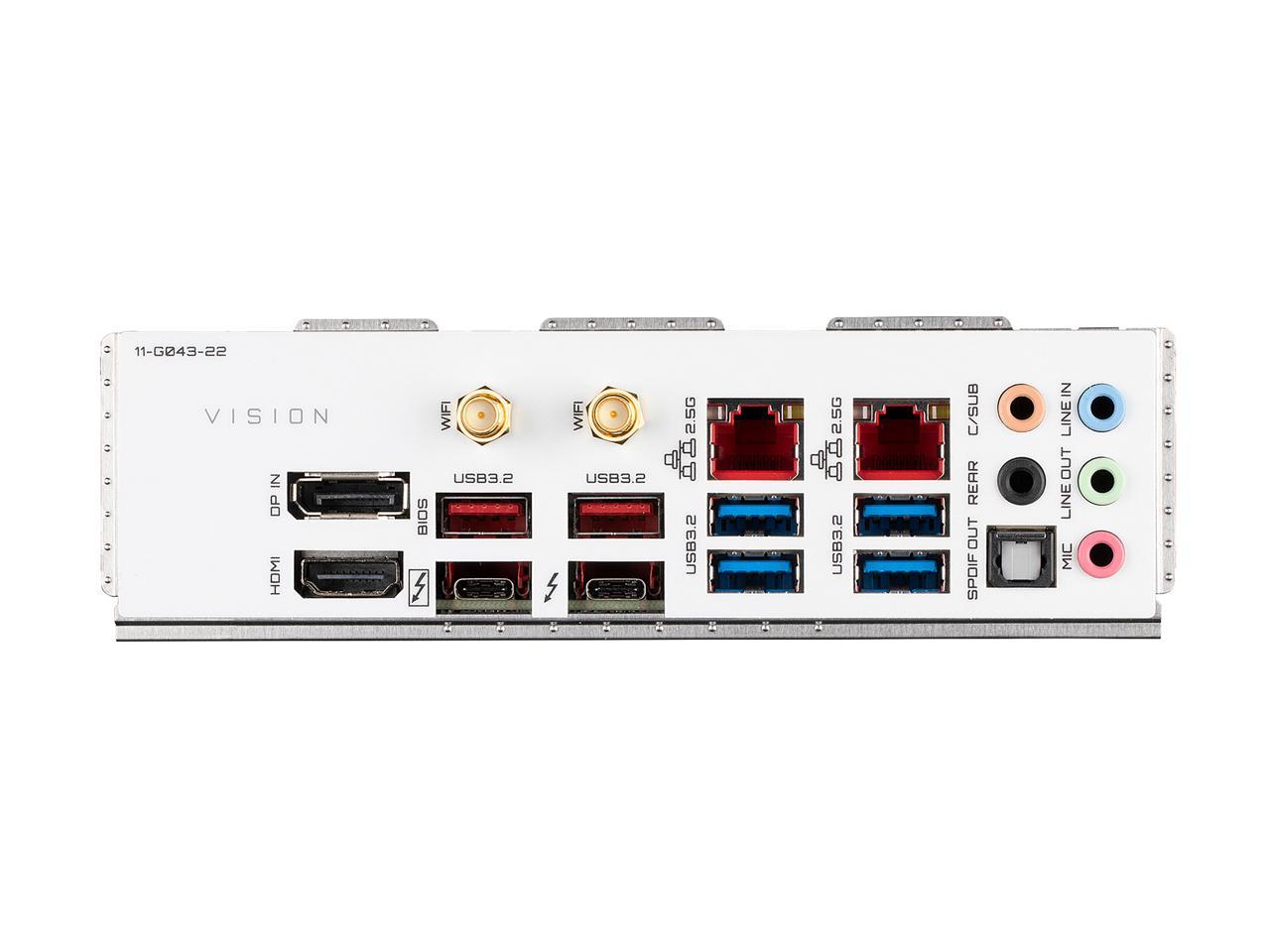

Back I/O Ports	1 x DisplayPort In port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 2 x Thunderbolt 4 connectors (USB Type-C port, with USB 3.2 Gen 2 support) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x temperature sensor headers 1 x Clear CMOS jumper 1 x Q-Flash Plus button

Physical Spec
Form Factor	ATX
LED Lighting	RGB

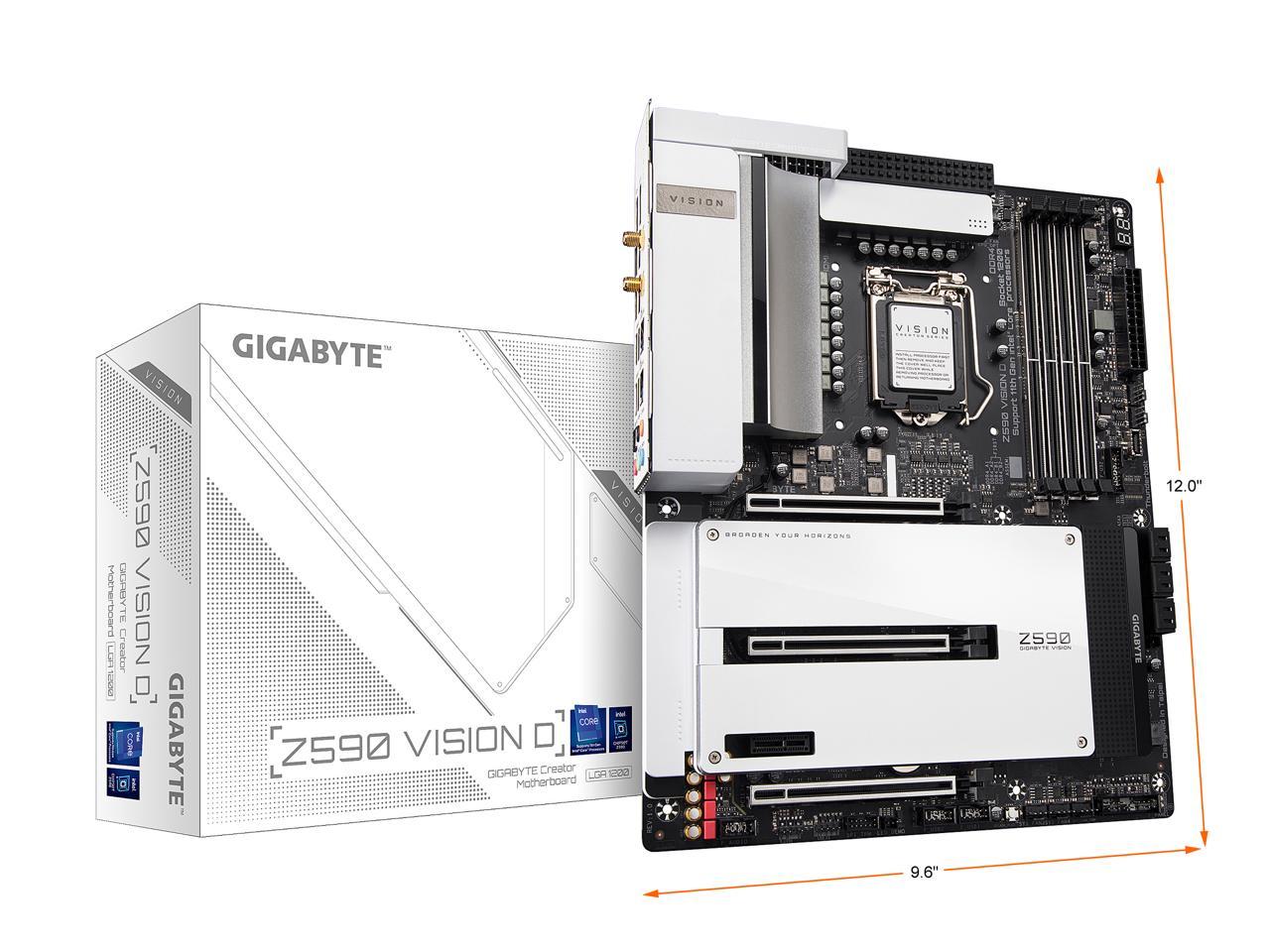

Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Windows Compatibility
Windows 11	Supported

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit

Specifications :

General Information

Manufacturer	GIGABYTE Technology, Inc
Manufacturer Part Number	Z590 VISION D
Manufacturer Website Address	http://www.gigabyte.us
Brand Name	Gigabyte
Product Series	VISION
Product Model	Z590 VISION D
Product Name	Z590 VISION D (rev. 1.0) Desktop Motherboard
Product Type	Desktop Motherboard
UPC	889523027431
