Description
- Support for Ryzen 5000 Series with BIOS UPDATE
- Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen/2nd Gen Ryzen / 3nd Gen Ryzen with Radeon Vega Graphics/2nd Gen Ryzen with Radeon Vega Graphics/Ryzen with Radeon Vega Graphics Processors
- Dual Channel ECC/Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+2 Phases Digital VRM Solution
- Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector
GET READY FOR AMD RYZEN 3000-SERIES
This Gigabyte motherboard based on the AMD X570 Chipset provides full support for 3rd Gen AMD Ryzen Processors. It offers a rich list of features such as support for PCIe 4.0 interfaces, refined audio, and high speed of Ethernet, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance of AMD Ryzen 3000-series Processors. Ultra Durable components and advanced circuit design are testament to GIGABYTE's dedication to design quality, making the X570 UD a solid foundation for users looking to build the best AMD platform gaming system.
- Supports AMD 3rd Gen Ryzen / 2nd Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics / Ryzen with Radeon Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+2 Phases Digital VRM Solution
- Advanced Thermal Design with Enlarge Heatsink
- Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GIGABYTE Gaming GbE LAN with Bandwidth Management
- Supports RGB Light Strip in Full Colors
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Featured HDMI 2.0 support
- Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
PERFORMANCE
GIGABYTE X570 motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest AMD Ryzen 3000-series CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Benefits of Lower RDS(on) MOSFETs
- Optimized gate charge to minimize switching losses.
- Lower temperature, smaller size, and better thermal characteristics.
* Doubled from 5 phases with current balancing.
Advanced Thermal Design

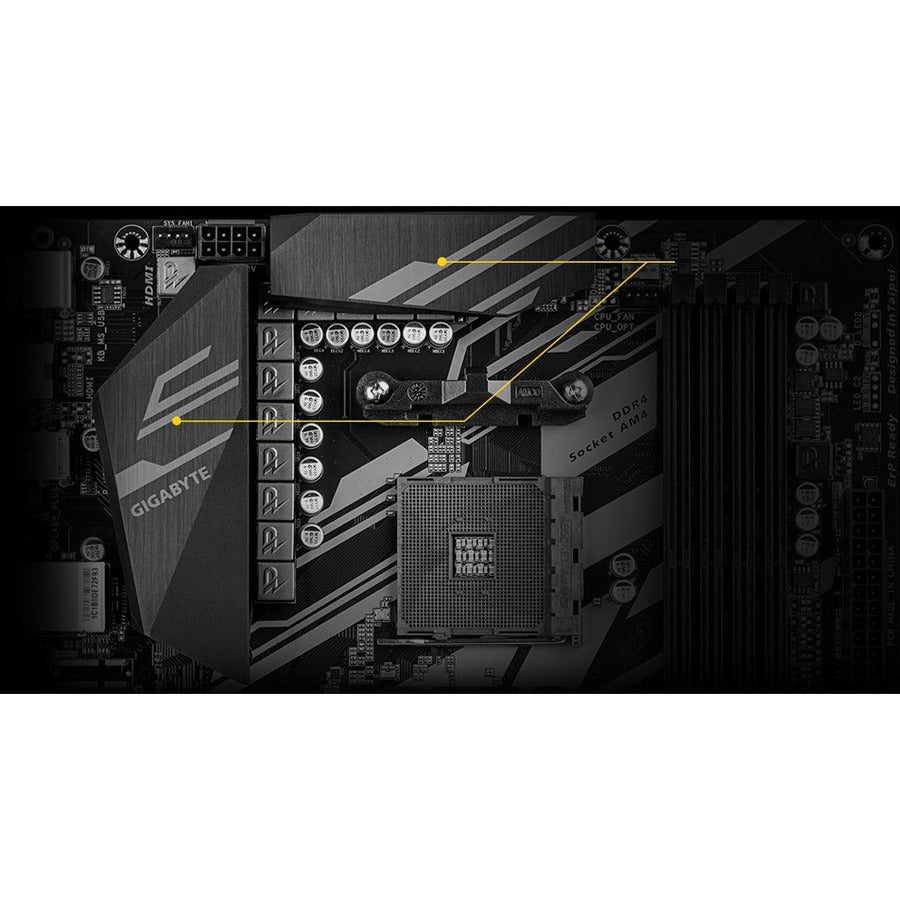

Enlarged MOSFET Heatsinks
Enlarged heatsink surface area improves thermal performance by increasing heat dissipation surface and maintains stylish aesthetic.
Thick Thermal Pad
Improved thickness of the thermal pad to 1.5mm, gives superior heat dissipation of MOSFETs.
Smart Chipset Fan Heatsink
Smart Fan - Provides 3 different operating modes to minimize noise and extend the fan’s longevity. Silent, Balanced and Performance modes—choose the mode that suits you the best in any situation.
High Durability - X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000* working hours.
* MTBF, A standard measurement that continuously operates under certain criteria with 90% of confidence level.
PCIe 4.0 Hardware
GIGABYTE X570 Motherboards feature built-in PCIe 4.0 slots, delivering superior bandwidth compared to that from previous generation technology. Performance of Graphics cards and PCIe NVMe AIC SSDs will not be limited by insufficient bandwidth.
PCIe 4.0 slots have higher slot signal stability and lower impedance, maximizing PCIe bandwidth while also being backwards compatible with PCIe 3.0.
PCIe 4.0 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems’ potential.
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated!
GIGABYTE partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with GIGABYTE Motherboards. GIGABYTE has verified over 1000+ different modules to ensure performance in a GIGABYTE built system.
CONNECTIVITY
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority for games. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
Program On Top Gets Highest Priority
Real-Time Network Monitoring
HDMI 2.0 for 4K / 60P / 21:9 / HDCP 2.2 Support
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth—nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.
Note: Only Picasso and Raven Ridge APUs support displaying function.
COOLING
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan Stop
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
LIGHTING
Support RGB Lighting Effect in Full Color
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.
AUDIO
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
ULTRA DURABLE
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Solid Pin Power Connectors
GIGABYTE X570 motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
GIGABYTE Exclusive Double Locking Bracket
The Industry's Leading Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
GIGABYTE EXCELLENCE
BIOS
New User Interface - All new EASY MODE shows important hardware information in one page including CPU, Memory, Storage, and Fan.
My Favorites - Add constantly used items to the favorite menu for quick access.
Storage Information - Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog - List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve - Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers. You can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.
EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
@BIOS
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
General Information
| Manufacturer | GIGABYTE Technology, Inc |
|---|---|
| Manufacturer Part Number | X570 UD |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Line | Ultra Durable |
| Product Model | X570 UD |
| Product Name | Ultra Durable X570 UD (Rev. 1.0) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 889523019023 |
| Chipset Manufacturer | AMD |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 6 |
| Width | 12" |
|---|---|
| Depth | 9.6" |
| Package Contents |
|
|---|---|
| Environmentally Friendly | Yes |
| Limited Warranty | 3 Year |
|---|
