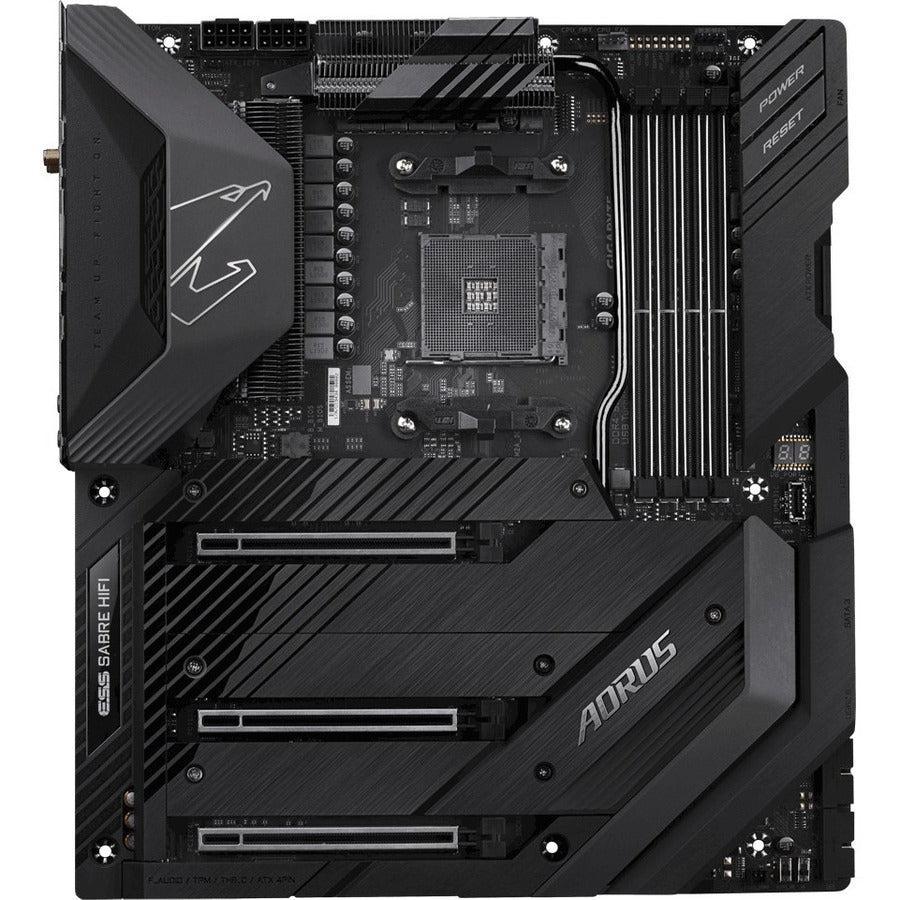

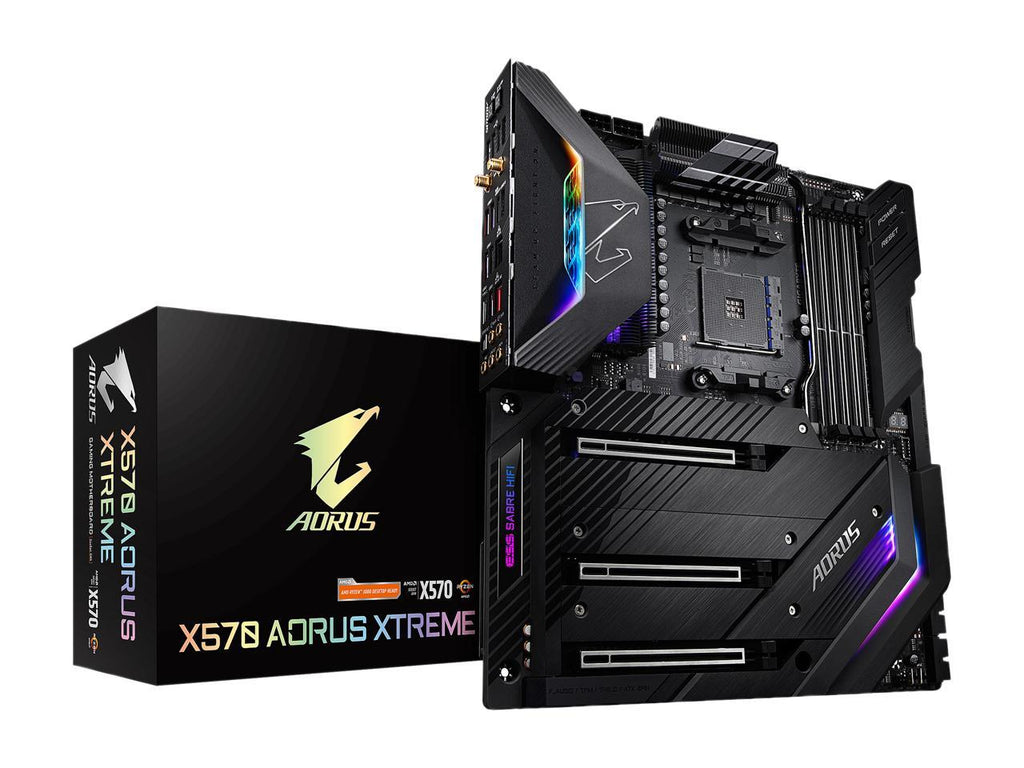

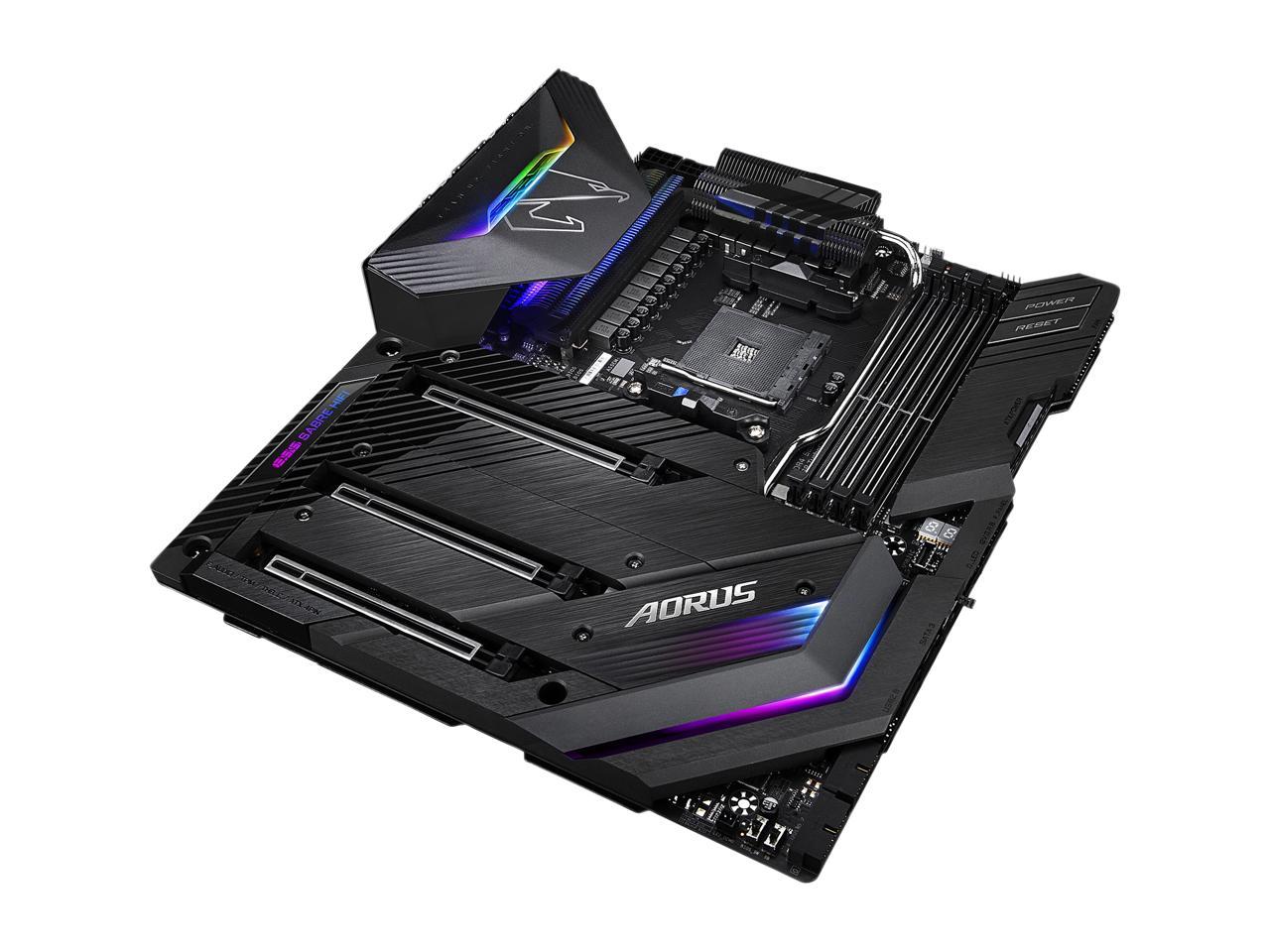

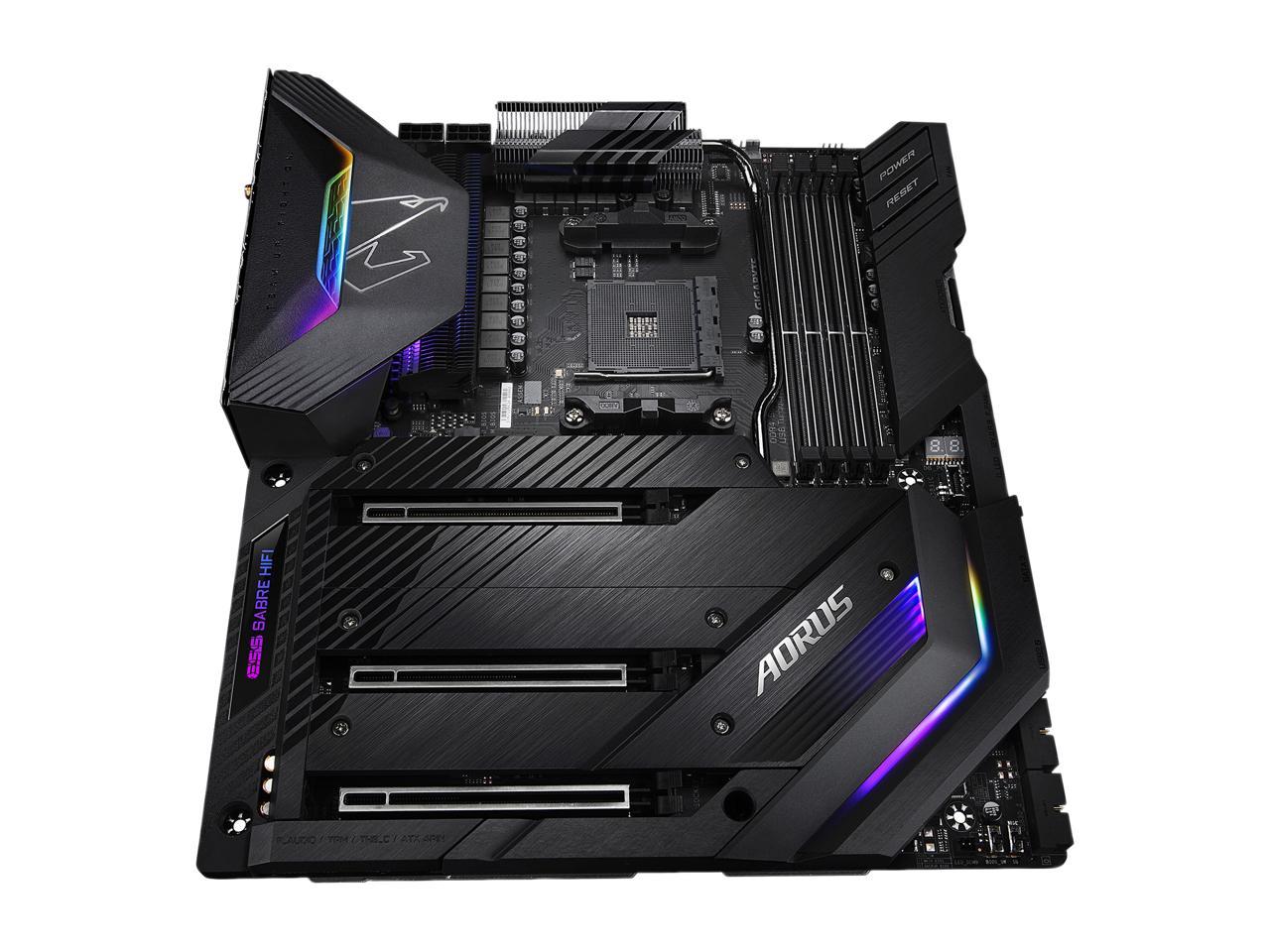

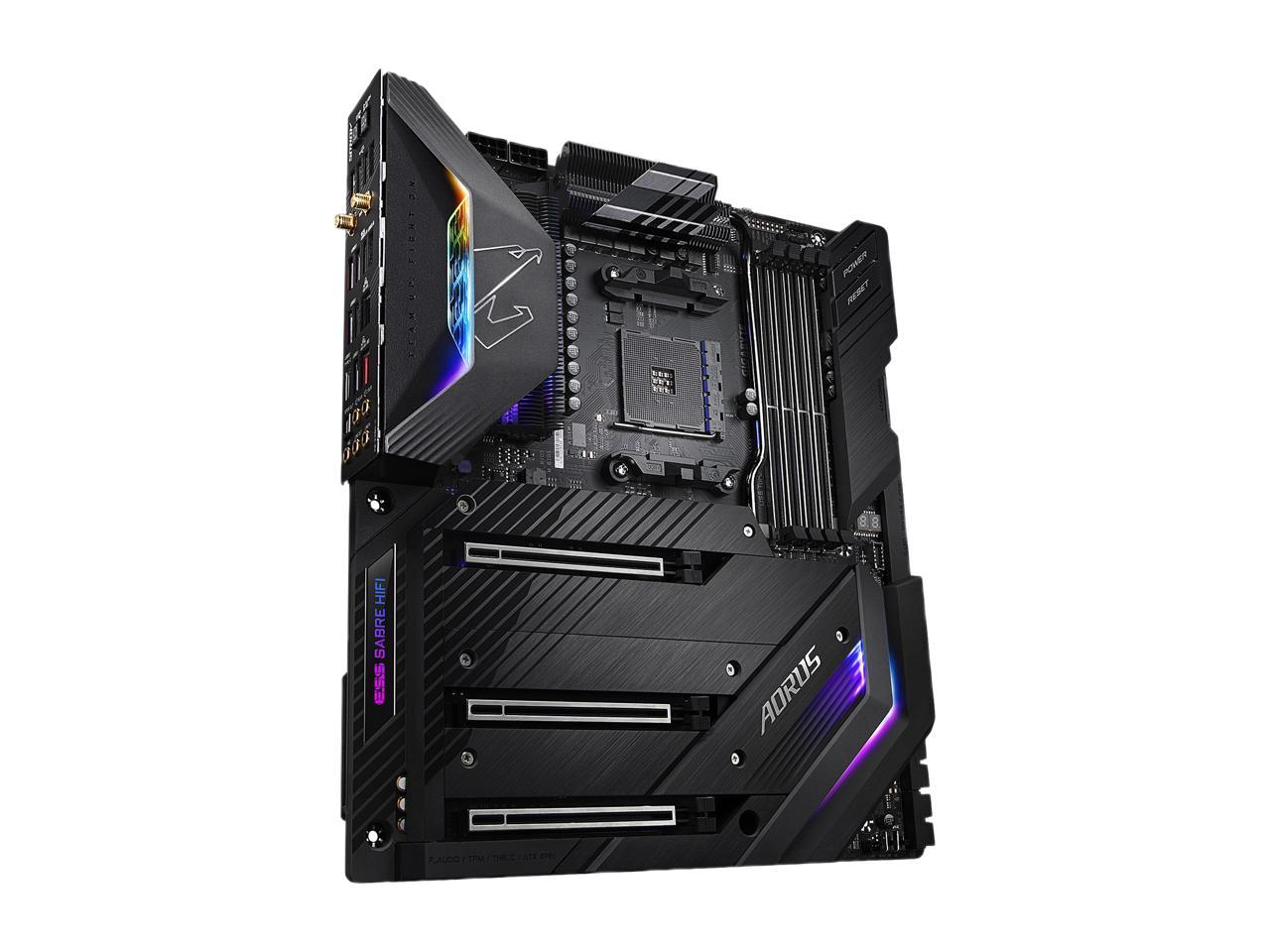

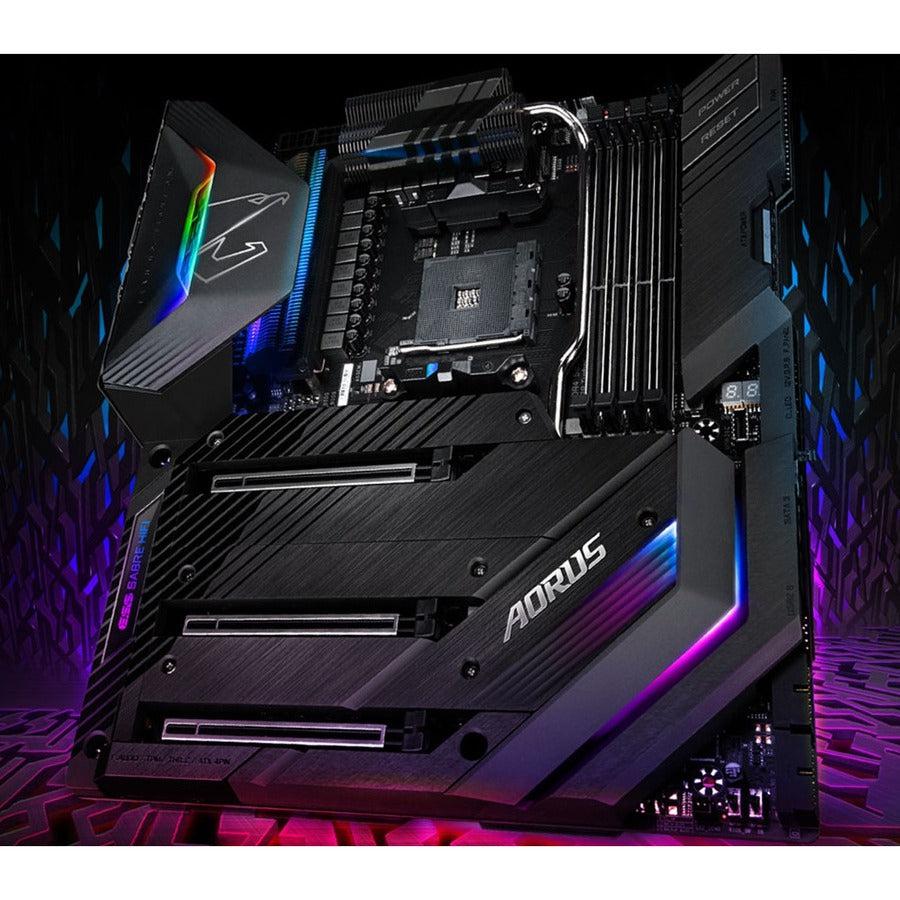

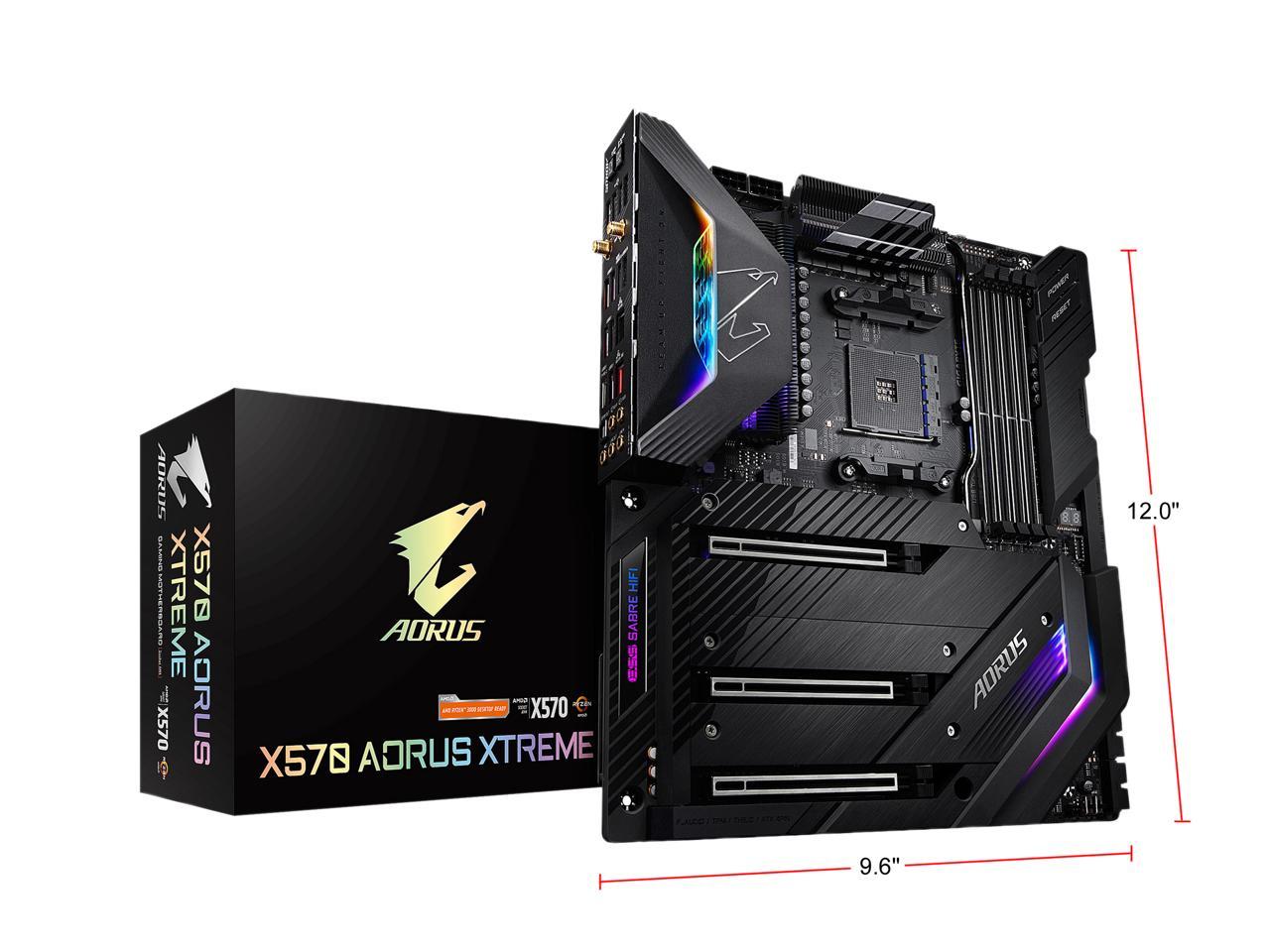

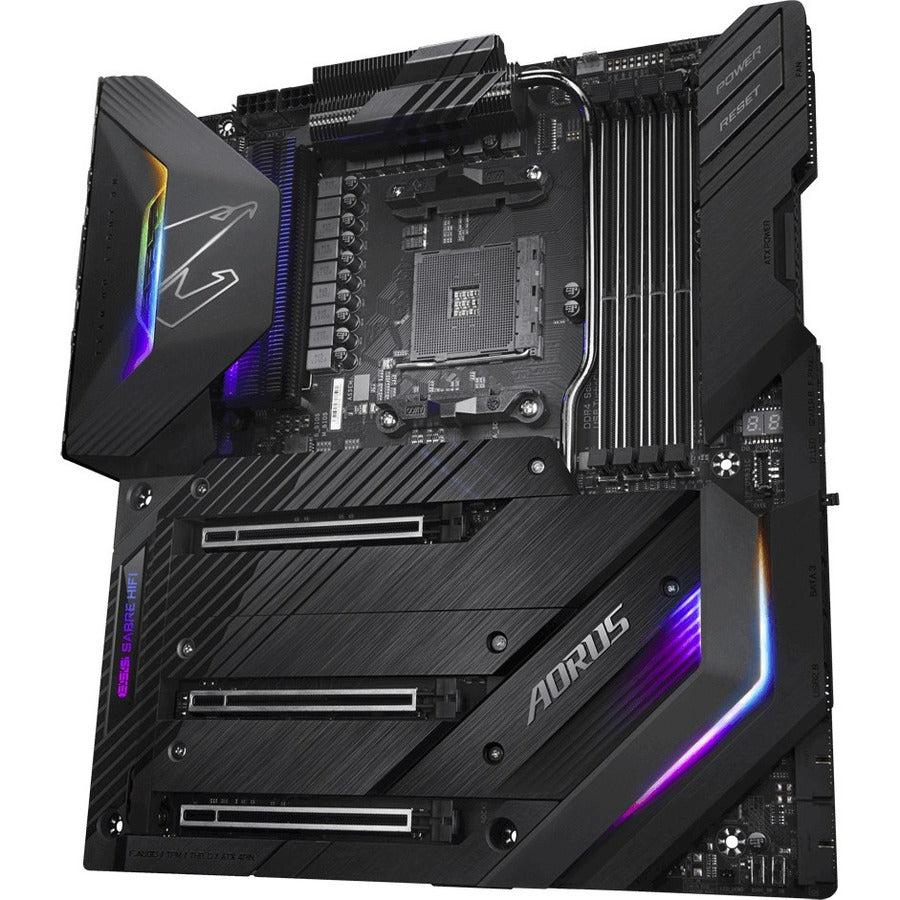

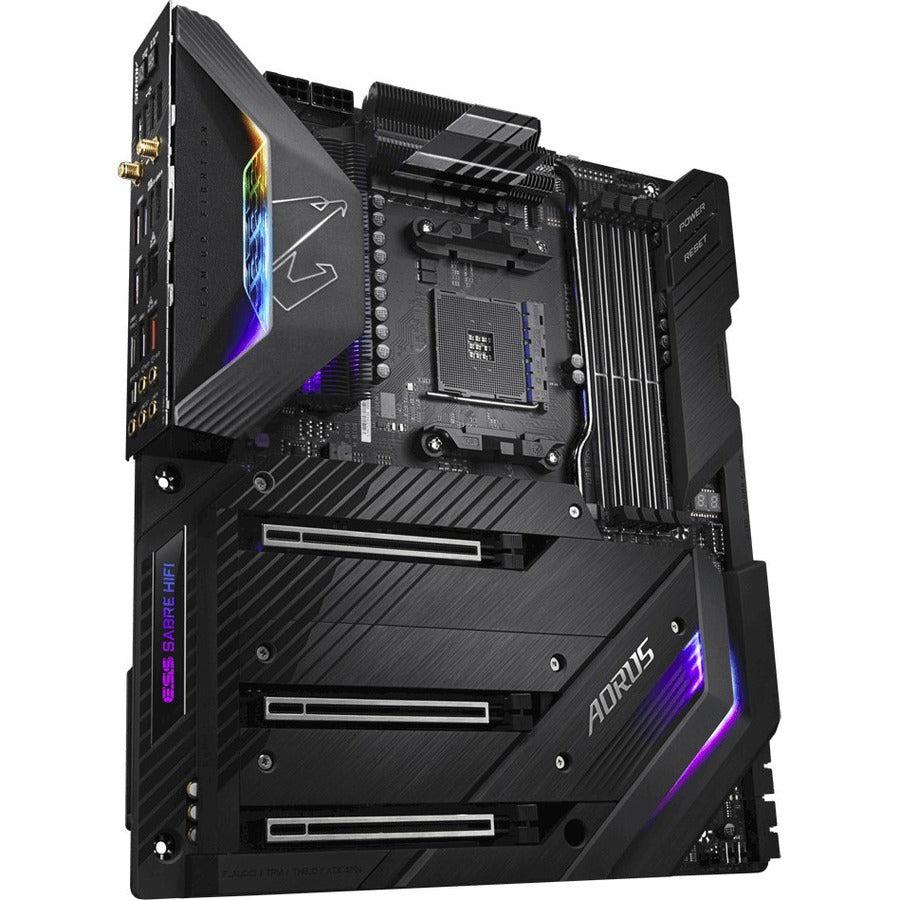

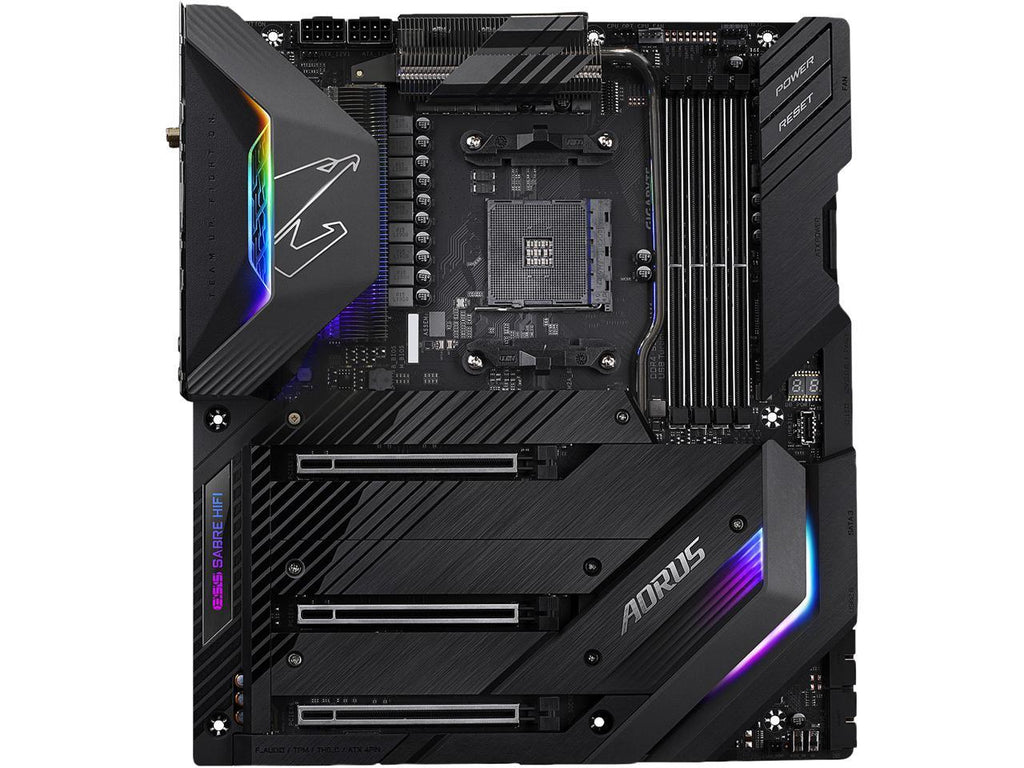

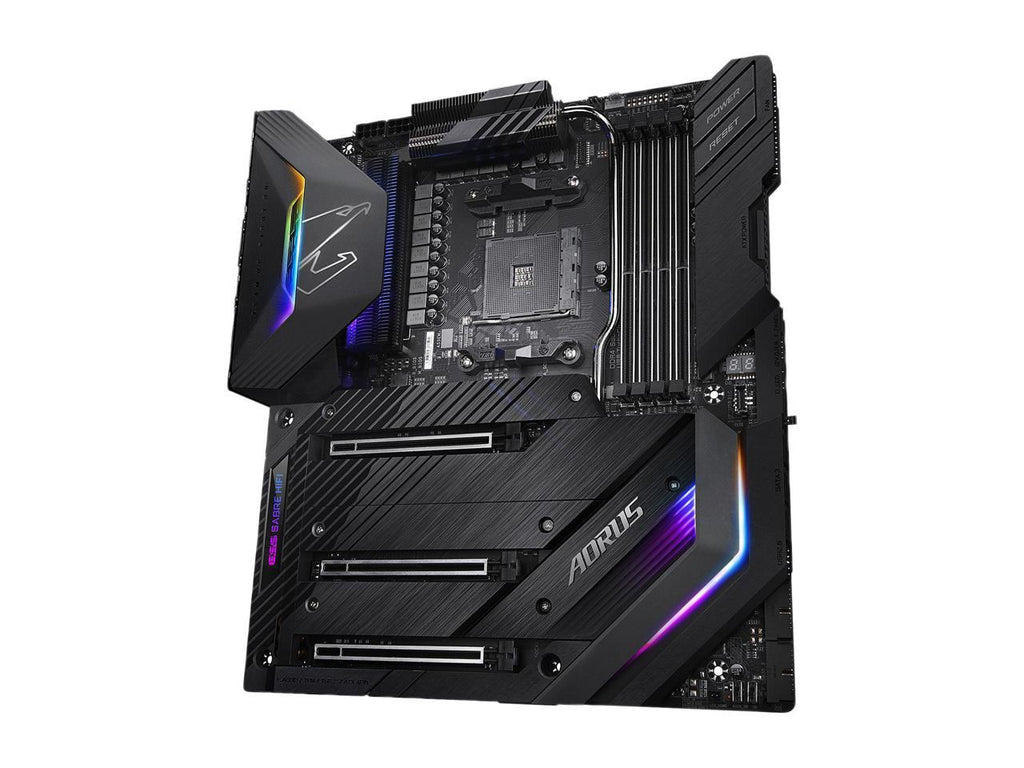

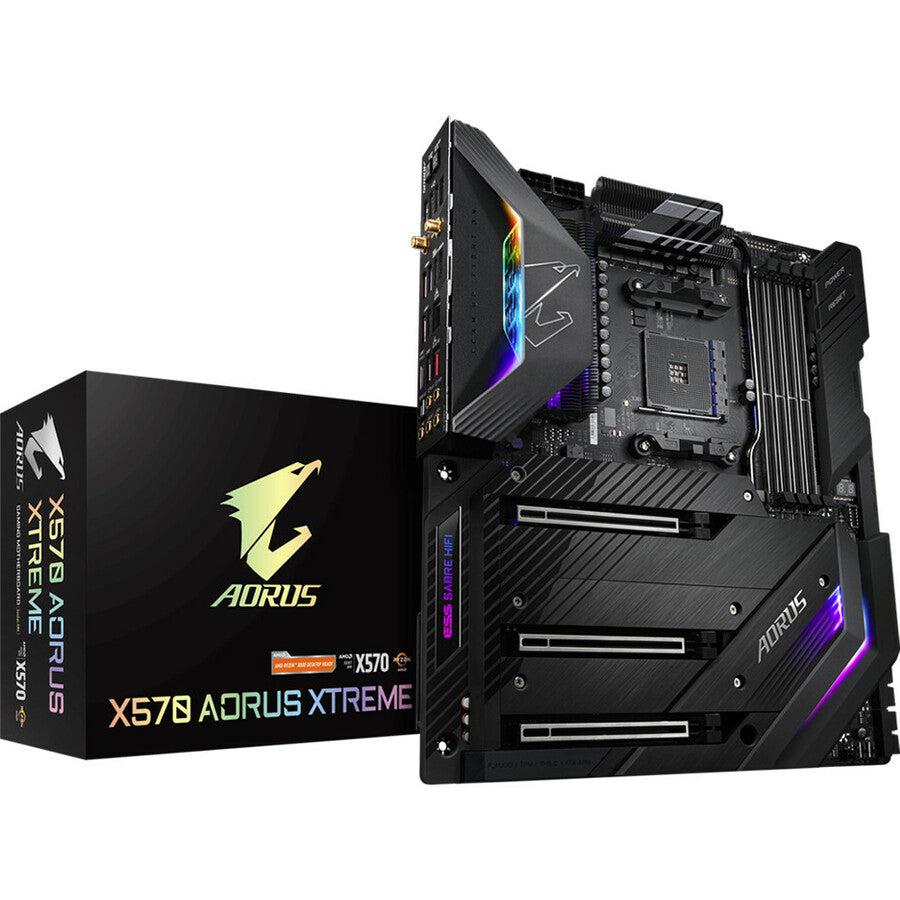

Gigabyte X570 Aorus Xtreme Amd Ryzen 3000 Pcie 4.0 Sata 6Gb/S Usb 3.2 Amd X570 E-Atx Motherboard

Gigabyte X570 Aorus Xtreme Amd Ryzen 3000 Pcie 4.0 Sata 6Gb/S Usb 3.2 Amd X570 E-Atx Motherboard


Regular price $759.99
Regular price Sale price $759.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Reviews, Que. & Ans.

        Description :

        • Support for Ryzen 5000 Series with BIOS UPDATE
        • Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen/2nd Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/Ryzen with Radeon Vega Graphics Processors
        • Dual Channel ECC / Non-ECC Unbuffered DDR4, 4 DIMMs
        • Direct 16 Phases Infineon Digital VRM Solution with 70A PowIRstage
        • Thermal Reactive Armor - Fins-Array Heatsink, Direct Touch Heatpipe & NanoCarbon Baseplate
        • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
        • Intel Wi-Fi 6 802.11 ax & BT 5 with 2X AORUS Antenna
        • ALC1220-VB & ESS SABRE 9218 DAC, 130dB Rear
        • AQUANTIA 10GbE + Intel Gigabit LAN
        • Exclusive RGB FAN COMMANDER for Professional Casemoders
        • USB TurboCharger for Mobile Device Fast Charge Support
        • RGB FUSION with Multi-Zone Addressable LED Light Show Design
        • Smart Fan 5 - Hybrid Fan Headers with FAN STOP and Noise Detection
        • 1 x Front Panel & 1 x Rear USB 3.2 Gen 2 Type-C
        • Integrated I/O Shield & Armor
        • Q-Flash Plus Update BIOS Without Installing CPU, Memory, GPU

        AMD X570 AORUS Motherboard with Direct 16 Phases Infineon Digital VRM, Fins-Array Heatsink, NanoCarbon Baseplate, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9218, AQUANTIA® 10GbE LAN+1GbE LAN, RGB FAN COMMANDER, RGB Fusion 2.0

        • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
        • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
        • Direct 16 Phases Infineon Digital VRM Solution with 70A Power Stage
        • Thermal Reactive Armor Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate
        • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
        • Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
        • Rear 130dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9218 DAC with WIMA Audio Capacitors
        • AQUANTIA® 10GbE BASE-T LAN + Intel® Gigabit LAN with cFosSpeed
        • Exclusive RGB FAN COMMANDER for Professional Casemoders
        • USB TurboCharger for Mobile Device Fast Charge Support
        • RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
        • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
        • Front & Rear USB 3.2 Gen 2 Type-C™ Headers
        • Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card


        Innovative design, cutting-edge function, state-of-art aesthetics, sophisticated thermal design, next generation network connection ,Hi-Fi level audio system. X570 AORUS XTREME is the new definition of flagship motherboard.

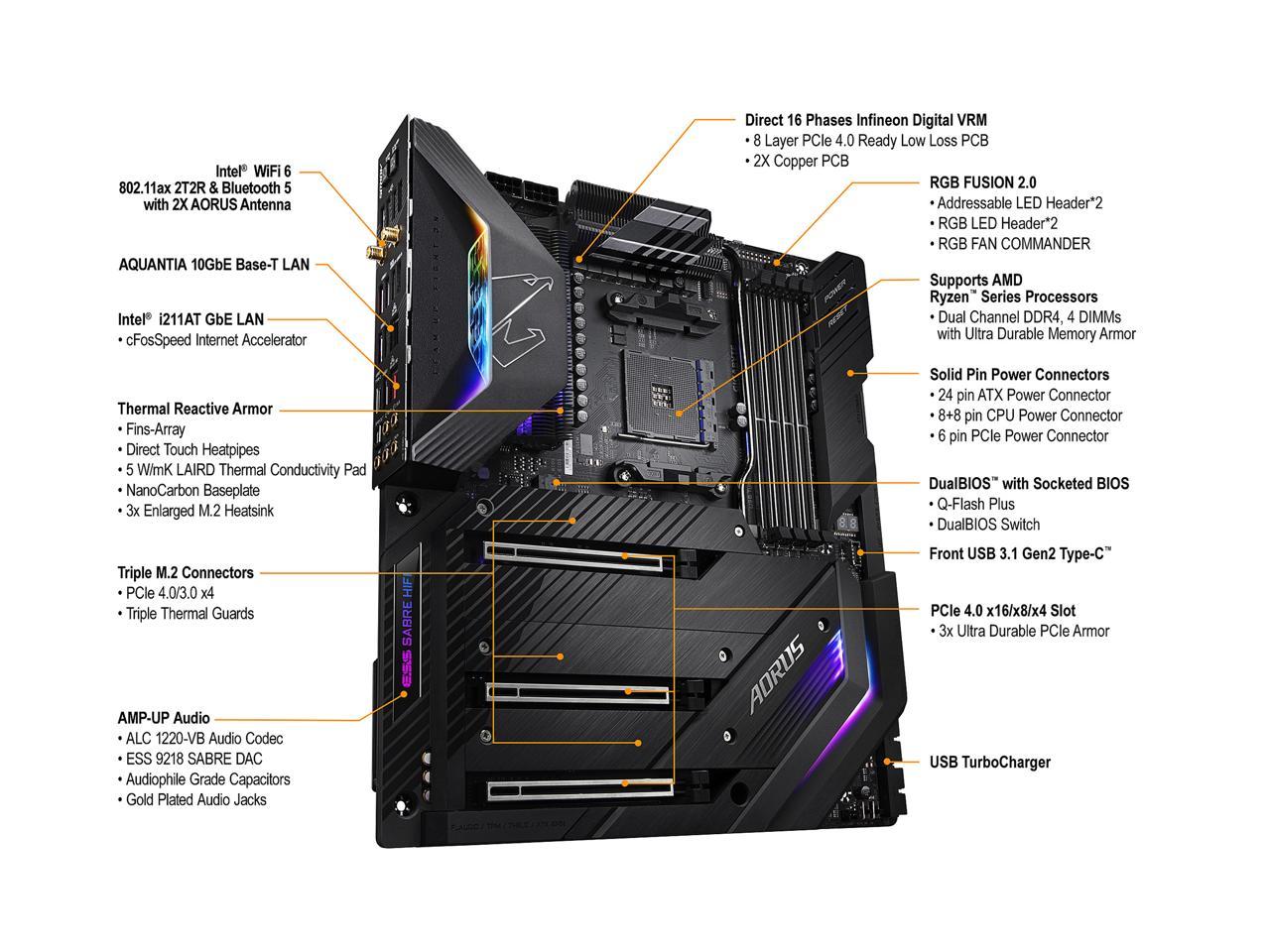

        1. Direct 16 Phases Infineon Digital VRM
          • 8 Layer PCIe 4.0 Ready Low Loss PCB
          • 2X Copper PCB
        2. Intel® WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
        3. AQUANTIA 10GbE Base-T LAN
        4. Intel® i211AT GbE LAN
          • cFosSpeed Internet Accelerator
        5. Thermal Reactive Armor
          • Fins-Array
          • Direct Touch Heatpipes
          • 5 W/mK LAIRD Thermal Conductivity Pad
          • NanoCarbon Baseplate
          • 3x Enlarged M.2 Heatsink
        6. Triple M.2 Connectors
          • PCIe 4.0/3.0 x4
          • Triple Thermal Guards
        7. AMP-UP Audio
          • ALC 1220-VB Audio Codec
          • ESS 9218 SABRE DAC
          • Audiophile Grade Capacitors
          • Gold Plated Audio Jacks
        1. RGB FUSION 2.0
          • Addressable LED Header*2
          • RGB LED Header*2

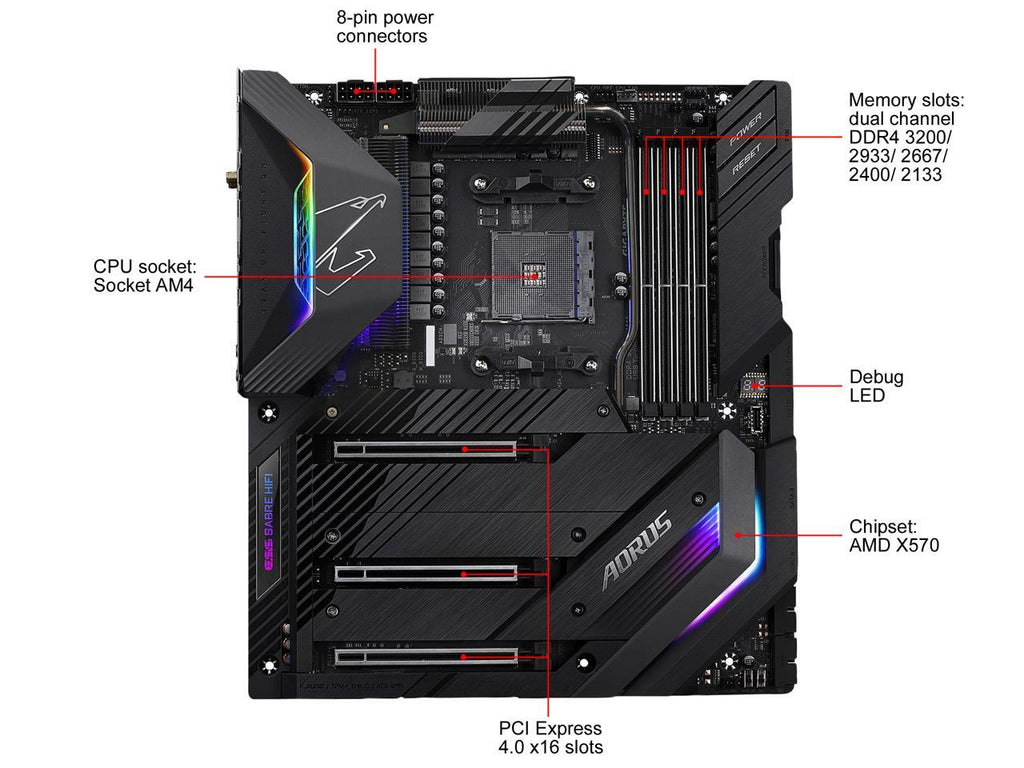

        2. Supports AMD Ryzen™ Series Processors
          • Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor
        3. Solid Pin Power Connectors
          • 24 pin ATX Power Connector
          • 8+8 pin CPU Power Connector
          • 6 pin PCIe Power Connector
        4. DualBIOS™ with Socketed BIOS
          • Q-Flash Plus
          • DualBIOS Switch
        5. Front USB 3.2 Gen2 Type-C™
        6. PCIe 4.0 Turbo B-Clock IC
        7. PCIe 4.0 x16/x8/x4 Slot
          • 3x Ultra Durable PCIe Armor
        8. USB TurboCharger


        GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.


        AMD StoreMI Technology

        GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

        The benefits of AMD StoreMI:
        • Making the PC experience fast, smooth and easy
        • Optimizing computer responsiveness from system boot to application launch
        • Offering SSD performance with HDD capacity at an affordable cost
        • Quickly accessing key files by automatically learning users' computing behaviors


        To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS XTREME is a true beast among motherboards.


        Direct 16 Phases Infineon Digital VRM Solution

        • New Direct Multiphase Power Design
        • No Doubler / Not Parallel
        • Next-Gen Infineon PWM Controller
        • 70A PowIRstage
        • The Lowest Voltage Ripple
        • The Highest Efficiency
        • 8+8 Pin Metal Shielding Connector

        X570 AORUS XTREME motherboard uses latest new generation Infineon multiphase PWM controller, and a total 16 phase for vCore and SOC, all with Infineon TDA21472 PowIRstage MOSFET which is capable of providing at least 70A of power from each phase, for a total of amazing 1120A. Power design is no longer a bottleneck for this motherboard.

        Direct 16 Phase Power Design


        Power Efficiency & Voltage Ripple Graph


        GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

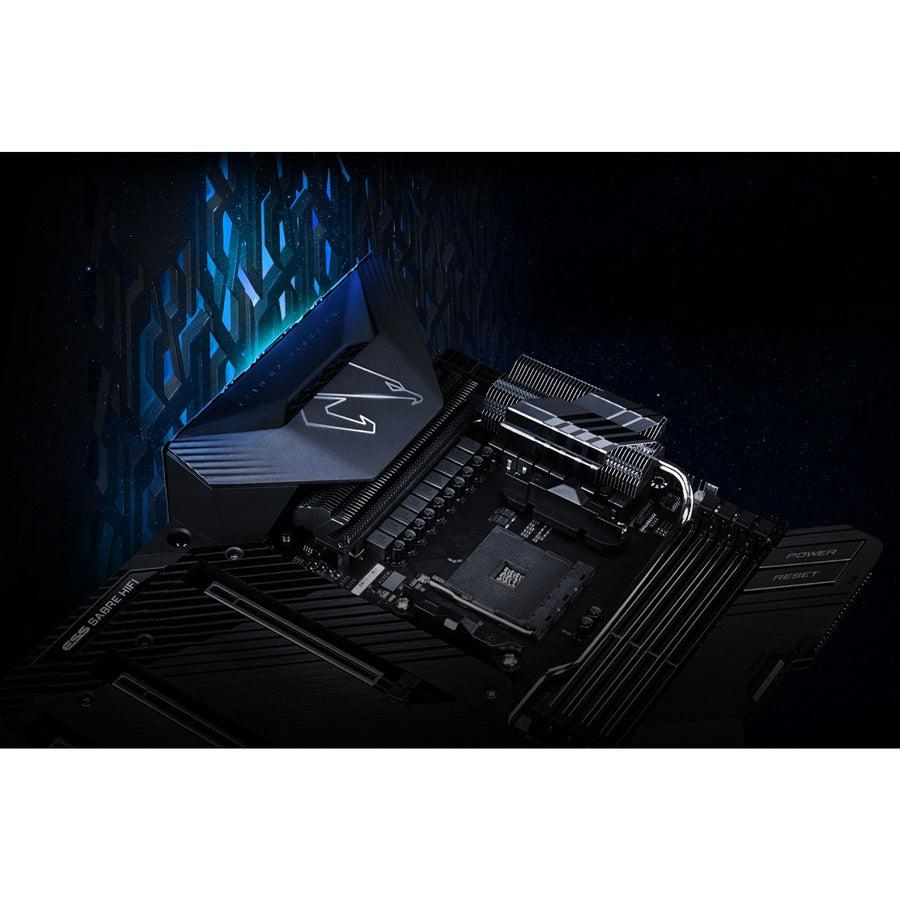

        X570 AORUS XTREME uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low temperature under full loading application and gaming.

        1. Fins-Array
          Fins-Array increases the heat dissipation surface by 300% compared to traditional heatsinks of the same size.
        2. Direct-Touch Heatpipe
          Heatpipes directly contact PowlRstage and X570 chipset, this help transfer heat on both Fins-Array heatsink and X570 chipset heatsink.
        3. Aluminum Cover
          IO Cover made from aluminum to keep aesthetics style and not block heat dissipation.
        4. 3X PCIe 4.0 M.2 Heatsink
          Enlarged M.2 heatsink prevents new generation PCIe 4.0 SSD from throttled performance under overheat condition.
        1. LAIRD Thermal Pad
          By using 1.5mm thicker 5 W/mK thermal conductivity pad, it can transfer 2.7x more heat than usual thermal pad in the same time
        2. NanoCarbon Baseplate
          A thin layer of NanoCarbon is coated on the baseplate through electrostatic adhesion to enhance thermal radiation capability.
        3. Right Angled Connectors
          Over 90% of connectors on X570 AORUS XTREME is specifically designed to be right angled for easy cable management and clean airflow in chassis.
        4. X570 Chipset Heatsink
          Made by several layers of heatsink and heatpipe connects the Fins-Arrays. This complicated heatsink ensure X570 chipset run cool and quiet.

        Thermal Performance


        Right-Angled Connectors

        X570 AORUS XTREME uses revolutionary Right-Angled Connectors design, 90% of pin headers and connectors on motherboard are right-angled and relocated to one side of PCB. The never-seen-before design help easier cable management and better in-chassis air-flow when installing great amount of devices.
        • Base plate made of aluminum instead of traditional iron ensures 3X thermal conductivity.
        • A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to enhance thermal radiation capability.
        • Transfer heat from the back side PCB to the base plate so the NanoCarbon base plate can dissipate heat passively.
        • Effectively lowers backside PWM component temperature by 10%.
        NanoCarbon Coating
        This specialized nanostructure of carbon molecules has extraordinary thermal conductivity.

        Noise Detection

        With the new Noise Detection function, you can monitor noise level of all devices including fans, CPU coolers, graphics card, etc. in real time, and you can determine how fast your fan speed needs to be. Our bundled Noise Detection cable doesn't include any sound recording function, it simply detects sound pressure while protecting your privacy.


        Smart Fan 5

        With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
        • 8 Fan / Water Pump Connectors
        • 7 Temperature Sensors
        • 2 External Temperature Sensors
        • 1 Noise Detection Cable
        • All Hybrid Fan Headers
        • Interoperable Fans and Sensors
        • Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
        • Intuitive UI for Fan Controll
        Bundled RGB FAN COMMANDER provide additional 8 hybrid fan headers

        * Different models have a different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
        Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

        Hybrid Fan Pin Headers

        Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.

        • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

        New Smart Fan 5 Software

        Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

        Hungry for better performance? X570 AORUS XTREME has full PCIe 4.0 design, supports high frequency memory, and full SSD thermal guard to make sure you get the maximum full system performance.

        X570 AORUS XTREME equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Slots, re-drivers, switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0 performance.

        • 2X Theoretic Bandwidth vs. PCIe 3.0
        • PCIe 4.0 Switch and Re-driver IC
        • New Low Impedance PCIe and M.2 Slot
        • PCIe 4.0 Ready 2X Copper Low Loss PCB
        • The Best PCIe 4.0 Signal Quality
        • 3X PCIe 4.0 Slot (x16/x8/4)
        • 3X PCIe 4.0 M.2 Slots (Type 22110)
        1. PCIe 4.0 Switch

          Switch PCIe 4.0 x16 into PCIe 4.0 x8/x8
        2. 3X PCIe 4.0 Slot

          Reinforced PCIe 4.0 x16/x8/x6 with lower impedance
        3. 3X M.2 PCIe 4.0 Slot

          M.2 PCIe 4.0 x4 slot with lower impedance
        4. PCIe 4.0 Re-driver

          Boost & strengthen PCIe 4.0 signal to longer length

        Support for DDR4 XMP Up to 4400MHz and Beyond*

        AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4400MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.


        Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated!

        AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.


        Triple PCIe 4.0 x4 M.2

        AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.


        Triple NVMe M.2 PCIe SSDs in RAID 0 Support

        Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs
        AORUS X570 motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9840 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.


        AORUS M.2 Thermal Guard

        GIGABYTE Ultra-Efficient M.2 Thermal Guard

        With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

        Thermal Throttling As Temperature Rises

        A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

        AQUANTIA® 10GbE BASE-T Networking

        Next Generation Multi-Gig Gaming
        The AQUANTIA ® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.


        Multi-Gigabit Support

        • Ultimate online gaming experience with faster connection speed
        • Backward compatible with 5/2.5/1Gbps network
        • No re-wiring needed

        New Introduce Intel® WiFi 6 802.11ax + BT 5 Module

        Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

        Benefit of WiFi 6:

        1. 5.5X throughput than 802.11ac 1x1*
        2. 4X better network capacity, no traffic jams especially in those dense area with lots of devices
        3. Network efficiency increase for better user experience
        • All new antenna supported 802.11ac 2.4GHz & 5GHz, 4dBi signal gain
        • 2x signal strength compared to traditional antenna design
        • Two antenna with smart antenna function for the best WIFI signal transmitting
        • Multiple angle tilt and magnetic base for the best signal strength direction and location

        USB TurboCharger

        GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up to 50% in less than 30 minutes*. By connecting Front USB 3.2 Gen1 Type-A cable of chassis to our motherboard, USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge function.

        *Charge time varies with devices' hardware design, battery size, front USB 3.2 Gen1 cable quality of chassis and environmental factors, actual results will vary.

        GIGABYTE ID team designs X570 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.

        Multi-Zone Light Show Design

        Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

        With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

        • Exclusive bundled accessory for professional casemodders
        • 8 Hybrid Fan Headers
        • 8 RGB LED Headers
        • 8 Addressable LED Headers
        • 2 external temperature sensors
        • 2 USB 2.0 header for additional USB RGB devices
        • All Hybrid Fan Headers and RGB/Addressable LED Headers have independently controlled speed and lighting patterns
        • Easy to install inside the chassis with its compact size and magnetic base

        Perfectly control the devices connected to the AORUS RGB FAN COMMANDER via RGB FUSION 2.0 and Smart FAN software.

        • Manage 8x Fan speeds individually to your requirements. It can also ensure your system maintains its performance while staying cool.
        • Synchronize up to 16 lighting devices with RGB FUSION 2.0.


        Hi-Fi Audio System- As a Built-in Sound Card

        For Hi-Fi Audio Solution, can be grouped into 2 parts.
        Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB SNR, 112dB THD+N and supports higher impedance up to 600 O headphone. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. Audio Signal Optimization, TXC Oscillator provides precise time triggers to Digital-Analog Converters. WIMA Capacitors to deliver crystal and balanced sound.


        Audio Signal Process


        True Hi-Fidelity Music

        Provides surround sound audio and enables DSD music playback

        ESS SABRE reference DAC 9218

        • Support QUAD DAC™ to deliver superb 124dB DNR and -112dB THD+N.
        • True 2vrms outputs are capable of driving professional high impedance headphones and deliver professional line-level outputs.
        • Analog Volume Control delivers 130dB SNR at low listening levels by reducing noise as the audio signal decreases.
        • High-Res music Supports up to 32bit 192KHz PCM

        Audiophile Grade Capacitors

        Deliver true acoustic sound

        Gold Plated Audio Jacks

        High resistance to corrosion and oxidation

        Audio Signal Process


        Precise TXC Oscillator
        Provides precise time triggers to Digital-Analog Converters.

        Audiophile Grade Capacitors
        Famous WIMA capacitors are used as feedback signal processing to deliver crystal and balanced sound.


        GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the X570 AORUS XTREME and reinforce every slot to make each of them solid and durable.

        Ultra Durable™ PCIe Armor

        Industry Leading Ultra Durable™ PCIe Armor

        The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.


        Ultra Durable™ Memory Armor

        AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference

        Solid Pin Power Connectors

        X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.


        Solid Pin Power connector advantages

        • Larger contact area for electricity
        • More metal quantity to sustain higher power and generated heat
        • Ultra durable and longer lifespan

        Q-Flash Plus

        Update the BIOS easily without installing the CPU, memory and graphics card.

        With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!

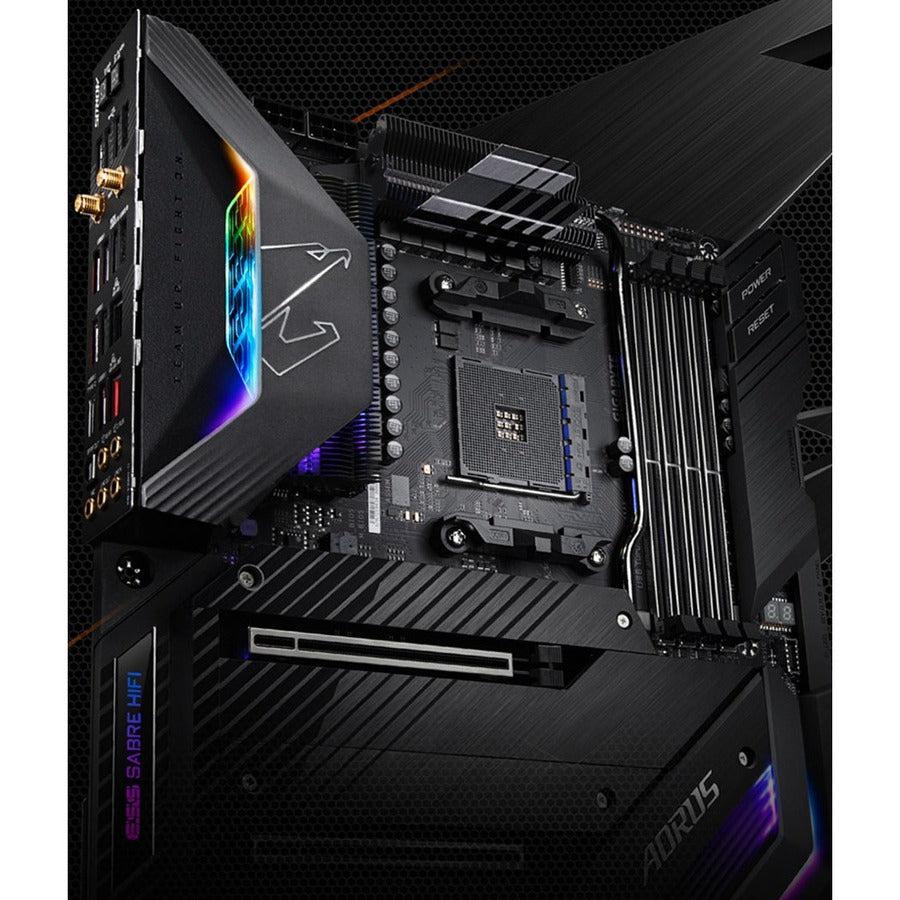

        GIGABYTE is famous for its durability and high quality manufacture process, needless to say, we use the best components we can find on X570 AORUS XTREME and reinforce on every slot to make it solid durable.




        New User Interface

        All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

        My Favorites

        Add constantly used items into the favorite menu for quick access.

        Storage Information

        Show all kinds of storage information including SATA, PCIE and M.2 interface.


        List all changes before saving and exiting bios. Quickly review overall settings modification.

        Optimized Memory Installation Reminder

        Displays correct installation reminder message when user installs two memory modules but runs single channel mode.

        Intuitive Load Line Curve

        Clearly show each loadline calibration setting in an intuitive curve graph.

        APP CENTER

        GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.


        GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.


        System Information Viewer

        GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

        XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

        Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

        * Free 1 year XSplit Gamecaster + Broadcaster Premium License.

        Customer Reviews

        Reviews 0
        Questions 0
        Ask your Question about this product
