Gigabyte X570 Aorus Elite Wifi Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard

Gigabyte X570 Aorus Elite Wifi Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard


Regular price $269.99
Regular price Sale price $269.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Reviews, Que. & Ans.

        Description :

        • Support for Ryzen 5000 Series with BIOS UPDATE
        • Supports AMD Ryzen 5000 Series / 5000 G-Series Processors
        • Supports AMD Ryzen 3rd Gen / 2nd Gen Processors
        • Supports AMD Ryzen 3rd Gen / 2nd Gen / 1st Gen with Radeon Vega Graphics Processors
        • Dual Channel ECC/Non-ECC Unbuffered DDR4, 4 DIMMs
        • 12+2 Phases Digital VRM
        • Advanced Heatsink Design with Enlarge Heatsink
        • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 & Single Thermal Guard
        • Intel Dual-Band 802.11 ac WI-FI & BT 4.2
        • AMP-UP Audio with ALC1200
        • Intel Gigabit LAN
        • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
        • Smart Fan 5 - Hybrid Fan Headers with FAN STOP
        • Front Panel USB 3.2 Gen 2 Type-C
        • I/O Shield Armor
        • Q-Flash Plus Update BIOS Without Installing CPU, Memory, GPU

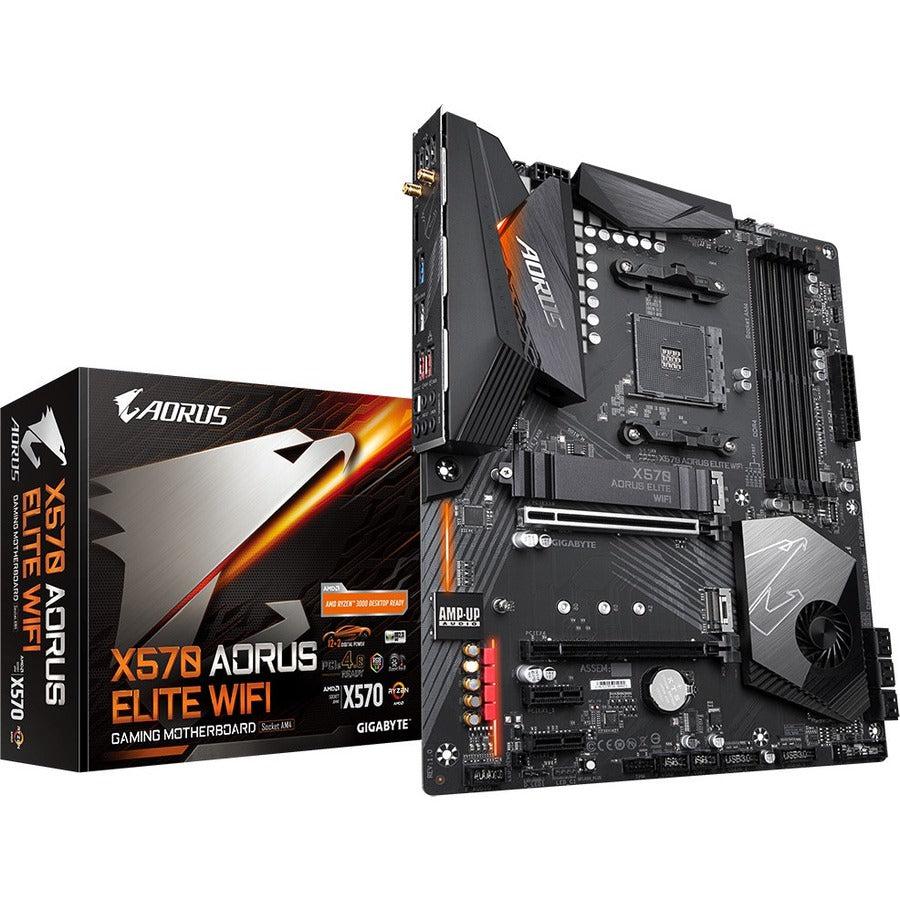

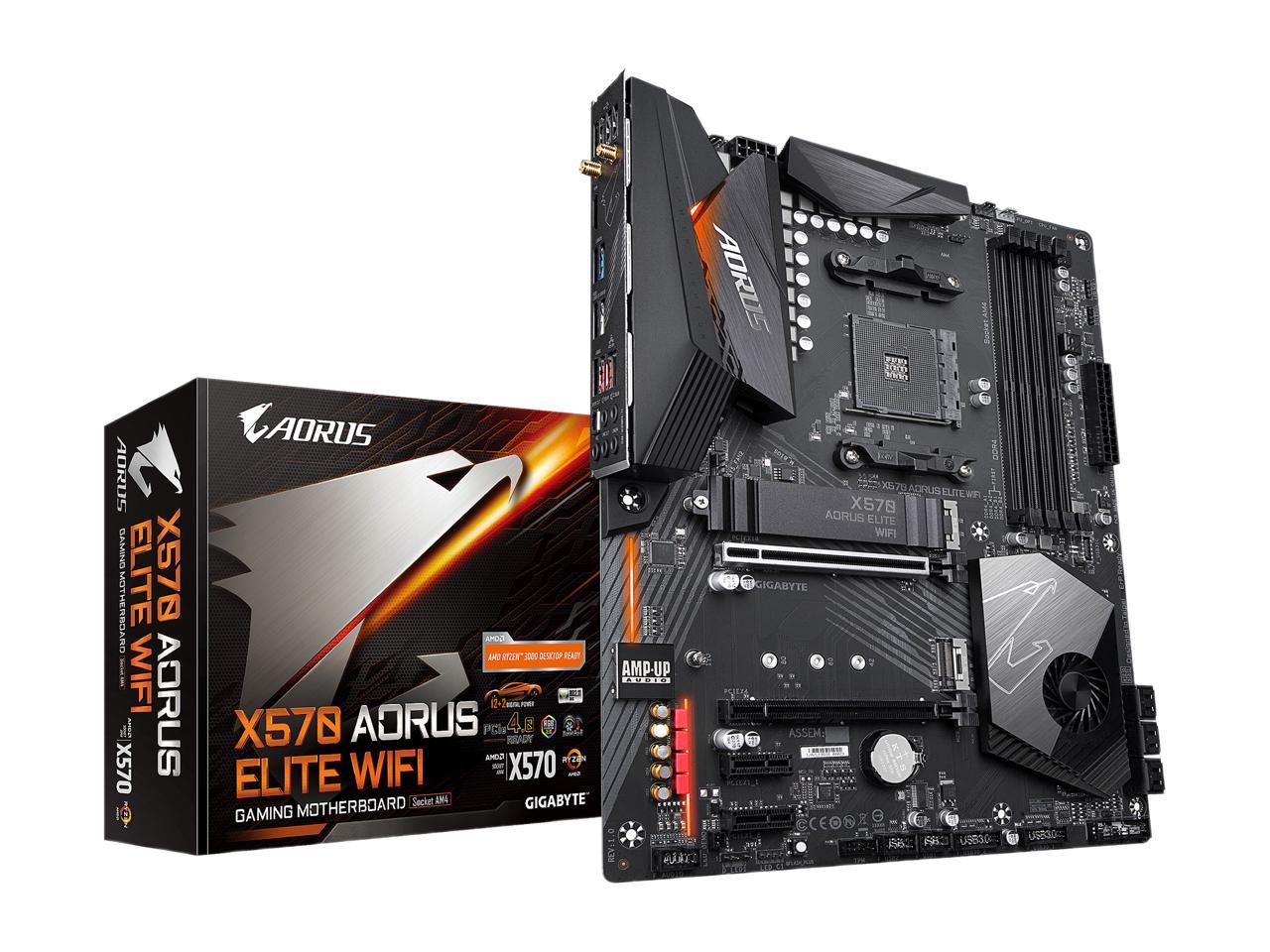

        GIGABYTE X570 Motherboard Next to Its Product Box and the RGB FUSION 2.0 Badge

        AMD X570 AORUS Motherboard with 12+2 Phase Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2 with Single Thermal Guard, Intel® GbE LAN with cFosSpeed, Intel® Dual Band 802.11ac Wireless, Front USB Type-C, RGB Fusion 2.0

        • Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 3nd Gen Ryzen with Radeon Vega Graphics/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors
        • Dual-Channel Non-ECC Unbuffered DDR4, 4 DIMMs
        • 12+2 Phases Digital VRM Solution with DrMOS
        • Advanced Heatsink Design with Enlarge Heatsink
        • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guards
        • High-Quality Audio Capacitors and Audio Noise Guard with LED Trace-Path Lighting
        • Intel® Gigabit LAN with cFosSpeed Internet Accelerator
        • Intel® Dual-Band 802.11ac WiFi & BT 4.2
        • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
        • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with Fan Stop
        • Front USB 3.1 Gen 2 Type-C™ Header & HDMI 2.0 Support
        • Integrated I/O Shield Armor
        • Q-Flash Plus - Update BIOS without Installing CPU, Memory and Graphics Card
        Xtreme, five motherboard in a abstract background


        x570 007 DOMINANT, a robot with a aorus logo heart
        In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser-sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

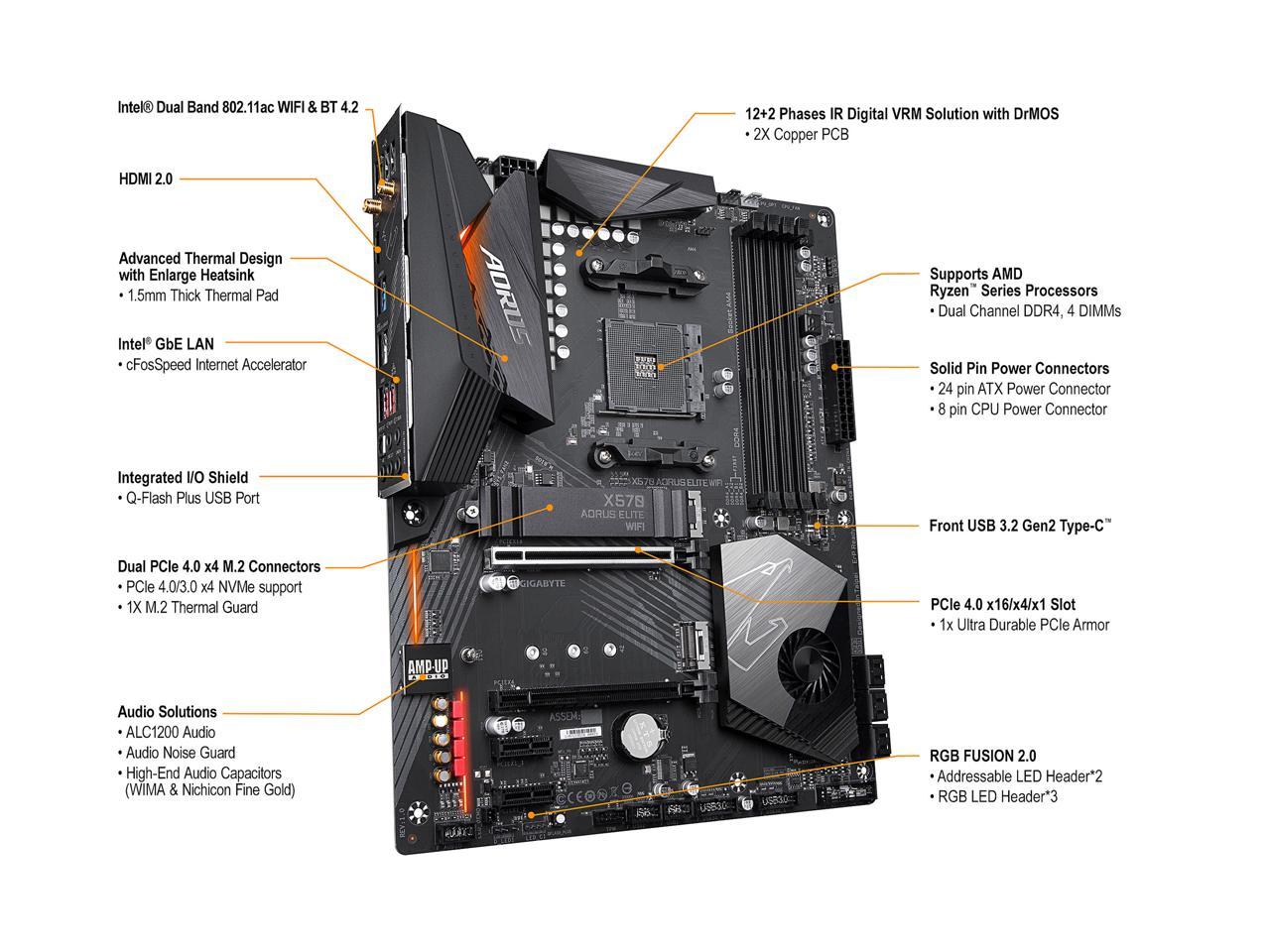

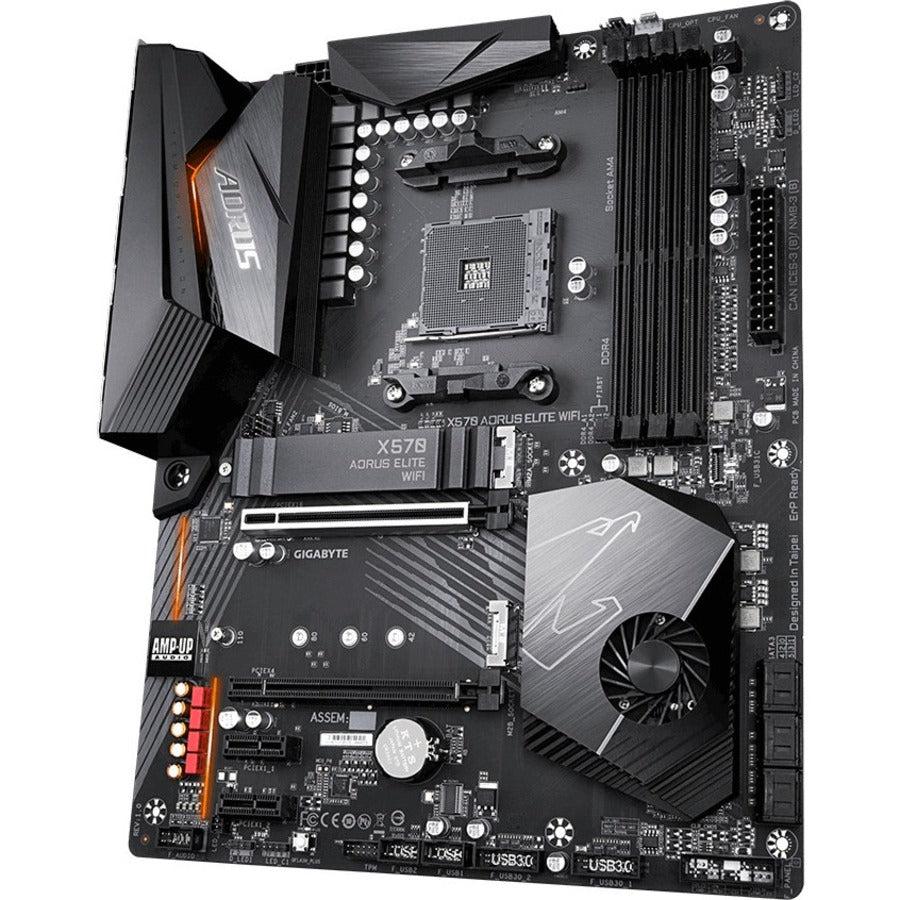

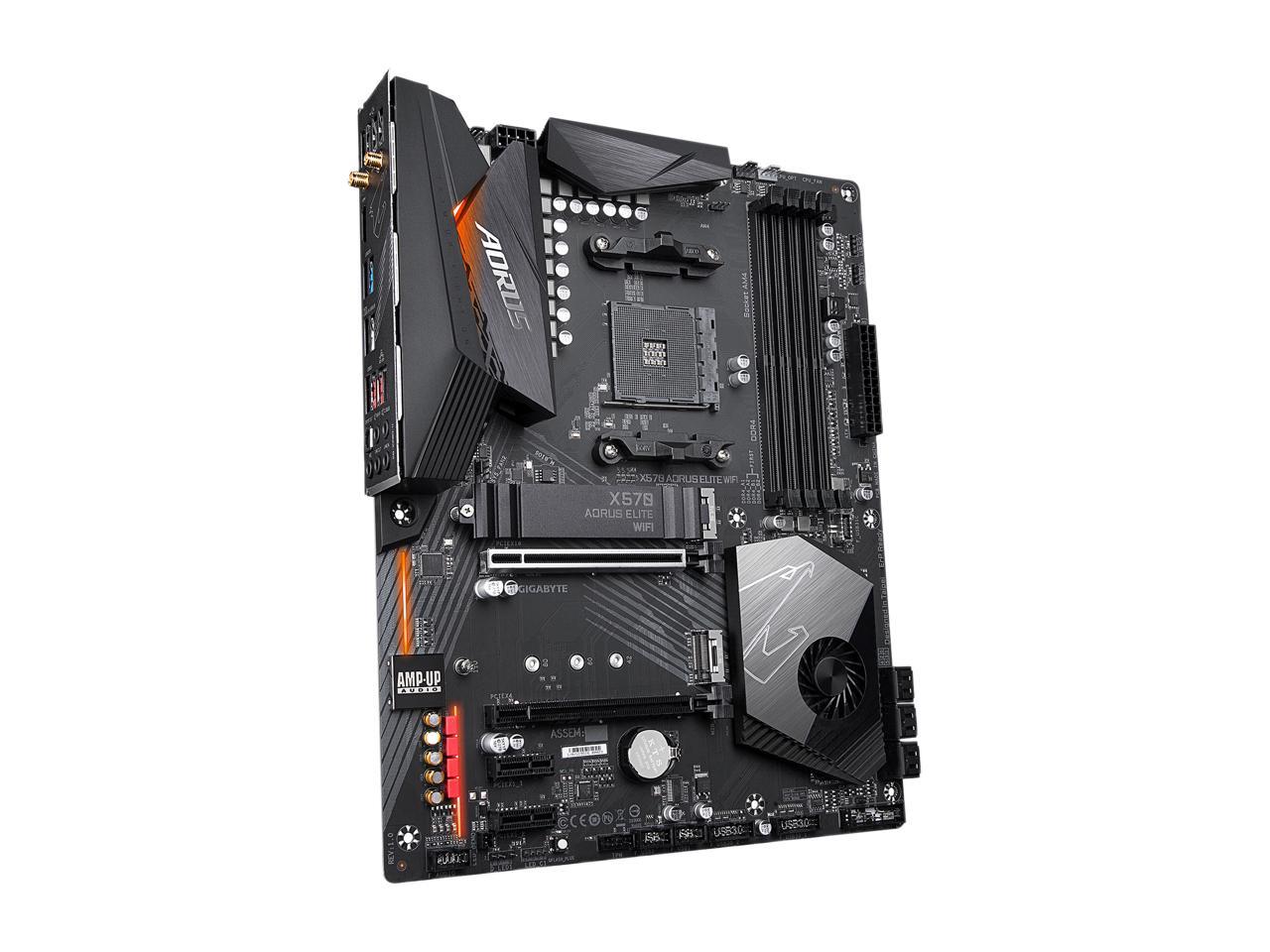

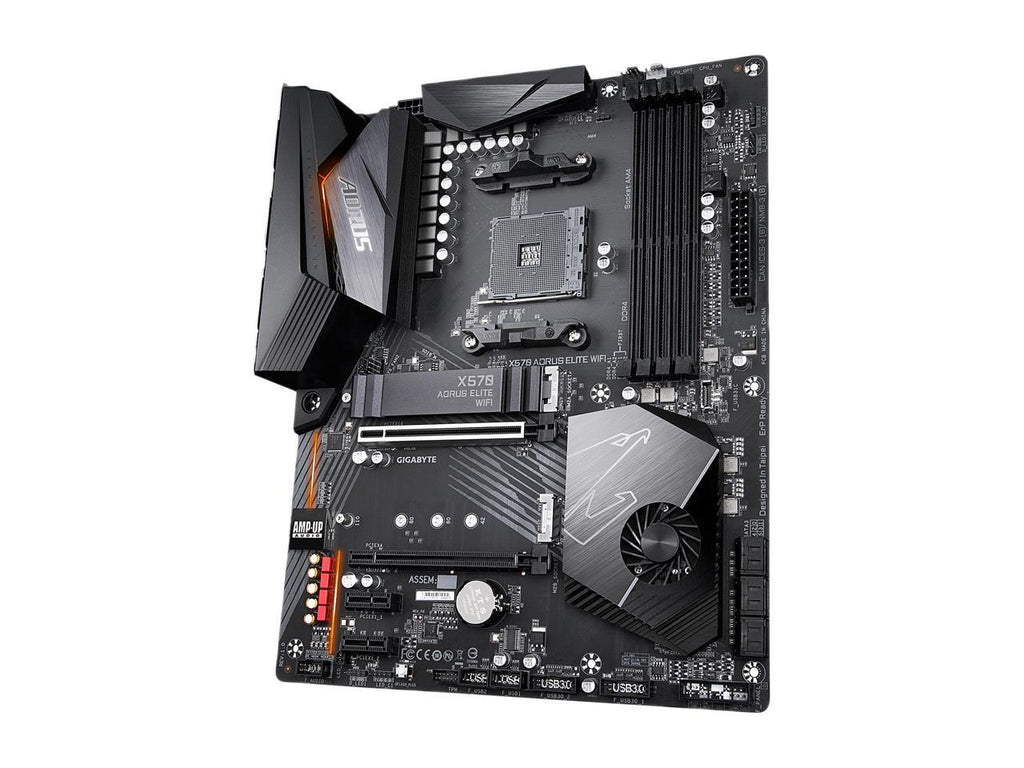

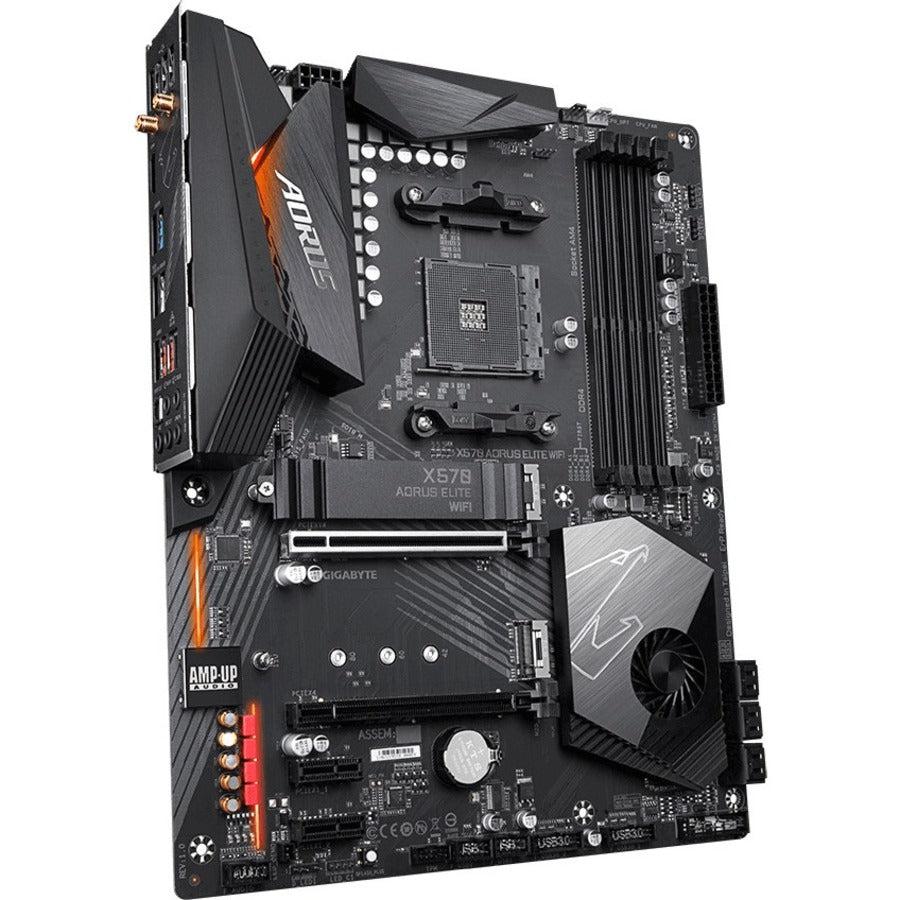

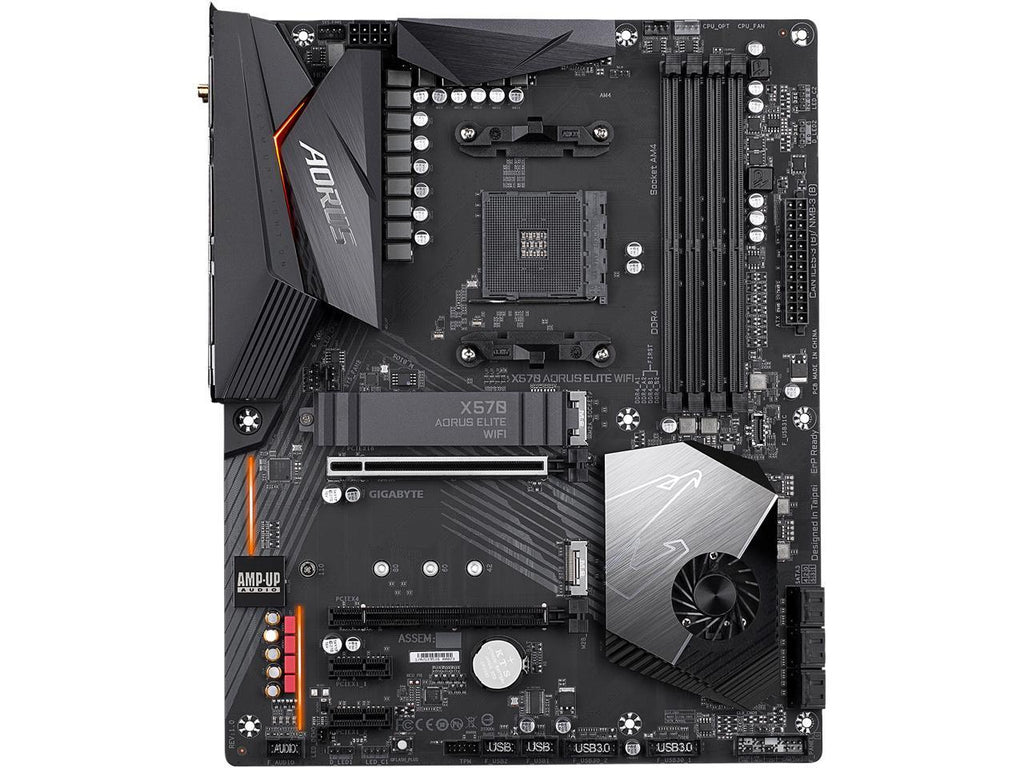

        X570 ELITE motherboard
        1. 12+2 Phases IR Digital VRM Solution with DrMOS
          • 2X Copper PCB
        2. Intel® Dual Band 802.11ac WIFI & BT 4.2
        3. HDMI 2.0
        4. Advanced Thermal Design with Enlarge Heatsink
          • 1.5mm Thick Thermal Pad
        5. Intel® GbE LAN
          • cFosSpeed Internet Accelerator

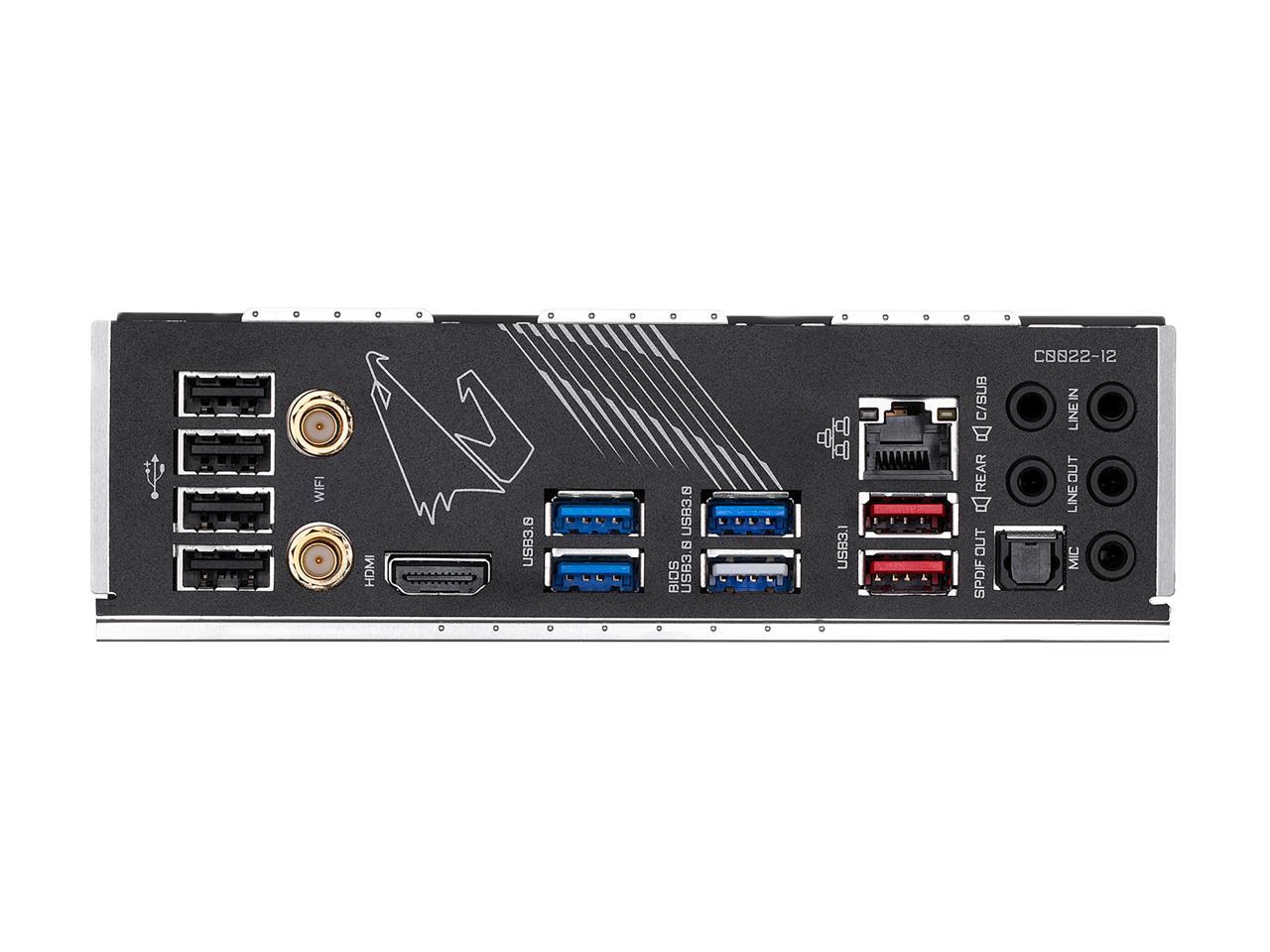

        6. Integrated I/O Shield
          • Q-Flash Plus USB Port
        7. Dual PCIe 4.0 x4 M.2 Connectors
          • PCIe 4.0/3.0 x4 NVMe support
          • 1x M.2 Thermal Guard
        8. Audio Solutions
          • ALC1200 Audio
          • Audio Noise Guard
          • High-End Audio Capacitors (WIMA & Nichicon Fine Gold)

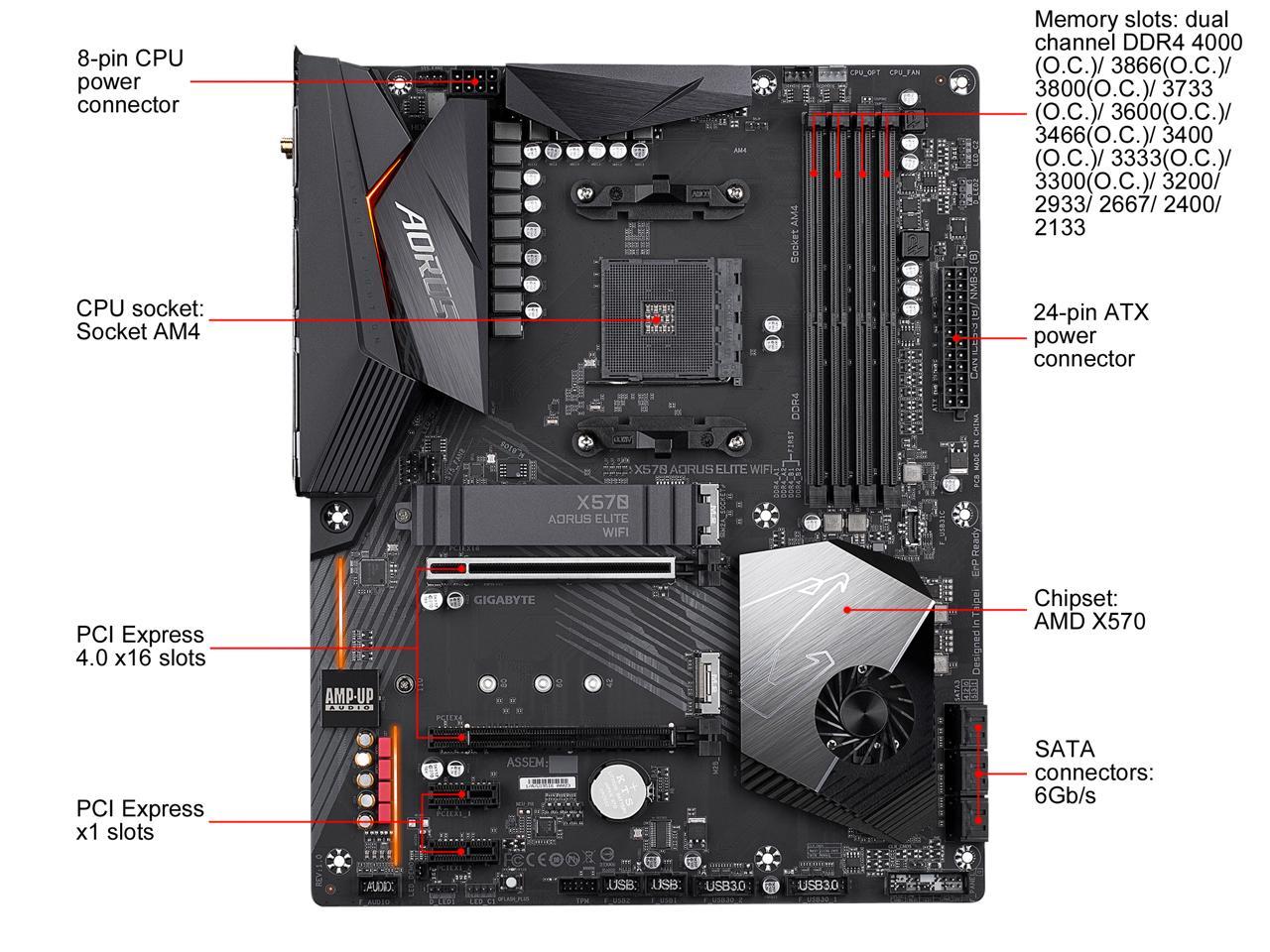

        1. Supports AMD Ryzen™ Series Processors
          • Dual-Channel DDR4, 4 DIMMs
        2. Solid Pin Power Connectors
          • 24-Pin ATX Power Connector
          • 8-Pin CPU Power Connector
        3. Front USB 3.2 Gen2 Type-C™
        4. PCIe 4.0 x16/x4/x1 Slots
          • 1x Ultra-Durable PCIe Armor
        5. RGB FUSION 2.0
          • 2x Addressable LED Header
          • 3x RGB LED Header
        x570 ryzencpu, RYZEN 3000 cpu with an orange light as background


        GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WiFi design, to fulfill users' performance, audio and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

        x570 ryzencpu logo
        x570 AMD-StoreMI icon

        AMD StoreMI Technology

        GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

        The Benefits of AMD StoreMI:
        • Making the PC Experience Fast, Smooth and Easy
        • Optimizing Computer Responsiveness from System Boot to Application Launch
        • Offering SSD Performance with HDD Capacity at an Affordable Cost
        • Quickly Accessing Key Files by Automatically Learning Users' Computing Behaviors

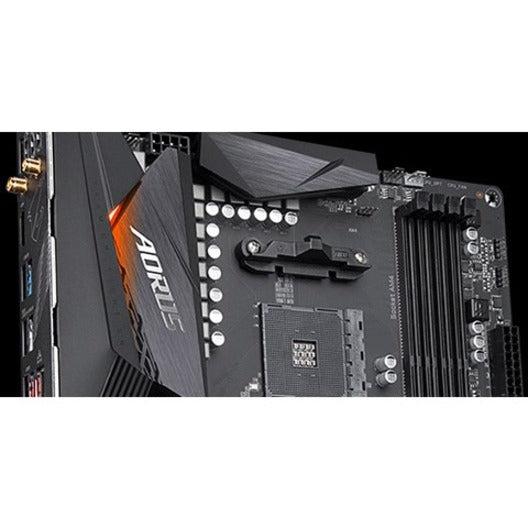

        x570 mainsec01, one part of motherboard

        Ultimate Power Design

        To unleash the full potential of the 3rd generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.

        12+2-Phase Digital Power Design*

        GIGABYTE's AORUS X570 ELITE WIFI motherboard uses a 12+2-phase digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new AMD Ryzen 3000 series processors.

        *Doubled from 6 phases with current balancing.

        powerdesign, four parts of motherboard, 8 Solid pin cpu power connector,12*+2 Phases Digital Power Design, DrMos, Intersil Digital PWM Controller

        12+2-Phase Power Architecture

        phase12, three process of CPU, Intersil Digital PWM Controller, Intersil Phase Double, Drmos

        Power Efficiency & Voltage Ripple Graph

        2x-copper-pcb, a chart to show up to 3% higher Efficiency. red line is 87.9%, grey line is 84.7%.
        pcb2x-01, detail of the power design
        pcb2x-02, three pic to show detail of Copper PCB, Lower temperature icon, Better Overclocking icon, Better Power effciency icon, Lower Impedance icon

        GIGABYTE's exclusive 2X copper PCIe 4.0-ready PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

        Advanced Thermal Design

        ThermalDesign, detail of advanced thermal design, enlarge mosfet heatsinks ,thick thermal pad

        Smart Chipset Fan Heatsink

        Smart Fan

        Provides three different operating modes to minimize noise and extend the fan's longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.

        High Durability

        X570 motherboards adopt a high-quality ball bearing fan which guarantees up to 60,000 working hours.

        fan-heatsink, smart fan of motherboard

        Full PCIe 4.0 Design

        X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.

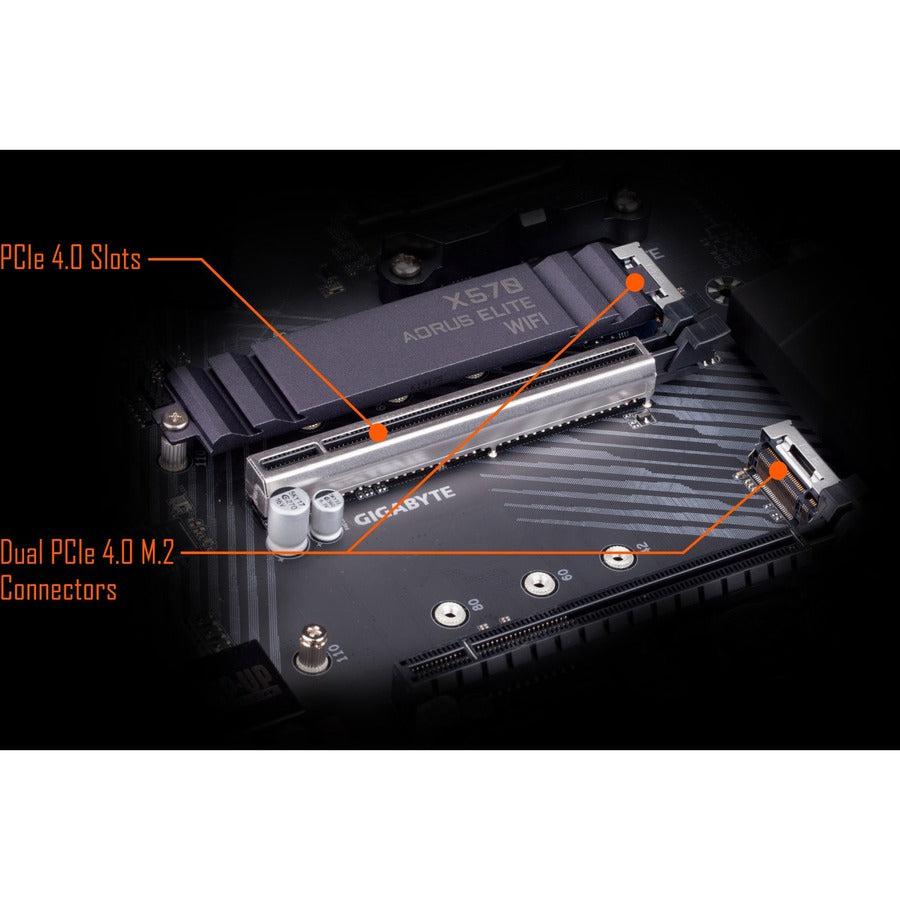

        mainsec02, detail of the motherboard, PCIe 4.0 Slots, Dual PCIe 4.0 M.2 Connectors
        pcie4slot, part of motherboard as background

        X570 AORUS Series motherboards feature built-in PCIe 4.0 slots, delivering superior bandwidth compared to that from previous-generation technology. Performance of graphics cards and PCIe NVMe AIC SSDs will not be limited by insufficient bandwidth.

        PCIe 4.0 slots have higher slot signal stability and lower impedance, maximizing PCIe bandwidth while also being backwards compatible with PCIe 3.0.

        PCIe,one chart is PCIe Bandwidth, the other chart is Slot Signal Stability
        m2Slot, a compare of PCIe 4.0x4 M.2 with PCIe 3.0 x4 M.2

        Dual PCIe 4.0 M.2 Connectors with Thermal Guards

        AORUS gaming motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems' potential.

        m2Slot, two parts of PCIe 4.0/3.1x4 (Type 22110) in the motherboard
        M.2 Extreme sequential Read 9534 MB/s, Sequential Write 8243 MB/s speed

        Dual PCIe 4.0 SSD in RAID 0

        Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs
        X570 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9,534MB/s (sequential read), making AORUS the obvious choice for the ultimate PC.

        M2ThermalGuard, a part of motherboard in black as background

        AORUS M.2 Thermal Guard Designed for Gen 4 SSD

        GIGABYTE Ultra-Efficient M.2 Thermal Guard

        For upcoming ultra-fast PCIe 4.0 SSDs, compromised performance is not acceptable. Well-managed thermal performance is particularly important for high-performance Gen 4 NVMe SSDs. GIGABYTE provides improved thermal solutions for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks on high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

        Thermal Throttling As Temperature Rises

        M2ThermalGuard, a performance chart of cooler and hotter

        Support for DDR4 XMP Up to 4000MHz and Beyond*

        AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

        mb_xmp, a chart of XMP profiles Support
        mb_xmp, DDR4 in motherboard as background

        Broad DDR4 Compatibility with a Validated 1,000+ DDR4 Support List!

        AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS motherboards. AORUS has verified over 1,000+ different modules to ensure performance in an AORUS-built system.

        ddr, many different brand  of DDR4 as background, aorus, apacer, corsair, XPG, crucial, geil, g.skill, hyper, klevv, patriot, t.force

        Next-Generation Connectivity

        A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS motherboards provide an all next-generation network, storage to keep you up to speed.
        mainsec04, one side of the motherboard

        Faster and Better Coverage with Intel Dual-Band 802.11ac WiFi + Bluetooth 4.2 Module

        The on-board 802.11ac WiFi module from Intel® supports Dual Band and up to 433Mbps, 3x faster WiFi speed than 802.11n and also supports Bluetooth 4.2.
        wifi80211, the wifi interface of the motherboard, one chart of up to 3X faster

        Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

        Intel® GbE LAN features cFosSpeed, a network-traffic management application which helps improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

        intellan, a pic of no lag, just fragcfos-speed-lan, a pic of cfos speed

        USB Type-C™ Front-Panel Connector

        Equipped with next-generation connectivity, AORUS gaming motherboards already support the chassis of the future. The on-board USB Type-C™ header for USB 3.2 Gen2 makes access convenient when connecting a USB 3.2 Gen 2 drive or charging your new mobile device.

        USBType-C, detail of the Type-C interface

        USB 3.2 Gen2

        AMD's native USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen 1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
        USB31Gen2, a compare chart of USB 3.2 GEN2 and USB 3.2 GEN 1
        hdmi_port, detail of HDMI port

        HDMI 2.0 for 4K / 60P / 21:9 / HDCP 2.2 Support

        HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18Gb/s of bandwidth—nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

        hdmi20, a compare chart of HDMI 2.0 and HDMI 1.4

        digitalled, the RGB FUSION 2.0 part of the motherboard as background and a RGB FUSION 2.0 ICON

        RGB Fusion 2.0

        With AORUS motherboards, RGB Fusion 2.0 is even better with addressable LEDs.* RGB Fusion 2.0 offers users the option to control on-board RGB and external RGB/addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS motherboards are now upgraded with addressable LED support. With external addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles and illuminations.

        AORUS Motherboards will support 5v Addressable LED lighting strips and up to 1000 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

        * Addressable LEDs are available only on select motherboards, external LED strips, addressable LED strips are not included with motherboard purchase.

        Multi-Zone Light-Show Design

        Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
        ledstrip01, cycle color icon, static icon, pulse icon, flash icon, double flash icon, music icon, random icon, game icon, digital A icon, digital B icon, digital C icon,  a pic of RGB LED and Digital Addressable LED
        RGB_FUSION_Ready, the motherboard of X570

        RGB Fusion 2.0 Ready

        With a dazzling array of products supported, RGB Fusion 2.0 is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like—whether you have them match, you'll surely dazzle and impress.

        RGB Fusion 2.0 Software

        RGB_Fusion, the components of computer together in a black background

        With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

        rgbsoftware, RGB FUSION 2.0 ICON, two screenshots of RGB fusion 2.0

        GIGABYTE RGB Fusion APP

        Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app, users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
        mb_rgbapp, some screenshots of APP in phone

        audio, detail of High-End WIMA & Audio Capacitors

        High-End WIMA & Audio Capacitors

        The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state-of-the-art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium-grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal on-board sound solution for the most demanding audiophiles.
        guard, detail of Audio Noise Guard

        Audio Noise Guard

        AORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

        smart-fan5 icon

        Smart Fan 5

        With Smart Fan 5, users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
        smart-fan5, the motherboard of X570

        Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

        smart-fan5-tex6, temperature sensors icon, hybrid fan headers icon
        • 4x Fan/Water-Pump Connectors
        • 6x Temperature Sensors
        • All Fan Pin Headers Upgraded to Hybrid Fan Headers
        • Interoperable Fans and Sensors
        • Intuitive UI for Fan Control

        Fan Stop

        Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
        fan-control-design, a pic of fan off and fan on

        Hybrid Fan Pin Headers

        Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.

        • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
        hybrid-fan-pin-header, closed loop watercooling, cpu fan, system fan, watercooling pump, water flow sensor

        New Smart Fan 5 Software

        Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
        smartfan5-software, two screenshots of system information viewer

        q-flash-plus icon

        Q-Flash Plus

        Update the BIOS easily without installing the CPU, memory and graphics card.

        With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!

        qflashstep2, three steps to show you how to use Q-flash plus.

        Solid Pin Power Connectors

        X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

        Solid-Pin, a compare pic of solid pin design and traditional design

        Solid Pin Power Connector Advantages

        • Larger contact area for electricity
        • More metal quantity to sustain higher power and generated heat
        • Ultra durable and longer lifespan
        Solid-Pin, the can ices-3(B) part of motherboard

        Ultra Durable™ PCIe Armor

        Industry-Leading Ultra Durable™ PCIe Armor

        The innovative one-piece stainless-steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

        mb_exclusive, the detail of extra anchor points, a pic of different between 1.7X stronger and 3.2X stronger

        GIGABYTE Patented Double-Locking Bracket

        mb_locking, the detail of front side and back side

        The Industry's Leading Static-Electricity & Surge Protection

        killer-line, a chart of esd protection and surge protection
        mb_gconnector, the detail of Gconnector design as background

        Easy-to-Install "G Connector" Design

        The tiny cables of the front-panel connectors can be hard to manipulate as space is restricted and indicators are tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you frustration.



        software_bios, a screenshot of bios

        New User Interface

        All-new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage and Fan.

        My Favorites

        Add constantly used items into your favorite menu for quick access.

        Storage Information

        Show all kinds of storage information including SATA, PCIE and M.2 interface.


        List all changes before saving and exiting BIOS. Quickly review overall settings modification.

        Optimized Memory Installation Reminder

        Displays correct installation reminder message when user installs two memory modules but runs single-channel mode.

        Intuitive Load Line Curve

        Clearly show each loadline calibration setting in an intuitive curve graph.

        APP CENTER

        The GIGABYTE APP CENTER is a useful portal of all GIGABYTE-motherboard utilities and drivers, you can choose any utility you want to install from the APP CENTER and stay updated with the latest utilities and drivers version.
        software_appcenter, a screenshot of APP center


        GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

        software_easytune, a screenshot of easytune


        The GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and back up your BIOS to an image.

        software_atbios, a screenshot of @bios

        System Information Viewer

        GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior—these are the possibilities of the System Information Viewer.
        software_siv, a screenshot of system information viewer

        XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

        Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

        * Free 14 days XSplit Gamecaster + Broadcaster Premium License.
        xsplit, three screenshots of XSplit gamecaster + broadcaster
        mb_wtfast, a grey background with WTFast

        Specifications :

        General Information

        Manufacturer GIGABYTE Technology, Inc
        Manufacturer Part Number X570 AORUS ELITE WIFI
        Manufacturer Website Address
        Brand Name Aorus
        Product Line Ultra Durable
        Product Model X570 AORUS ELITE WIFI

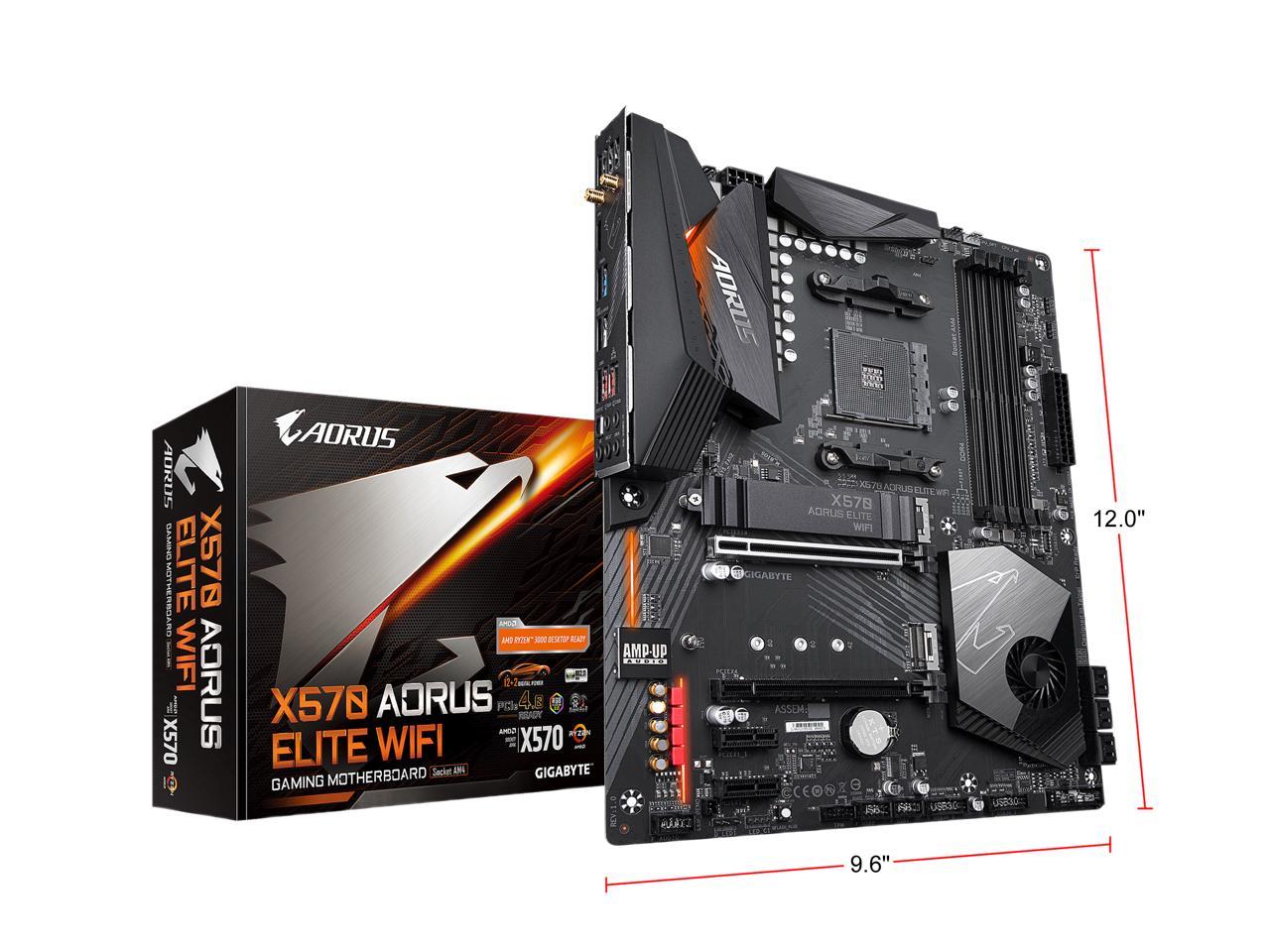

        Product Name Ultra Durable X570 AORUS ELITE WIFI (Rev. 1.x) Desktop Motherboard
        Product Type Desktop Motherboard
        UPC 889523018729


        Chipset ManufacturerAMD

        Network & Communication

        Wireless LAN StandardIEEE 802.11a/b/g/n/ac


        Total Number of USB Ports10


        Package Contents
        • Ultra Durable X570 AORUS ELITE WIFI (Rev. 1.x) Desktop Motherboard
        • Bundled Software
          • Norton Internet Security (OEM version)
          • cFosSpeed
        Environmentally FriendlyYes


        Limited Warranty3 Year

        Customer Reviews

        Reviews 0
        Questions 0
        Ask your Question about this product
