Gigabit Ethernet (1000-Mbps) Extreme Temperature Managed Switch - (6) 10/100/100

Description :

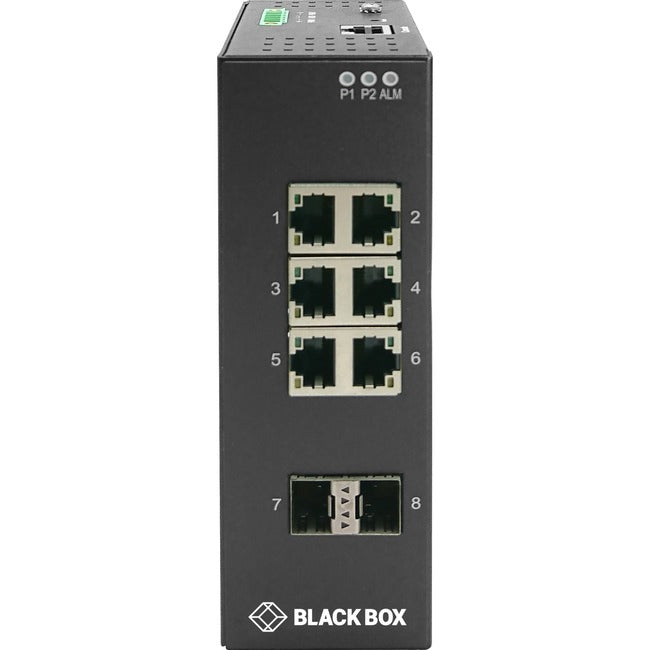

Black Box Industrial Gigabit Ethernet Managed L2+ Switch
Six ports for flexibility

This switch has six 10/10/1000-Mbps RJ-45 copper ports that are autosensing. It offers full wire-speed forwarding rates, auto-negotiates for network speeds, and Auto-MDI/MDI-X, eliminating the need for crossover cables. The two 100/1000 Ethernet SFP slots give you networking flexibility and scalability. You can extend your network over multimode or single-mode fiber at distances up to 80 kilometers, depending on the SFP you choose. Black Box SFPs are recommended.

Extreme applications.

• Encased in an IP30-rated metal case that can be DIN-rail or wall-mounted, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:
• Security and surveillance, particularly to backhaul IP security camera data.
• Military applications, especially in ships and other vehicles.
• Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
• Oil and gas fields or remote equipment monitoring and control.
• Building automation for controlling HVAC and lighting systems.

Maximize uptime
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on site - thus lowering costs.

The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.

The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.

Fast failovers.
For redundancy, the switch has two DC power inputs. If one power source fails, the switch automatically falls over to the second power source. It offers a 20 millisecond or less failover. In addition, an alarm will alert you in case of a power failure. The switch also gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol.

Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12, MDR-40-24, MDR-40-48, and SDR-240-48) are sold separately. The switch also includes a serial cable (RJ-45/DB9) for the console connection.

• Provides six 10/100/1000-Mbps RJ-45 ports and two 100/1000 SFP slots


• Managed switch supports LACP, Spanning Tree, and ring fail-over for redundancy and resiliency


• Rated for extreme temperatures of -40 to +75° C


• Dual DC power inputs for redundancy


• IP30-rated for shock and vibration protection


• Manage through a Web interface, SNMP or command-line interface (CLI)


• Economical switch delivers features normally found in more expensive switches

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Black Box
Form Factor: DIN Rail Mountable
Manufacturer: Black Box Corporation
Product Name: Industrial Gigabit Ethernet Managed L2+ Switch
Manufacturer Part Number: LIG1082A
Manufacturer Website Address: http://www.blackbox.com
Package Contents:

• RJ-45/DB9 serial cable
