Taoglas Genesis MA241 2in1 4G/3G/2G 2xMIMO 2M NFC-200, Adhesive Mount Antenna MA241.BI.001

Description :

Taoglas Genesis MA241 2in1 4G/3G/2G 2xMIMO 2M NFC-200, Adhesive Mount Antenna

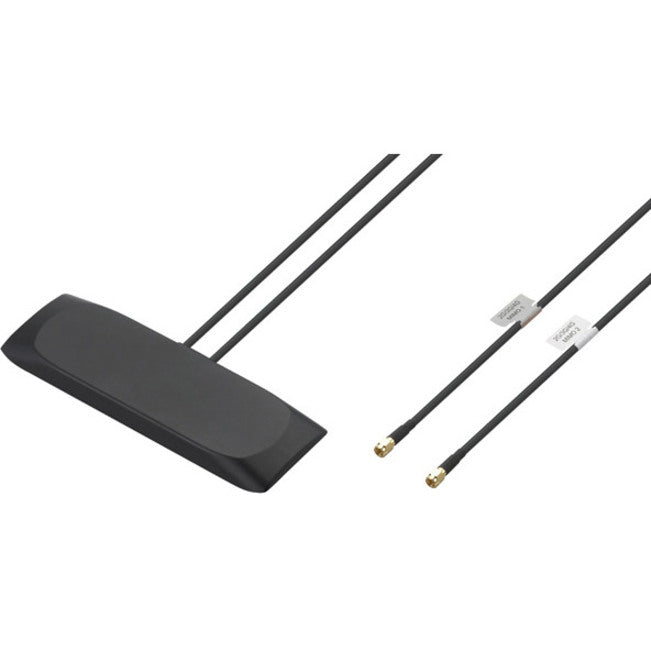

The MA241 Genesis antenna is an omni-directional, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. It is designed to be mounted directly on glass or plastic in the interior of vehicles.

Typical applications
- HD Video over LTE
- First Responder and Emergency Services

This unique antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 700MHz/800MHz/1700MHz/1800MHz/2600MHz. It enables designers to use only one antenna that covers all common frequencies for LTE and 4G globally.

4G wireless applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.

Cable length and connector types are customizable. Contact your regional Taoglas
sales office for support.

• IP67 Antenna


• 2 * LTE: 2 meter Low Loss NFC-200 SMA(M)ST


• Dimensions: 205.8 x 68 x 12.4mm


• RoHS Compliant

Product Type: Antenna
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Country Of Origin: Taiwan
Brand Name: Taoglas
Form Factor: Adhesive Mount
Manufacturer: Taoglas
Product Model: MA241
Product Name: Genesis MA241 2in1 4G/3G/2G 2xMIMO 2M NFC-200, Adhesive Mount Antenna
Product Line: Genesis
Application/Usage: Cellular Network
Manufacturer Part Number: MA241.BI.001
Manufacturer Website Address: http://www.taoglas.com
Limited Warranty: 1 Year
Weight (Approximate): 8.80 oz
