Gds Key Locking Powered Dock For Zebra Et5X 8.3" & 8.4" Series

Description :

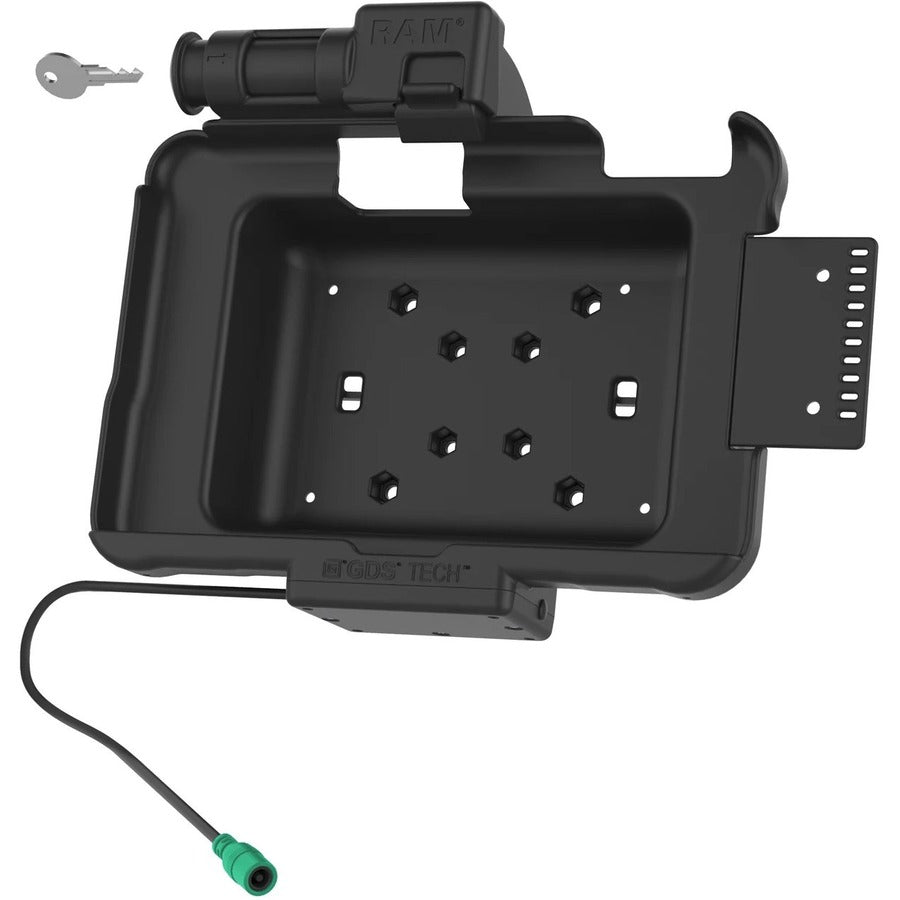

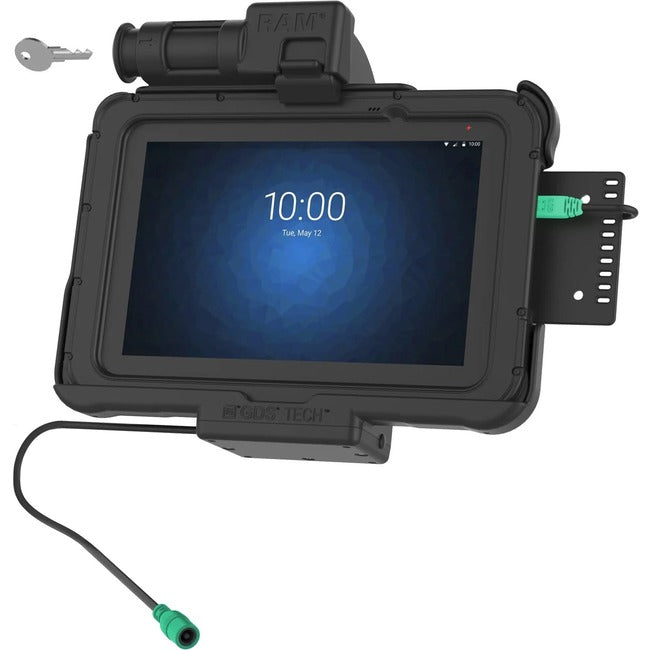

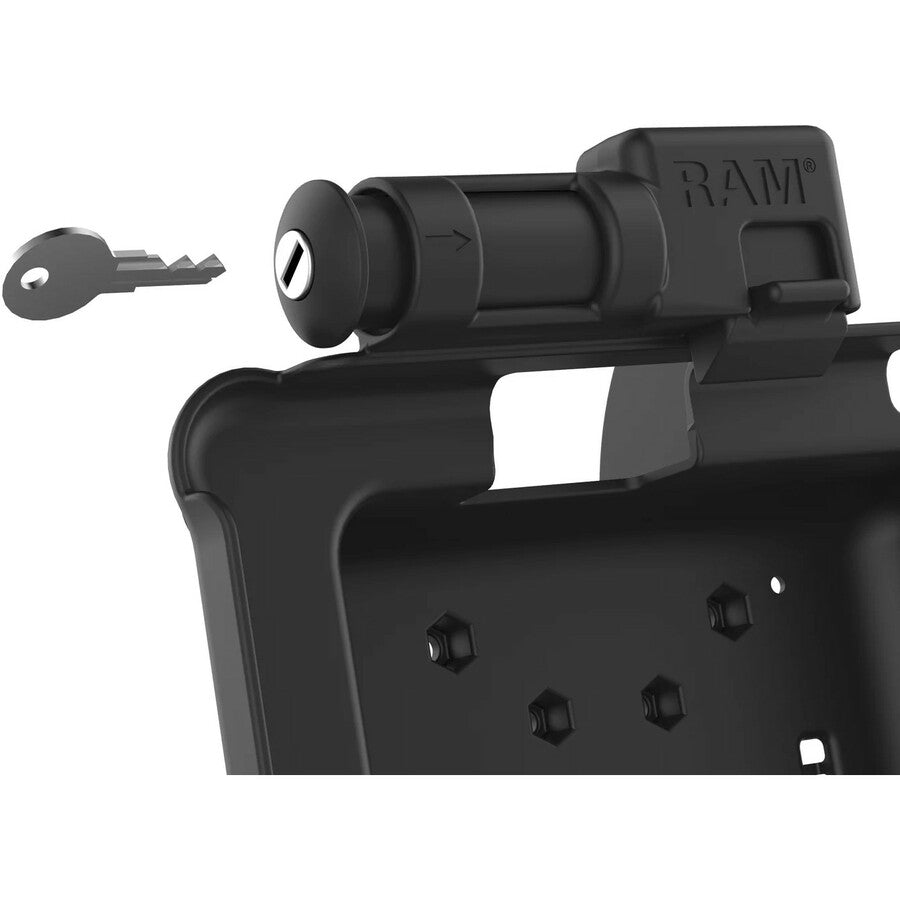

GDS Key Locking Powered Dock for Zebra ET5x 8.3" & 8.4" Series

Featuring GDS^® Technology^™ for charging capabilities and a key lock for theft deterrence, the GDS^® Vehicle Dock for Zebra ET5x 8.3" & 8.4" series tablets allows you to keep the device charged through the pogo pin contacts when the device is docked-power is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM^® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM^® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM^® 2-hole diamond bases for device mounting and features a cable management system.

• Backed by a 3-year warranty


• Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket

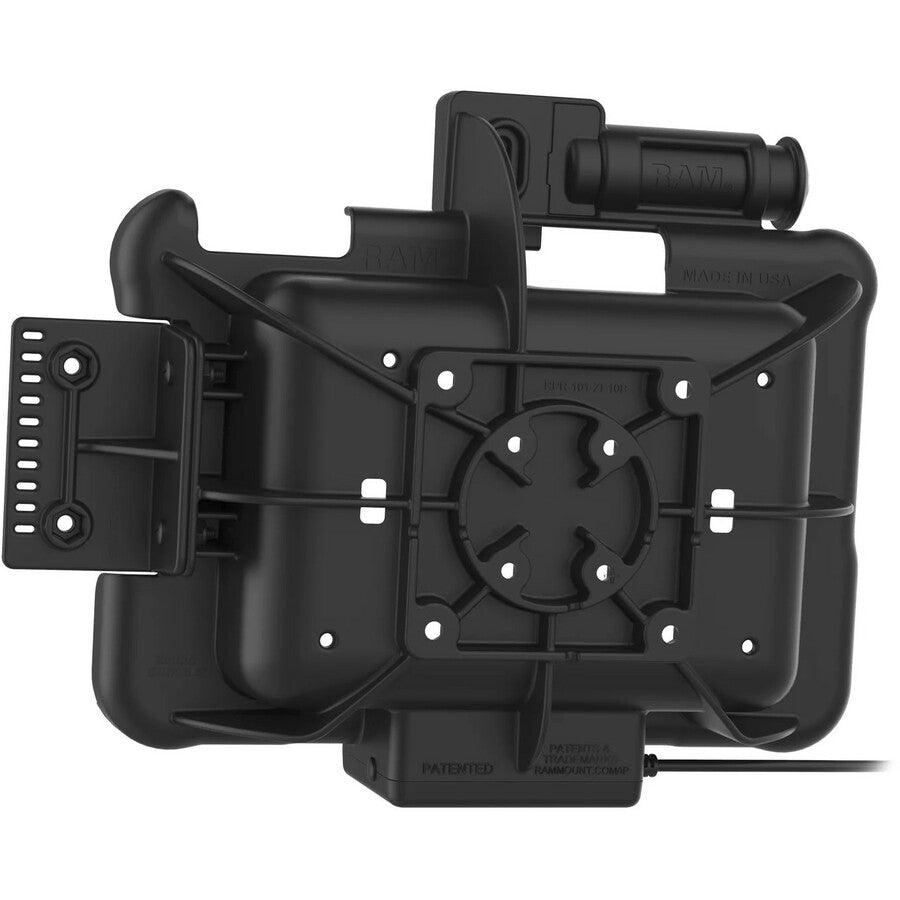

• Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability


• When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked


• Key locking powered dock provides charging capabilities for the Zebra ET5x 8.3" & 8.4" series tablets with Rugged Frame via DC 5.5mm power jack

Product Type: Docking Station
Product Color: Black
Rugged: Yes
Brand Name: GDS
Compatibility: Compatible Zebra Tablets:

• ET50 8.3" with Rugged Frame
• ET51 8.4" with Rugged Frame
• ET55 8.3" with Rugged Frame
• ET56 8.4" with Rugged Frame

• GDS Key Locking Powered Dock for Zebra ET5x 8.3" & 8.4" Series
• 2 x Keys
• 1 x Side bracket for accessory mounting and strain relief
• 4 x #8-32 x 5/8" Machine Screws
• 2 x #8-32 x 1/2" Machine Screws
• 6 x #8-32 Nylock Nuts
• 4 x #10-24 x 5/8" Machine Screws
• 4 x #10-24 Nylock Nuts
• 4 x Small Cable Ties
