Fst Eth Med Conv 10/100Mb Cop,To 100Mb Sm Fbr 1310/1550Nm 20Km Sc

Description :

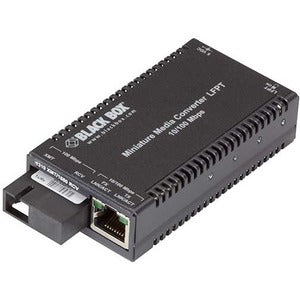

Black Box Multipower Miniature Transceiver/Media Converter

Black Box® Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC.

The converters not only link 10- and 100-Mbps segments to fiber cabling, they also work as data rate converters, performing 10/100 auto-negotiation on the twisted-pair port.

Choose from multimode duplex, single-mode duplex, and single-mode single-strand duplex fiber versions.

For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), which plugs into a PC's USB port and is sold separately, or through the optional rackmount PowerTray (LHC018A-AC-R2).

• Compliant to EN62368


• Autonegotiates for speed and duplex


• A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting


• Powered by a universal AC power supply, a PC's USB port, or the optional rackmountable PowerTray


• Auto MDI/MDI-X means you never need to worry about what kind of cable to use

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Black Box
Form Factor: DIN Rail Mountable
Manufacturer: Black Box Corporation
Product Name: Multipower Miniature Transceiver/Media Converter
Product Line: Multipower Miniature
Manufacturer Part Number: LHC028A-R4
Manufacturer Website Address: http://www.blackbox.com
Package Contents:

• Multipower Miniature Transceiver/Media Converter
• 100-240-VAC, 50-60-Hz Adapter
