Name: Fractal Design Fd-Fan-Vent-Hf14-Wt Venturi Hf-14 140Mm High Airflow Fluid Dynamic Bearing White Computer Case Fan
Brand: Fractal Design
SKU: FD-FAN-VENT-HF14-WT
Price: 24.15 USD
Availability: OutOfStock

Fractal Design Fd-Fan-Vent-Hf14-Wt Venturi Hf-14 140Mm High Airflow Fluid Dynamic Bearing White Computer Case Fan

Roll over image to zoom in Click on image to zoom

Mfr Part Number: FD-FAN-VENT-HF14-WT
Features:
- Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
- Equipped with a counter-balanced magnet that reduces the axial tension on the bearing
- Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber
- Dense, sturdy construction, made from high grade glass fiber reinforced thermoplastic polymer
- Fan geometry is optimized for high pressure, delivering high performance results in high restriction usage scenarios, such as in use with large dense heatsinks or water cooling radiators.
- Featuring PWM control with a very wide speed range, starting at only 400RPM (400 +/- 100 RPM), ideal for CPU heatsinks or radiators, where the motherboard can control the fan speed based on the CPU temperature. (HP PWM Version only)
- Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence.
- Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
- The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation
- Comes with a PWM Y-cable, for connecting additional fans to a single PWM header on your motherboard or PWM fan controller
- 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screwspacing). This enables the use of 140mm fans on many CPU coolers.
- Available in 120mm and 140mm fan sizes
- Available in two color combinations, Black blades, black corners, dark grey ("Gunmetal") frame and White blades, black corners, black frame
Rotational Speed: 1200 RPM
Acoustical Noise: 26.5 dBA
Maximum Air Flow: 118.2 CFM / 200.8 m3/h
Maximum Pressure: 0.95 mm H2O
Actual Input Power: 2.2 W
Maximum Rated Input Current: 0.3 A
Nominal Input Voltage: 12V
Minimum Startup Voltage: 4V
Low Speed Adapter:
- Speed: 850 RPM
- Static Pressure: 0.59 mm H2O
- Air Flow: 78.5 CFM / 133.4 m3/h
- Noise Level: 18.3 dBA
Screw Hole Pattern: 125 x 125 mm; 105 x 105 mm
Connector: 3-pin fan header
Bearing: FDB
Number of Blades: 11
MTBF: 150,000 hours
Cable length: 500 mm
Cable Type: Braided all-black ribbon wire
Color: Whiet
Dimensions: 140.0 x 140.0 x 25.0 mm
Weight: 202.0 g

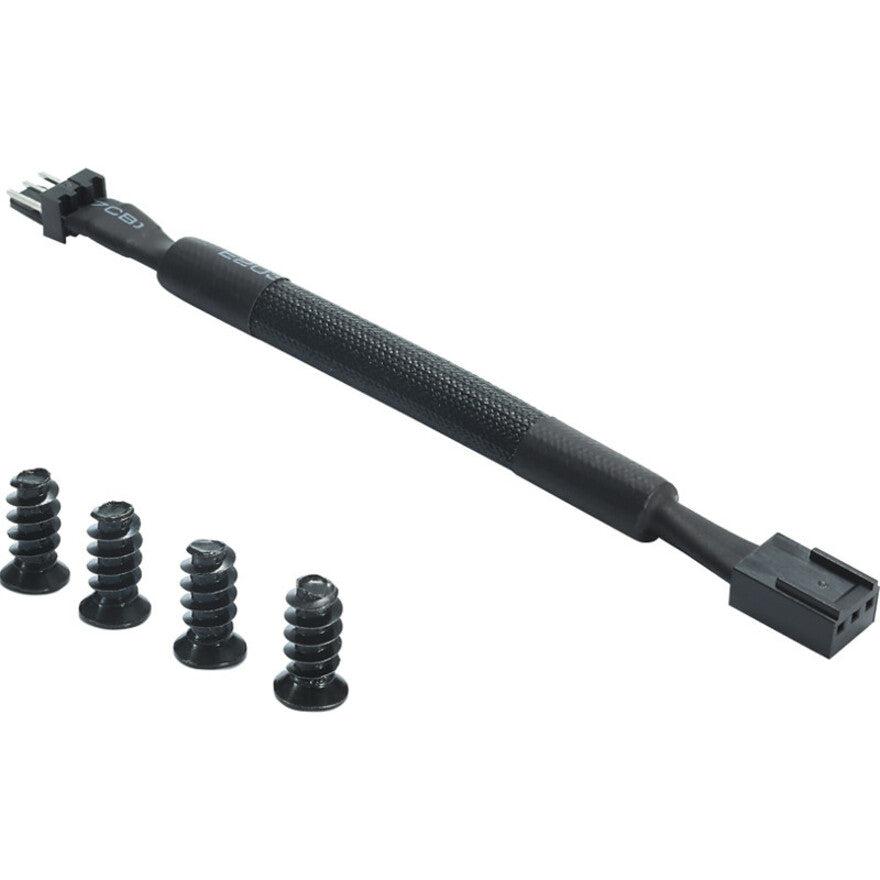

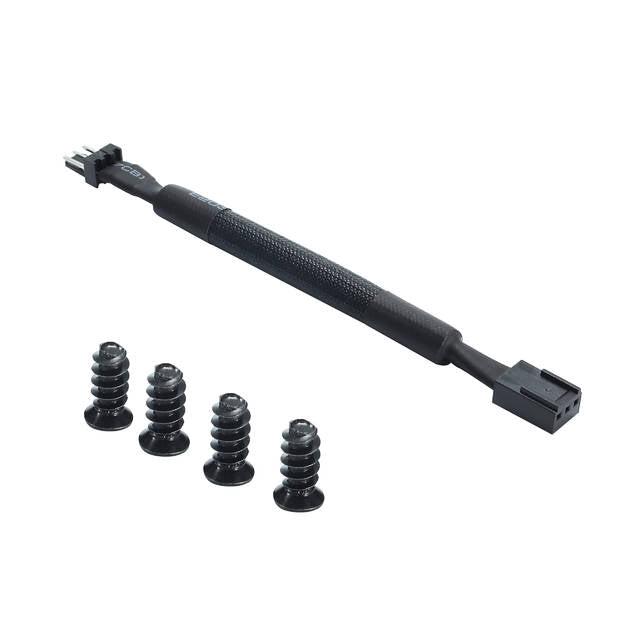

Package Contents:
- Venturi Series fan
- Screw pack with 4 metal screws
- Low speed adapter
- 4 additional rubber corners, with 105mm hole pattern

General Information

Manufacturer	Fractal Design
Manufacturer Part Number	FD-FAN-VENT-HF14-WT
Manufacturer Website Address	http://www.fractal-design.com
Brand Name	Fractal Design
Product Line	Venturi
Product Model	Venturi HF-14
Product Name	Venturi HF-14 Cooling Fan
Product Type	Cooling Fan
UPC	843276100193

Height	5.5"
Width	5.5"
Weight (Approximate)	7.04 oz

Miscellaneous

Package Contents	Venturi HF-14 Cooling Fan Screw Pack with 4 x Metal Screws Low-speed Adapter 4 x Additional Rubber Corners, with 105mm Hole Pattern
Environmentally Friendly	Yes
