Description :
- Mfr Part Number: FD-C-MES2C-05
-
Features:
-

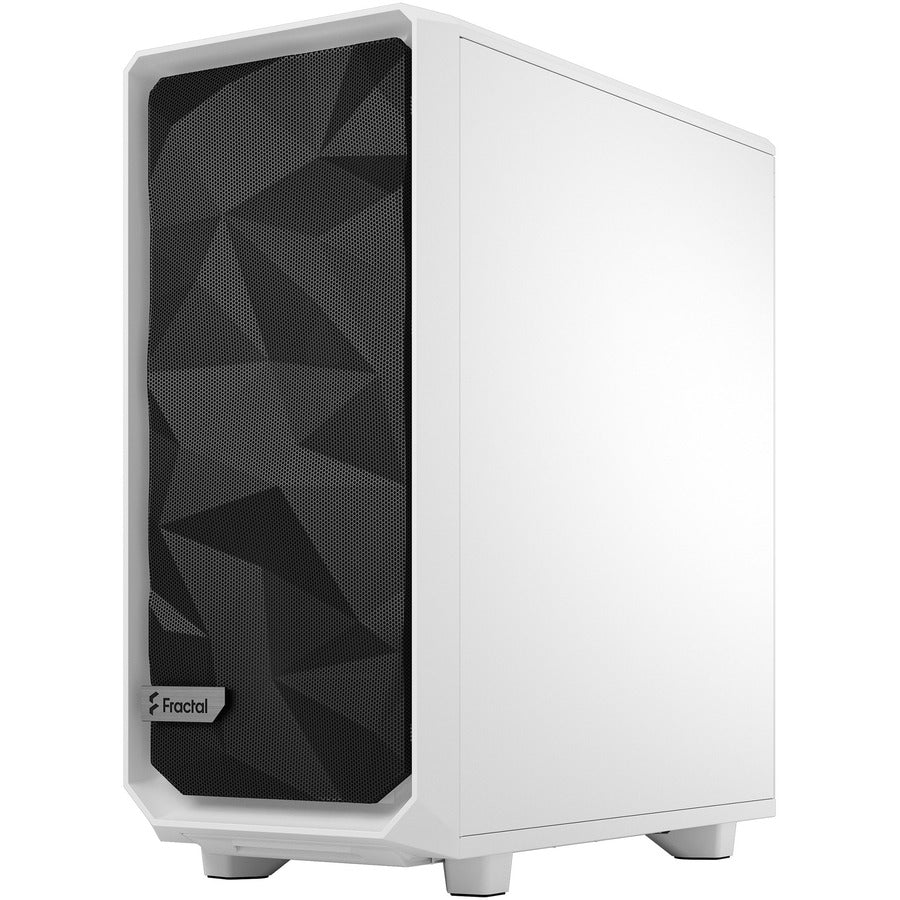

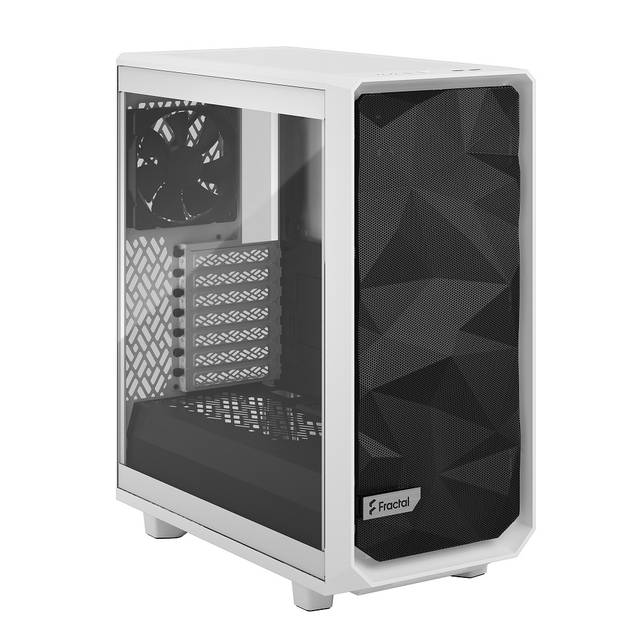

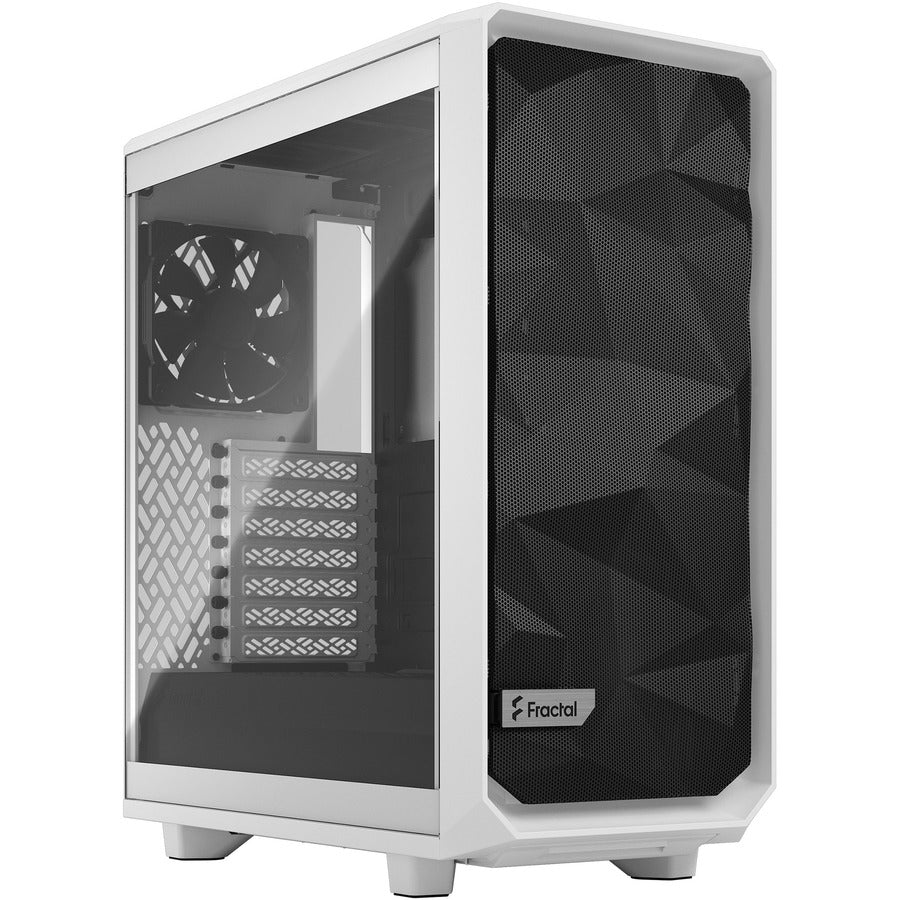

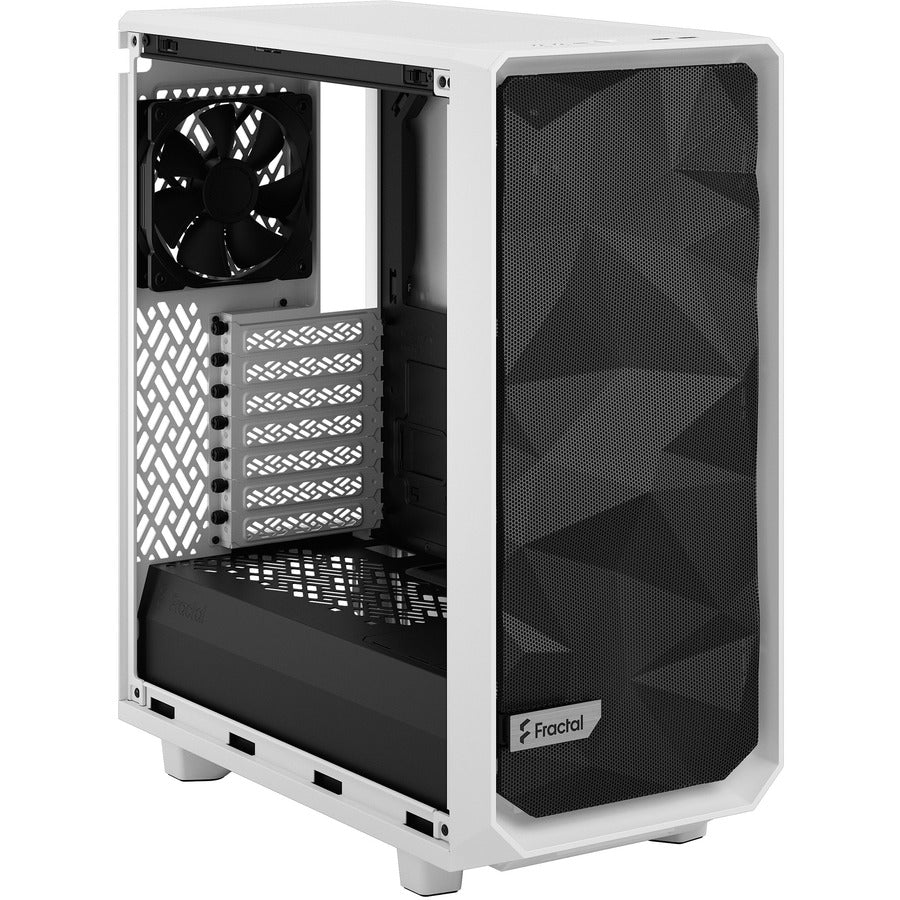

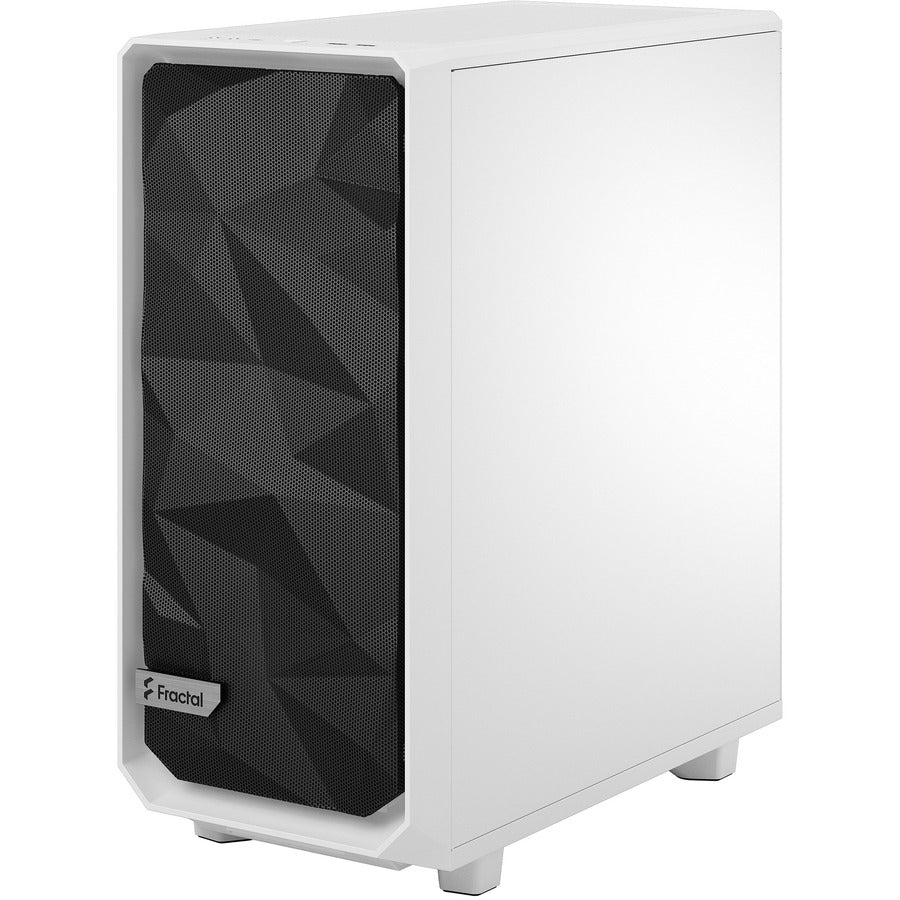

Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
-
Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
-
Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
-
Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
-

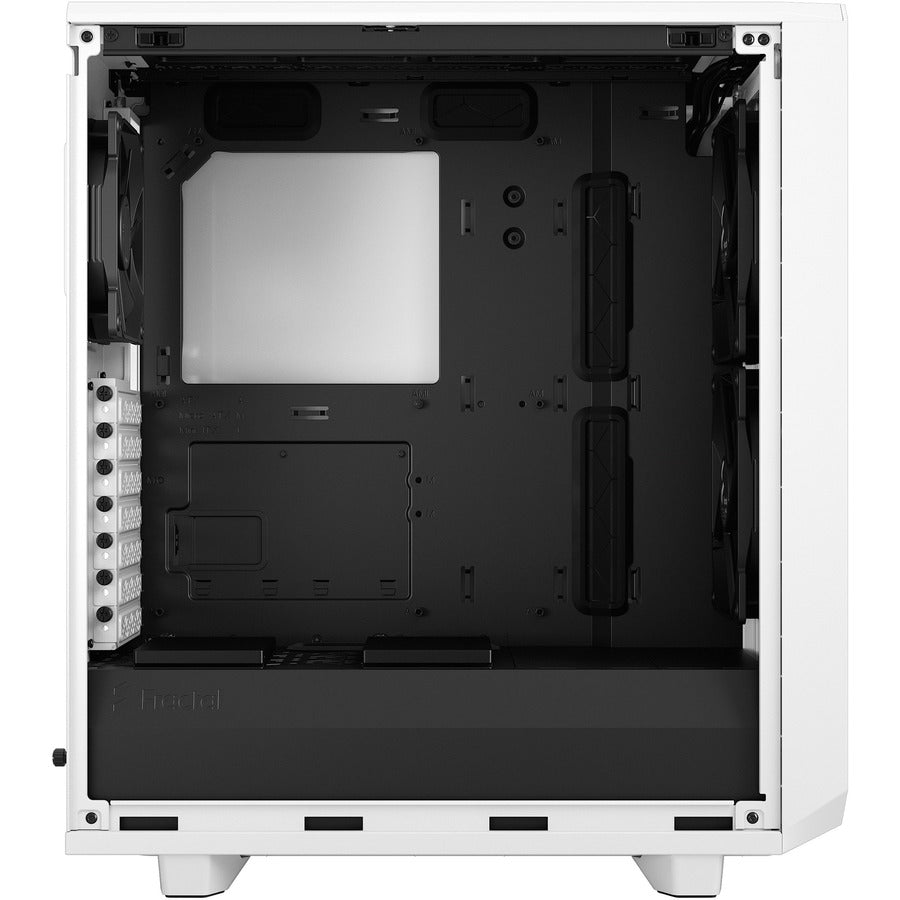

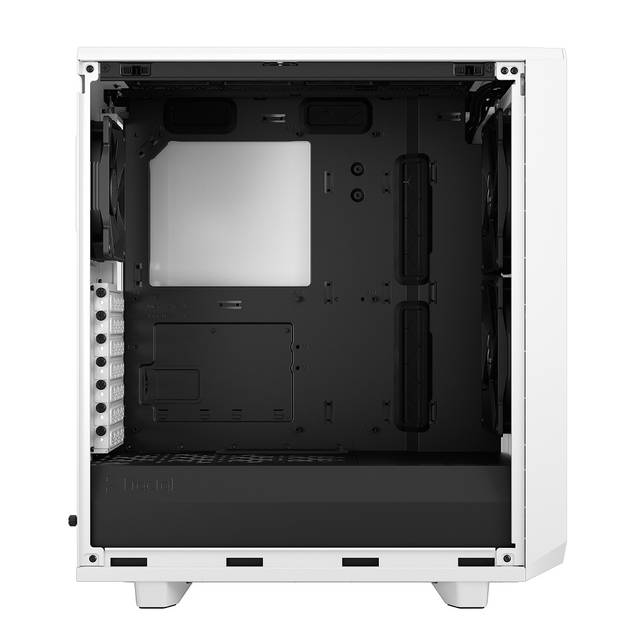

Open interior layout creates a smooth airflow path from front intake to rear exhaust
-

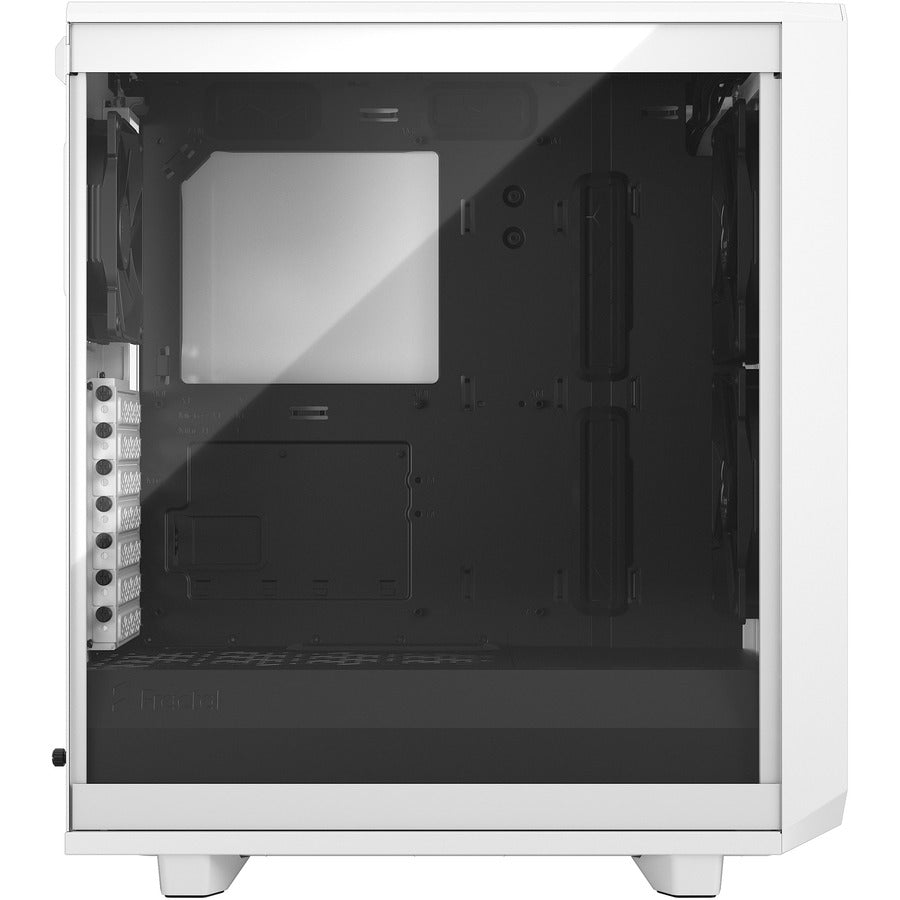

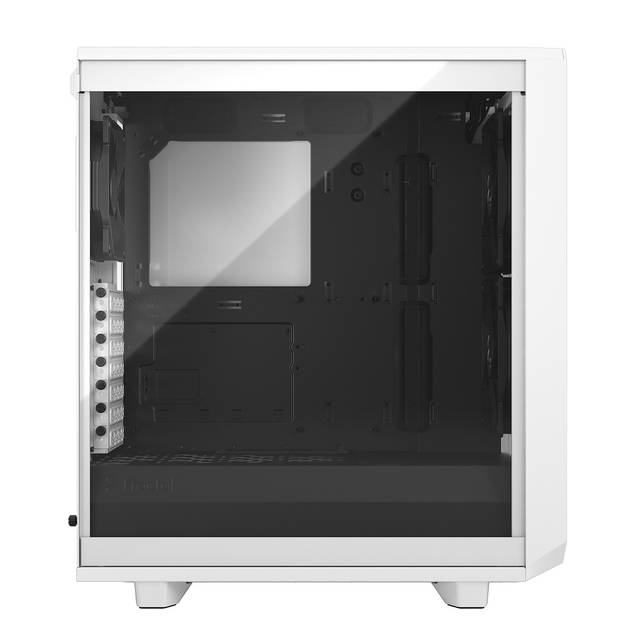

Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
-

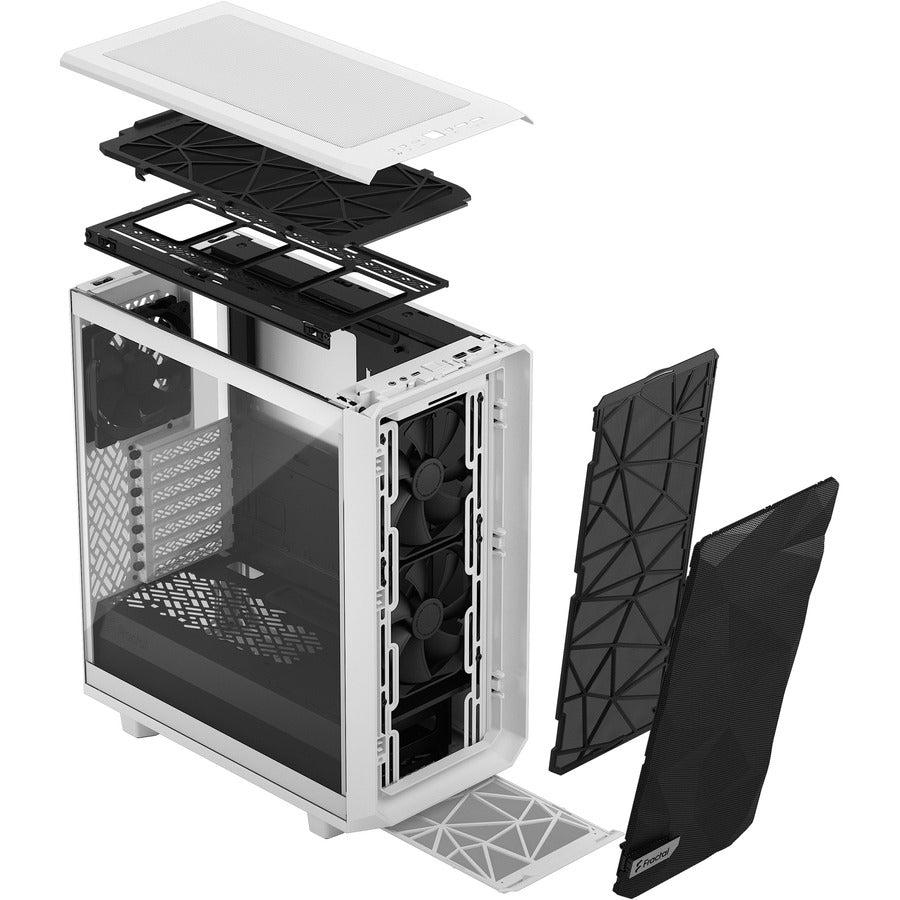

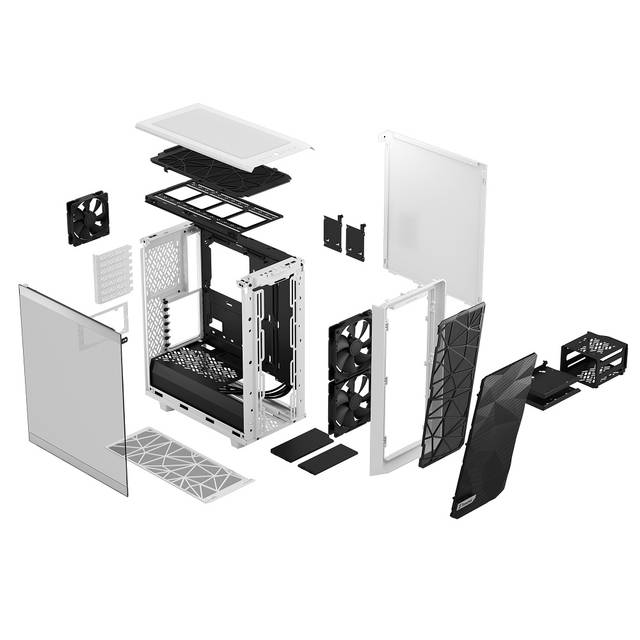

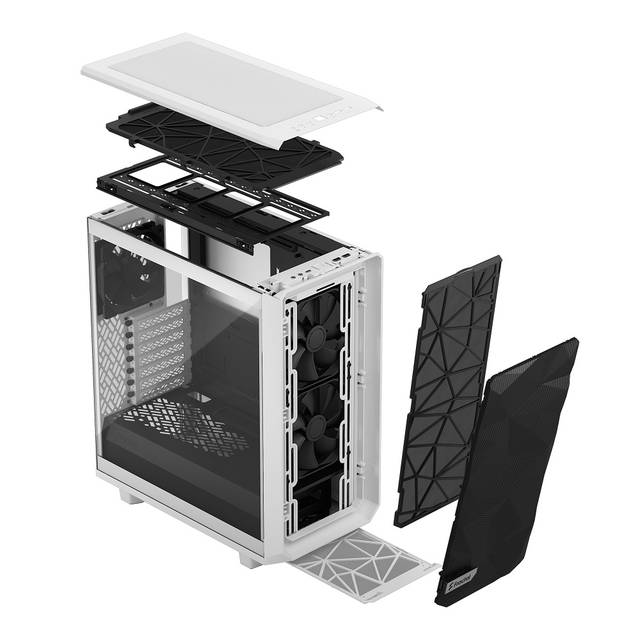

Fully removable top panel and top fan bracket opens to provide excellent interior access and easy cable routing
-
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
-
Robust cooling capacity with seven fan positions and support for up to 360/280 mm radiators
-
Flexible storage options supporting two 2.5/3.5 drives and up to four SSDs (two SSD brackets included)
-
New front nylon filter that can be removed for increased airflow
-
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
-

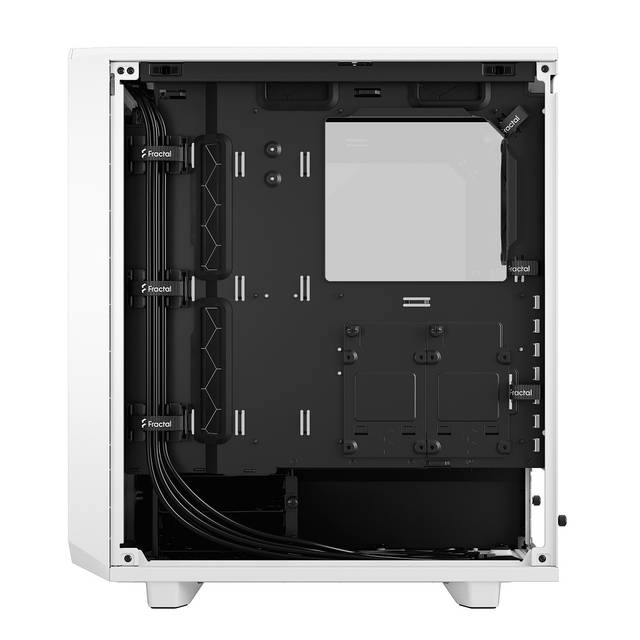

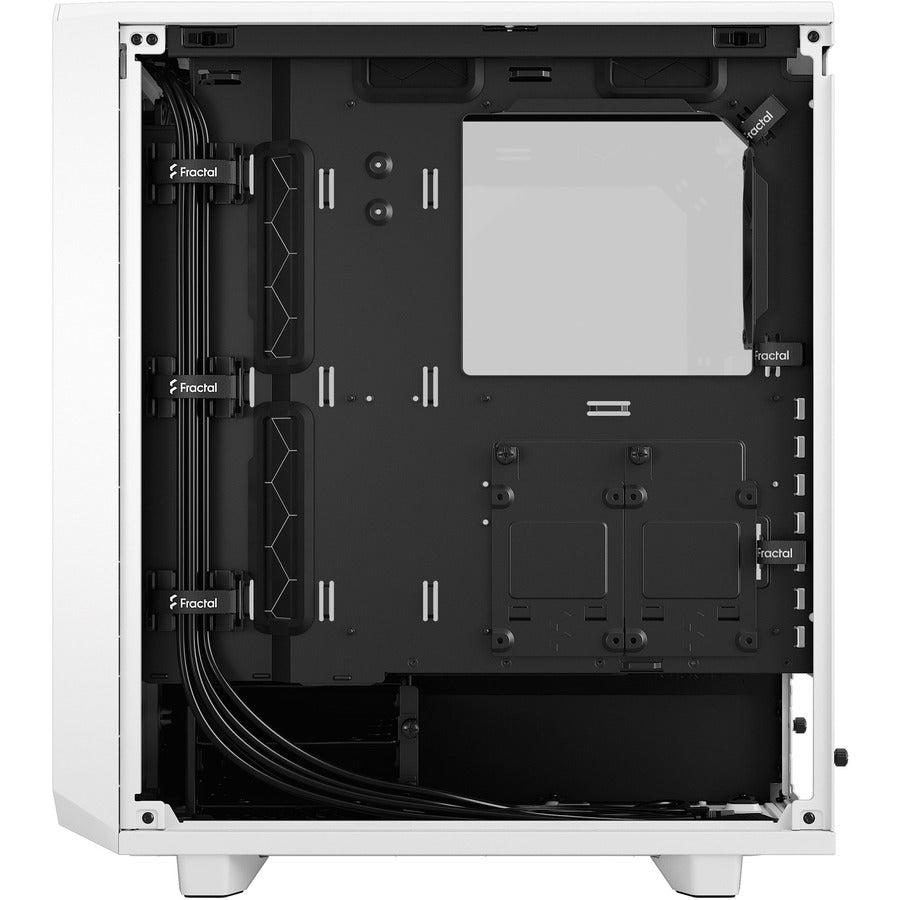

Improved cable routing with three integrated cable alignment clips and six velcro straps
-
Full length power supply shroud with two-part removable cover conceals drive cage and excess cabling for smooth airflow and a clean interior
-

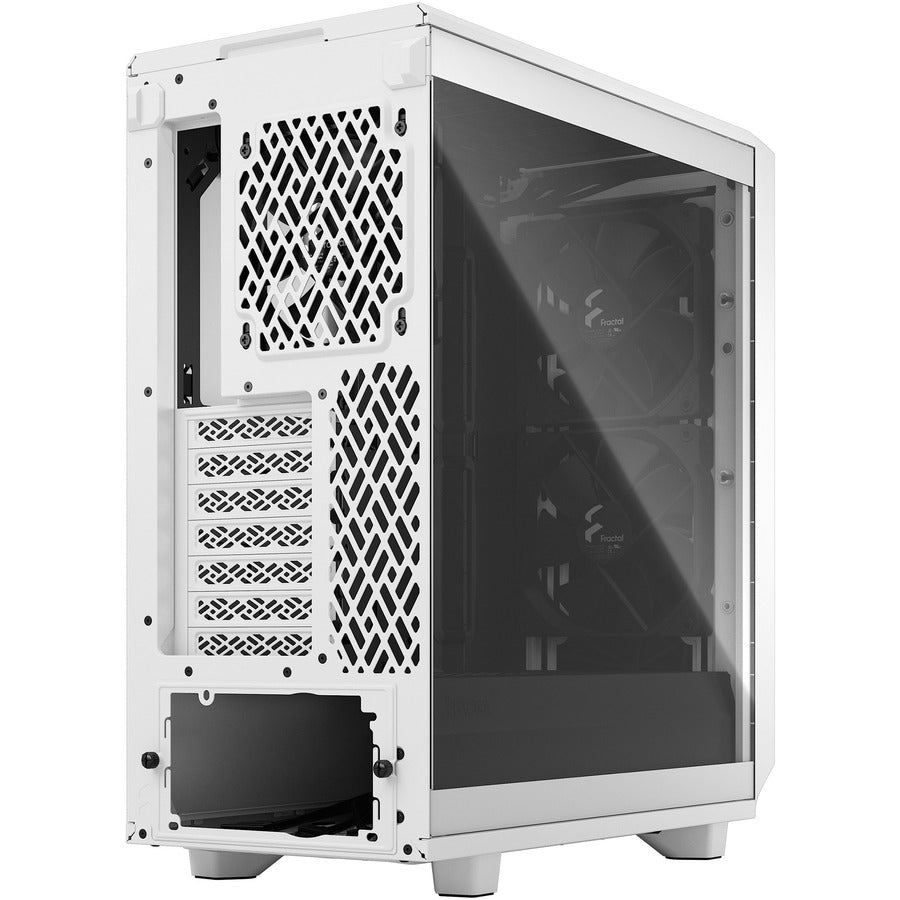

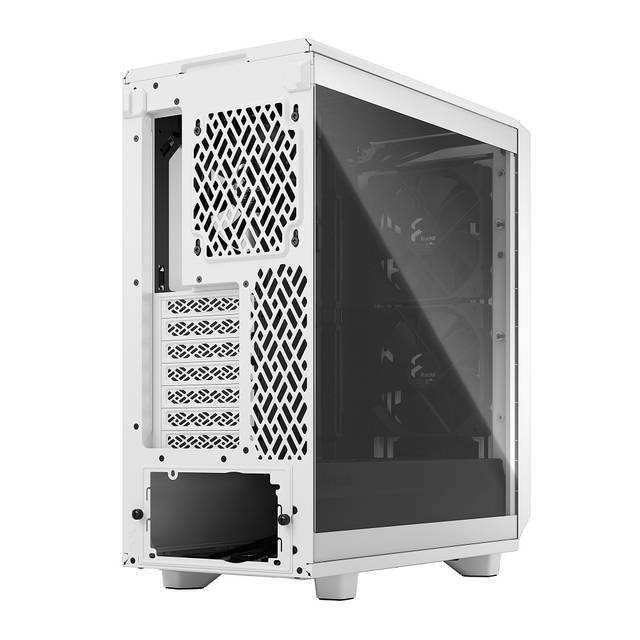

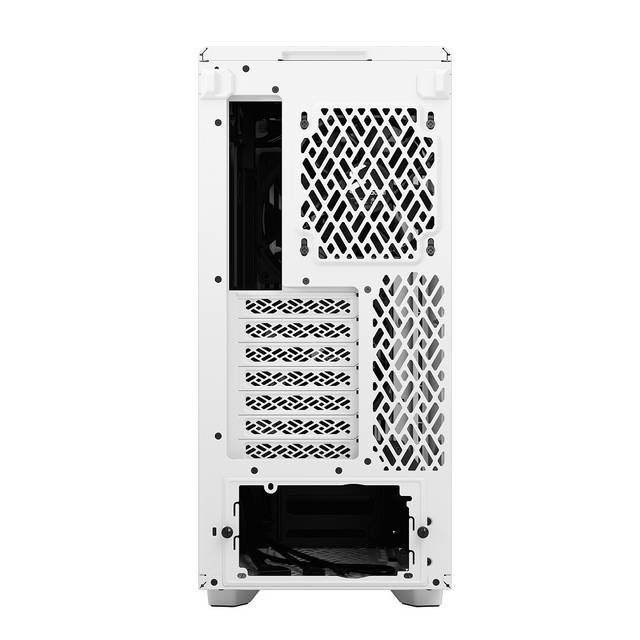

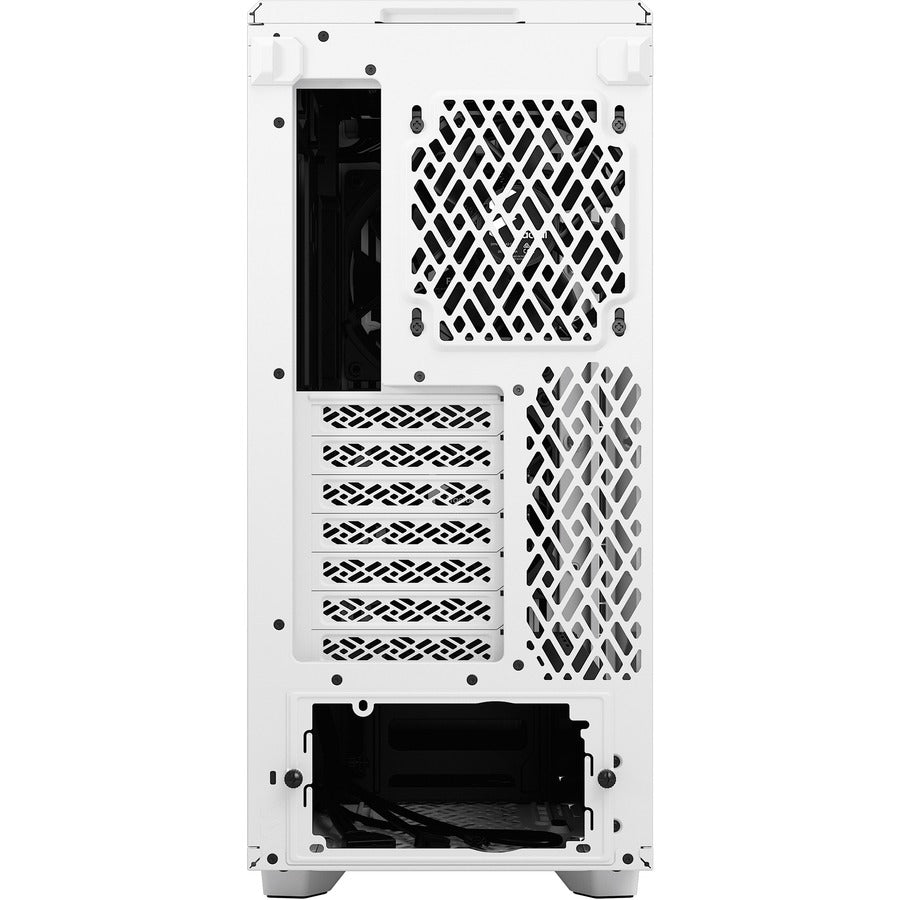

Seven bridgeless expansion slots ensure obstruction-free connections
-
-
Drive Bays:
-
3.5"/2.5" drive mounts: 2 (included)
-
Dedicated 2.5" drive mounts: 4 (2 included)
-
5.25 drive mounts: 0
-
-
Expansion Slots: 7
-
Motherboard compatibility: ATX / mATX / Mini-ITX
-
Power supply type: ATX
-

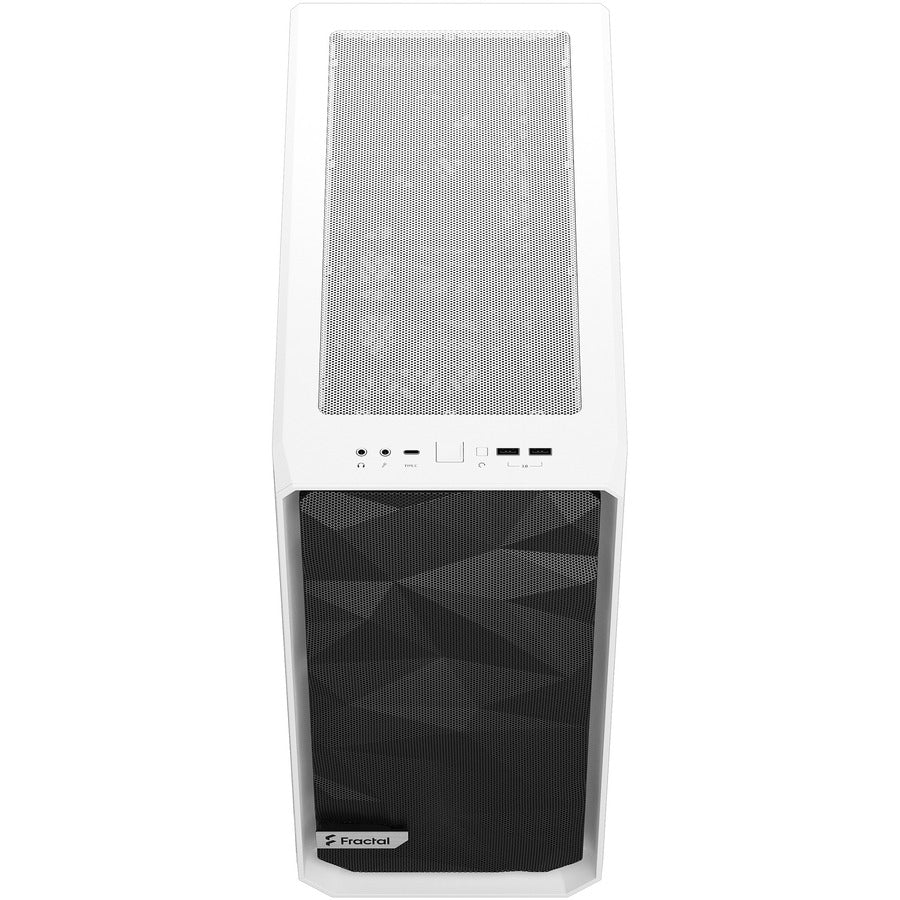

Front interface: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
-
Total fan mounts: 7x 120 or 4x 140 mm and 2x 120 mm
-
Front fan: 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)
-
Top fan: 2x 120/140 mm
-
Rear fan: 1x 120 mm, (1x Dynamic X2 GP-12 included)
-
Bottom fan: 1x 120 mm (requires removal of HDD cage)
-
-
Dust filters: Top, front and bottom
-
Radiator Options:
-
Front radiator: Up to 360/280 mm
-
Top radiator: Up to 240 mm
-
Rear radiator: 120 mm
-
Bottom radiator: 120 mm (requires removal of HDD cage)
-
-
Cable routing space: 17-28 mm
-
Cable routing grommets: Yes
-
Fixed velcro straps: Yes
-
Tool-less push-to-lock: Top, front and side panels
-
Captive thumbscrews: HDD, SSD and PSU brackets
-
Case Material:
-
Left side panel: Tempered glass
-

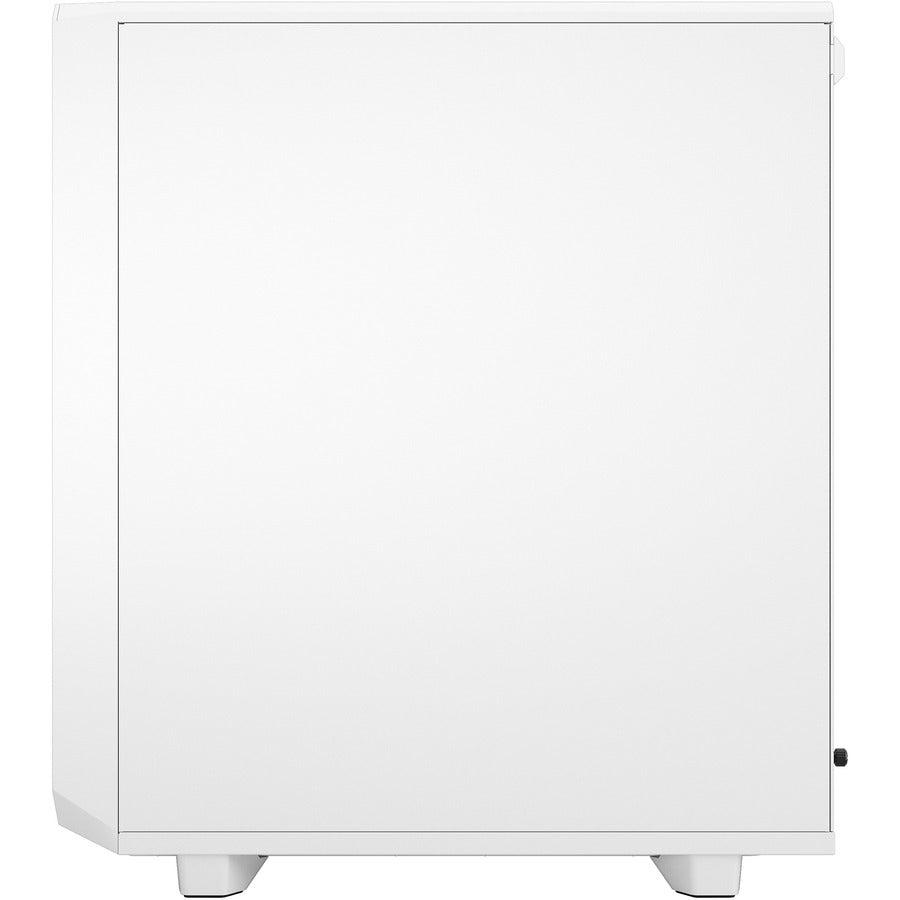

Right side panel: Steel
-
-
Dimensions & Weight:
-
PSU Max Length: 200 mm (165 mm with HDD cage and front fan)
-
GPU Max Length: 341 mm (360 mm without front fan)
-
CPU Cooler Max Height: 169 mm
-
Case dimensions (LxWxH): 424 x 210 x 475 mm
-
Case dimensions w/o feet/protrusions/screws: 412 x 210 x 455 mm
-
Net weight: 8.1 kg
-
Package dimensions (LxWxH): 542 x 320 x 554 mm
-
Gross weight: 9.8 kg
-
Volume: 39.4 Liters
-
-
Package Contents:
-
Meshify 2 Compact Case
-
User manual
-
Accessory box
-
Specifications :
General Information
Manufacturer | Fractal Design |
---|---|
Manufacturer Part Number | FD-C-MES2C-05 |
Manufacturer Website Address | http://www.fractal-design.com |
Brand Name | Fractal Design |
Product Line | Meshify 2 Compact |
Product Name | Meshify 2 Compact White TG Clear Tint |
Product Type | Computer Case |
UPC | 843276102364 |
Total Number of USB Ports | 3 |
---|
Product Color | White |
---|---|
Height | 18.7" |
Width | 8.3" |
Depth | 16.7" |
Weight (Approximate) | 17.86 lb |
Package Contents |
|
---|
Limited Warranty | 2 Year |
---|
