Mfr Part Number: FD-C-MES2C-02
-
Features:

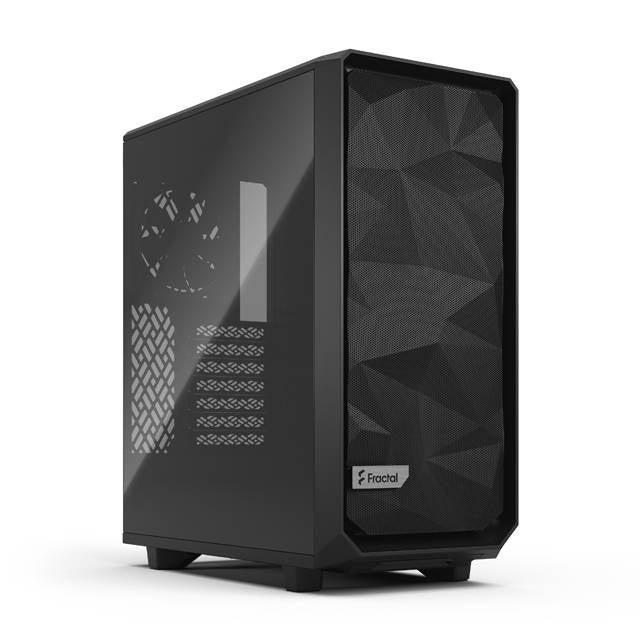

- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
- Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases

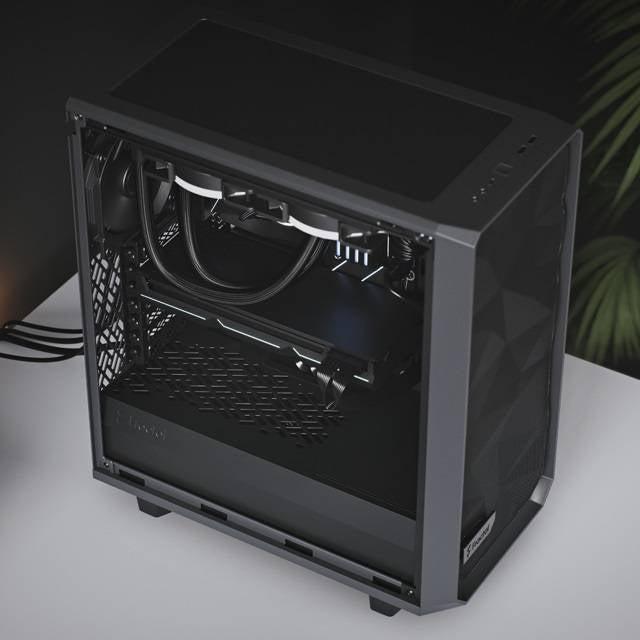

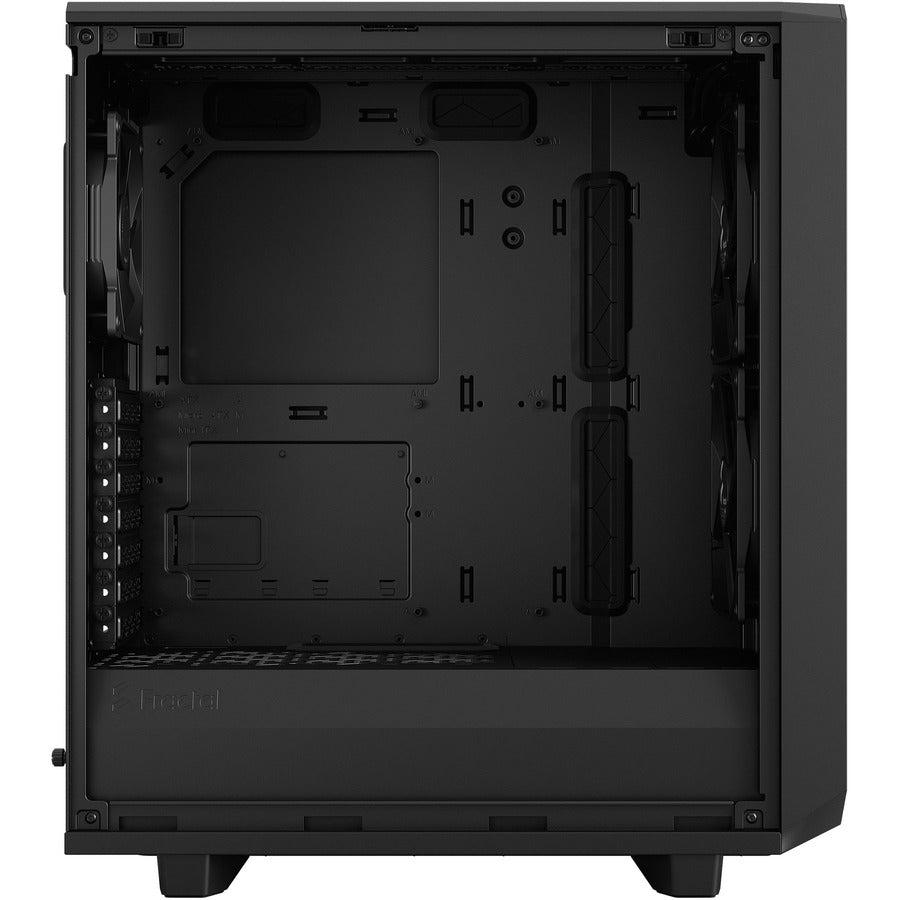

- Open interior layout creates a smooth airflow path from front intake to rear exhaust
- Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism

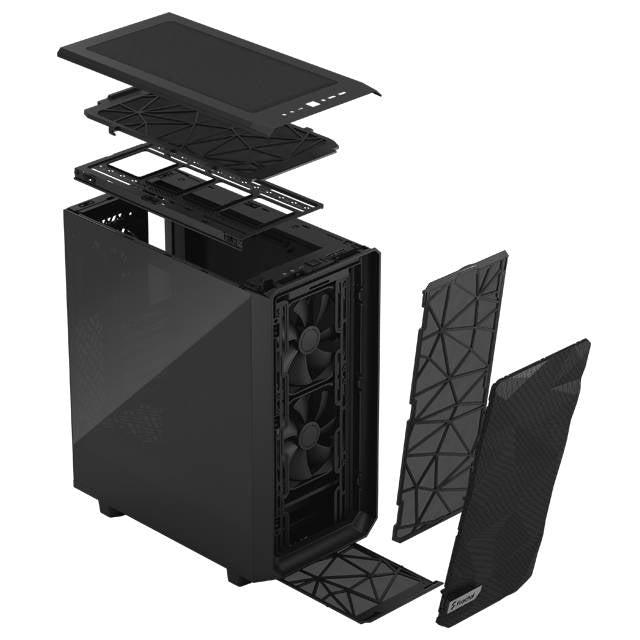

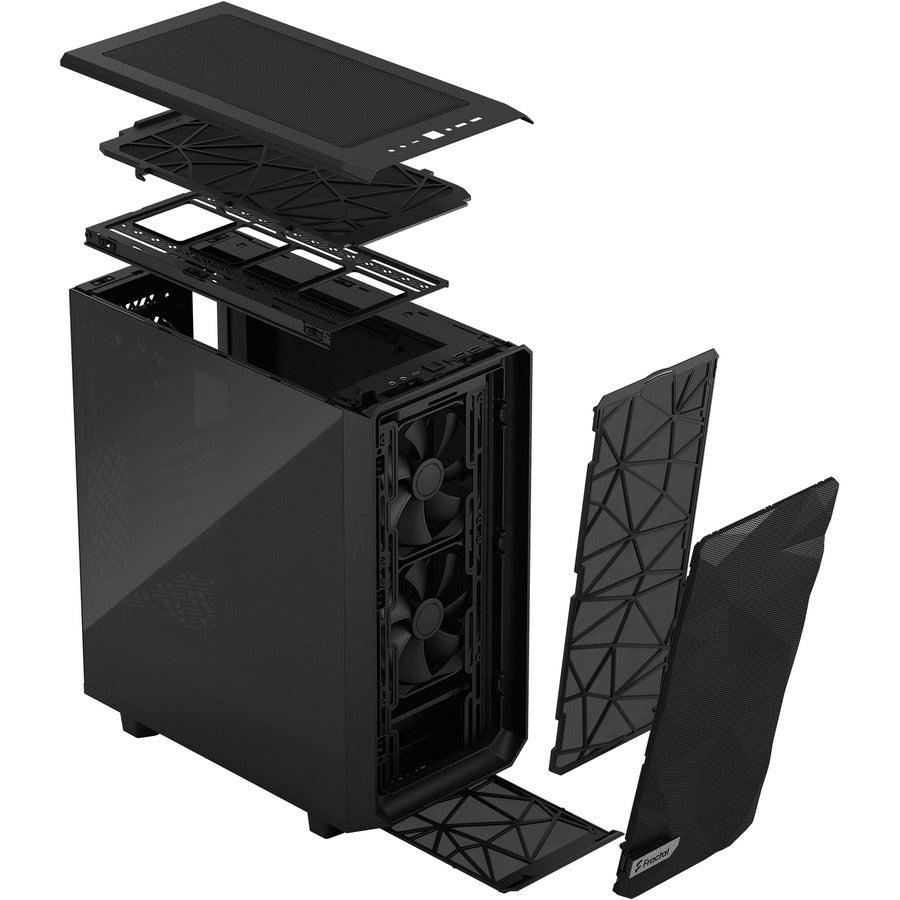

- Fully removable top panel and top fan bracket opens to provide excellent interior access and easy cable routing
- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
- Robust cooling capacity with seven fan positions and support for up to 360/280 mm radiators
- Flexible storage options supporting two 2.5/3.5 drives and up to four SSDs (two SSD brackets included)
- New front nylon filter that can be removed for increased airflow
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access

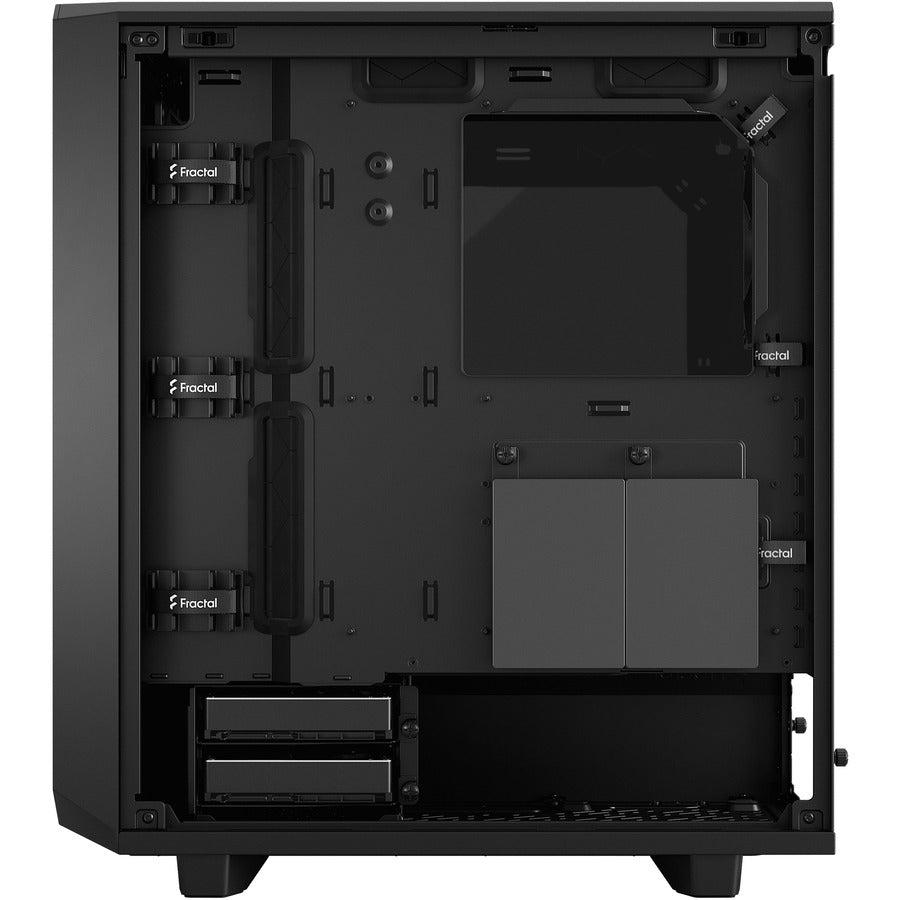

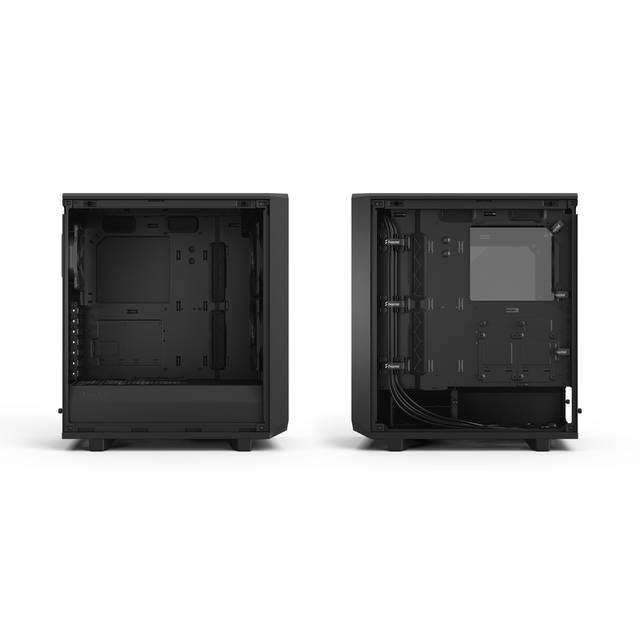

- Improved cable routing with three integrated cable alignment clips and six velcro straps
- Full length power supply shroud with two-part removable cover conceals drive cage and excess cabling for smooth airflow and a clean interior

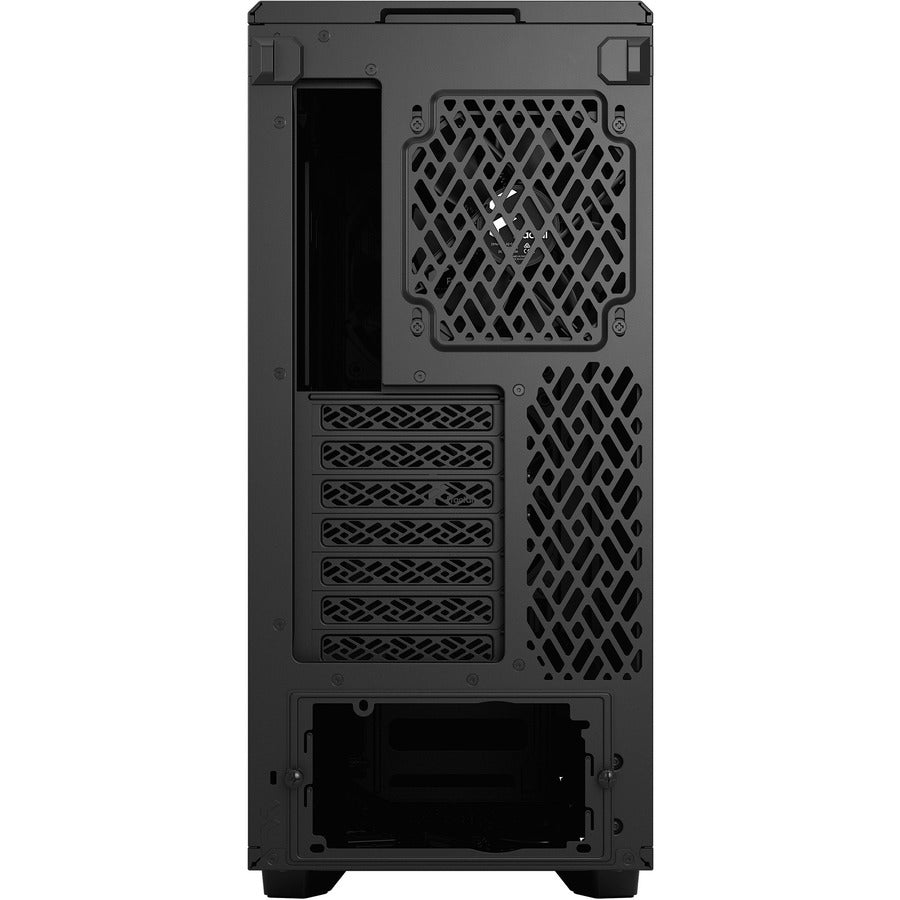

- Seven bridgeless expansion slots ensure obstruction-free connections
-
Color: Black
-
Drive Bays:
-
Expansion Slots: 7
-
Motherboard compatibility: ATX / mATX / Mini-ITX
-
Power supply type: ATX
-

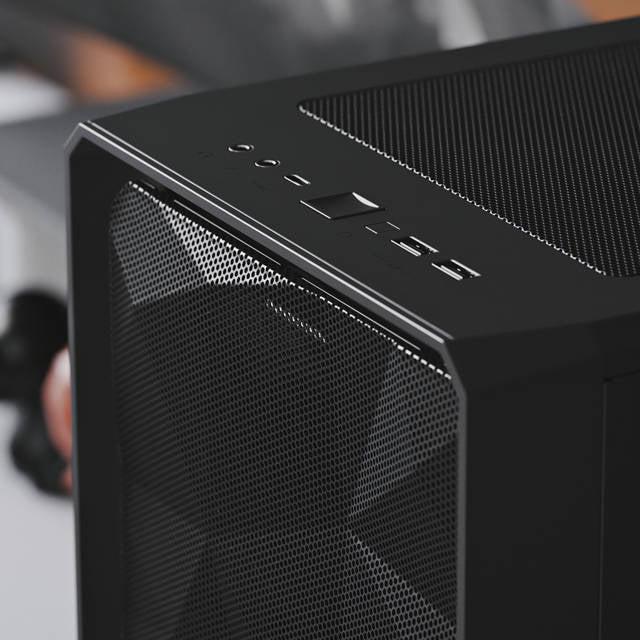

Front interface: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
-
Fan Options:
-
Total fan mounts: 7x 120 or 4x 140 mm and 2x 120 mm
-
Front: 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)
-
Top: 2x 120/140 mm
-
Rear: 1x 120 mm, (1x Dynamic X2 GP-12 included)
-
Bottom: 1x 120 mm (requires removal of HDD cage)
-
Dust filters: Top, front and bottom
-
Radiator Options:
-
Front: Up to 360/280 mm
-
Top: Up to 240 mm
-
Rear: 120 mm
-
Bottom: 120 mm (requires removal of HDD cage)
-
Cable routing space: 17-28 mm
-
Cable routing grommets: Yes
-
Fixed velcro straps: Yes
-
Tool-less push-to-lock: Top, front and side panels
-
Captive thumbscrews: HDD, SSD and PSU brackets
-
Left side panel: Tempered Glass
-
Right side panel: Steel
-
Dimensions & Weight:
-
PSU Max Length: 200 mm (165 mm with HDD cage and front fan)
-
GPU Max Length: 341 mm (360 mm without front fan)
-
CPU Cooler Max Height: 169 mm
-
Case Dimensions (LxWxH):424 x 210 x 475 mm; 412 x 210 x 455 mm w/o feet/protrusions/screws
-
Net Weight: 8.1 kg
-
Package Dimensions (LxWxH): 542 x 320 x 554 mm
-
Gross Weight: 9.8 kg
-
Package Contents:
-
Meshify 2 Compact Case
-
User manual
-
Accessory box
-
UPC-BarCode: 843276102333
