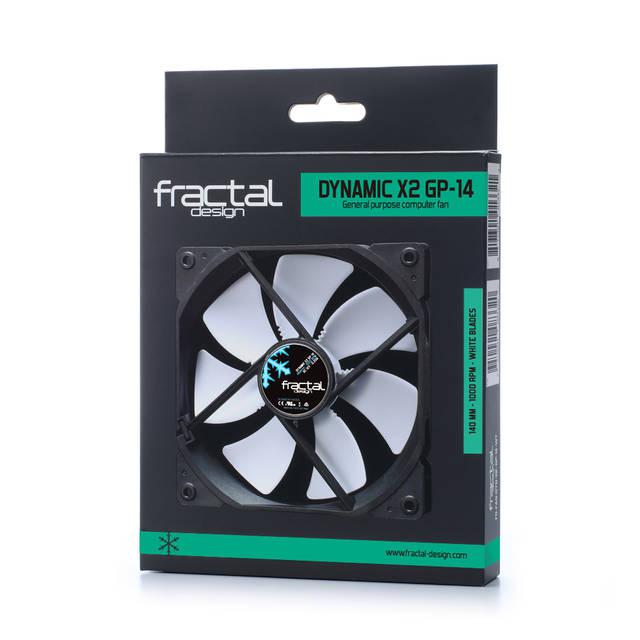

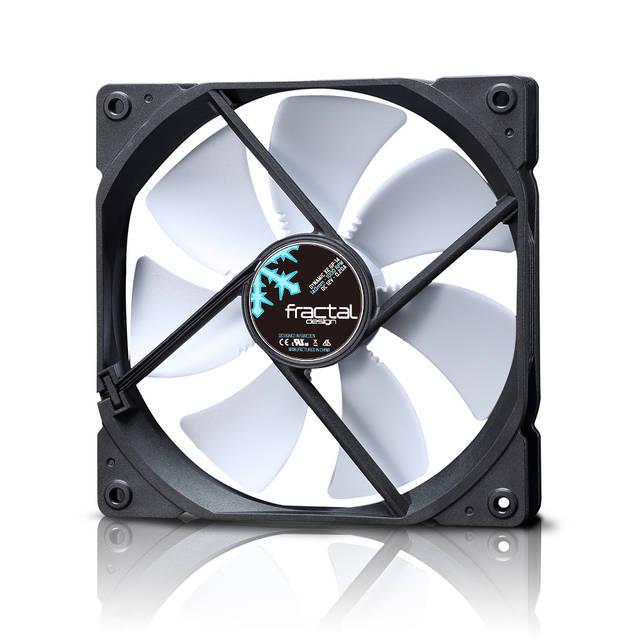

Fractal Design Dynamic X2 Gp-14 Fd-Fan-Dyn-X2-Gp14-Wt 140Mm Case Fan

Description :

• Mfr Part Number: FD-FAN-DYN-X2-GP14-WT
• Features:
  • High grade LLS bearing with class leading 100,000 hours MTBF
  • Equipped with a counter-pull magnet that reduces the axial tension on the bearing
  • Fan geometry optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios
  • Aerodynamically shaped stator struts including the wire strut. Helps reduce noise and unwanted turbulence
  • Stator struts sit on a wide angle to the trailing edge of the blades which result in a lower noise level and smoother noise profile
  • Strategically placed notches near the fan hub on the trailing edge of the blades further reducing the humming noise produced when the blades pass the stator struts
  • A "trip wire" on the rear side of the blades near the leading edge. The trip wire introduces a larger turbulent boundary layer at an earlier stage, this delays the layer separation and improves both airflow and noise characteristics.
  • The customized design of the Dynamic Series fans contributes to a beautiful, cool build
• Rotational Speed: 1000 RPM

• Acoustical Noise: 18.9 dB (A)

• Maximum Air Flow: 68.4 CFM

• Maximum Pressure: 0.71 mm H2O

• Actual Input Power: 1.32 W

• Maximum Rated Input Current: 0.20 A

• Nominal Input Voltage: 12 V

• Minimum Startup Voltage: 4 V

• Screw Hole Pattern: 125 x 125mm

• Connector: 3-pin fan header

• Bearing: LLS

• Number of Blades: 7

• MTBF: 100,000 hours

• Cable Length: 500 mm

• Cable Type: Black Ribbon Cable

• Color: White blades, Black frame
• Dimensions: 140.0 x 140.0x 25.0mm

• Weight:142.0 g
• Package Contents: Dynamic X2 Series fan; Screw pack with 4 metal fan screws
