Omnitron Systems

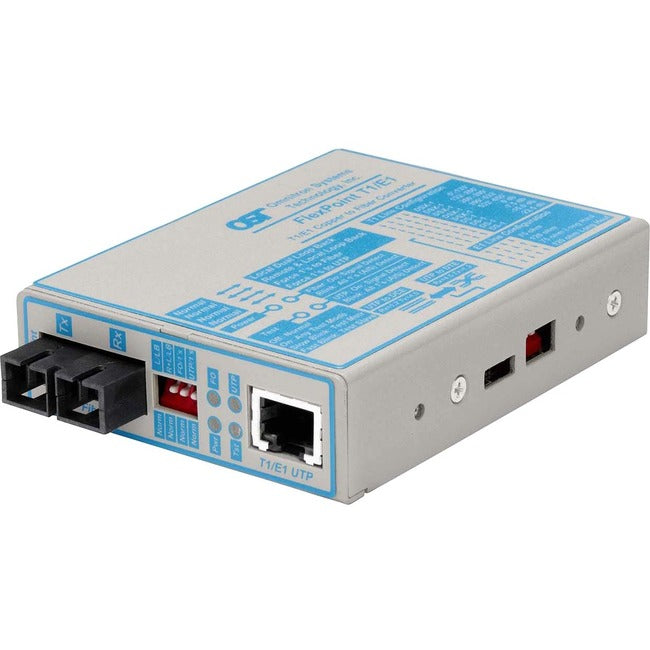

FlexPoint T1/E1 Fiber Media Converter RJ48 SC Multimode 5km 4470-0

FlexPoint T1/E1 Fiber Media Converter RJ48 SC Multimode 5km 4470-0

SKU:4470-0

Regular price $549.51
Regular price Sale price $549.51
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          FlexPoint T1/E1 Fiber Media Converter RJ48 SC Multimode 5km

          The FlexPoint T1/E1 Copper to Fiber Media Converter is a twisted pair to fiber media converter and T1/E1 distance extender. It supports ANSI, AT&T, ITU and ETSI standards and AMI, B8ZS and HDB3 line codes. LEDs display the T1/E1 link status, diagnostic modes of operation and line segment errors. A crossover switch on the RJ45/RJ48 port makes it simple to connect the FlexPoint T1/E1 converter to DTE and DCE equipment like PBXs or CSUs and eliminates the need for crossover and custom cables to connect devices. It is equipped with dry relay contacts for connection to alarm equipment.

          FlexPoint T1/E1 Copper to Fiber Media Converter can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in the 14-unit FlexPoint Powered Chassis which is available with redundant 110/220V AC or 48V DC power supplies.


          • Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter

          • With Twisted Pair cable, get the desired data transfer rate up to a required distance

          • With T1/E1 technology get up to 2.048Mbps (E-carrier) or 1.544Mbps (T-carrier) data transfer rate over service provider link

          • The Rack-mountable provides convenient installation

          Product Type: Transceiver/Media Converter
          Environmentally Friendly: Yes
          Environmental Certification: WEEE
          Country Of Origin: United States
          Product Series: T1/E1
          Brand Name: Omnitron Systems
          Form Factor: Wall Mountable
          Manufacturer: Omnitron Systems
          Product Model: 4470-x
          Product Name: FlexPoint T1/E1 SC Multimode 5km No Power Adapter
          Package Type: Retail
          Product Line: FlexPoint
          Manufacturer Part Number: 4470-0
          Manufacturer Website Address: http://www.omnitron-systems.com
          Package Contents:


          • FlexPoint T1/E1 SC Multimode 5km No Power Adapter

          • User Manual


          Limited Warranty: Lifetime
          Weight (Approximate): 6 oz

          Specifications :

          General Information

          Manufacturer Omnitron Systems
          Manufacturer Website Address http://www.omnitron-systems.com
          Brand Name Omnitron Systems
          Product Line FlexPoint
          Product Series T1/E1
          Product Model 4470-x
          Product Name FlexPoint T1/E1 SC Multimode 5km No Power Adapter
          Product Type Transceiver/Media Converter
          UPC 0800975023468
          Network (RJ-45)No
          Height1"
          Width3"
          Depth4"
          Weight (Approximate)6 oz

          Miscellaneous

          Package Contents
          • FlexPoint T1/E1 SC Multimode 5km No Power Adapter
          • User Manual
          Environmentally FriendlyYes

          Warranty

          Limited WarrantyLifetime
