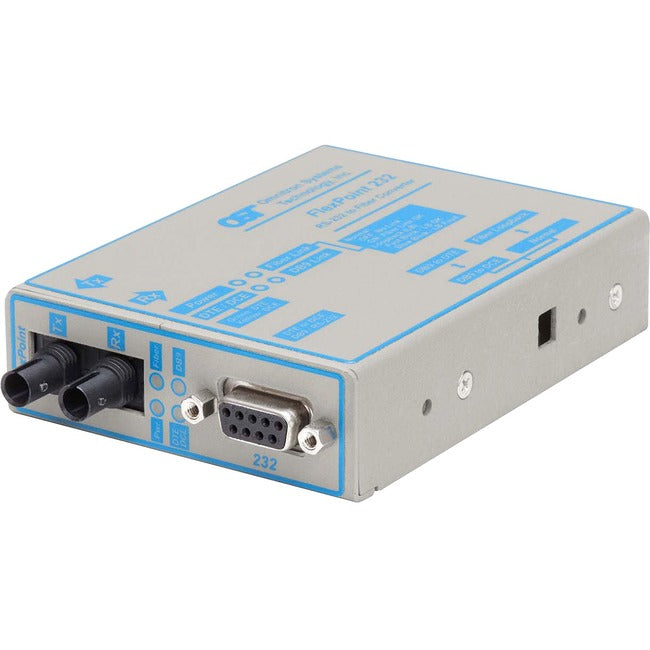

FlexPoint RS-232 Serial Fiber Media Converter DB-9 ST Multimode 5km 4483-1

Description :

FlexPoint RS-232 Serial Fiber Media Converter DB-9 ST Multimode 5km
The FlexPoint 232 is a serial RS-232 to fiber media converter, automatically supporting speeds of up to 115,200 baud. Models are available with multimode or single-mode fiber port, capable of extending serial connection up to 28km.

The FlexPoint 232 supports both half-duplex and full-duplex modes of operation. It features a DTE/DCE configuration for easy connection to DTE or DCE devices using straight-through cabling. Also supports software flow control via XON and XOFF, and hardware flow control via RTS, CTS, DCD, DTR and DCR. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.

• Expand your network capacity and fulfill requirement with this 2 transceiver/media converter


• Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances


• Rackmountable feature for convenient and safe installation of device

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: 232
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 4483-x
Product Name: FlexPoint 232 DB-9 ST Multimode 5km US AC Powered
Package Type: Retail
Product Line: FlexPoint
Manufacturer Part Number: 4483-1
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• FlexPoint 232 DB-9 ST Multimode 5km US AC Powered


• US Power Supply - 120Volt / 60Hz


• User Manual
