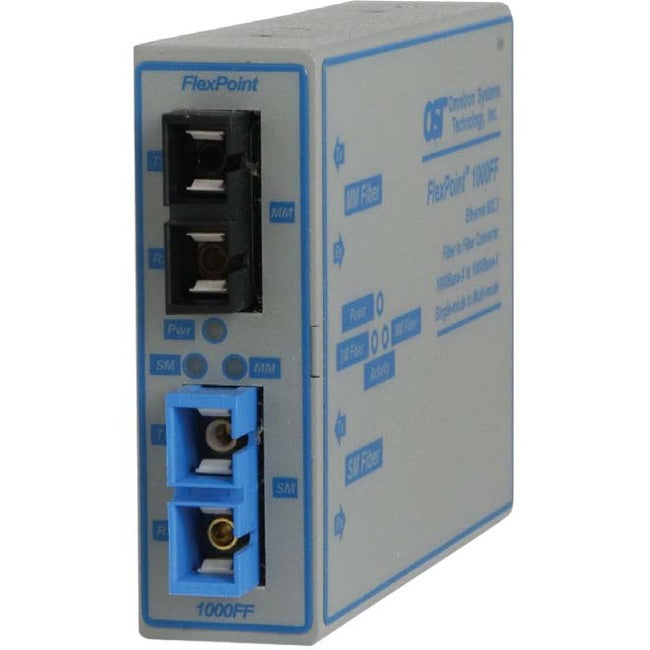

Flexpoint 1000Mbps Gigabit Ethernet Fiber To Fiber Media Converter Sc Multimode 550M To Single-Mode 34Km 4440-2

Description :

FlexPoint 1000Mbps Gigabit Ethernet Fiber to Fiber Media Converter SC Multimode 550m to Single-Mode 34km
The FlexPoint 1000FF is a protocol-transparent fiber converter that provides reliable and cost-effective extension of network distances by connecting multimode fiber networks or devices over single-mode fiber cabling.

The FlexPoint 1000FF is designed to operate with a constant rate signal between 500Mbps to 1250Mbps allowing the converter to be used in Ethernet networks as well as other fiber-to-fiber protocol applications.

No manual configuration is required with the plug-and-play FlexPoint 1000FF. Connect the fiber cables to the appropriate interface and the installation is complete.

The FlexPoint 1000FF features descriptions of the LED indicators on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power and the detection of devices attached to the fiber ports.

FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.

• Expand your network capacity and fulfill requirement with this 2 transceiver/media converter


• Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances


• With 1000Base-SX technology get up to 1000Mbps data transfer rate over optical fiber cable


• Tuck the device out of the way with its Wall Mounting feature

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: 1000FF
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 4440-x
Product Name: FlexPoint 1000FF SC Multimode 550m to SC Single-Mode 34km Univ. AC Powered
Package Type: Retail
Product Line: FlexPoint
Manufacturer Part Number: 4440-2
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• FlexPoint 1000FF SC Multimode 550m to SC Single-Mode 34km Univ. AC Powered


• Univ. Power Supply - 100-240Volt / 50-60Hz


• User Manual
