Description :

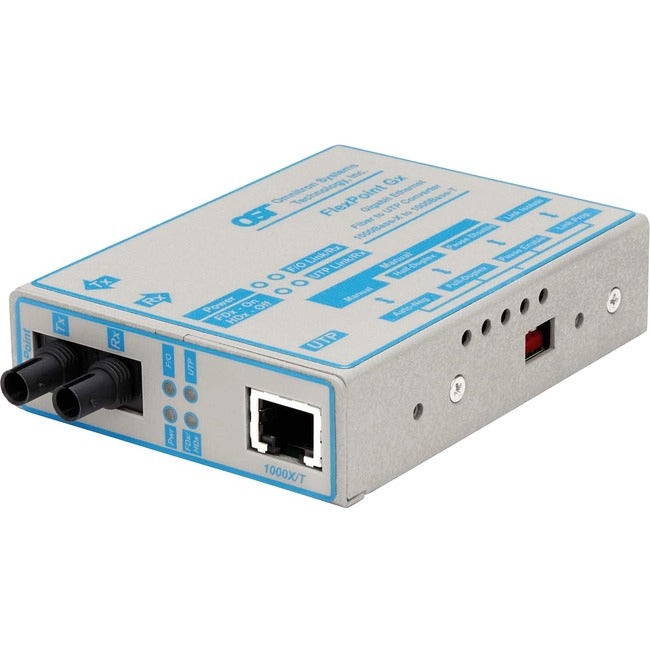

FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km
The FlexPoint Gx is a 1000BASE-T UTP to 1000BASE-SX/LX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint Gx auto-negotiates with most network devices for quick installations. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration with different network requirements.
The FlexPoint Gx features an auto-sensing UTP port that adjusts to the duplex and pause mode of the attached device. A switch provides manual control over the Half/Full-Duplex operation of UTP port. The port features a crossover switch that facilitates connection to a workstation or switch.
- The FlexPoint Gx is a Gigabit Ethernet 1000BASE-T to 1000BASE-SX/LX fiber media converter
- Fiber port supports auto or manual negotiation
- UTP port supports Full and Half-Duplex operation
- Extends network distances up to 80km
- User-selectable or Auto-sensing Pause flow control
- Supports most network interfaces with a wide variety of cable and connector types
- User-selectable Link Modes for quick fault detection
- Labeled status LEDs and switches for quick and easy installation
- Features a crossover switch for connection to switches or workstations
- Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint
- Powered Chassis
- Completely software independent with no installation of drivers required
- Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- Desktop installation makes it ideal for deployments outside the wiring closet
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: GX
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 4377-x
Product Name: FlexPoint Gx ST Single-Mode 12km No Power Adapter
Package Type: Retail
Product Line: FlexPoint
Manufacturer Part Number: 4377-0
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- FlexPoint Gx ST Single-Mode 12km No Power Adapter
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 6 oz
