Omnitron Systems

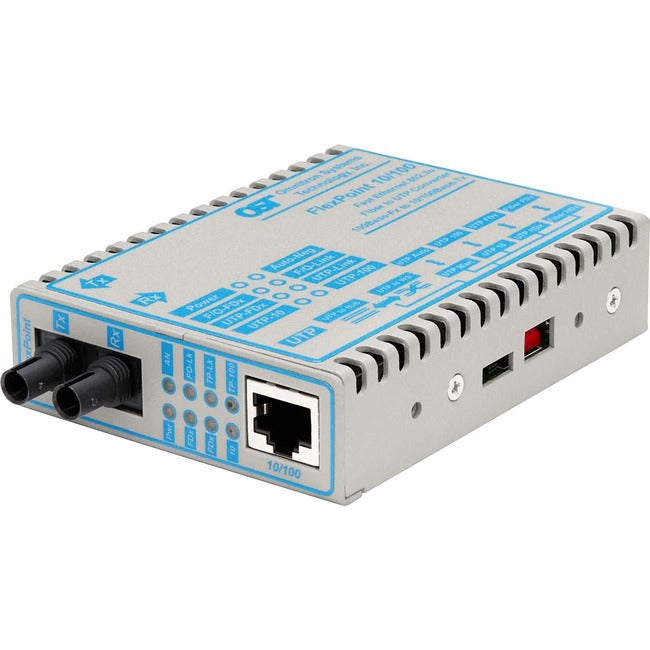

FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 ST Single-Mode 30km 4343-2

FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 ST Single-Mode 30km 4343-2

SKU:4343-2

Regular price $330.83
Regular price Sale price $330.83
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 ST Single-Mode 30km
          The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.

          The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.

          When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.

          The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.

          Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.


          • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter

          • With Twisted Pair cable, get the desired data transfer rate up to a required distance

          • With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable

          • The Rack-mountable provides convenient installation

          Product Type: Transceiver/Media Converter
          Environmentally Friendly: Yes
          Environmental Certification: WEEE
          Country Of Origin: United States
          Product Series: 10/100
          Brand Name: Omnitron Systems
          Form Factor: Wall Mountable
          Manufacturer: Omnitron Systems
          Product Model: 4343-x
          Product Name: FlexPoint 10/100 ST Single-Mode 30km Univ. AC Powered
          Package Type: Retail
          Product Line: FlexPoint
          Manufacturer Part Number: 4343-2
          Manufacturer Website Address: http://www.omnitron-systems.com
          Package Contents:


          • FlexPoint 10/100 ST Single-Mode 30km Univ. AC Powered Univ. Power Supply - 100-240Volt / 50-60Hz

          • User Manual


          Limited Warranty: Lifetime
          Weight (Approximate): 6 oz

          Specifications :

          General Information

          Manufacturer Omnitron Systems
          Manufacturer Part Number 4343-2
          Manufacturer Website Address http://www.omnitron-systems.com
          Brand Name Omnitron Systems
          Product Line FlexPoint
          Product Series 10/100
          Product Model 4343-x
          Product Name FlexPoint 10/100 ST Single-Mode 30km Univ. AC Powered
          Product Type Transceiver/Media Converter
          UPC 0800975020306
          Ethernet TechnologyFast Ethernet
          Network (RJ-45)Yes
          Height1"
          Width3"
          Depth4"
          Weight (Approximate)6 oz

          Miscellaneous

          Package Contents
          • FlexPoint 10/100 ST Single-Mode 30km Univ. AC Powered Univ. Power Supply - 100-240Volt / 50-60Hz
          • User Manual
          Environmentally FriendlyYes

          Warranty

          Limited WarrantyLifetime
