Fast Ethernet (100-Mbps) Media Converter - 10/100/1000-Mbps Copper To 100-Mbps S

Description :

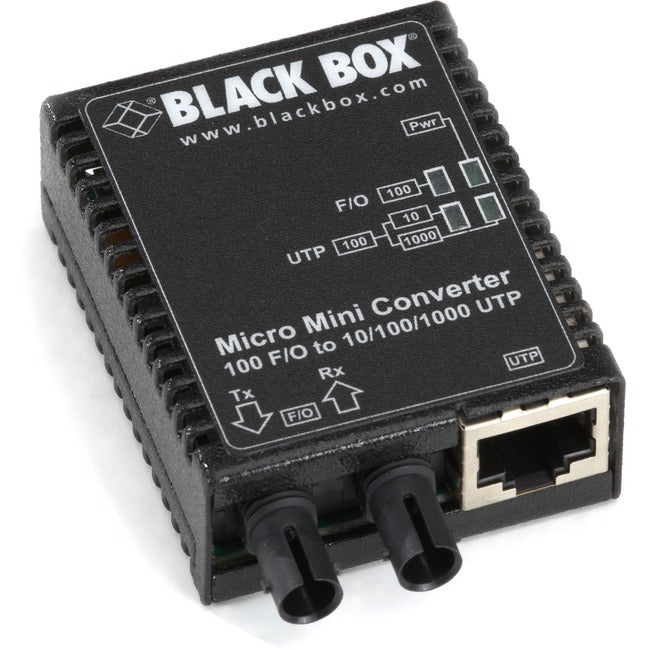

Black Box LMC403A Tanscevier Media Converter

The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical.

Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case.

The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter has an ST connector for connection to single-mode fiber.

Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.

• LED indicators for power, UTP, and fiber status.


• Supports Jumbo Ethernet frames up to 10,240 bytes.


• UTP port supports 10/100/1000BASE-T.


• SFP port supports 100BASE-FX using 155-Mbps SFP transceivers.


• Plug-and-play capability with autonegotiation.


• USB-powered for portability, or use it with the included power adapter.


• Supports distances of up to 30 kilometers over single-mode fiber.


• Tucks unobtrusively behind a PC.


• Ultra compact, weighing only 2.5 ounces.


• Bring fiber to the desktop conveniently and cost-effectively.

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Standalone
Manufacturer: Black Box Corporation
Product Model: LMC403A
Product Name: LMC403A Tanscevier Media Converter
Manufacturer Part Number: LMC403A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 2 Year
Weight (Approximate): 2.50 oz
