Description
- 6GB 192-Bit GDDR5
- Core Clock 1506 MHz
- Boost Clock 1708 MHz
- 1 x Dual-Link DVI-D 1 x HDMI 2.0b 3 x DisplayPort 1.4
- 1280 CUDA Cores
- PCI Express 3.0

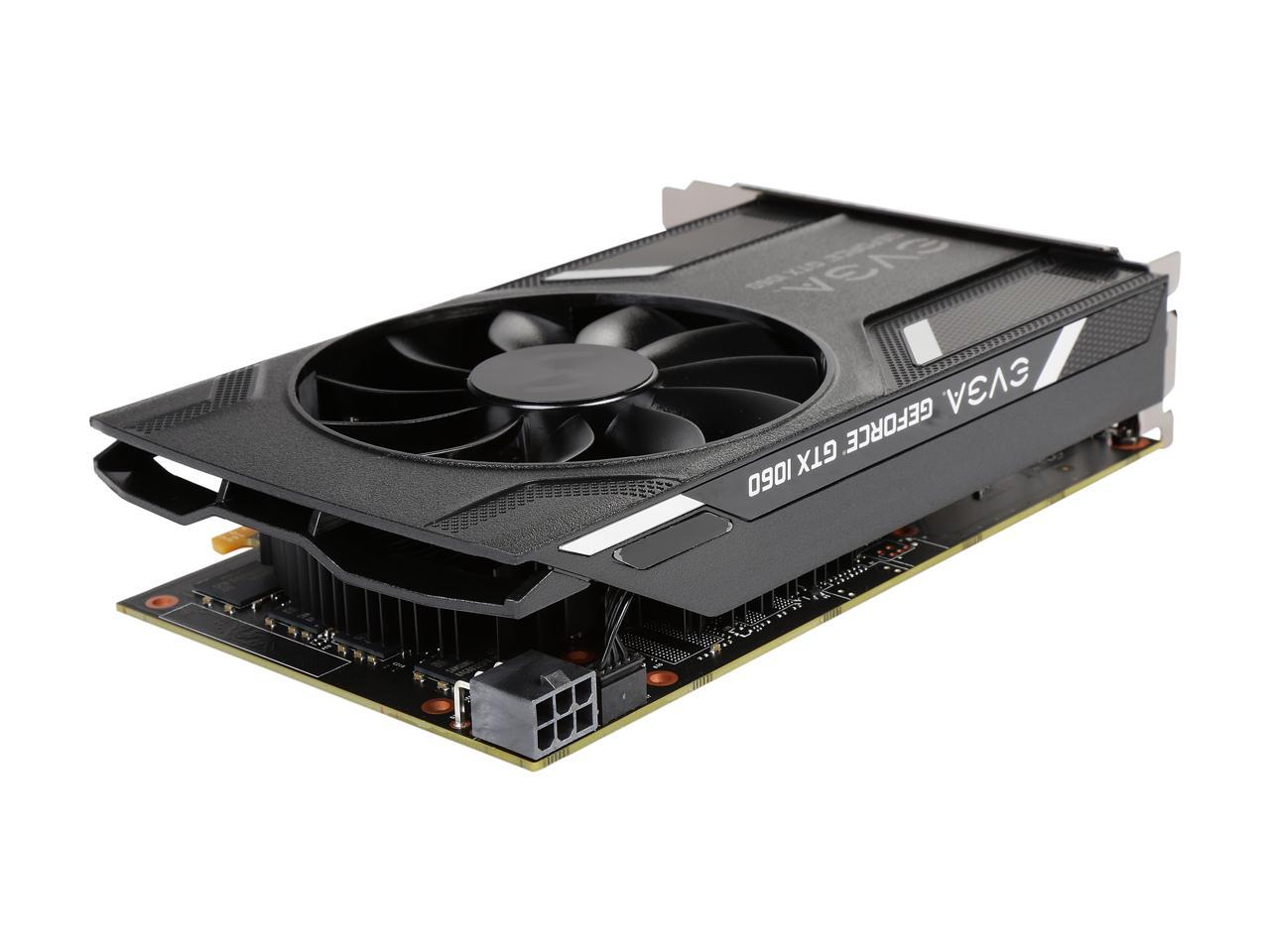

The EVGA GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies, making it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal - the most advanced GPU architecture ever created - the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond.
These cards also feature EVGA ACX 2.0 cooling technology. EVGA ACX 2.0 once again brings new and exciting features to the award winning EVGA ACX cooling technology. SHP 3.0 gives increased heatpipes and copper contact area for cooler operation, and optimized fan curve for even quieter gaming. Of course, ACX 2.0 coolers also features optimized swept fan blades, double ball bearings and an extreme low power motor, delivering more airflow with less power, unlocking additional power for the GPU.
EVGA PRECISIONX OC
UNLOCKS THE POWER OF PASCAL
The next generation of EVGA PrecisionX has arrived with EVGA PrecisionX OC. This new version of Precision is built for the NVIDIA Pascal architecture and combines the best of EVGA Precision and EVGA OC Scanner to give you never before seen overclocking features and built in automatic overclock tuning.
Standard Overclock Mode
Pascal Linear
Pascal Manual
Built In Automatic Tuning
DEFINE YOUR GAME WITH EVGA PRECISIONX OC
WHY DOUBLE BALL BEARINGS?
EVGA ACX 2.0 fans use double ball bearings, which offer 4X longer lifespan than the sleeve bearing fans used by competitors. The oil that is used in sleeve bearing fans makes them vulnerable and prone to failure after time when the oil dries up. Upgrade to EVGA ACX 2.0 and your card will go the distance!
SPECIFICATIONS
Features
- Simultaneous Multi-Projection
- VR Ready
- NVIDIA Ansel
- NVIDIA G-SYNC
- NVIDIA GameStream
- NVIDIA GPU Boost 3.0
- Microsoft DirectX 12
- Vulkan API
- OpenGL 4.5 Support
- PCI Express 3.0
- Max Digital Resolution - 7680 x 4320
- HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
- Built for EVGA PrecisionX OC
GPU
- 1280 CUDA Cores
- Base Clock: 1506 MHz
- Boost Clock: 1708 MHz
- Bus: PCI-E 3.0
Memory
- Memory Detail: 6144 MB GDDR5
- Memory Bit Width: 192 Bit
- Memory Speed: 0.28 ns
- Memory Bandwidth: 192 GB/s
General Information
| Manufacturer | EVGA Corporation |
|---|---|
| Manufacturer Part Number | 06G-P4-6161-KR |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Name | NVIDIA GeForce GTX 1060 GAMING Graphic Card |
| Product Type | Graphic Card |
| UPC | 843368043049 |
| Chipset Manufacturer | NVIDIA |
|---|
| HDMI | Yes |
|---|
| Height | 4.4" |
|---|
| Environmentally Friendly | Yes |
|---|
| Limited Warranty | 3 Year |
|---|
