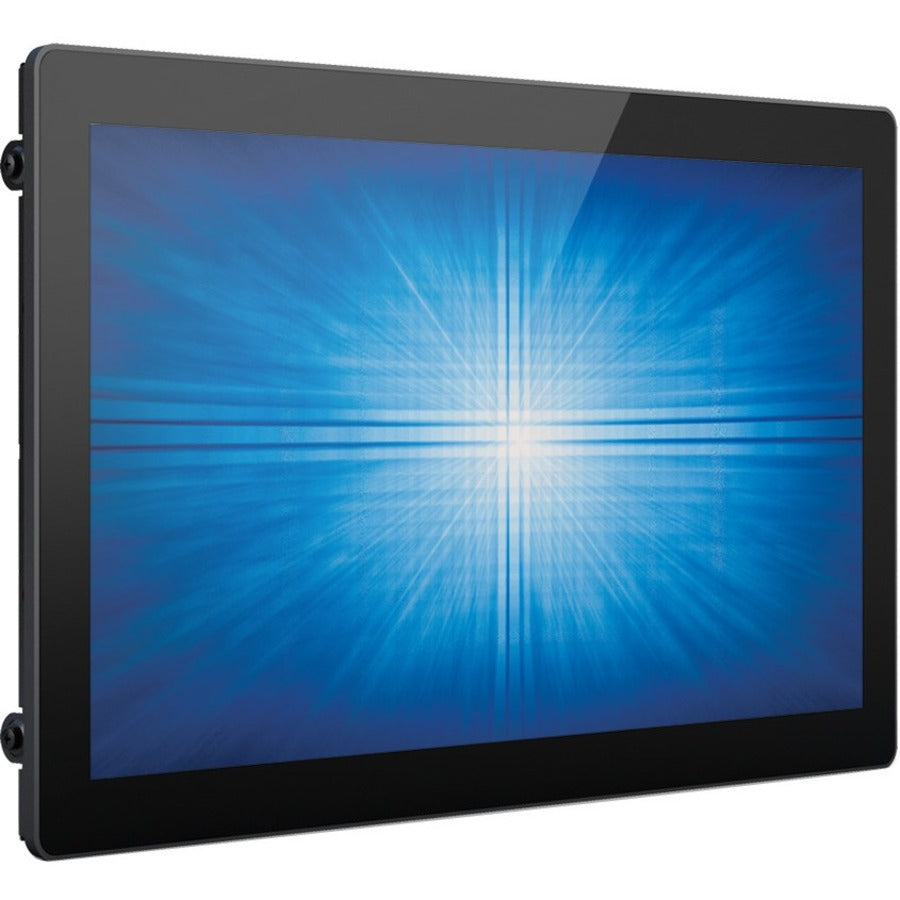

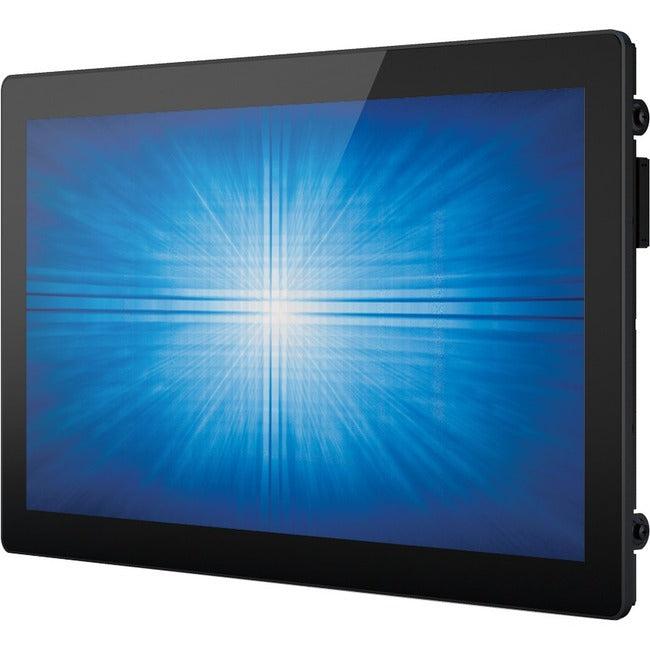

Elo 2094L 20 Class Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms" E328883

Description :

Elo 2094L 19.5" Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

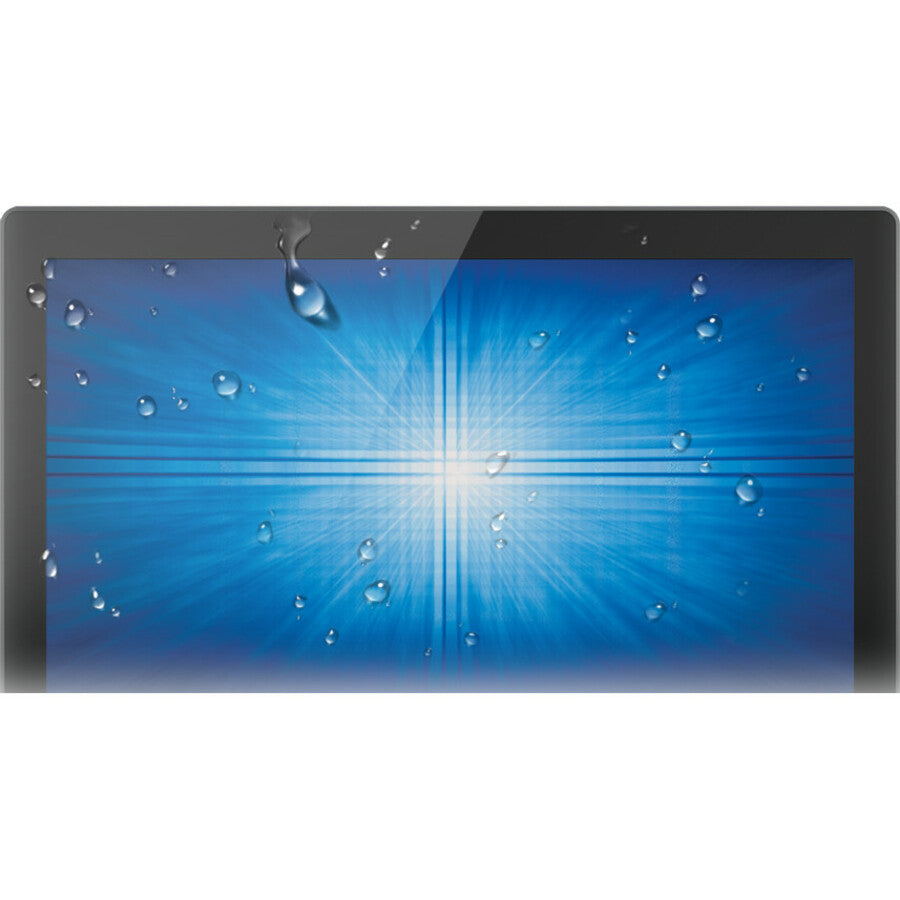

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

• Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
• Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing

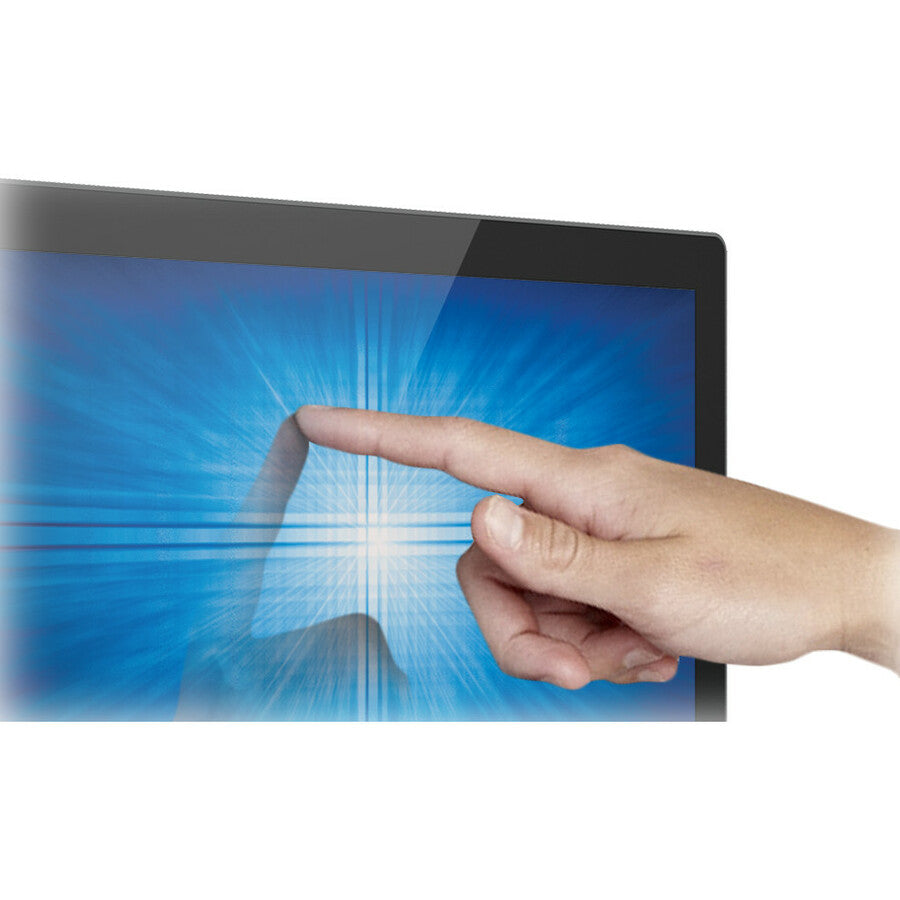

• 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
• Display Port and VGA video interfaces

• The IntelliTouch Surface Wave touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis


• The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies


• The 3,000:1 contrast ratio actualizes fantastic hues for an exceptional visual experience


• LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio


• Furnishes captivating visuals with about 250 Nit brightness levels


• HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display

Product Type: Open-frame LCD Touchscreen Monitor
Environmentally Friendly: Yes
Environmental Certification: WEEE
Vesa Mount Compatible: Yes

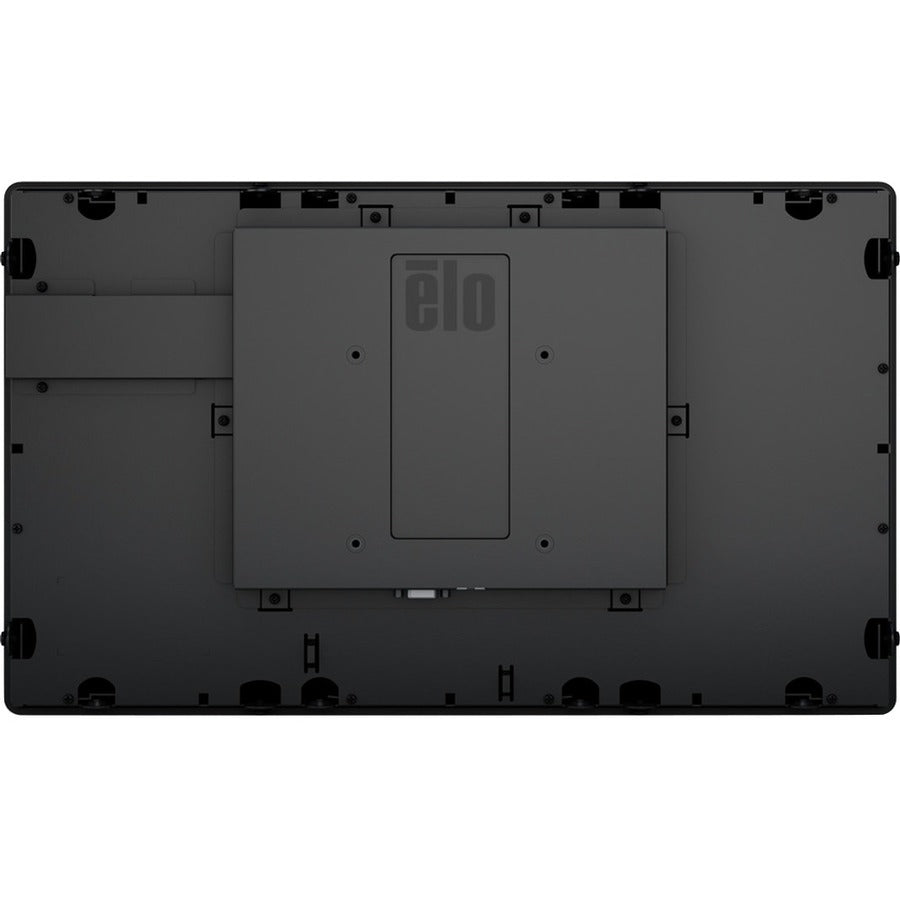

Vesa Mount Standard: 100 x 100
Taa Compliant: No
Product Color: Black
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 2094L
Product Name: 2094L 19.5" Open Frame Touchscreen (Rev B)
Manufacturer Part Number: E328883
Manufacturer Website Address: http://www.elotouch.com
Packaged Quantity: 1
Package Contents:

• 2094L 19.5" Open Frame Touchscreen (Rev B)
• HDMI cable
• VGA Cable
• RJ45 OSD Remote
• Touch USB Cable
• User Manual CD
• Quick Install Guide
• "L" (Side Mount) Brackets and w/Screws
• EEI Label
• Japan Class-B info sheet
