Elo Touch Solutions, Inc

Elo 1590L 15 Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms" E326154

Elo 1590L 15 Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms" E326154

SKU:E326154

Regular price $585.48
Regular price Sale price $585.48
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Elo 1590L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms
          The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

          Easily integrated.

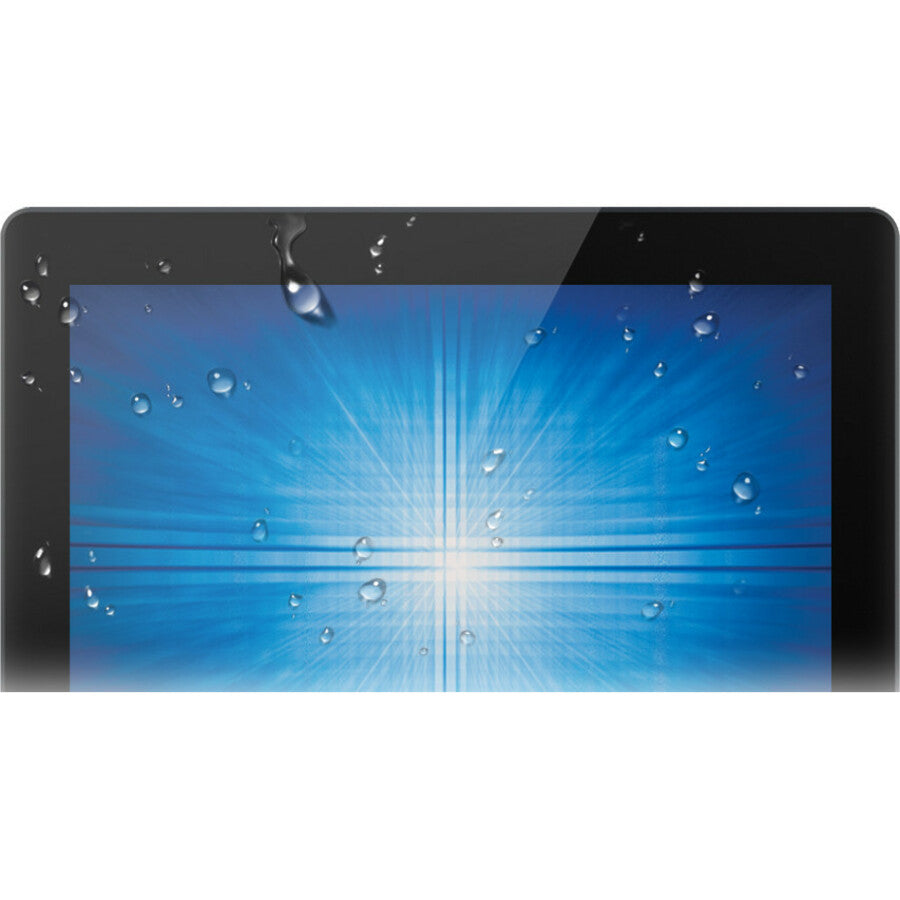

          The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

          Touch ready.

          The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

          Commercial-grade.

          The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

          Other features.

          • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
          • Display Port and VGA video interfaces
          • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities

          • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications

          • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers

          • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels

          • The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture

          • LED backlight technology provides for industry-leading low power consumption and less hazardous materials

          • Enjoy crisp content and energetic hues with the 250 Nit brightness

          • HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display

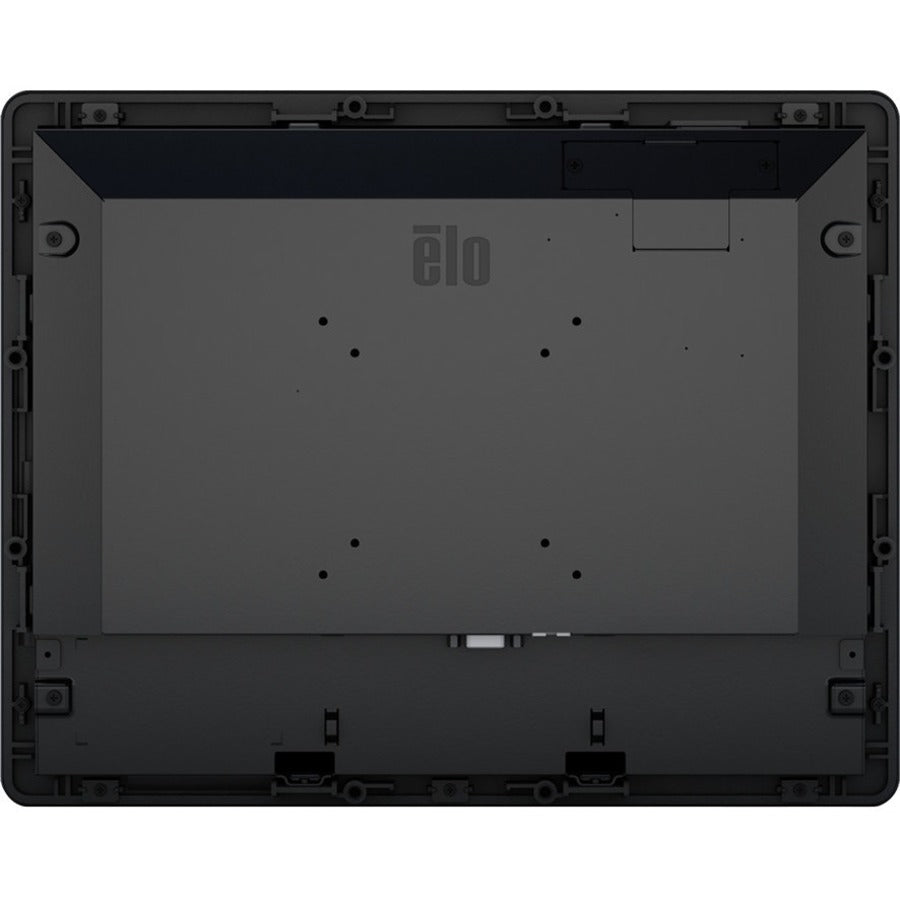

          • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

          Product Type: Open-frame LCD Touchscreen Monitor
          Environmentally Friendly: Yes
          Environmental Certification: WEEE
          Vesa Mount Compatible: Yes
          Product Color: Black
          Brand Name: Elo
          Manufacturer: Elo Touch Solutions, Inc
          Product Model: 1590L
          Product Name: 1590L 15" Open Frame Touchscreen (Rev B)
          Manufacturer Part Number: E326154
          Manufacturer Website Address: http://www.elotouch.com
          Package Contents:

          • 1590L 15" Open Frame Touchscreen (Rev B)
          • HDMI cable
          • VGA Cable
          • RJ45 OSD Remote
          • Touch USB Cable
          • User Manual CD
          • Quick Install Guide
          • "L" (Side Mount) Brackets and w/Screws
          • EEI Label
          • Japan Class-B TM info sheet

          Limited Warranty: 3 Year
          Weight (Approximate): 6.40 lb

          Specifications :

          General Information

          Manufacturer Elo Touch Solutions, Inc
          Manufacturer Part Number E326154
          Manufacturer Website Address http://www.elotouch.com
          Brand Name Elo
          Product Model 1590L
          Product Name 1590L 15" Open Frame Touchscreen (Rev B)
          Product Type Open-frame LCD Touchscreen Monitor
          UPC 0815335025785
          Screen ModeXGA

          Interfaces/Ports

          HDMIYes
          Product ColorBlack
          Height10.4"
          Width13.2"
          Depth1.7"
          Weight (Approximate)6.40 lb

          Miscellaneous

          Package Contents
          • 1590L 15" Open Frame Touchscreen (Rev B)
          • HDMI cable
          • VGA Cable
          • RJ45 OSD Remote
          • Touch USB Cable
          • User Manual CD
          • Quick Install Guide
          • "L" (Side Mount) Brackets and w/Screws
          • EEI Label
          • Japan Class-B TM info sheet
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
