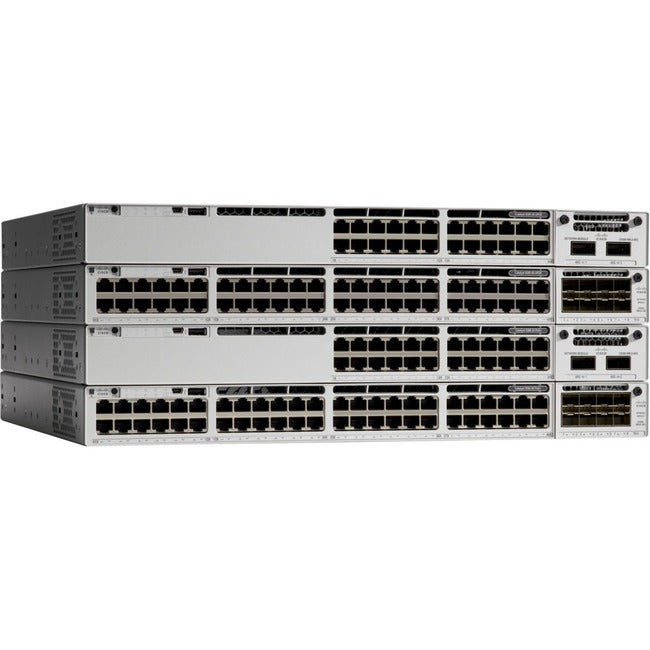

Cisco Catalyst 9300-48H-A Switch C9300-48H-1A

Description :

Cisco Catalyst 9300-48H-A Switch

Built for security, IoT, mobility, and cloud

The Cisco^® Catalyst^® 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise^® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower^®, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE^®+ ports. The switches are based on the Cisco Unified Access^™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS^® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

The Foundation of Software-Defined access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

The Cisco Digital Network Architecture (Cisco DNA) with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:

• Simplified device deployment
• Unified management of wired and wireless networks
• Network virtualization and segmentation
• Group-based policies
• Context-based analytics

• Highest wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access points supported on a single switch with select models


• Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and microengine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries


• x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering 120GB of storage with an option SSD drive) to host containers


• USB 2.0 slot to load system images and set configurations


• Up to 480 Gbps of local stackable switching bandwidth


• Deeper buffer and higher scale model options for rich multi-media content delivery applications


• Flexible and dense uplink offerings with 1G, Multigigabit, 10G, 25G, and 40G in the form of fixed or modular uplinks


• Easy transition from 10G to 25G with dual-rate optics


• Flexible downlink options with 1G Copper and Fiber as well as Multigigabit links


• Leading PoE capabilities with up to 384 ports of PoE per stack, PoE+, and high density IEEE 802.3bt - 60W UPOE, and 90W Cisco UPOE®+

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: 9300
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: C9300-48H-A
Product Name: Catalyst 9300-48H-A Switch
Product Line: Catalyst
Manufacturer Part Number: C9300-48H-1A
Manufacturer Website Address: http://www.cisco.com
Package Contents:

• Catalyst 9300-48H-A Switch
• 3 x Field-replaceable Fans
• Power Supply
• AC Power Cord
