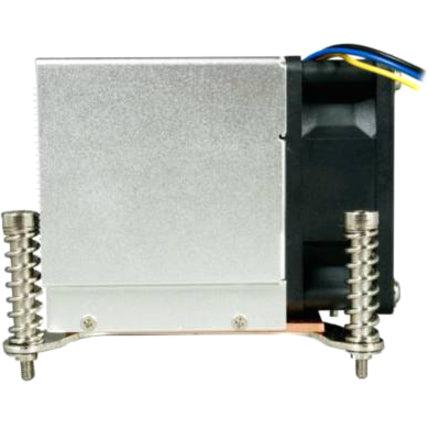

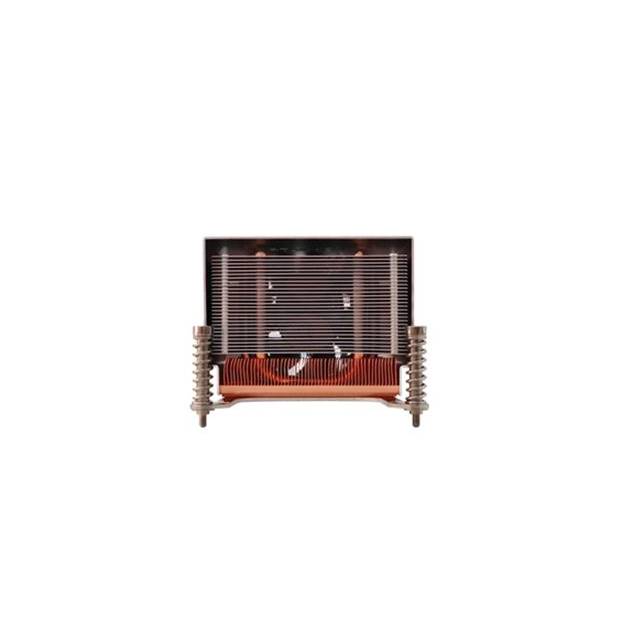

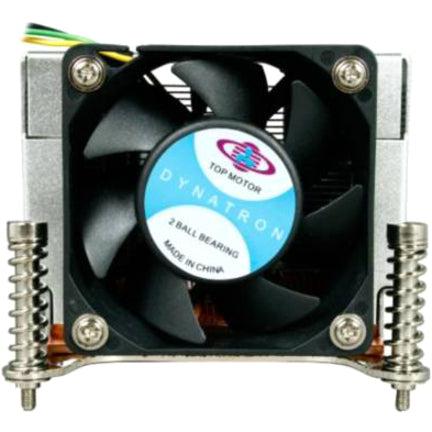

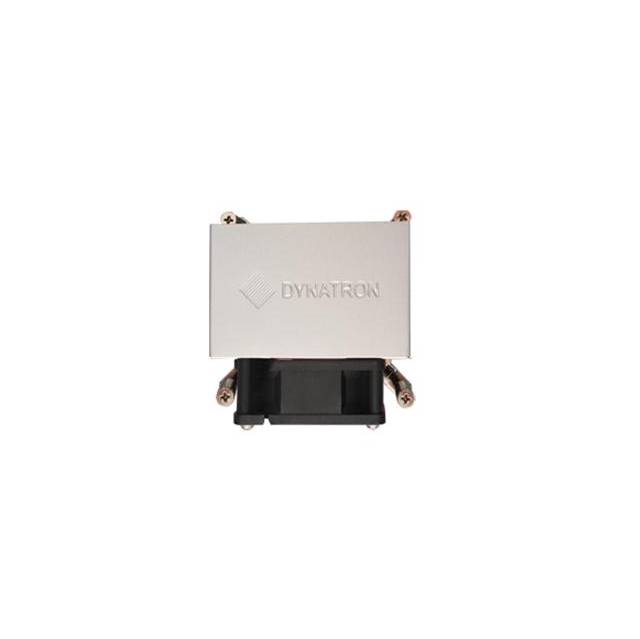

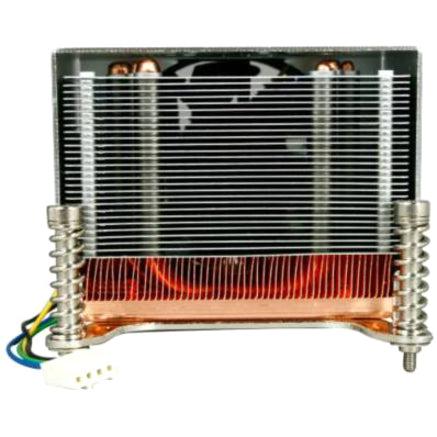

- Mfr Part Number: K666
- CPU Application: Intel Socket 1156 for 2U Server and up Support Intel Core i3 530 / 540, Core i5 650 / 650 / 660 / 661 / 670 / 750; Xeon Processor 3400 Series; Core i7 870 / 860
- Heatsink Material: Copper Base & Aluminum Fins with Heatpipes embeded
- Fan:
- Speed:
- At Duty Cycle 0-20%: 1600 rpm
- At Duty Cycle 50%: 2300 rpm
- At Duty Cycle 100%: 5000 rpm
- Bearing: 2x Ball
- Air Flow:
- At Duty Cycle 0-20%: 8.5 cfm
- At Duty Cycle 50%: 12.2 cfm
- At Duty Cycle 100%: 26.45 cfm
- Noise Level:
- At Duty Cycle 0-20%: 13.8 dBA
- At Duty Cycle 50%: 21.8 dBA
- At Duty Cycle 100%: 38.7 dBA
- Air Pressure:
- At Duty Cycle 0-20%: 0.75 mm-H2O
- At Duty Cycle 50%: 1.55 mm-H2O
- At Duty Cycle 100%: 7.32 mm-H2O
- Rated Voltage: 12 V
- Power:
- At Duty Cycle 0-20%: 0.72 W
- At Duty Cycle 20%: 1.2 W
- At Duty Cycle 100%: 3.0 W
- Lead Wire Pin Out: Pin1-Black (-); Pin2-Yellow (+); Pin3-Green (Techometer/Signal output); Pin4-Blue (PWM)
- Dimensions: 60 x 60 x 25 mm
- Overall Dimensions: 90.7 x 85.0 x 64.0 mm
- Weight: 500 g
- RoHS Compliant
