Dynascan 55" 5,500 Nit Ultra-High Brightness Lcd With Narrow Bezel Ds552Lt6-1

Description :

DynaScan 55" 5,500 nit Ultra-High Brightness LCD with Narrow Bezel DS552LT6-1

The DS552LT6-1 is a 55-inch ultra-high bright professional LCD with IPS technology. With a maximum brightness rating of 5,500 nits, this display features a local dimming LED backlight technique for incredible, high contrast picture quality and low power consumption.

The DS552LT6-1 features a 10.9 mm bezel width, perfect for video wall applications in bright environments. Designed for use in direct sunlight, the specially designed LCD panel prevents "blackening defect".

LED Backlit with Local Dimming

LED back lighting is both more energy efficient and provides a much brighter image than traditional CCFL backlights. Due to the compact nature of LEDs, displays are also typically thinner. DynaScan's DS² line of LCDs utilize a proprietary system of LED backlighting which is not only more energy efficient than traditional CCFL backlights, it is also considerably brighter. DynaScan has applied its LED expertise to create a collection of ultra-high brightness LCDs which can easily be viewed in direct sunlight such as storefront windows or outdoor enclosures. The display features a local dimming LED back light technique for a remarkably high contrast picture. With direct local dimming, darker areas of an image receive less backlighting than lighter areas, as opposed to CCFL and edge-lit LED backlights which illuminate an entire screen at all times causing blacks and dark areas to appear washed out.

Narrow Bezel for Video Walls

The DS552LT6-1 features a 10.9 mm narrow bezel display - perfect for video wall applications. With built-in video daisy chaining, a single 1080p source can be used on video walls up to 1515 in size without the need for any additional external video wall controller.

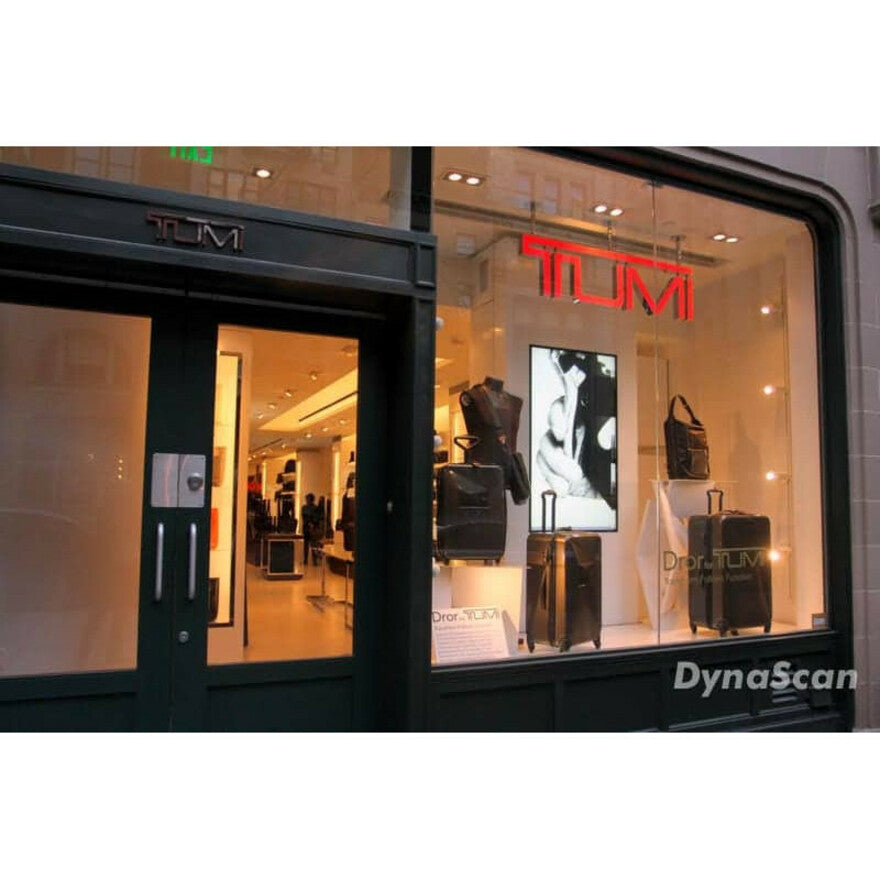

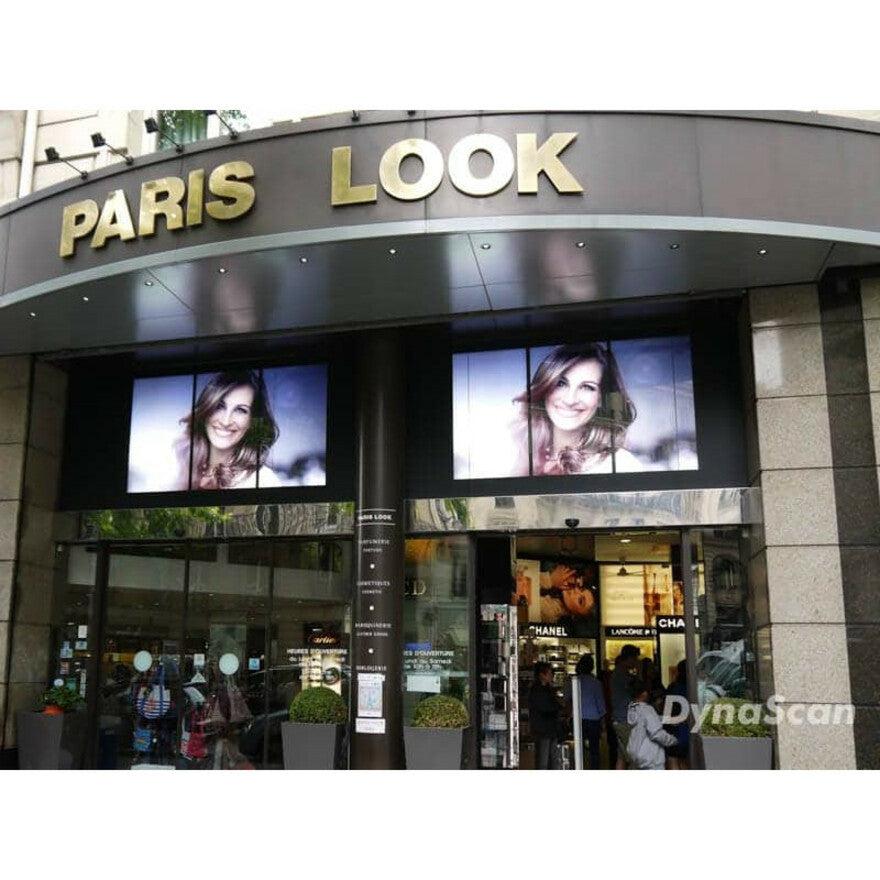

By combining a narrow bezel display with the benefits of a high brightness LED backlight, these displays are ideal for indoor environments that receive a high amount of external daylight such as airports, shopping centers, and storefront window displays.

Color Temperature and Quality

Ensuring the color and brightness of each screen in a tiled matrix matches can be time-consuming and requires additional calibration hardware. Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, the color of all screens will be uniform.

Blackening Defect Free

Most residential and commercial screens will blacken or result in isotropic failure when the LCD panel overheats. The DS552LT6-1 is equipped with a high-temperature LCD panel capable of withstanding temperatures up to 110°C (230°F) without blackening - crucial for direct sunlight applications.

Auto Brightness Control

Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.

Full HD Resolution

With a resolution of 1920 x 1080 Full HD, the DS552LT6-1 provides a super sharp image for easy to read text and incredible detail.

• Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details


• Cortex A9 1.60 GHz processor executes heavy and power-hungry applications seamlessly with efficient-power


• 55" Signage Display - Designed for unwavering quality and dazzling picture clarity


• Experience luminescent visual images with LCD display


• Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution


• Experience stunning picture result with cost-effective LED backlighting


• Engages your customers and makes their viewing experience breathtaking with its 1080p content

Product Type: Digital Signage Display
Product Color: Black
Product Series: DS²
Brand Name: DynaScan
Manufacturer: DynaScan Technology, Inc.
Product Model: DS552LT6-1
Product Name: 55" 5,500 nit Ultra-High Brightness LCD with Narrow Bezel DS552LT6-1
Manufacturer Part Number: DS552LT6-1
Manufacturer Website Address: http://www.dynascanusa.com
Weight (Approximate): 65.04 lb
