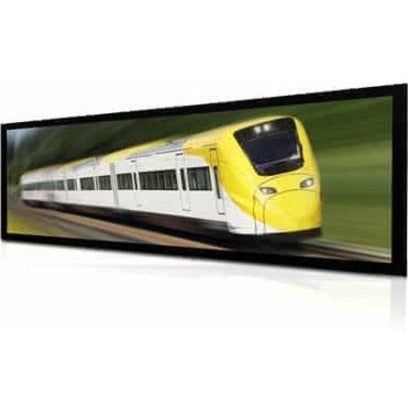

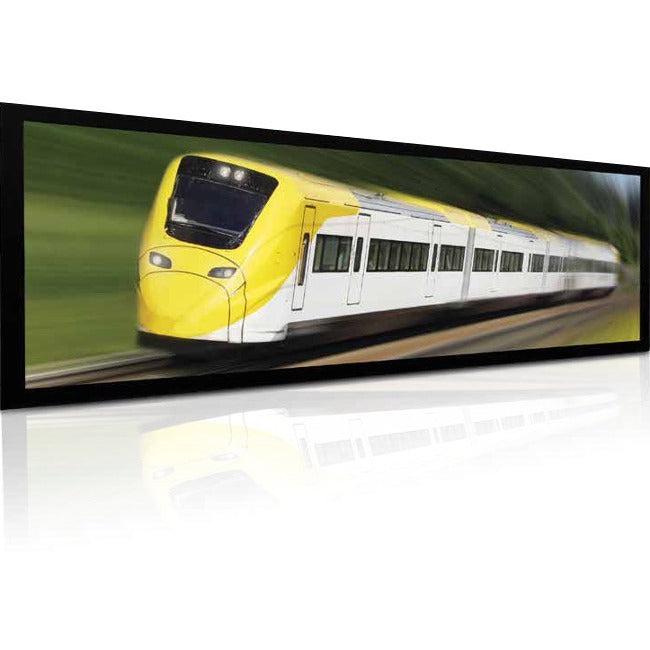

DynaScan 37 High Brightness 3 DS371BT4

Description :

DynaScan 37" High Brightness 3,000 Nit Bar Type LCD DS371BT4

The DS371BT4 is a 37.5-inch high brightness stretched professional LCD. With a stretched 32:9 aspect ratio, the DS371BT4 is designed for special applications where height is limited. A brightness rating of 3,000 nits produces a daylight viewable image for high ambient light installations. A local dimming backlight provides incredible, high contrast picture quality and low power consumption.

LED Backlit with Local Dimming

LED backlighting is both more energy efficient and provides a much brighter image than traditional CCFL backlights. Due to the compact nature of LEDs, displays are also typically thinner. The DS371BT4 utilizes a direct LED backlighting system which is not only more energy efficient than traditional CCFL backlights, it is also considerably brighter. DynaScan has applied its LED expertise to create a collection of ultra-high brightness LCDs which can easily be viewed in direct sunlight such as storefront windows or outdoor enclosures. The display features a local dimming LED backlight technique for a remarkably high contrast picture. With direct local dimming, darker areas of an image receive less backlighting than lighter areas, as opposed to CCFL and edge-lit LED backlights which illuminate an entire screen at all times causing blacks and dark areas to appear washed out.

Color Temperature and Quality

Ensuring the color and brightness of each screen in a tiled matrix matches can be time-consuming and requires additional calibration hardware. Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, the color of all screens will be uniform.

Auto Brightness Control

Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.

Intelligent Thermal Management

Heat generated by the display is radiated away from high-temperature areas while a sensor continuously monitors the internal temperature to protect the system from overheating. This is accomplished with ultra-quiet fans.

• 3,000 nit Maximum Brightness


• Shock & vibration resistant


• 32:9 aspect ratio


• LED Backlight


• 1920 x 540 Resolution

Product Type: Digital Signage Display
Product Color: Black
Brand Name: DynaScan
Manufacturer: DynaScan Technology, Inc.
Product Model: DS371BT4
Product Name: 37" High Brightness 3,000 Nit Bar Type LCD DS371BT4
Manufacturer Part Number: DS371BT4
Manufacturer Website Address: http://www.dynascanusa.com
Weight (Approximate): 23.15 lb
