SIIG DP Cyber RS-232 1S PCIe Card - 250Kbps JJ-E20611-S1

Description :

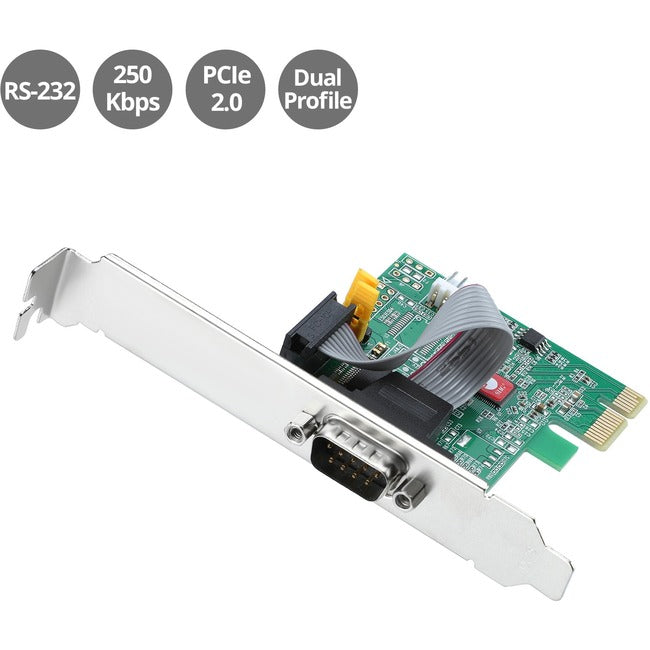

SIIG DP Cyber RS-232 1S PCIe Card - 250Kbps

Add one 16650 RS232 port to your PCI Express system

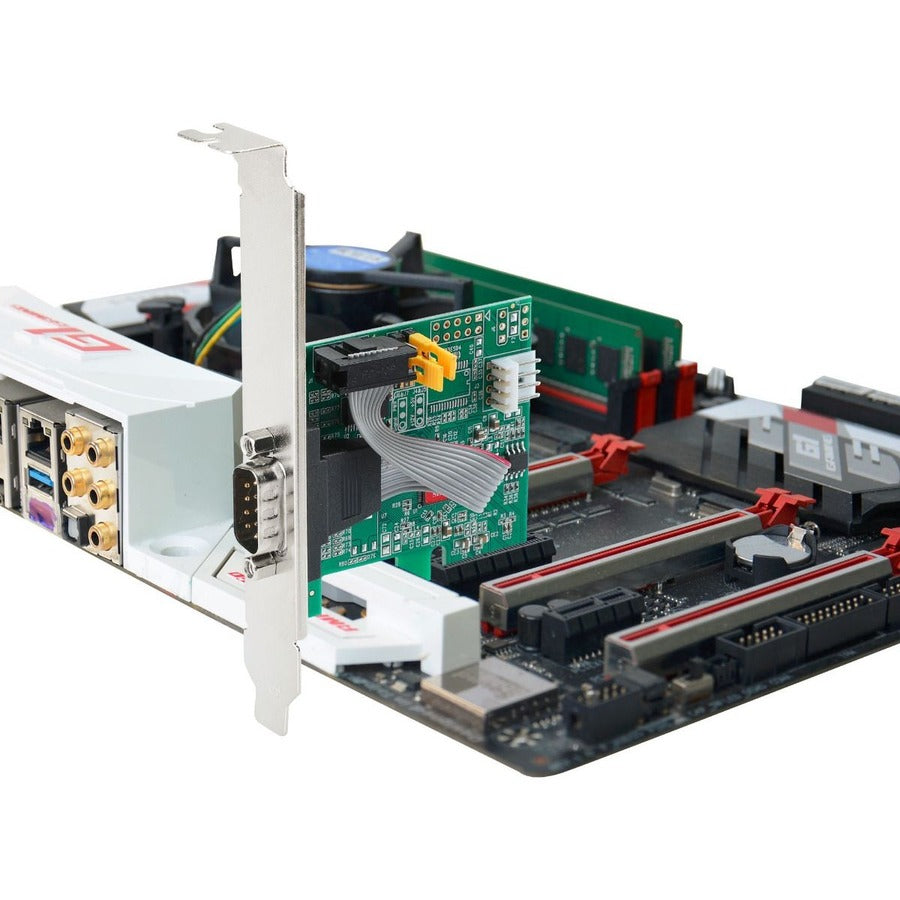

• Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers
• One 16C650 UART serial port supports data transfer rate up to 250Kbps
• Compliant with PCI Express 2.0 Gen 1
• Single-lane (x1) PCI Express End-point Controller with PHY integrated
• Full serial modem control with hardware and software flow control
• Supports 5, 6, 7, 8 and 9-bit serial formats
• Supports Even, Odd, None, Space and Mark parity
• Supports on chip 256-byte FIFO buffers in transmit and receive path

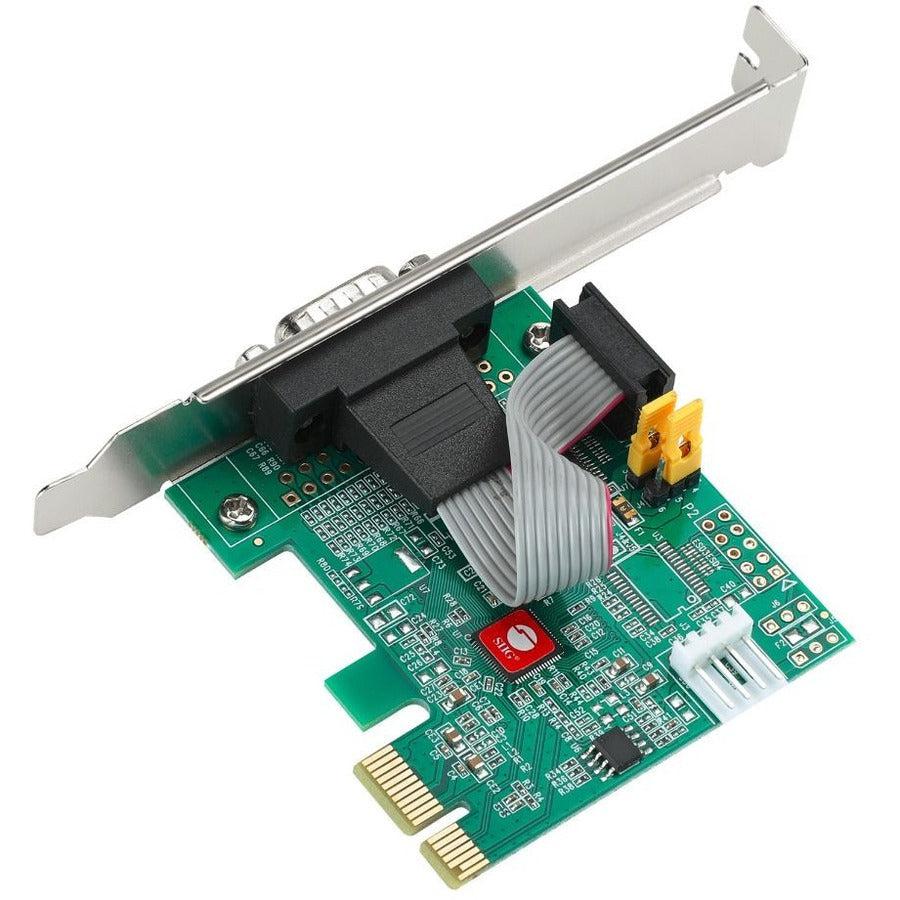

• Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
• Supports PCI Bus Power Management Interface Specification Revision 1.2

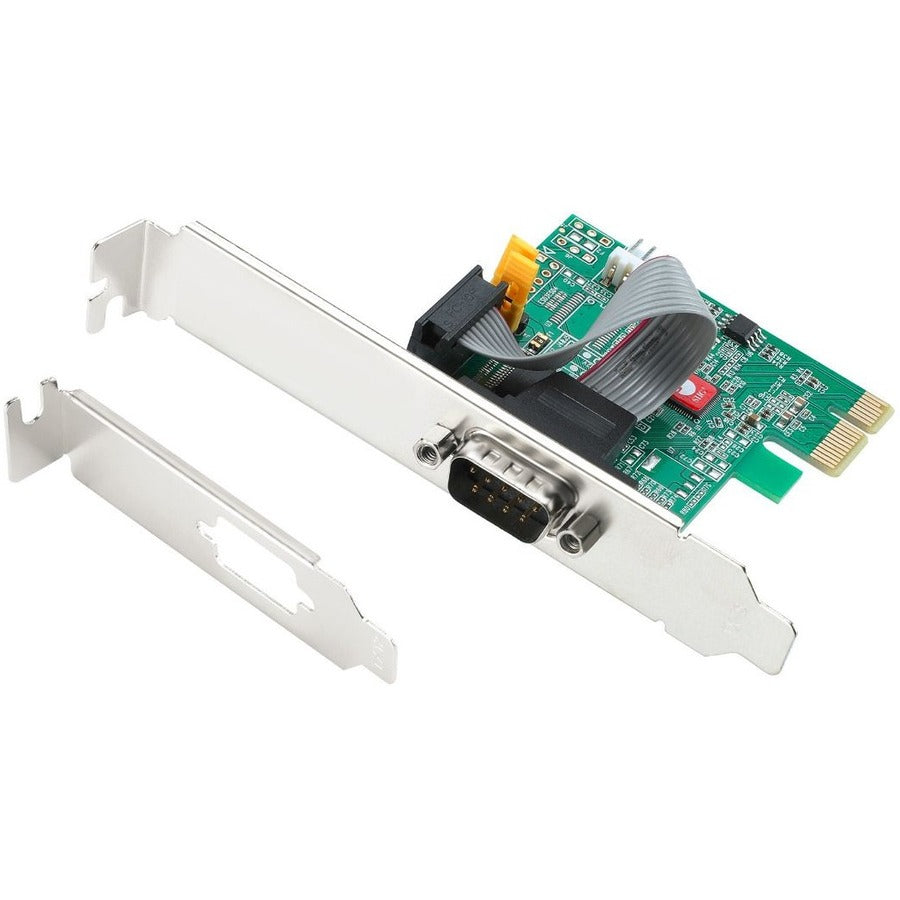

• Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
• Installs into any PCI Express slot of any lane width
• Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc

• Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers


• One 16C650 UART serial port supports data transfer rate up to 250Kbps


• Compliant with PCI Express 2.0 Gen 1


• Single-lane (x1) PCI Express End-point Controller with PHY integrated


• Full serial modem control with hardware and software flow control


• Supports 5, 6, 7, 8 and 9-bit serial formats


• Supports Even, Odd, None, Space and Mark parity


• Supports on chip 256-byte FIFO buffers in transmit and receive path


• Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers


• Supports PCI Bus Power Management Interface Specification Revision 1.2

Product Type: Serial Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Card Height: Full-height/Low-profile
Brand Name: SIIG
Form Factor: Plug-in Card
Manufacturer: SIIG, Inc
Product Name: DP Cyber 1S PCIe Card
Manufacturer Part Number: JJ-E20611-S1
Manufacturer Website Address: http://www.siig.com

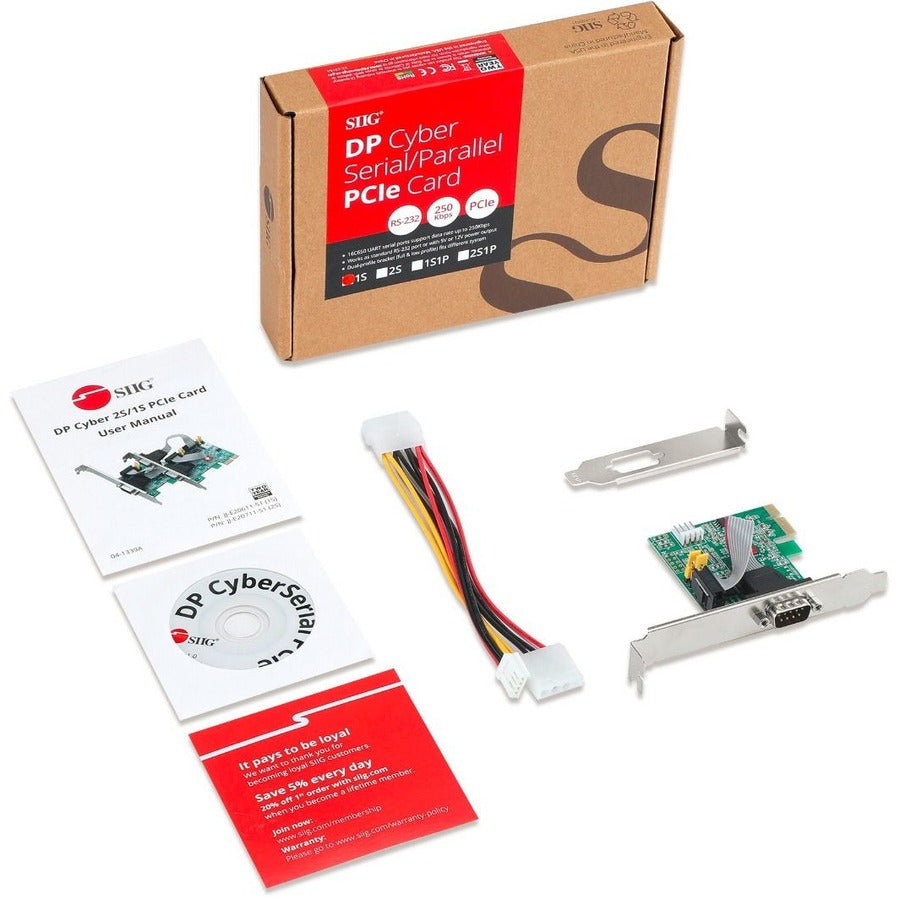

Package Contents:

• DP Cyber 1S PCIe Card
• Full Height Bracket
• 1 x Low Profile Bracket
• 1 x Y-Split Power Cable
• 2 x Voltage Jumper
• Software CD
• User Manual
