Displayport Over Hdbaset Box- Rx

Description :

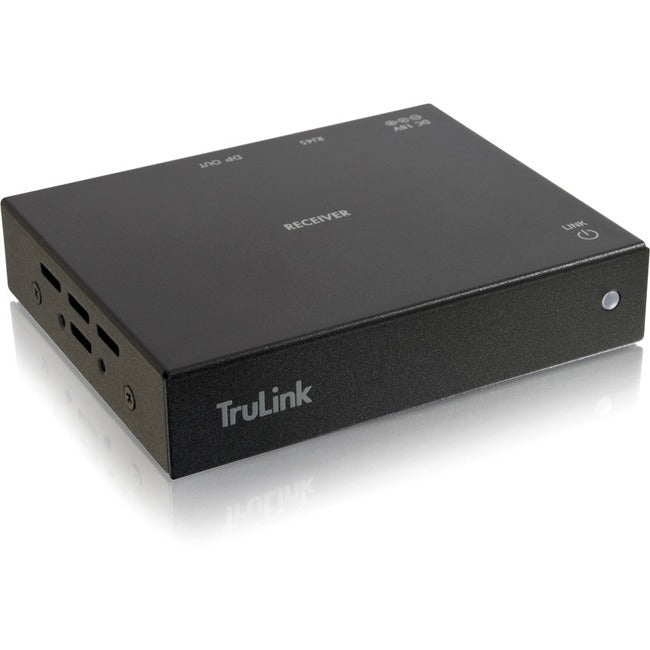

C2G DisplayPort HDBaseT Extender Over Cat Receiver - TAA Compliant
The DisplayPort HDBaseT over Cat5 Extender allows DisplayPort audio/video signals to be extended over a single Cat5/Cat5e/Cat6 unshielded twisted pair cable up to 300ft at a 1080p resolution. This receiver requires a DisplayPort or HDMI HDBaseT Transmitter for a complete solution. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. This solution utilizes TruChoice™ power, which allows power to be supplied over the Cat5 cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution. HDBaseT technology supports HDCP and allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display's capabilities, to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension.

Note: Stranded Cat5e/6 cables may be used for HDMI extension applications up to 250ft. Shielded, solid conductor Cat5e/6 cabling is recommended for applications where the Cat5e/6 cable must be coiled, is run near other high-frequency signaling cables or in high EMI/RFI environments. For Best Performance Use A Cat6 Solid Shielded Patch Cable

Product Type: Video Extender Receiver
Receiver Height: 0.90"
Receiver Width: 4.30"
Receiver Depth: 3.40"
Receiver Weight (Approximate): 1.40 lb
Product Color: Black
Country Of Origin: Taiwan
Brand Name: C2G
Manufacturer: C2G
Product Name: DisplayPort HDBaseT Extender Over Cat5 Receiver
Product Line: TruLink
Manufacturer Part Number: 29299
Manufacturer Website Address: http://www.cablestogo.com
Package Contents:

• DisplayPort HDBaseT Extender Over Cat5 Receiver


• Mounting Bracket Pack With Screws


• User Manual


• Foot Pad Set
