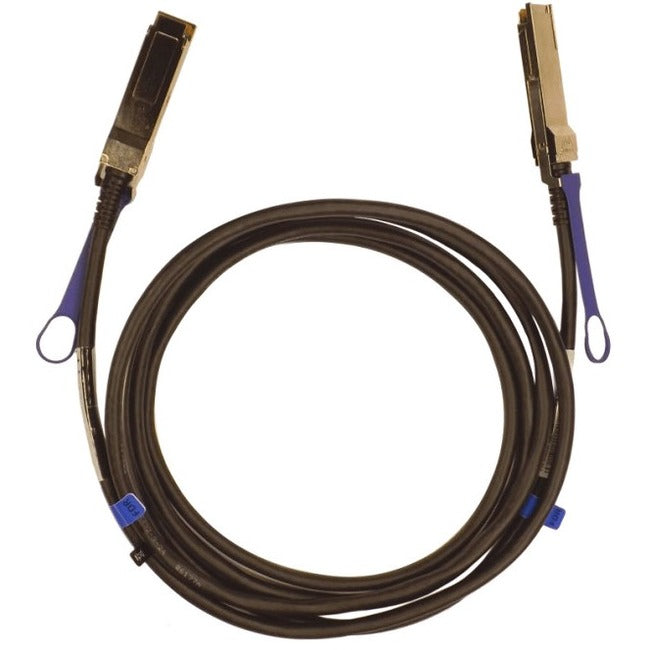

Netpatibles LinkX Twinaxial Network Cable MCP1700-B003E-NP

Description :

Netpatibles LinkX Twinaxial Network Cable
Mellanox® QSFP+ direct attach copper (DAC) cables provide robust connections for leading edge 56Gb/s InfiniBand or 40GbE Ethernet systems. The cables consist of four lanes each operating at data rates of up to 14.0625Gb/s.

Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system.

This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with Mellanox's 56Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts.

Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

• Experience a simpler way to connect devices with the entire business network


• Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required


• Features Passive


• Fully compatible with network devices

Product Type: Network Cable
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Brand Name: Netpatibles
Manufacturer: Netpatibles
Product Name: LinkX Twinaxial Network Cable
Product Line: LinkX
Manufacturer Part Number: MCP1700-B003E-NP
Manufacturer Website Address: http://www.netpatibles.com
