Dataram 64Gb Ddr4 Sdram Memory Module Dtm68306-H

Description :

Dataram 64GB DDR4 SDRAM Memory Module

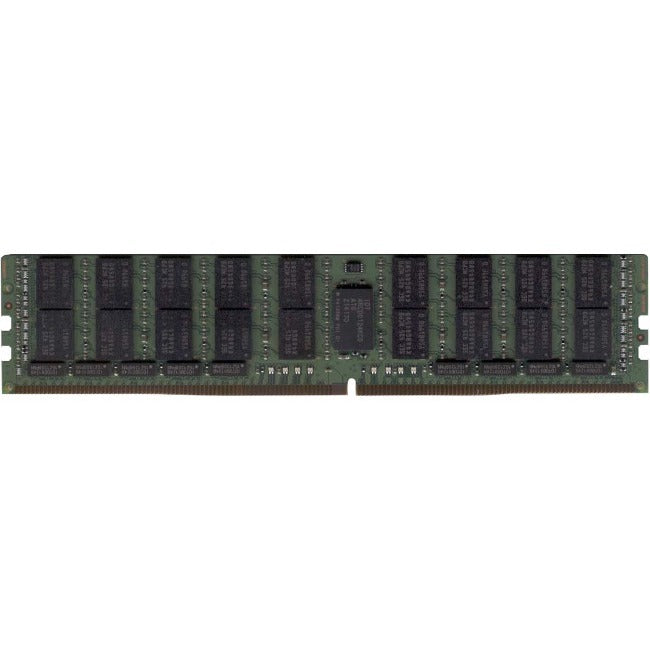

DTM68306-H is a load reduced 8Gx72 memory module, which conforms to JEDEC's DDR4-2666, PC4-2666 standard. The assembly is Quad-Rank containing - thirty-six SKHynix 4Gbx4 DDR4-2666 DDP SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• LRDIMM 64 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience


• DDR4-2666/PC4-21300 interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance


• No matter how heavy and numerous the applications that you are using, 2666 MHz memory speed will run them smoothly

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Dataram
Form Factor: LRDIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 64GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68306-H
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Limited Warranty: Lifetime
Thickness: 156.7 mil
