Dataram 4GB DDR4 SDRAM Memory Module DVM21E1T8/4G

Description :

Dataram 4GB DDR4 SDRAM Memory Module

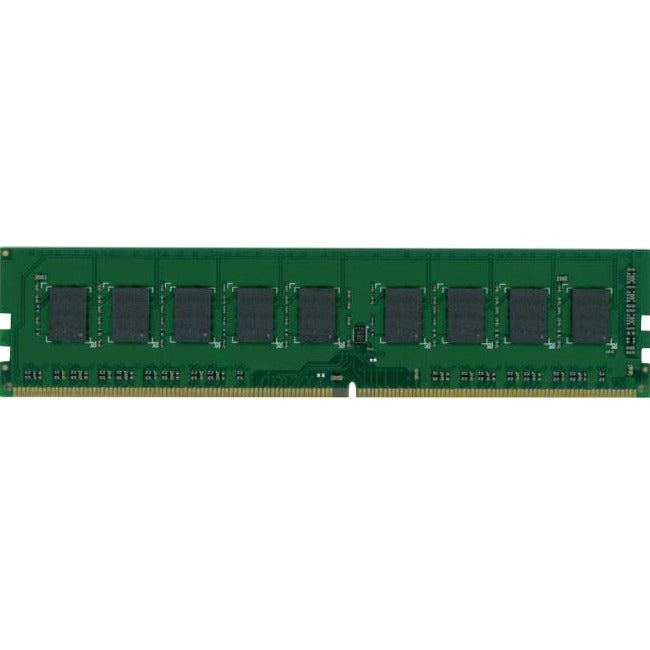

DVM21E1T8/4G is an Unbuffered 512Mx72 memory module, which conforms to JEDEC's DDR4-2133, PC4-2133 standard. The assembly is Single-Rank, comprised of nine 512Mbx8 DDR4- 2133 SDRAMs.

One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• DIMM 4 GB memory allows you to have more programs open at a time


• DDR4 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation


• Up to 2133 MHz speed with CL15 latency for playing the latest games and using heavy software

Product Type: RAM Module
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 4GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DVM21E1T8/4G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
