Description :

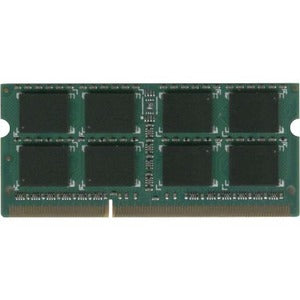

Dataram 4GB DDR3 SDRAM Memory Module
DVM16S2L8/4G is a non-ECC Unbuffered 512Mx64 small -outline memory module, which conforms to JEDEC's DDR3L-12800, PC3-1600 standard. The assembly is Dual-Rank. Each rank is comprised eight 256Mbx8 DDR3-1600 SDRAMs.
One EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
- Fully RoHS Compliant
- Differential Data Strobe signals
- SDRAM Addressing (Row/Col/Bank): 15/10/3
- Programmable CAS Latency: 5, 6, 7, 8, 9, 10 and 11
- Programmable ODT / Dynamic ODT during Writes
- ZQ Calibration for Output Driver and On-Die Termination (ODT)
- Data Bursts: 8 and burst chop 4 mode
- Data Transfer Rate: 12.8 Gigabytes/sec
- Backward-compatible to VDD = VDDQ = +1.5V ±0.075V
- I/O Type: SSTL_15
- Operating Voltage: VDD = VDDQ = +1.35V (1.283V to 1.45V)
- 204-pin JEDEC-compliant SO-DIMM, 67.60 mm wide by 30.00 mm high
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: SoDIMM
Length: 2.7"
Manufacturer: Dataram Corporation
Product Name: 4GB DDR3 SDRAM Memory Module
Manufacturer Part Number: DVM16S2L8/4G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 204-pin
Limited Warranty: Lifetime
Thickness: 149.6 mil
