Dataram 32Gb Ddr4 Sdram Memory Module Dvm21L4T4/32G

Description :

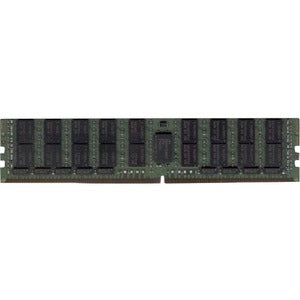

Dataram 32GB DDR4 SDRAM Memory Module

DVM21L4T4/32G is a registered 4Gx72 memory module, which conforms to JEDEC's DDR4-2133, PC4-2133 standard. The assembly is Quad-Rank. The rank is comprised of 2Gbx4 DDR4-2133 DDP SDRAMs.

One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the bus. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• Whether you are playing games, using heavy loaded OS or video editing software, the LRDIMM 32 GB of memory will make them run in a flash


• DDR4-2133/PC4-2133 interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: LRDIMM
Length: 1.2"
Manufacturer: Dataram Corporation
Product Name: 32GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DVM21L4T4/32G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
