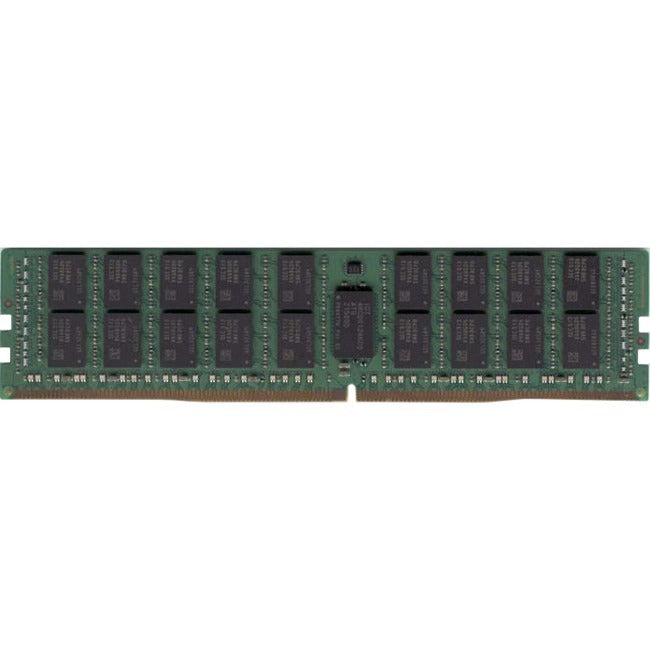

Dataram 32Gb Ddr4 Sdram Memory Module Dtm68116-S

Description :

Dataram 32GB DDR4 SDRAM Memory Module
DTM68116-S is a registered 4Gx72 memory module, which conforms to JEDEC's PC4-2400 standard. The assembly is Dual-Rank with each rank containing of eighteen Samsung 2Gbx4 DDR4-2400 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• Whether you are playing games, using heavy loaded OS or video editing software, the DIMM 32 GB of memory will make them run in a flash


• 288-pin-pin DDR4 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation


• Up to 2400 MHz speed with Registered signal for playing the latest games and using heavy software

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 32GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68116-S
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Limited Warranty: Lifetime
Thickness: 156.7 mil
