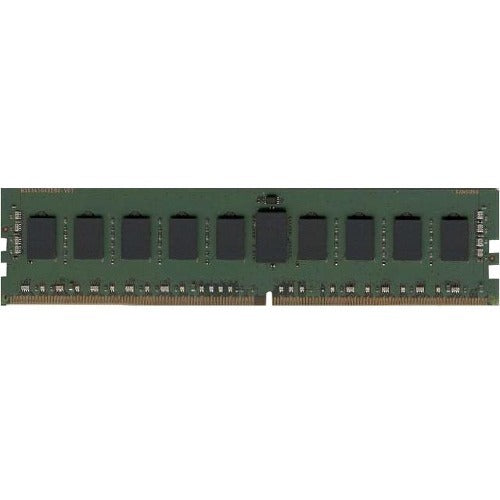

Dataram 16GB DDR4 SDRAM Memory Module DVM29R1T4/16G

Description :

Dataram 16GB DDR4 SDRAM Memory Module
DVM29R1T4/16G is a registered 2Gx72 memory module, which conforms to JEDEC's DDR4-2933, PC4-2933 standard. The assembly is Single-Rank, comprised of eighteen 2Gbx4 DDR4-2933 SDRAMs.

One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• DIMM 16 GB capacity is enough to execute all memory hungry programs simultaneously


• 288-pin-pin DDR4 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation


• Up to 2933 MHz speed for smooth computer performance

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DVM29R1T4/16G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
