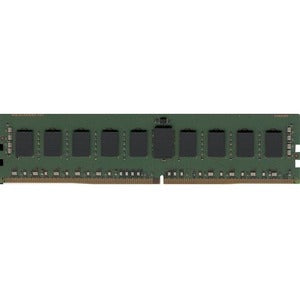

Dataram 16GB DDR4 SDRAM Memory Module DTM68149-M

Description :

Dataram 16GB DDR4 SDRAM Memory Module
DTM68149-M is a registered 1Gx72 memory module, which conforms to JEDEC's PC4-2933Y standard. The assembly is Single-Rank with the rank containing eighteen Micron 2Gbx4 DDR4- 2933Y SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• 16 GB capacity is enough to execute all memory hungry programs simultaneously


• DDR4 SDRAM interface synchronizes electrical and clock signals for an efficient data transfer rate


• Up to 2933 MHz speed with Registered signal and CL21 latency for playing the latest games and using heavy software

Product Type: RAM Module
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68149-M
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Thickness: 156.7 mil
