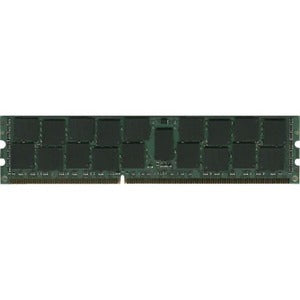

Dataram 16Gb Ddr3 Sdram Memory Module Dvm16R2S4/16G

Description :

Dataram 16GB DDR3 SDRAM Memory Module

DVM16R2S4/16G is a registered 2Gx72 memory module, which conforms to JEDEC's DDR3-1600, PC3-12800 standard. The assembly is Dual Rank. Each rank is comprised of eighteen 1Gbx4 DDR3 SDRAMs.

One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• DIMM 16 GB capacity is enough to execute all memory hungry programs simultaneously


• 240-pin-pin DDR3 SDRAM interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 1.2"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR3 SDRAM Memory Module
Manufacturer Part Number: DVM16R2S4/16G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 240-pin
