Dataram 128GB DDR4 SDRAM Memory Module DTM68308-H

Description :

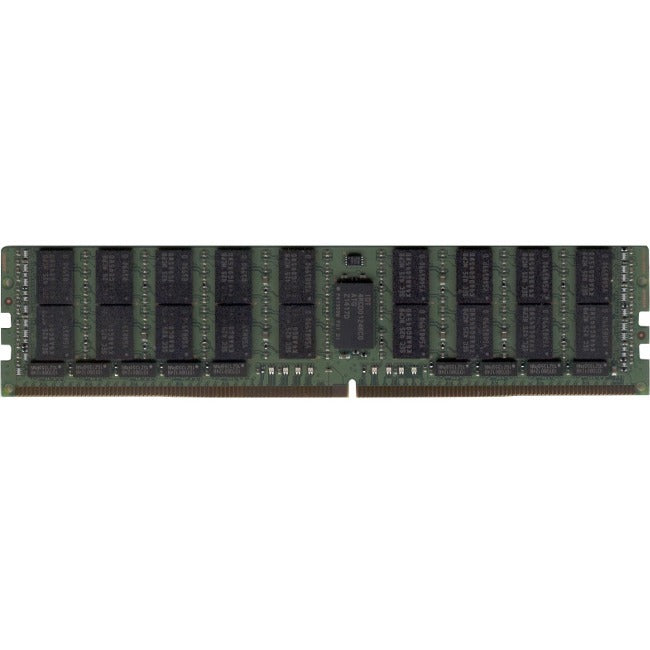

Dataram 128GB DDR4 SDRAM Memory Module
DTM68308-H is a load reduced 16Gx72 memory module, which conforms to JEDEC's DDR4-2666V, PC4-2666V standard. The assembly is Eight-Rank containing - thirty-six Hynix 8Gbx4 DDR4- 2666V 4H TSV SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• 128 GB of memory can produce approx. 10K MIPS and as a result, your system gets more room to run complex apps.


• 288-pin-pin DDR4-2666/PC4-2666 interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance


• Up to 2666 MHz speed for playing the latest games and using heavy software

Product Type: RAM Module
Brand Name: Dataram
Compatibility: Supermicro X11DAC Motherboard
Form Factor: LRDIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 128GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68308-H
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Thickness: 156.7 mil
