Cyberpower Relayio500 Interface Cards/Adapter Internal

Description :

Relay I/O Card, DB9, 1 - UPS shutdown in Battery Mode, 30VCD/125VAC, 3A (per relay), 7.5 - 12V, 0 - 40°C, 52g

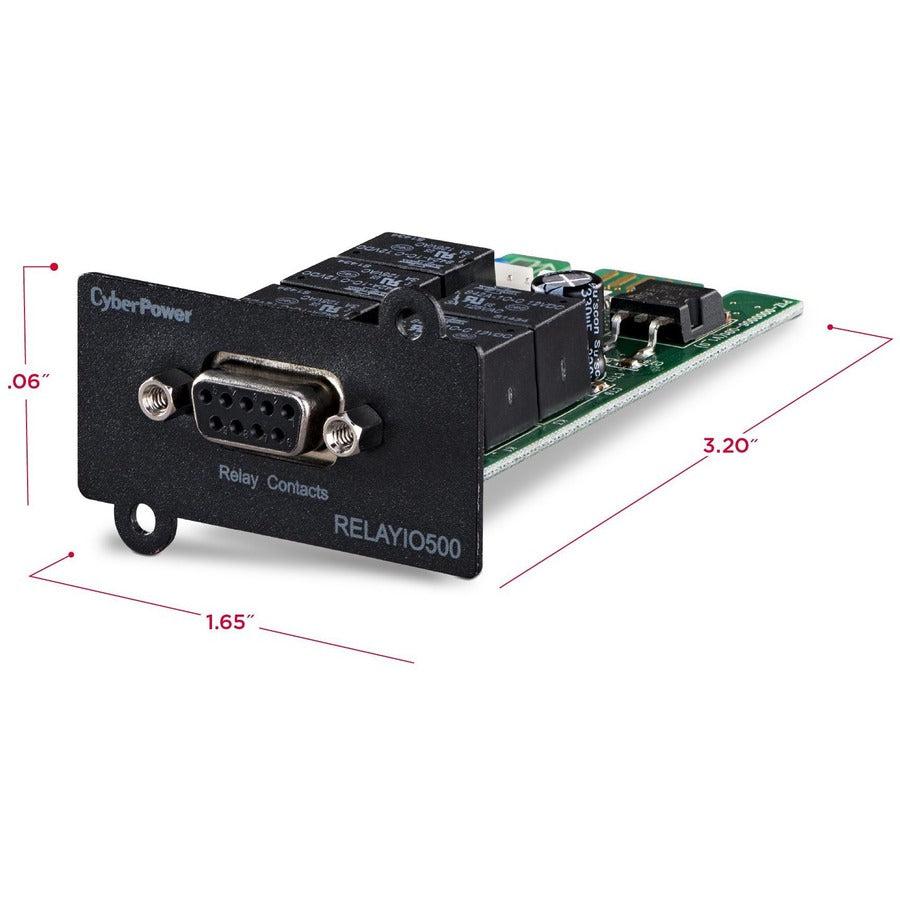

CyberPower RELAYIO500. Certification: RoHS. Width: 41.8 mm, Depth: 81 mm, Height: 14.2 mm. Package width: 168 mm, Package depth: 162 mm, Package height: 58 mm. Connector type: D9, Interface: UPS, Compatibility: OR Series UPS systems, PR Series UPS systems, OL1000RTXL2U, OL1500RTXL2U, OL1500RTXL2UN,...

RELAYIO500 | Hardware
Monitor and locally manage a Smart App UPS system

Product Overview

They CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible* Smart App UPS with expansion slot.

Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage. The RELAYIO500 comes with a three-year warranty.

Remote Shutdown in Battery Mode
Preserves battery power in the event of a prolonged power outage.

Interfacing with External Alarms

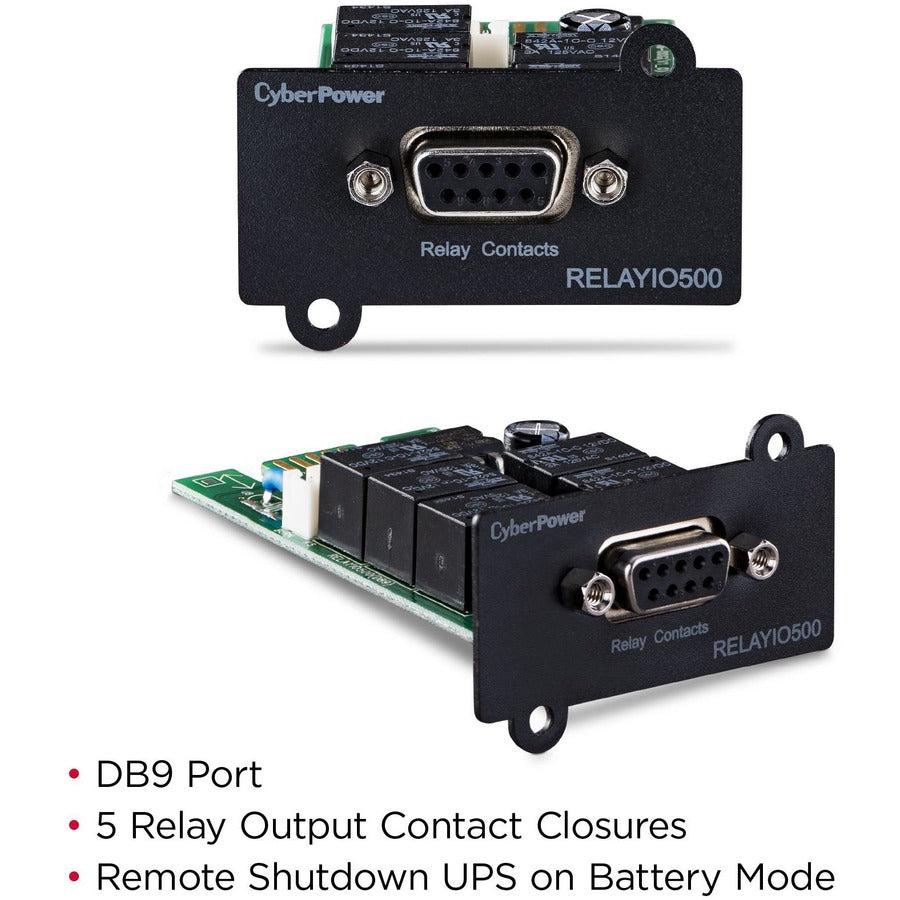

External alarm devices can be interfaced via the DB9 port.

Three-Year Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
