CyberPower PDU30MT16FNET. PDU types: Monitored, Rack capacity: 2U, Mounting: Horizontal. AC outlets quantity: 16 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA L5-30P. Cable length: 3.04800 m, Certification: UL60950_1 ETL, CSA C22.2, FCC Class B. Nominal input voltage: 120 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Weight (imperial): 3.9 kg (8.6 lbs), Dimensions (W x D x H) (imperial): 88.9 x 112 x 433.1 mm (3.5 x 4.41 x 17.1")
Monitored PDU's - Remote monitoring of outlets

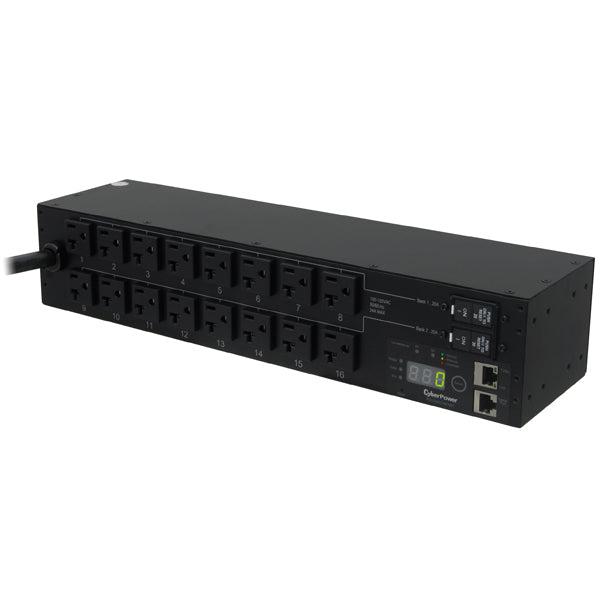

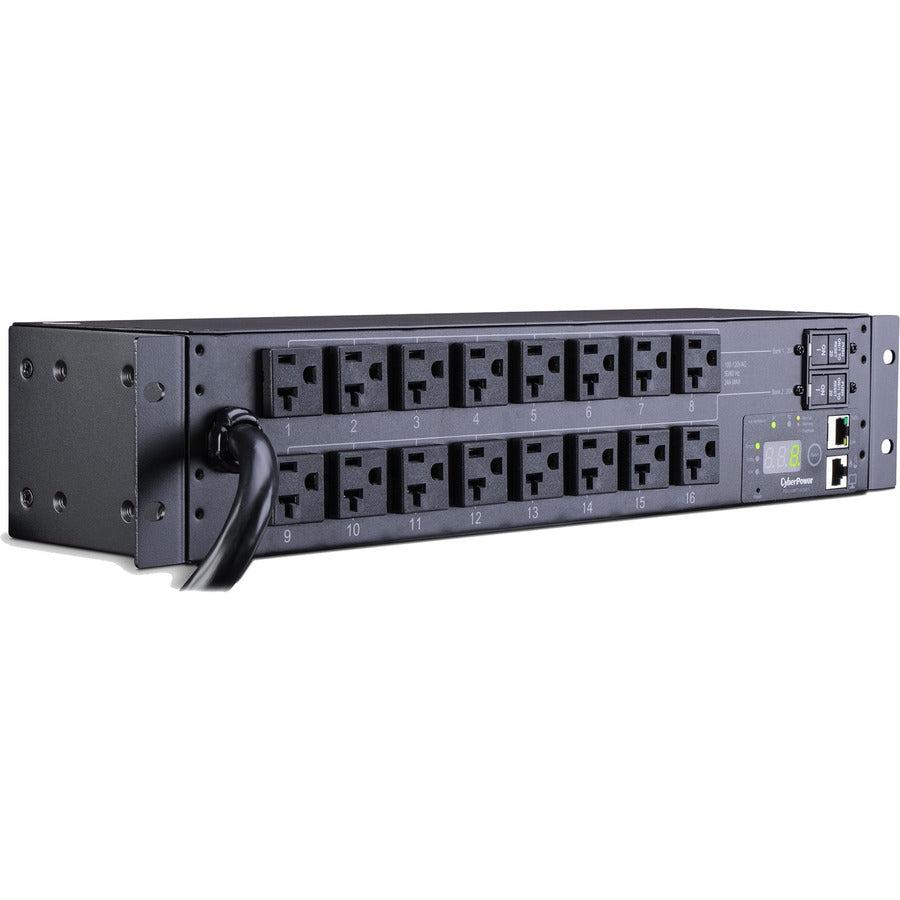

The CyberPower (PDU30MT16FNET) 16-outlet 2U rack mount monitored power distribution unit (PDU) provides 120V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug, with unfiltered electrical pass-through. Power status can be monitored over the network, using CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally using the LCD.
The front LCD panel provides local monitoring of the PDU. Load management is accomplished by using the display to measure the electrical current used by connected equipment in amps. The LCD can also display input voltages to assist in diagnosing potential issues with input power. Power being consumed in watts can also be displayed, as well as, the IP address of the network interface for ease of installation.
The CyberPower Management Console offers real-time remote monitoring of PDU vitals of the outlets on networked clients. Event Logging via a web browser/network connection to review history on power conditions, such as input voltages, load levels, and outlet status. Automatic event notifications via Email or SNMP Trap are sent to designated user when specified power events occur.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes cord retention trays and is UL60950_1 and FCC Class B certified. A three-year warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
