CyberPower PDU20MV20F. PDU types: Metered, Rack capacity: 0U, Mounting: Horizontal/Vertical. AC outlets quantity: 20 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA 5–20P. Cable length: 3.05 m, Certification: UL1363 CSA C22.2. Monitoring: Current. Nominal input voltage: 120 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz

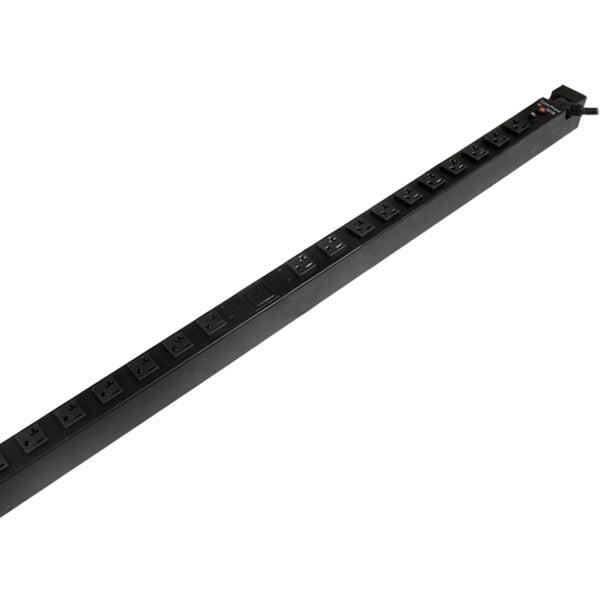

The CyberPower 20-outlet (20 Front) 0U vertical rack mount metered power distribution unit (PDU20MV20F) provides 120V 20A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA 5-20P plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 20 NEMA 5-20R (20 Front) output receptacles - 20-amp electrical capacity with circuit breaker - 120V AC - 50/60Hz - Front LCD for real-time load monitoring - 48” 0U vertical rack mount - 10-ft. power cord
